motherboard chip
Integrated Chip Sound Card/Network Card
Main Chipset Intel B360
Chipset Description Using Intel B360 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC892 8-channel audio chip
Network card chip Onboard Intel I219V Gigabit network card
Processor Specifications
CPU type 8th generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description Support Intel Turbo Boost 2.0 technology
memory specification
Memory type 4×DDR4 DIMM
Maximum memory capacity 64GB
Memory description Support dual-channel DDR4 2666/2400/2133MHz memory
storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 2×PCI-E X16 graphics card slot, 3×PCI-E X1 slot
Storage interface 2×M.2 interface, 6×SATA III interface

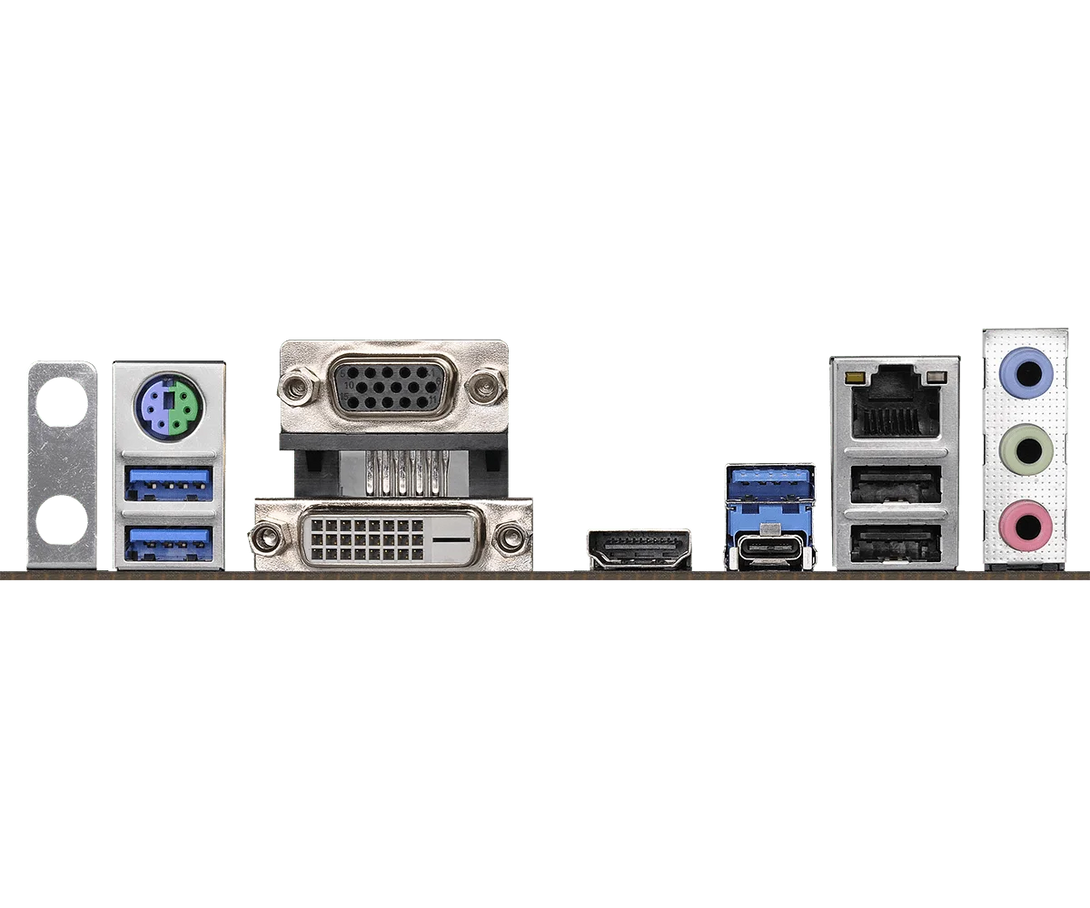

I/O interface
USB interface 1×USB3.1 Gen2 Type-A interface, 1×USB3.1 Gen2 Type-C interface, 4×USB3.1 Gen1 interface (2 built-in+2 backplane), 5×USB2.0 interface (3 built-in+ 2 backplanes)
Video interface 1×DVI interface, 1×HDMI interface, 1×VGA interface
Power interface One 8-pin, one 24-pin power interface
Other interfaces 1×RJ45 network interface, 3×audio interface, 1×CPU fan interface, 3×chassis/water pump fan interface, 1×front panel audio interface, 1×PS/2 keyboard and mouse universal interface, 2×antenna port
plate type
Motherboard form factor ATX form factor
Dimensions 30.5×22.4cm
