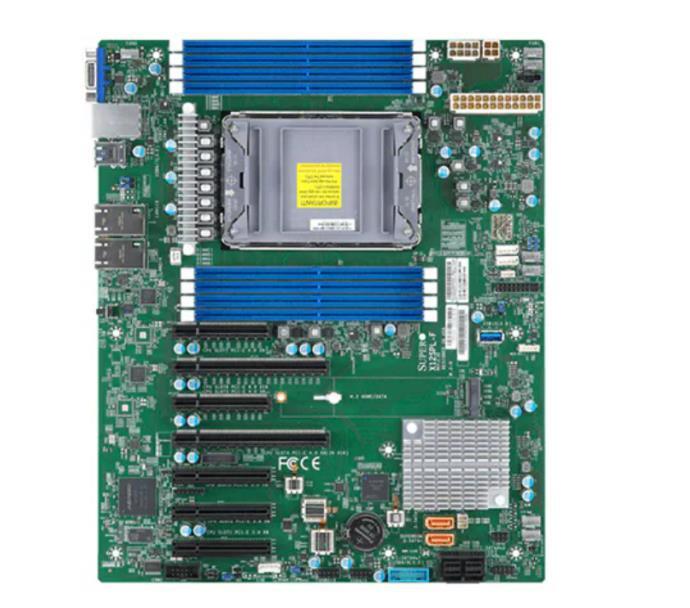

StoneTaskin Original Supermicro X12SPL-F ATX-Motherboard support Intel Xeon LGA4189 Scalable cpu Mainboard Fully Tested Free Shipping

$837.57 $663.97 SPAREN Sie 21 %
Zur Wunschliste hinzufügen

Guaranteed Safe Checkout

paypalvisamasteramerican expressdiscoverapple pay
Fast standard shipping on all orders. Estimated shipping is 7-15 days.
Description


Product SKUs
MBD-X12SPL-F
Physical Stats
Form Factor
  • ATX
Dimension
  • 12.1" x 10" (30.73cm x 25.4cm)
Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core
  • Up to 40 cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB Intel® Optane™ Persistent Memory 200 Series
  • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz
Memory Type
  • 3200/2933/2666 MT/s ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 ASPEED AST2600 BMC port(s)
Network Controllers
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller

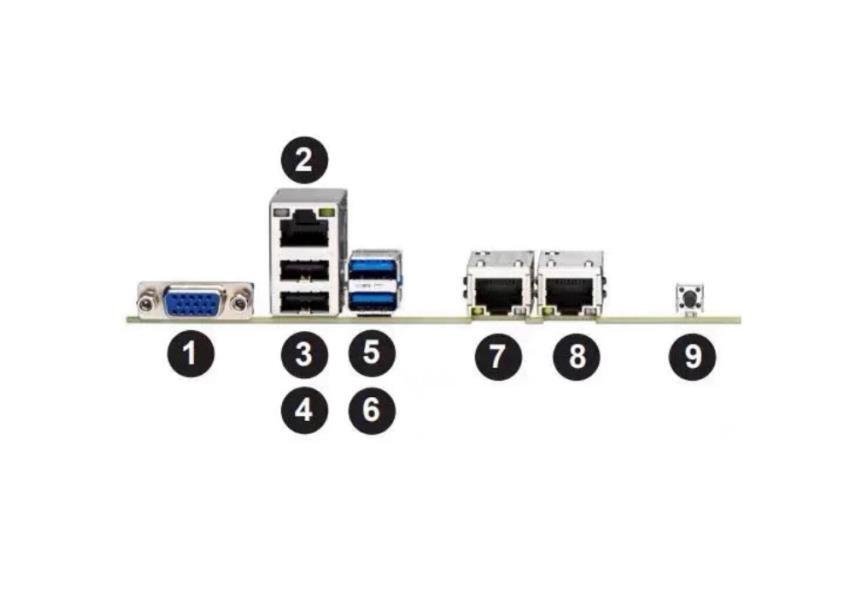

Input / Output
SATA
  • 10 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
  • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 4.0 x16,
  • 1 PCIe 4.0 x8 (in x16 slot),
  • 2 PCIe 4.0 x8,
  • 3 PCIe 3.0 x8
M.2
  • M.2 Interface: 1 SATA/PCIe 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.2
  • SMBIOS 3.0 or later
  • UEFI 2.7
Management
Software
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
LED
  • UID/Remote UID
  • Suspend static indicator LED
  • CPU / System Overheat LED
Temperature
  • CPU thermal trip support
  • PECI
FAN
  • 7x 4-pin fan headers (up to 7 fans)
  • System level control
  • PWM fan speed control
  • Fan speed control
  • Overheat LED indication
Other Features
  • WOL, UID, RoHS, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT
Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
