Descripción
motherboard chip
Integrated chip sound card/network card
Main Chipset AMD A88X
Chipset Description Using AMD A88X (Bolton D4) Chipset
Display chip APU built-in display chip (requires APU support)
Audio chip Integrated Realtek ALC887 8-channel sound chip
Network card chip Onboard Realtek RTL8111G Gigabit network card
Processor Specifications
CPU type AMD A10/A8/A6/A4/Athlon
CPU socket Socket FM2/FM2+
Memory Specifications
Memory type 4×DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR3 2133/1866/1600/1333MHz memory
storage expansion
PCI-E Standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics card slot, 1×PCI-E X1 slot
1 PCI slot
Storage interface 6×SATA III interface

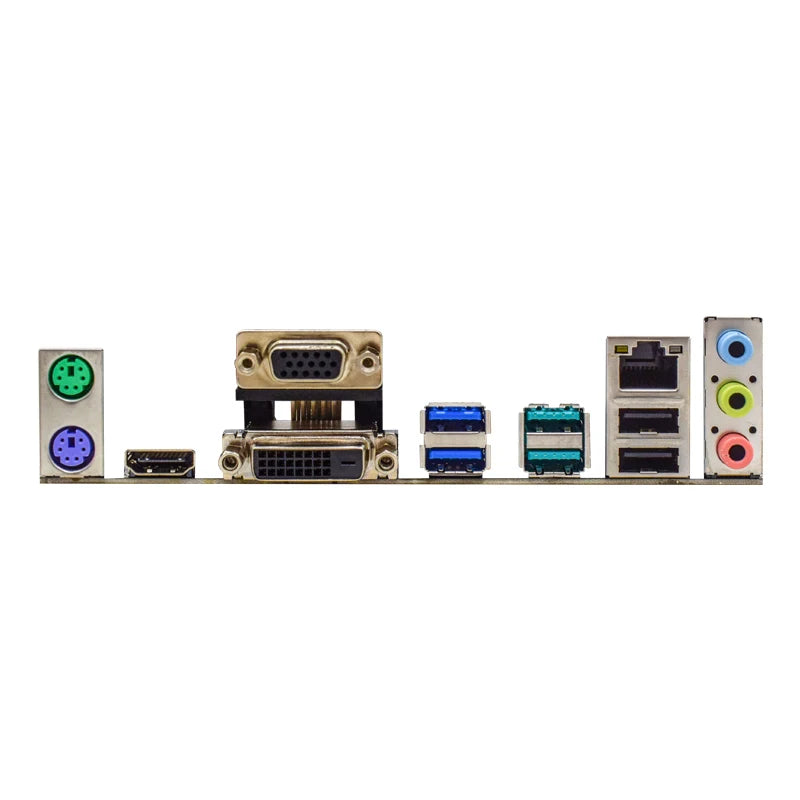

I/O interface
USB interface 4 × USB3.0 interface (2 built-in + 2 backplane), 2 × USB3.1 interface 6 × USB2.0 interface (4 built-in +2 backplane)
Video interface 1×DVI interface, 1×VGA interface, 1×HDMI interface
Power connector one 4-pin, one 24-pin power connector
Other ports 1×RJ45 network port, audio port, 1×PS/2 mouse, 1×PS/2 keyboard port
plate type
Mainboard form factor Micro ATX form factor
Dimensions 23.6×20.8cm
