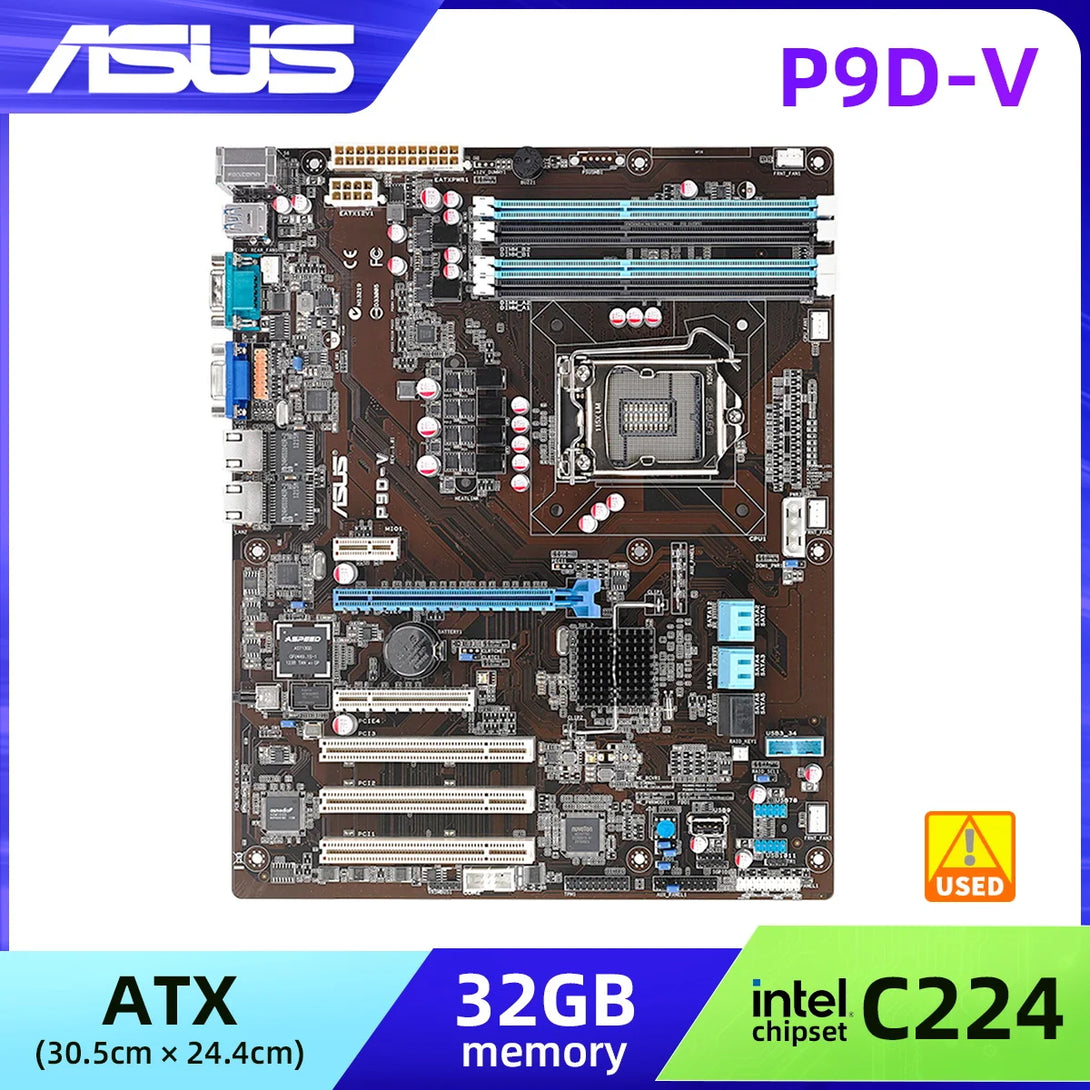

Motherboard chip

Integrated chip sound card/network card

Main chipset Intel C224

Chip manufacturer Intel

Chipset description Using Intel C224 chipset

Graphics chip Aspeed AST2300 + 32MB VRAM

Network chip onboard Intel I210AT gigabit network card

CPU specifications

Applicable platform Intel

CPU type: Pentium/Celeron/Core i3/Xeon E3-1200 v3

CPU description Support Intel 22nm processor

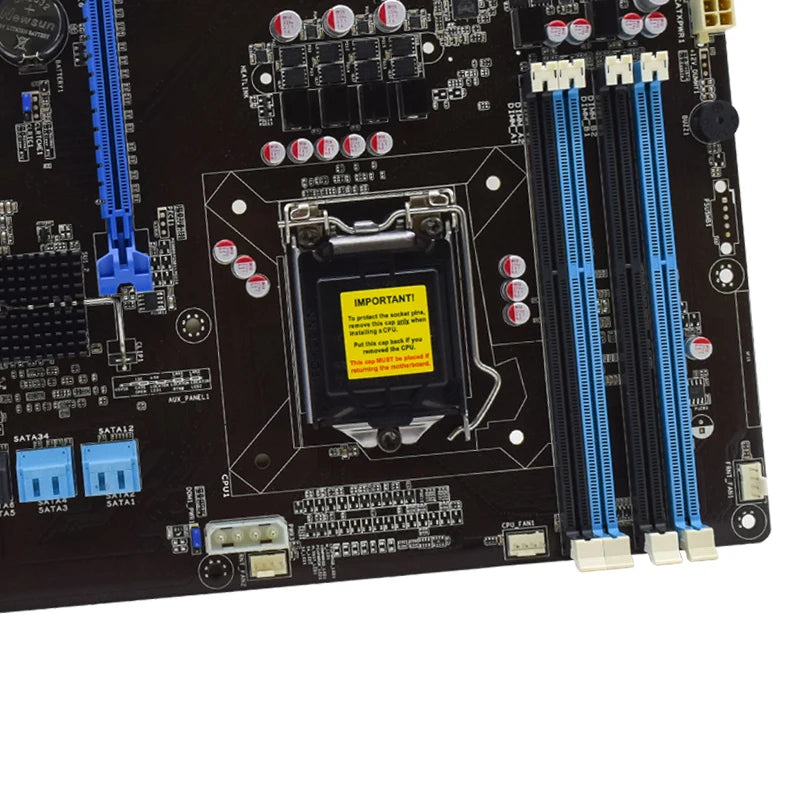

CPU socket Socket 1150

Number of CPUs supported 1

Memory specifications

Memory type DDR3

Memory description 4×DDR3 DIMM

Maximum support 32GB memory, support dual-channel DDR3 1600/1333MHz memory

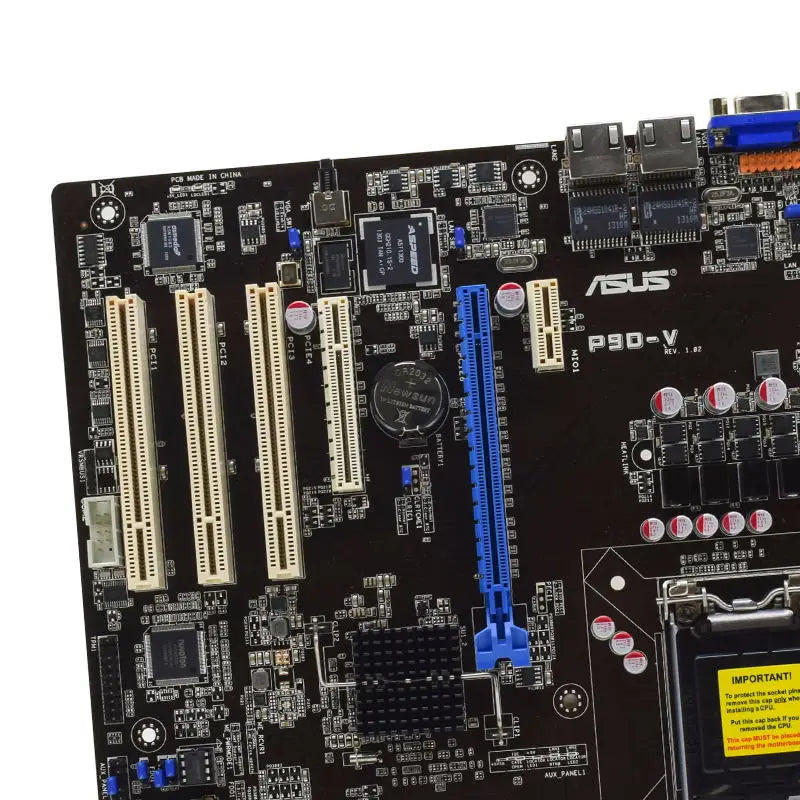

Expansion slot

Graphics slot 2 × PCI-E X1 graphics slot

1×PCI-E X16 graphics slot

2×PCI-E X8 graphics slot

PCI slot 2 × PCI graphics slot

SATA interface 4×SATA III interface; 2×SATA II interface

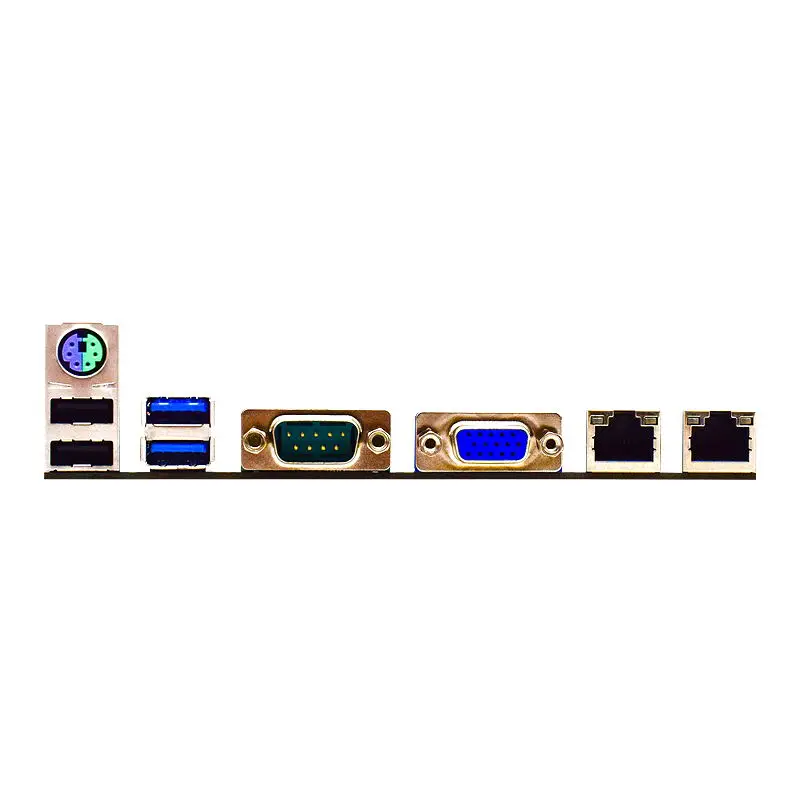

I/O interface

USB interface 2×USB2.0 interface; 2×USB3.0 interface

PS/2 interface PS/2 keyboard and mouse universal interface

Parallel serial port COM interface

External port 1×VGA interface

2×RJ45 network interface

Plate type

Motherboard board type ATX board type

Dimensions 30.5×24.4cm
