We are mainly a store selling used motherboards, mainly selling AM4 interface
motherboards such as B550 X570, as well as some LGA 1151, LGA 1200, LGA 1700 motherboards, X99
X299 series motherboards, and server motherboards.
Our motherboards undergo rigorous testing, including testing of CPU
slots, memory slots, M.2/SATA interfaces, and more.
Before shipment, we will conduct a second shipment test and take pictures of the test results.
Once testing defects are found, we will not ship the product.
Regarding the delivery time, we usually ship within 48 hours. Some orders can
even be shipped within 24 hours.You can purchase motherboards with confidence in our store, and
feel free to contact us if you have any questions. We have professional testers. I can answer
your questions.
In terms of motherboard accessories, we will ship them with a i/o board and SATA cable. For
motherboards that can install antennas, we will also ship with antennas. We will remove the
battery before shipment in order to reset the BIOS settings.
(The battery was not shipped with the package at the time of shipment. You need to equip your
own battery. Hope for understand.)
Regarding the Bios version, we will update the AM4 interface motherboard to the latest Bios
version by default. If you have special requirements, please leave us a message.
Best Regards
Chipset
INTEL B760
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory
4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

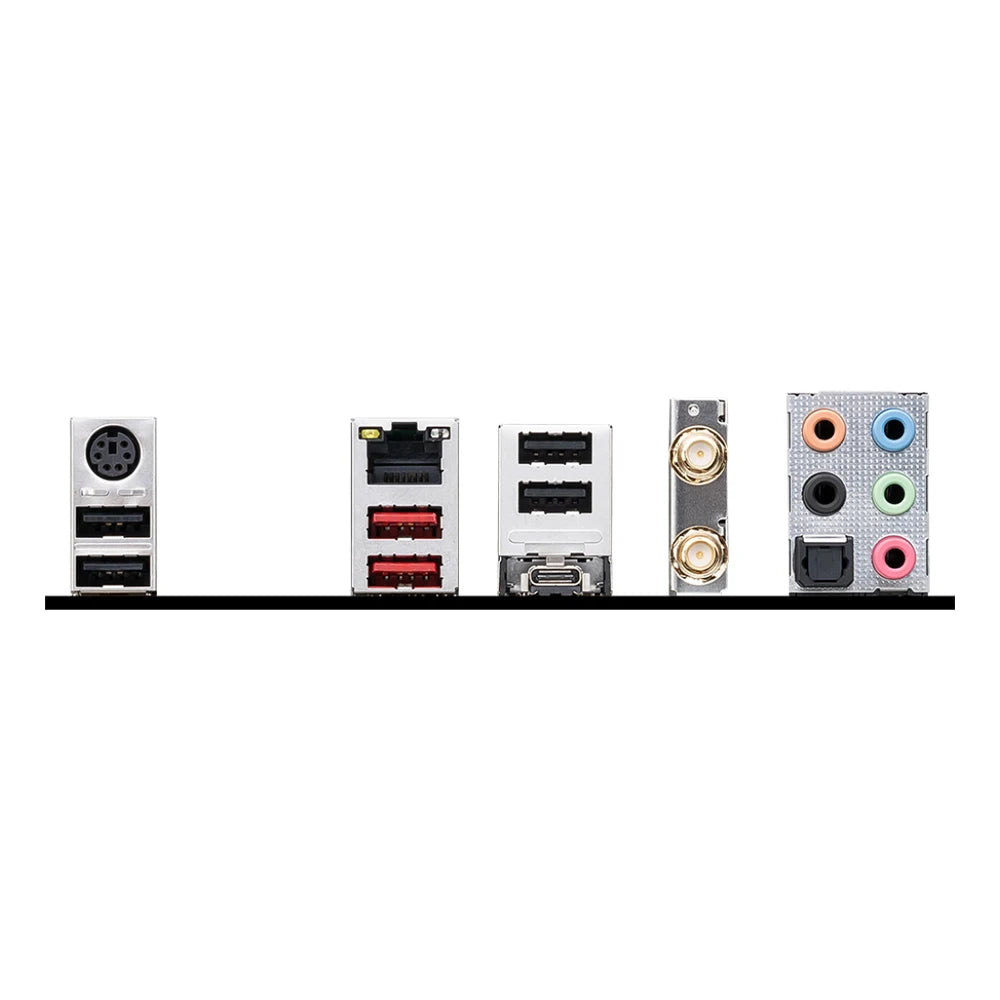

BACK PANEL PORTS
Keyboard / Mouse
2.5G LAN
USB 2.0
Wi-Fi / Bluetooth
Audio Connectors
USB 2.0
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
S/PDIF-OUT
PCB Info
ATX
