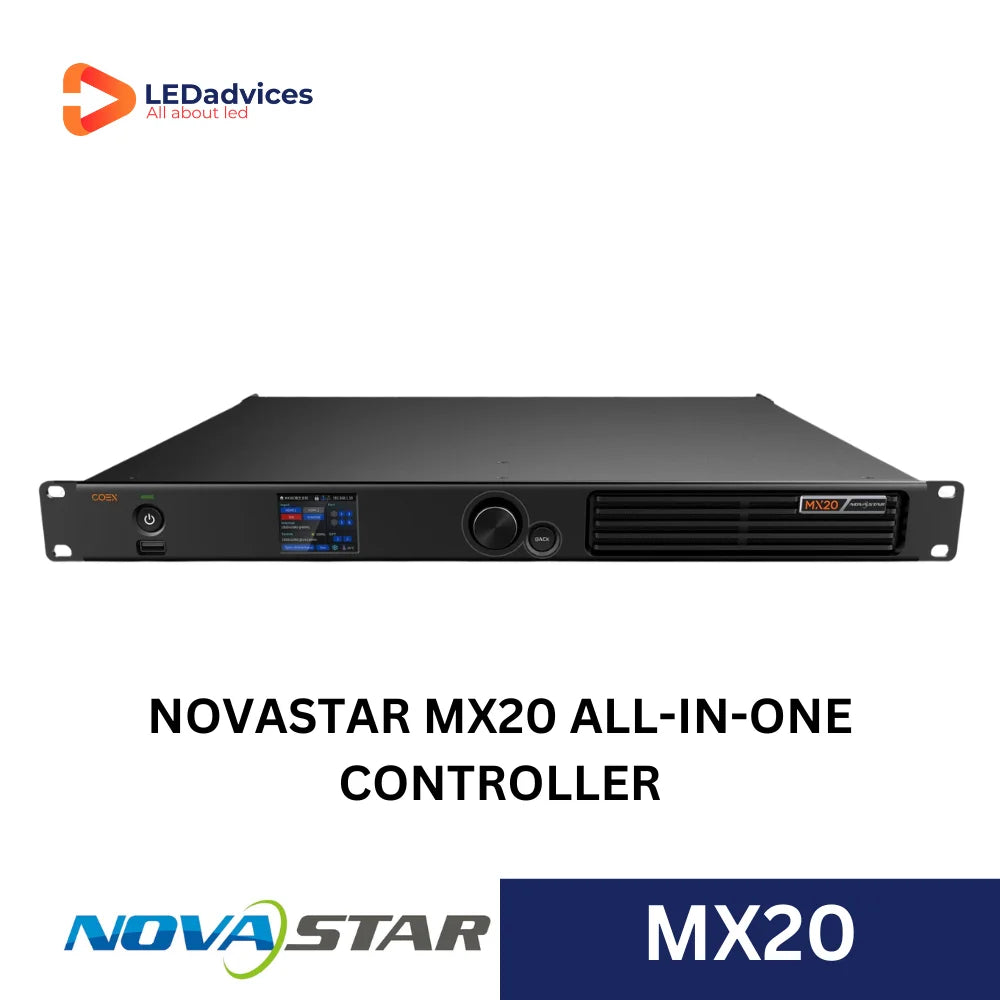

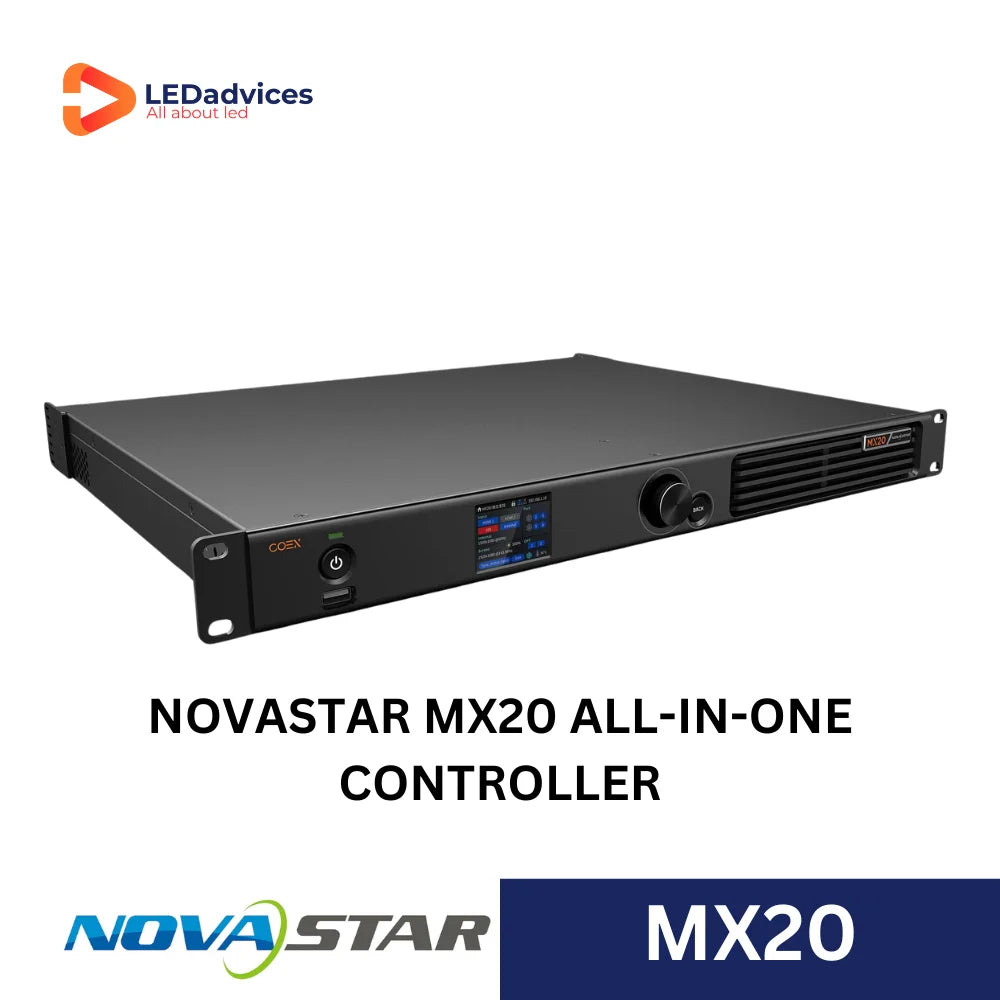

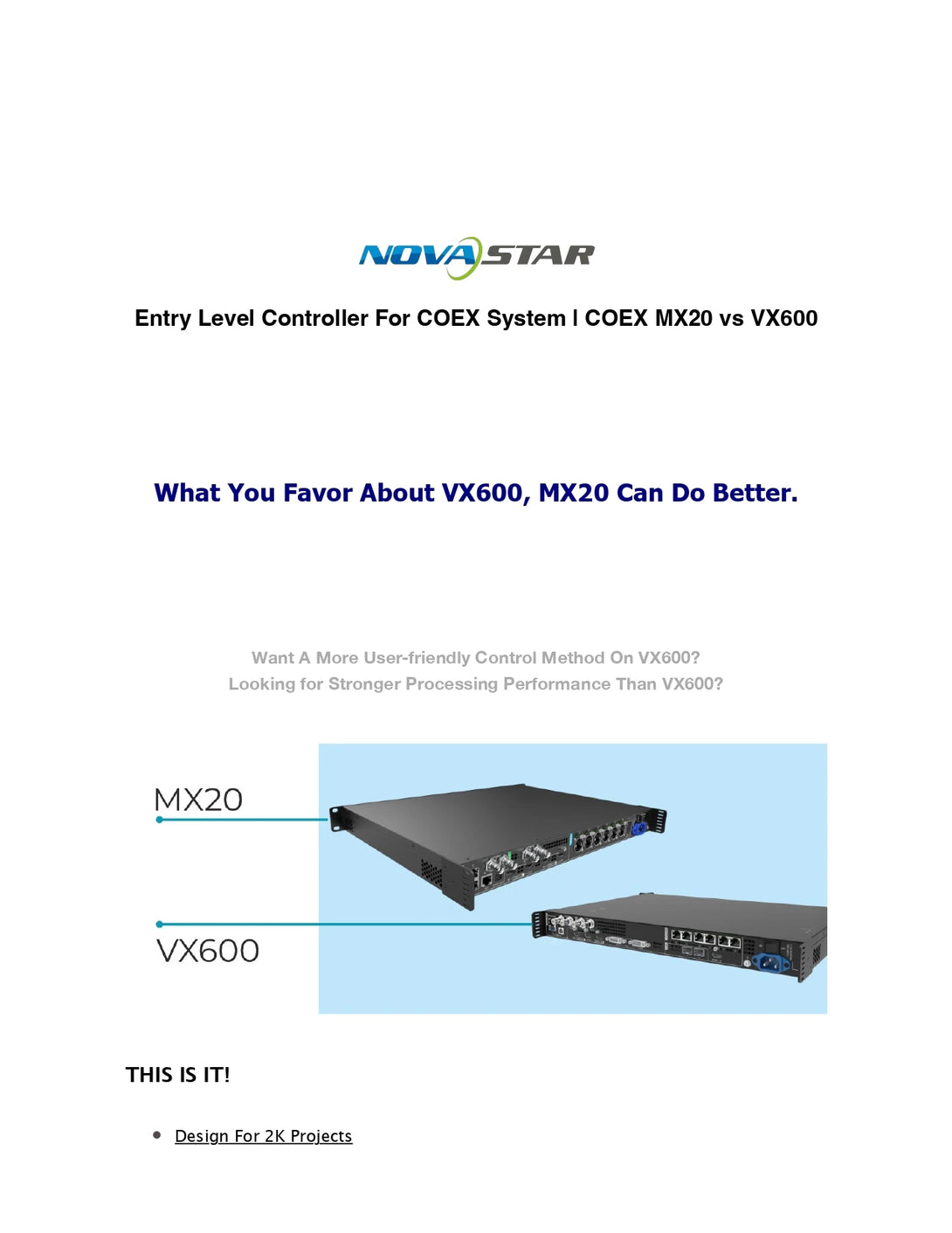

The NovaStar MX20 is an entry-level all-in-one LED display controller in the COEX series, combining video processing and control into a compact unit. Designed for smaller-scale LED display projects, it delivers reliable performance and advanced features for professional applications.
Key Features:
Video Inputs:
2x HDMI 1.3: Supports resolutions up to 1920 x 1080 @ 60Hz.
1x 3G-SDI: Ideal for professional broadcast setups.

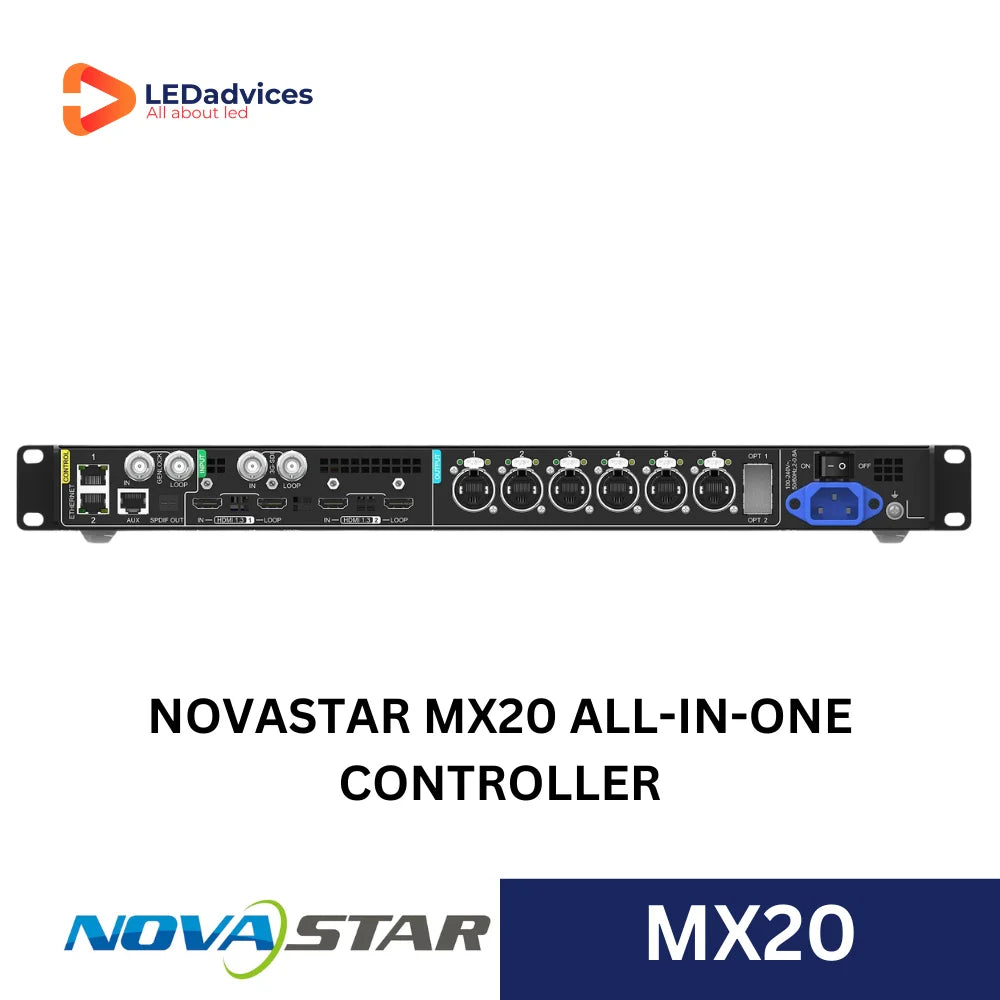

Video Outputs:
6x Ethernet Ports: Connect to LED panels with a maximum capacity of 650,000 pixels per port.
2x 10G Optical Fiber Ports: Includes primary and backup for high-speed data transmission.
Processing Features:
-
Built-In Scaling:
4 modes: Custom, Pixel-to-Pixel, Snap to Canvas, Fill Screen.
Adapts content to fit LED displays automatically.
-
14-Channel Color Correction:
Ensures precise color tuning for optimal display performance.
-
Full Grayscale Calibration:
Achieves uniform brightness and color across panels (requires A10s Pro receiving card).
-
Low Latency:
Operates with just 1 frame of latency in "All-In-One Controller" mode.
-
Genlock:
Synchronizes video output with external signals for smooth playback.
-
Flexible Mapping:
No Rectangular Restriction: Panels not in use are excluded from port capacity calculations.
Control:
2x Ethernet Ports: For convenient configuration and management.

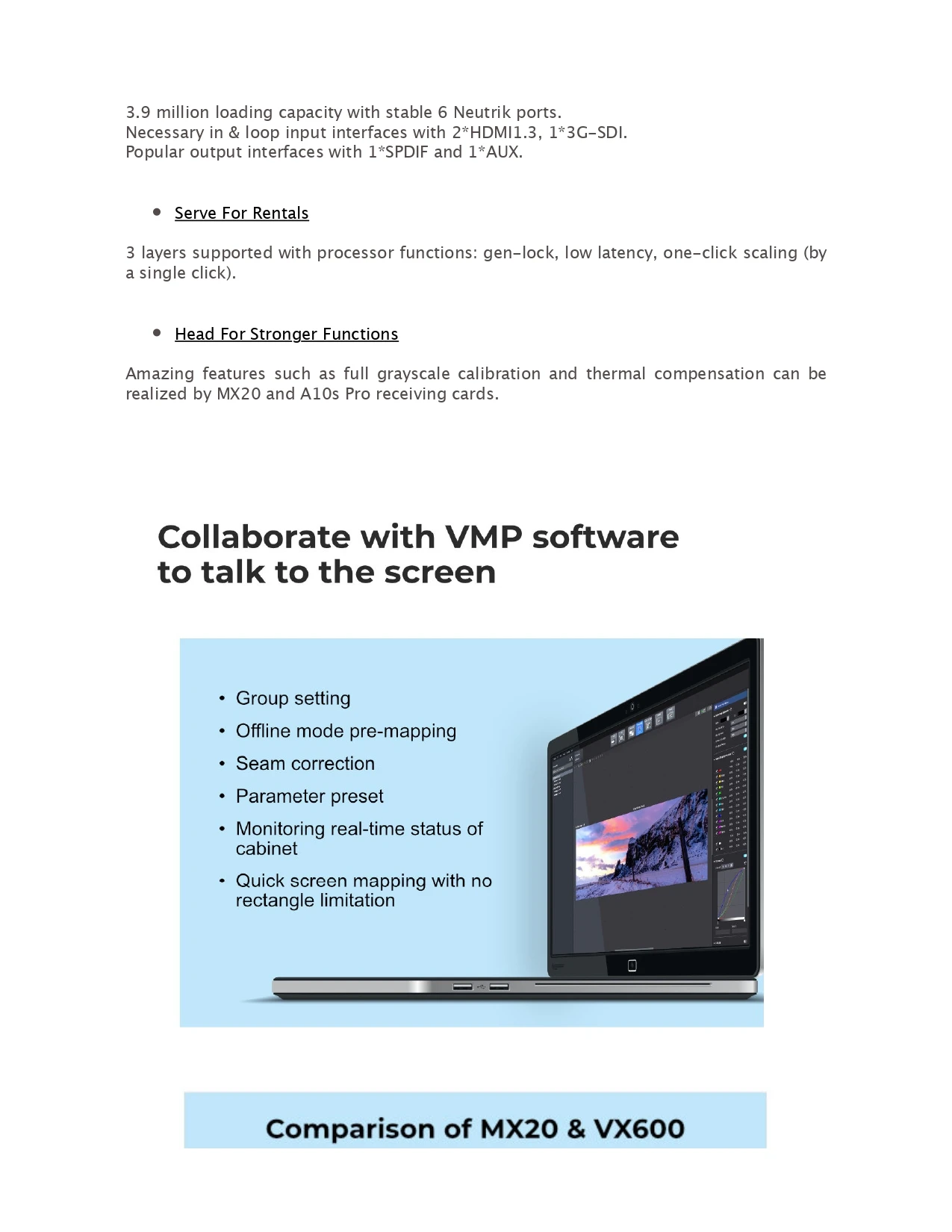

Compatible with Vision Management Platform (VMP) for advanced control and monitoring.

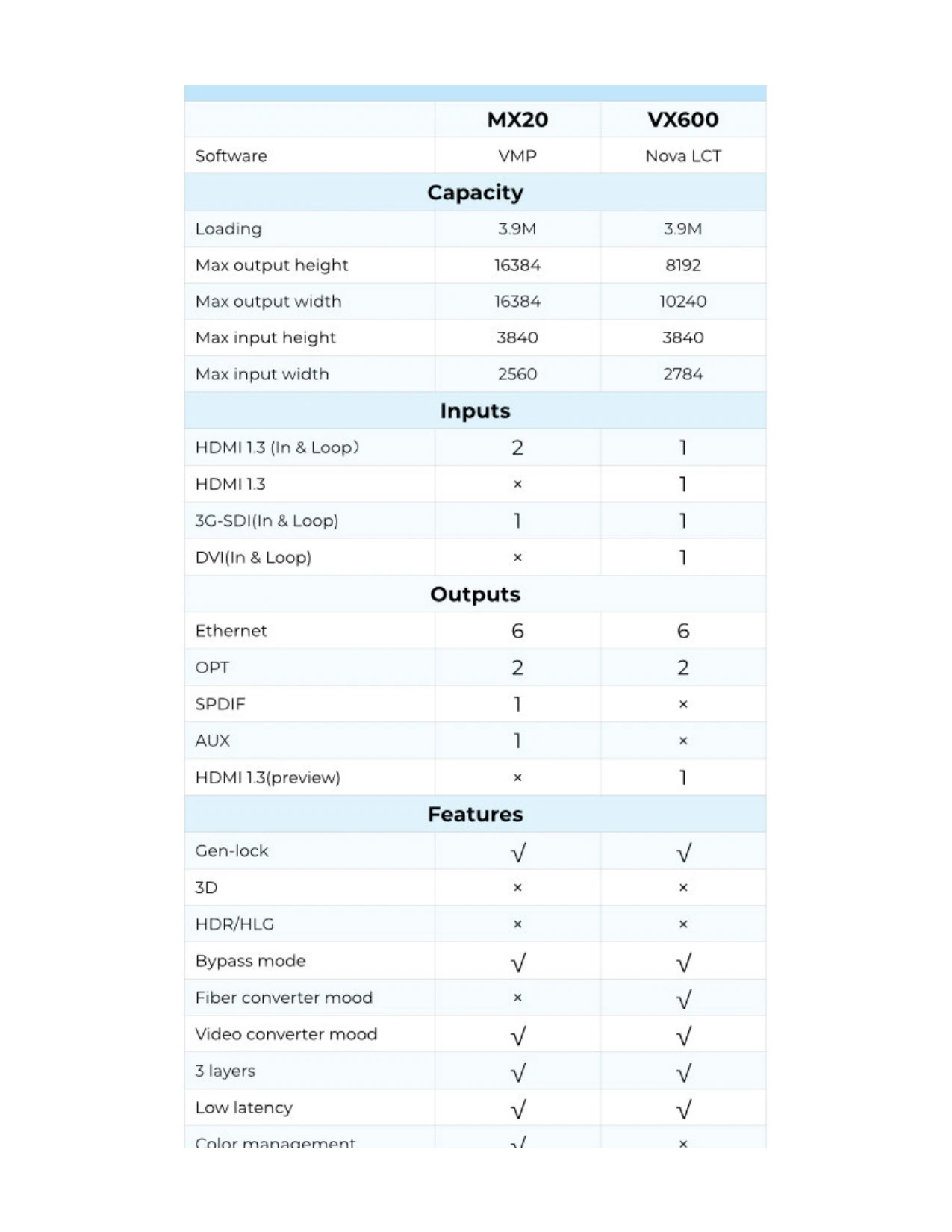

Capabilities:
Maximum Input Resolution: 1920 x 1080 @ 60Hz.
Maximum Output Resolution: 3840 x 2560 pixels (W x H or H x W).
-
Loading Capacity:
Per Output: 650,000 pixels.
Total: 3.9 million pixels.
Function Limitations:
Frame Rate Adaptive and Full Grayscale Calibration require A10s Pro Receiving Cards.
Only specific driver ICs (e.g., MBI5264, ICND2055) are supported for advanced functions.
Genlock disables Low Latency mode.
The .ncp file generated by NovaStar’s Cabinet Tool is essential for proper calibration.
Summary:
The NovaStar MX20 is an excellent choice for smaller projects or installations where ease of use and reliable performance are critical. Its combination of scaling, color correction, and genlock capabilities ensures smooth, professional visuals, while its manageable size and capacity make it ideal for compact setups.
