M4A78LT-M/CM1630
Integrated chip Graphics Card/Sound Card/Network Card Chipset Description
Using nVIDIA GeForce 7025/nForce 630a chipset Display chip
Integrated NVIDIA GeForce 7050 graphics core network card chip
Onboard Gigabit LAN Processor Specifications
CPU type Phenom II/Athlon II/Sempron CPU socket Socket AM3
CPU description Support AMD Socket AM3 interface processor
Memory Specifications memory description
Support dual-channel DDR3 1800 (overclock)/1600 (overclock)/1333/1066MHz memory
storage expansion
PCI-E slot 1×PCI-E X16 graphics card slot 1×PCI-E X1 slot
PCI slot 2 x PCI slots
storage interface
4×SATA II interface
I/O interface
USB interface
10×USB2.0 interface
video interface
1×VGA interface
Power interface
One 4-pin, one 24-pin power connector

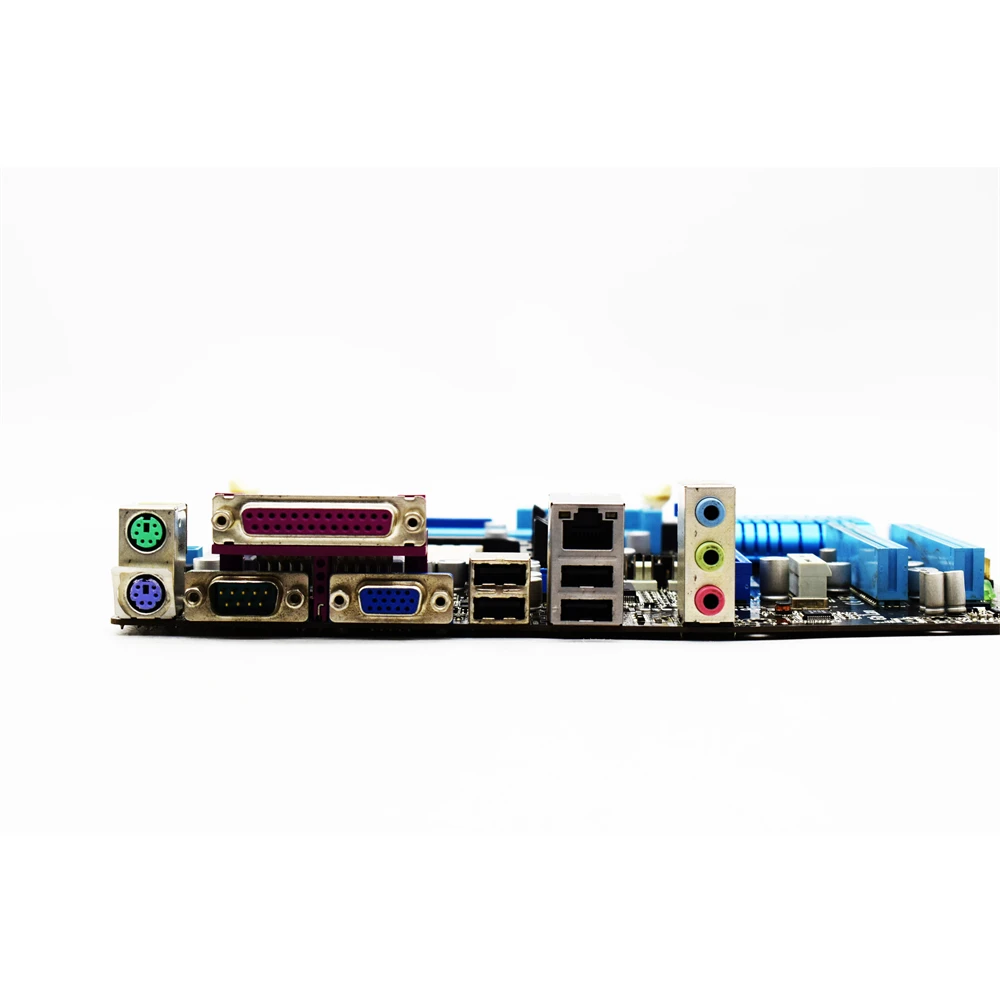

Other interfaces
1×RJ45 network interface, audio interface, PS/2 mouse, PS/2 keyboard interface
plate type
main board type
uATX form factor
software management
BIOS performance
8Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS v2.5, ACPI 2.0a
Other parameters
RAID function
Support RAID 0, 1, 5, 10, JBOD
