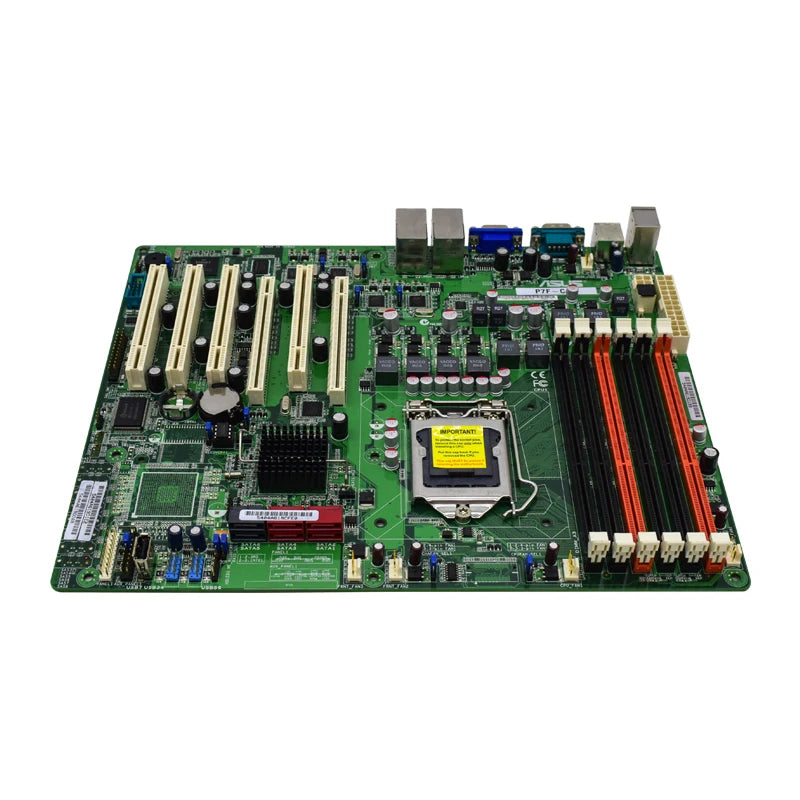

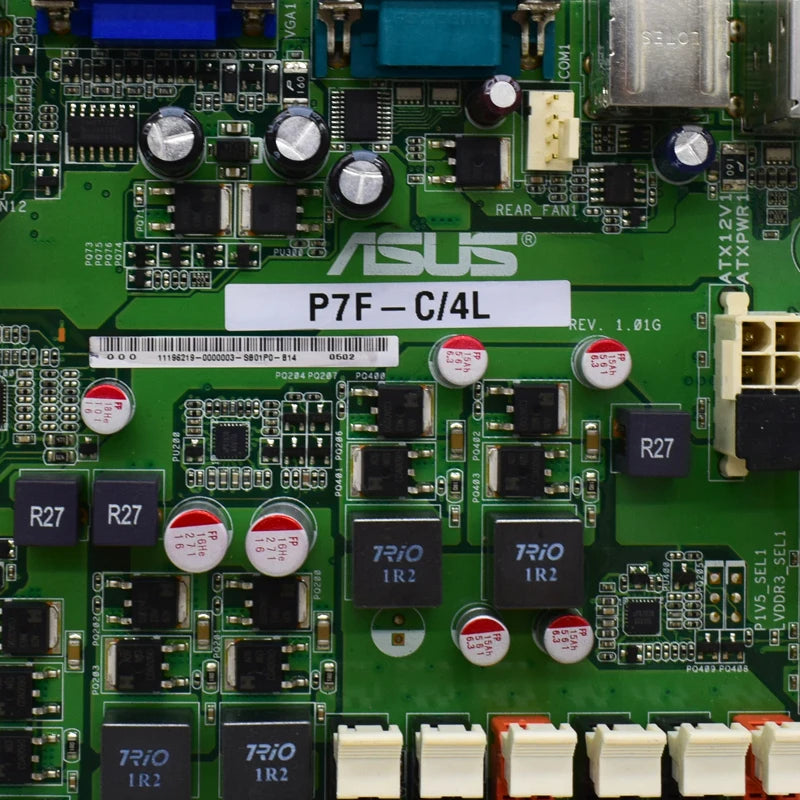

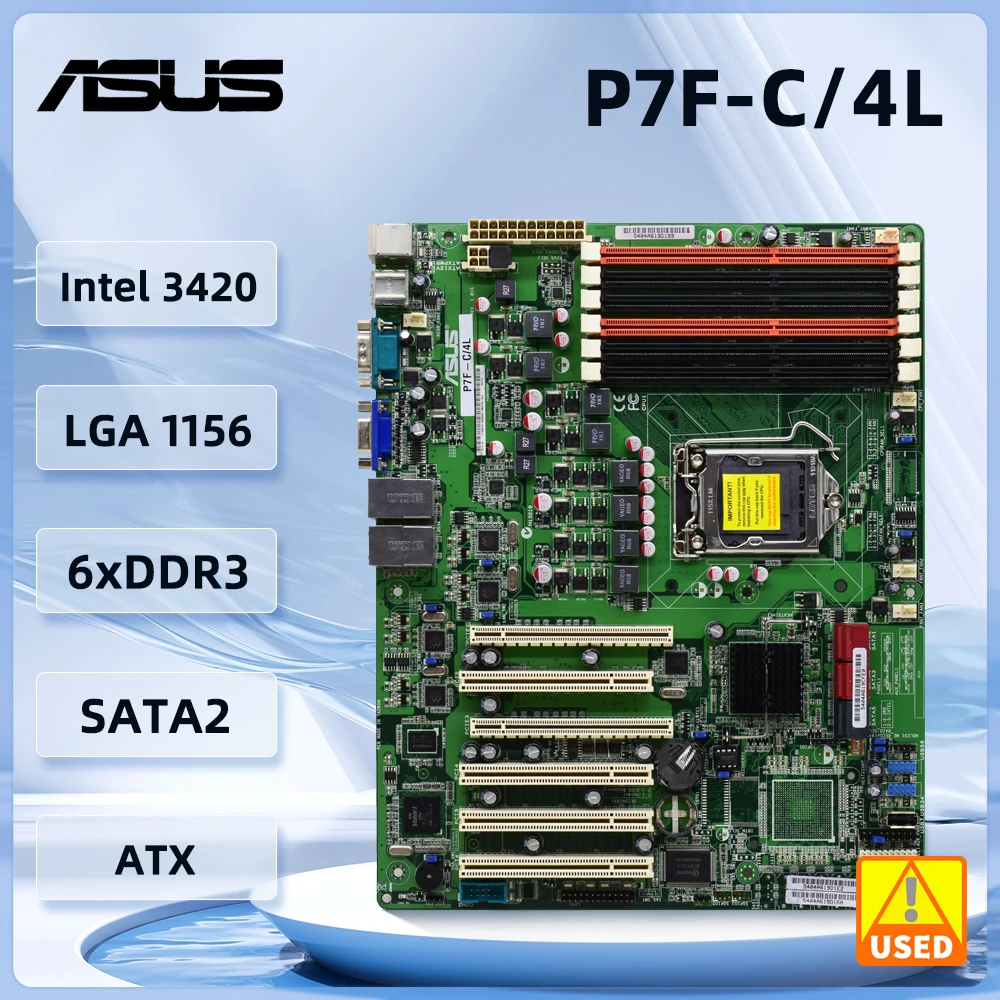

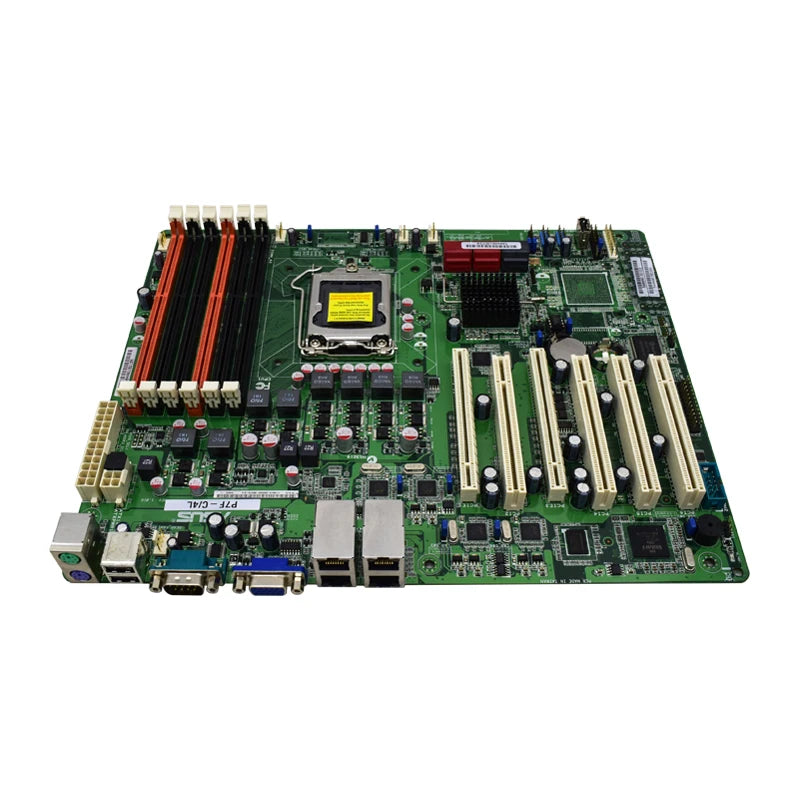

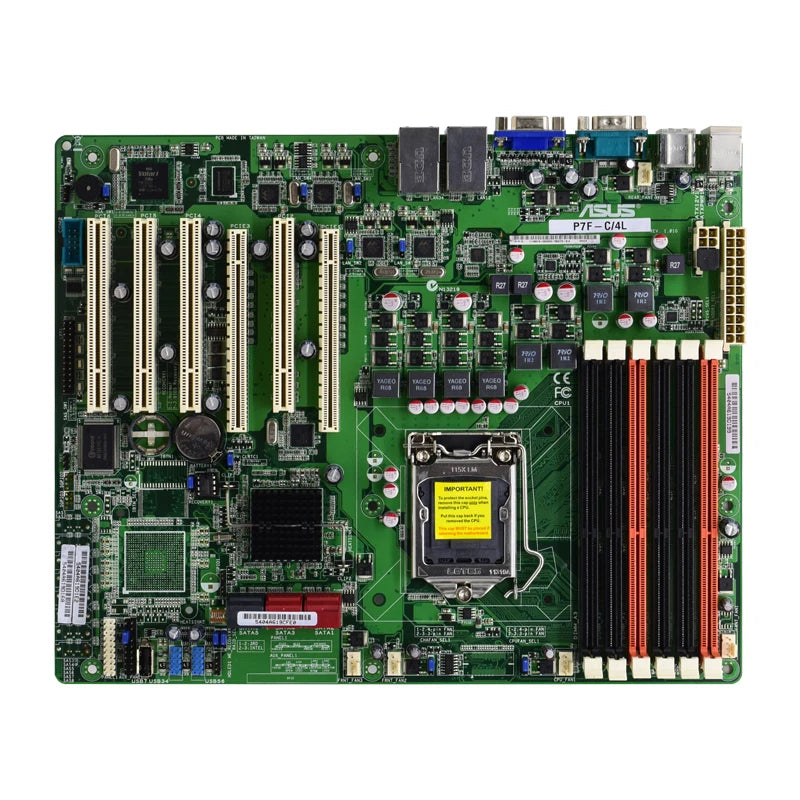

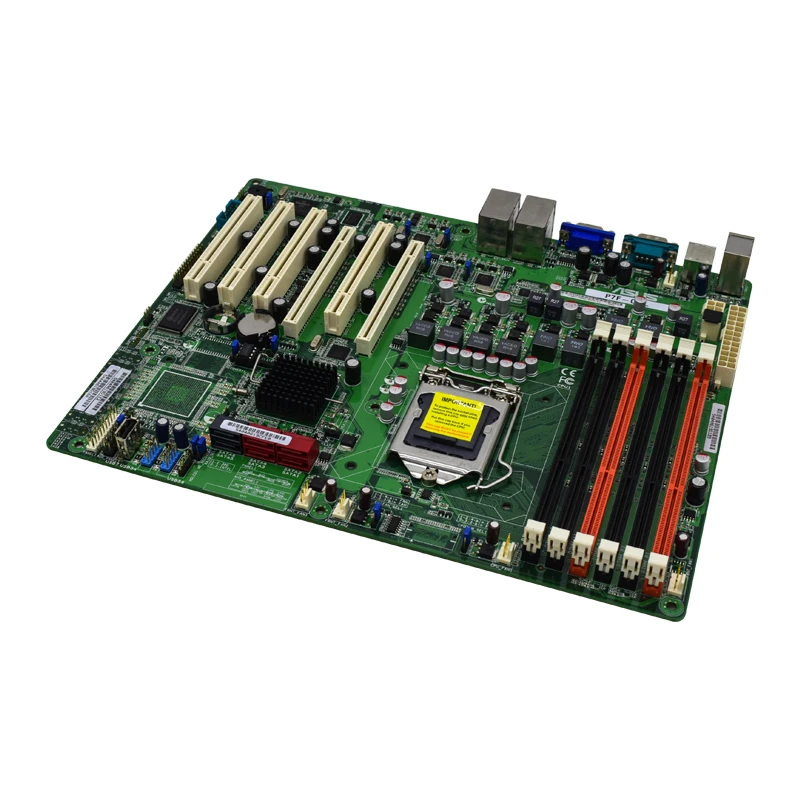

StoneTaskin For ASUS P7F-C/4L server Motherboard LGA 1156 DDR3 32GB intel 3420 ATX support Core Intel Core i7-800 Xeon 3400 series cpu Fully Tested Free Shipping

Motherboard chip

Integrated chip
Graphics card / network card

Main chipset
Intel 3420

Chip manufacturer
Intel

Chipset description
Adopt Intel 3420 chipset

Graphics chip
XGI Z9s DDR2 64MB

Network chip
Onboard Marvell 8056 Gigabit LAN

CPU specification

Applicable platform
Intel platform

CPU type
Core i7/Core i5/Core i3/Xeon 3400

CPU description
Support for Intel Socket 1156 interface processor

CPU socket
Socket 1156

Support CPU number
1

Memory specification

Memory type
DDR3

Memory description
Support dual channel DDR3 1333/1066 memory, up to 32GB

Expansion slot

PCI slot
6 PCI slots

SATA interface
6 SATAII interfaces

I/O interface

USB interface
7 USB2.0 interfaces

PS/2 interface
PS/2 mouse, PS/2 keyboard interface

Parallel port serial port
1 serial port

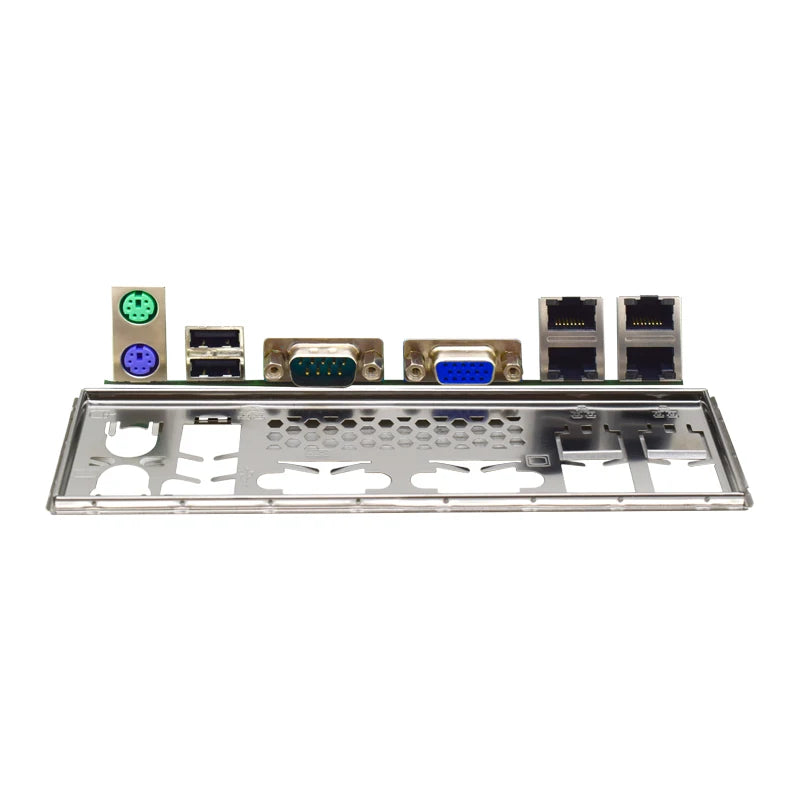

External port
4 RJ45 interfaces / audio interface / VGA interface

Plate type

Motherboard type
ATX

Other parameters

Power socket
One eight-pin, one 24-pin power connector
