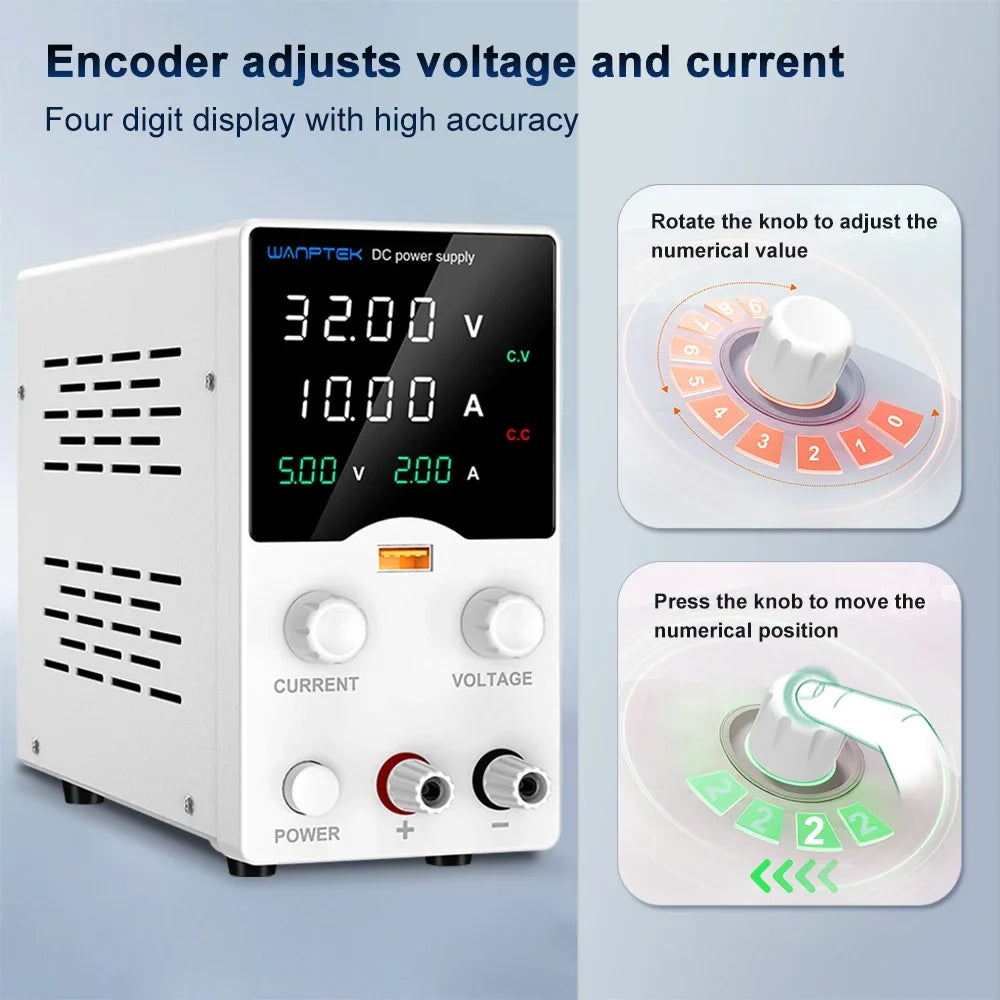

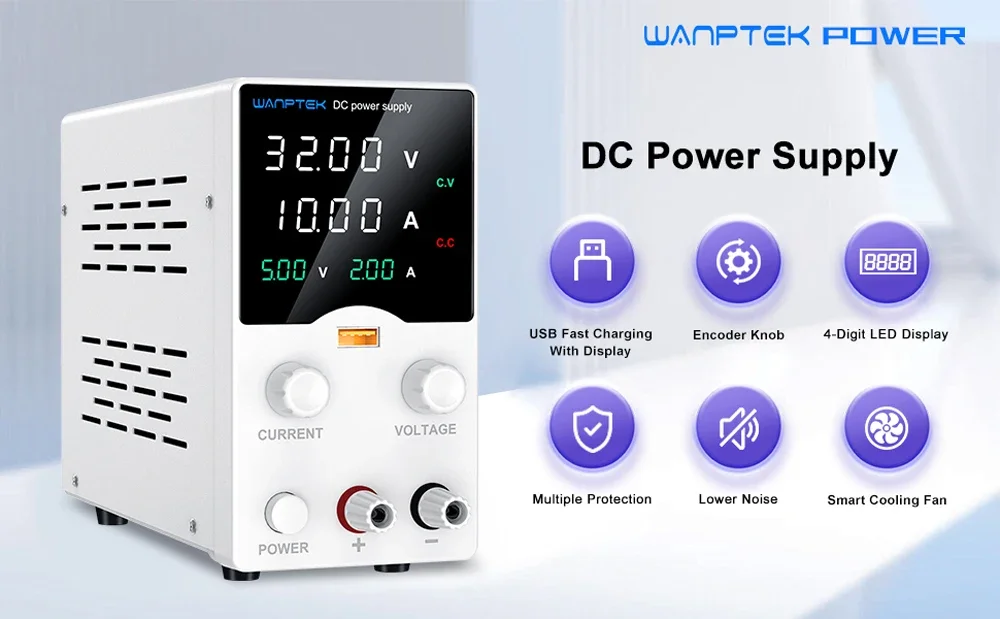

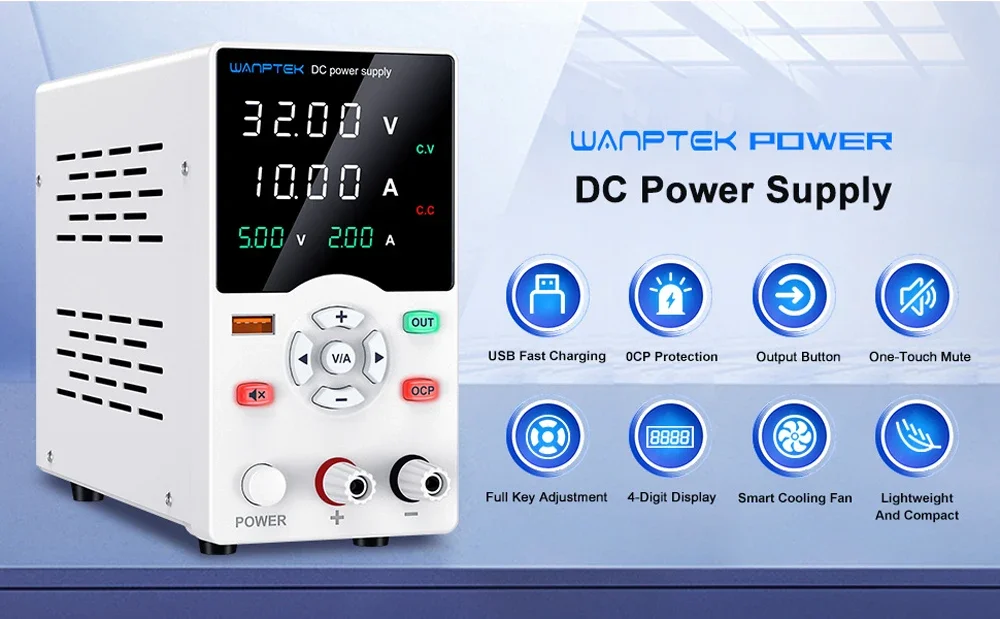

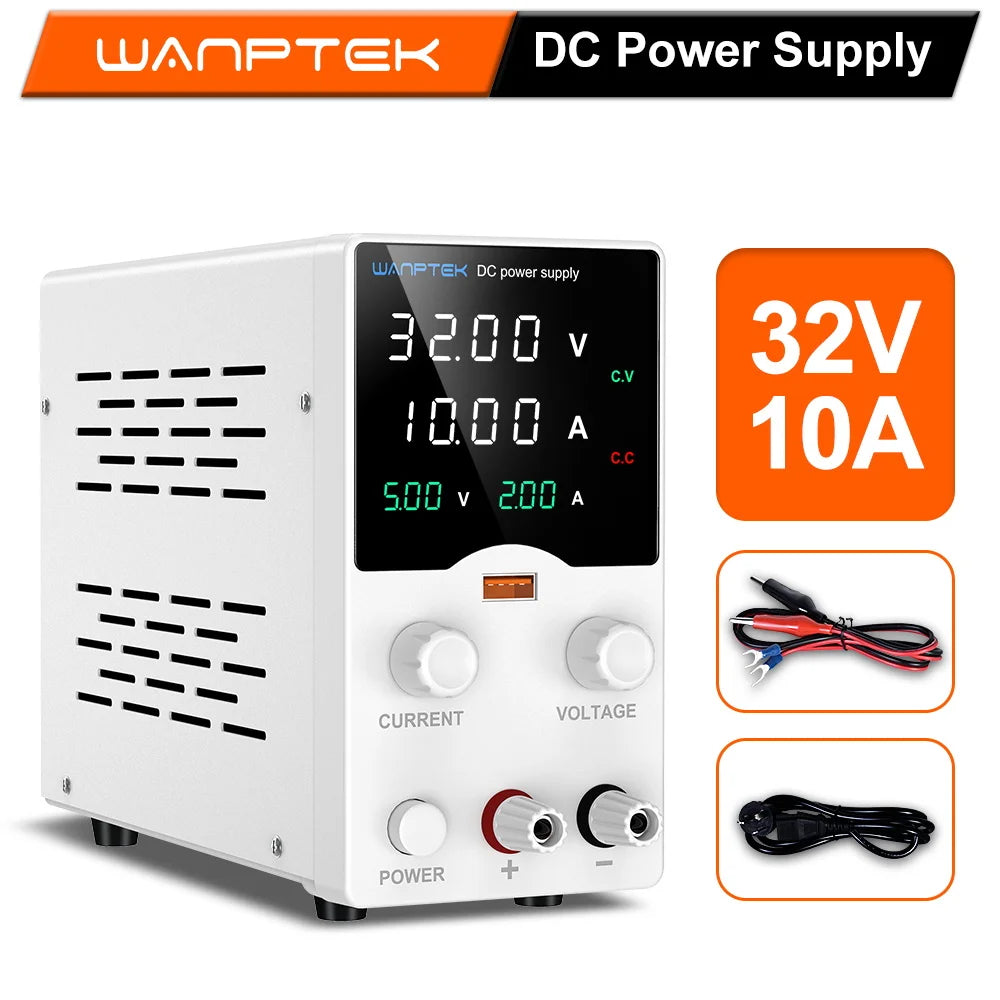

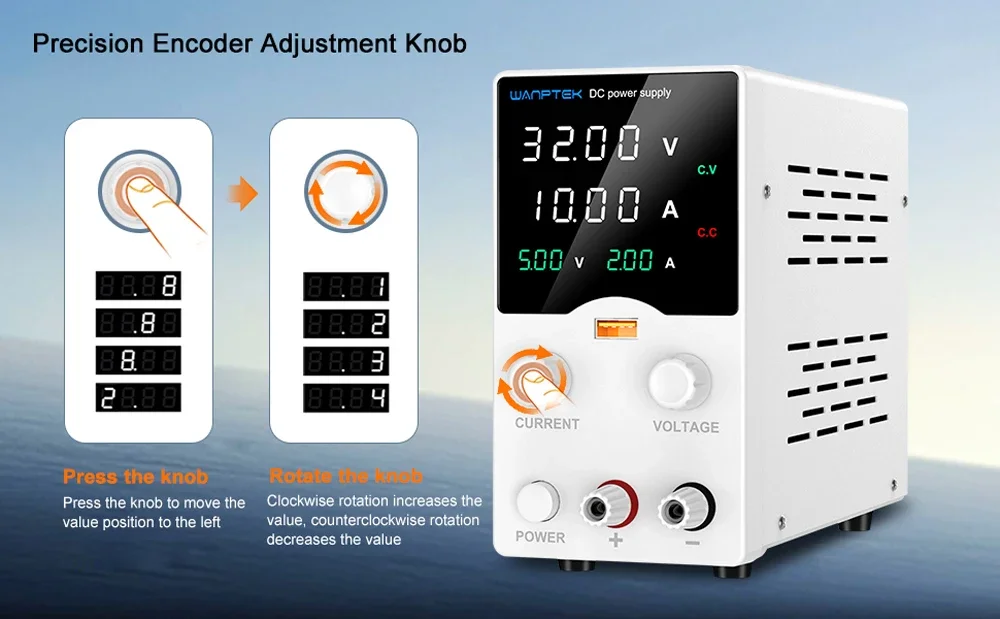

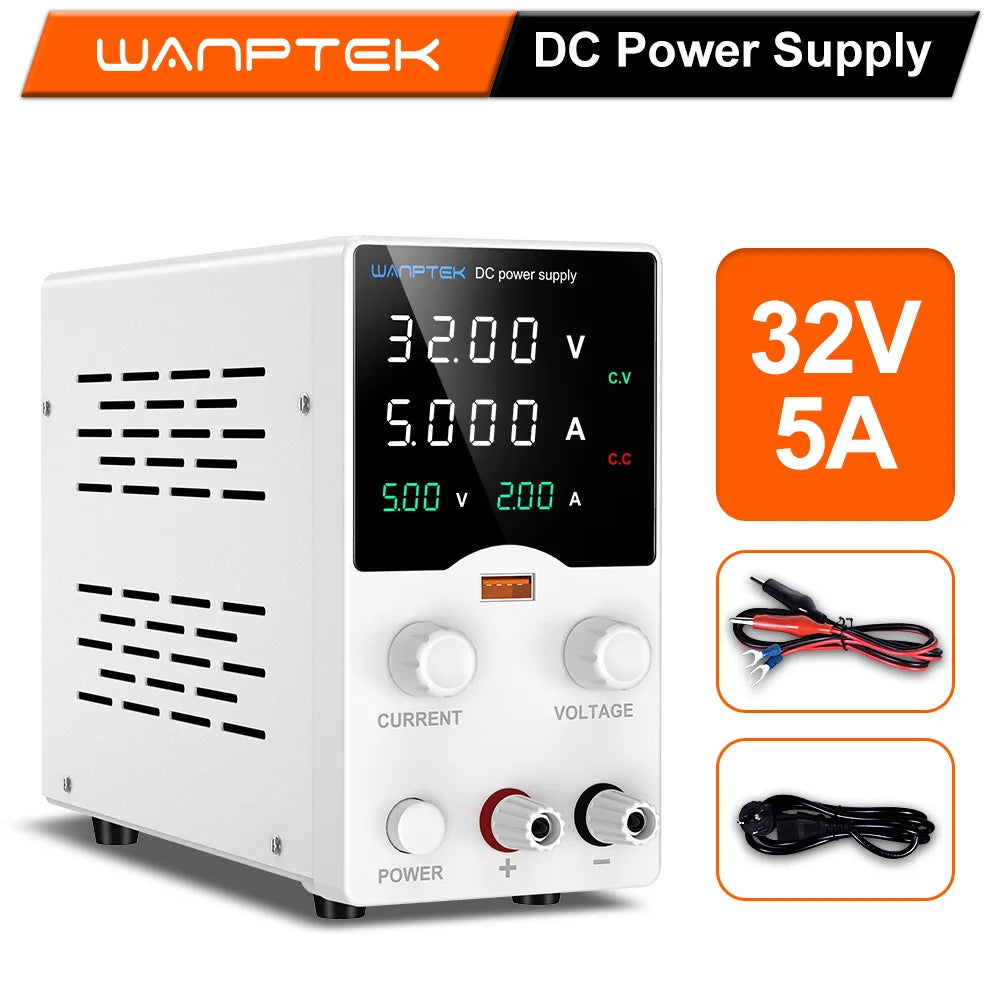

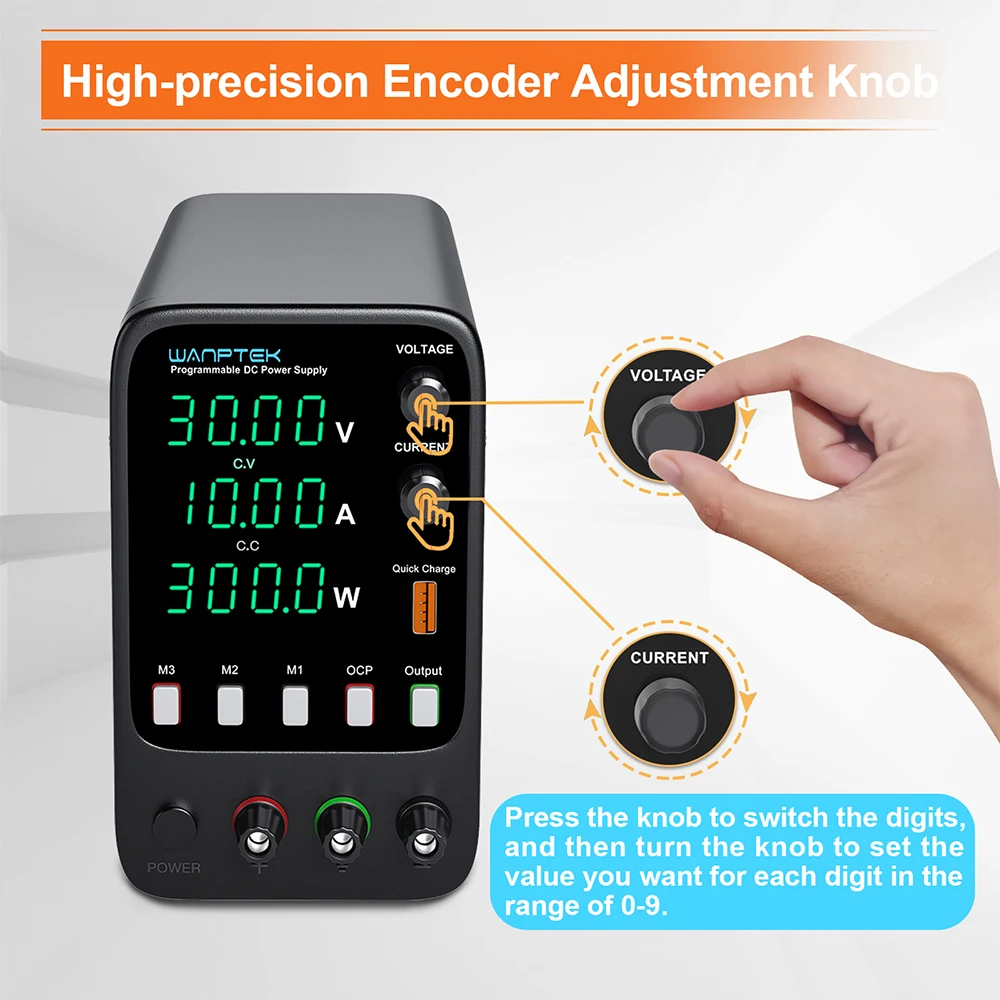

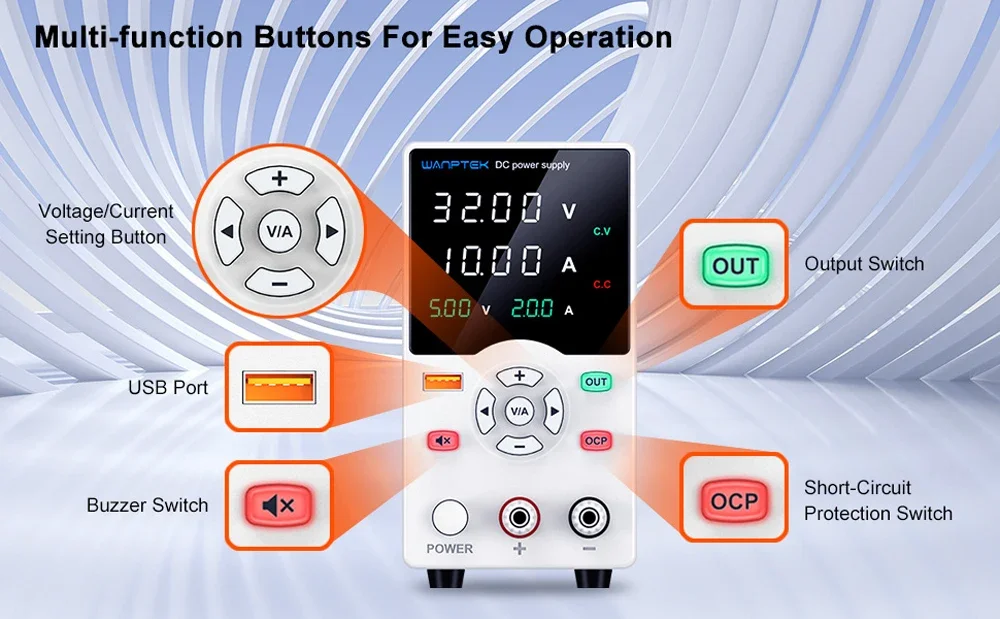

Wanptek's new series products. This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted Encoder adjustment, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power(optional), so that users can intuitively see the current use status and various parameters of the machine

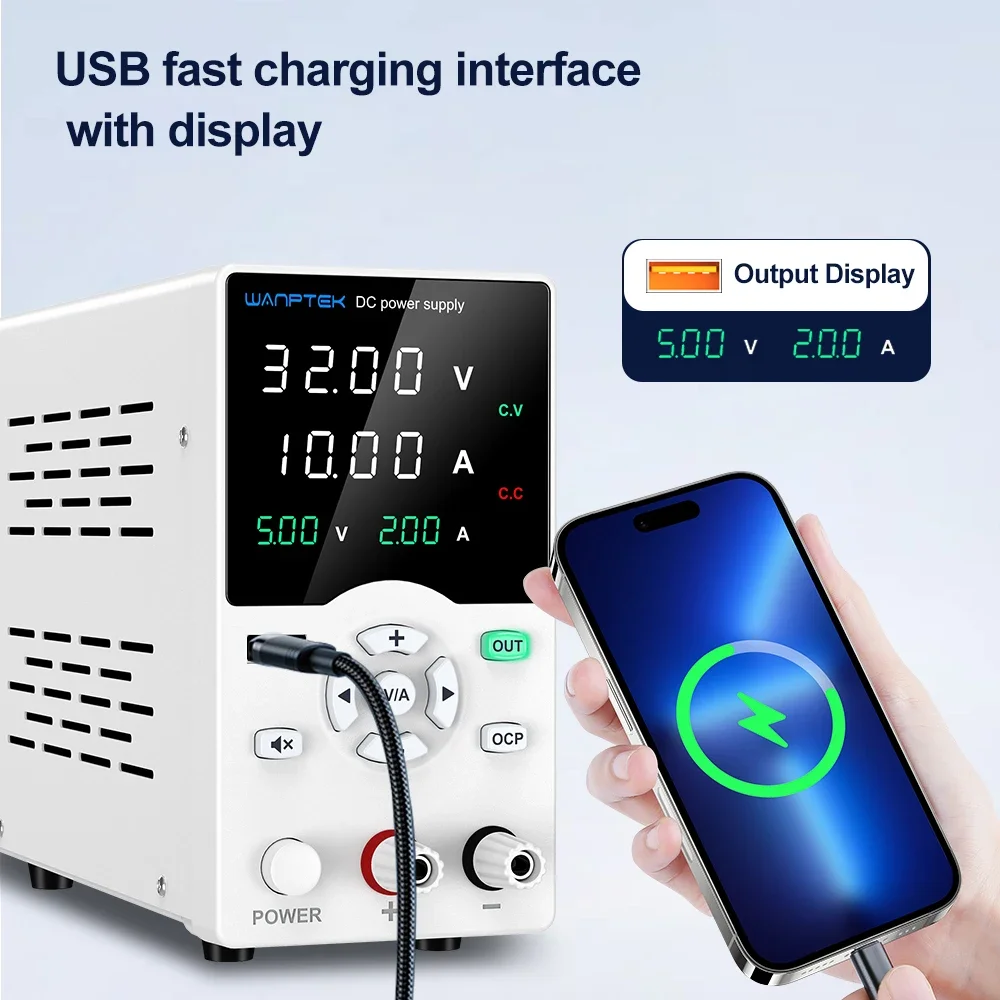

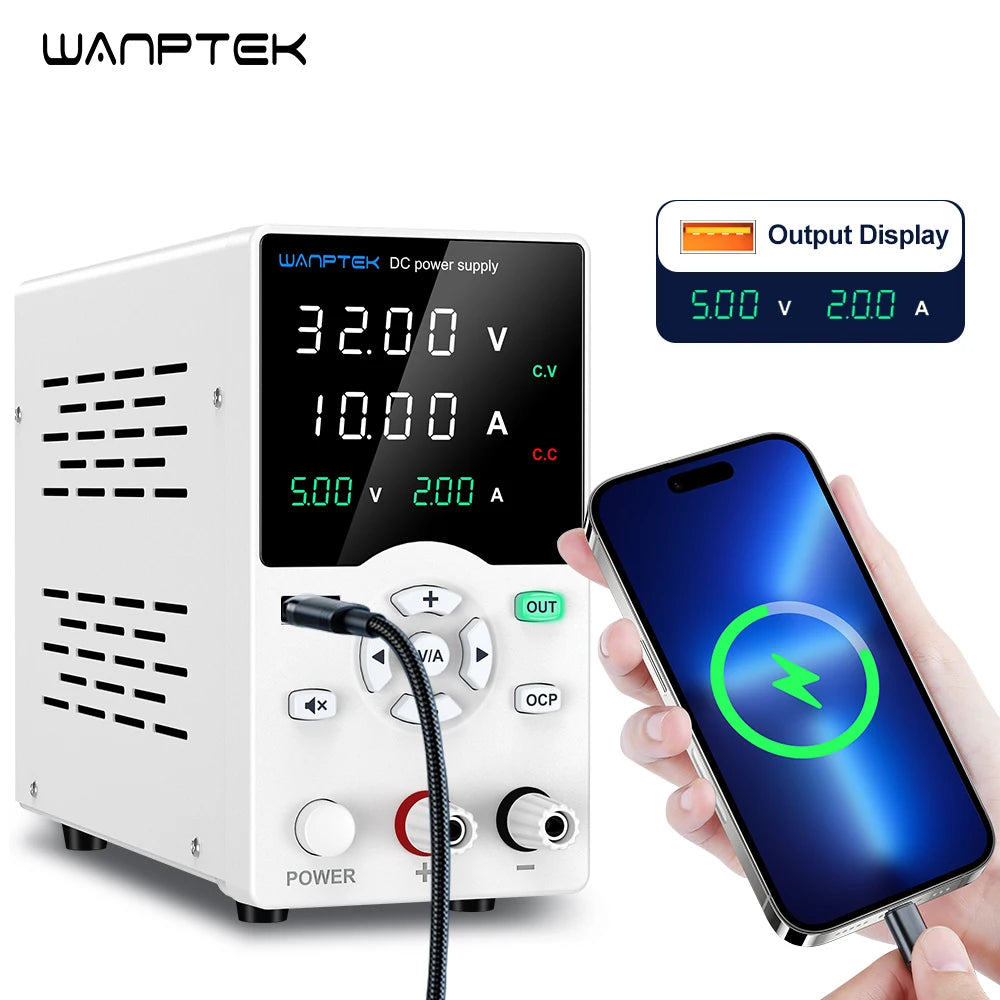

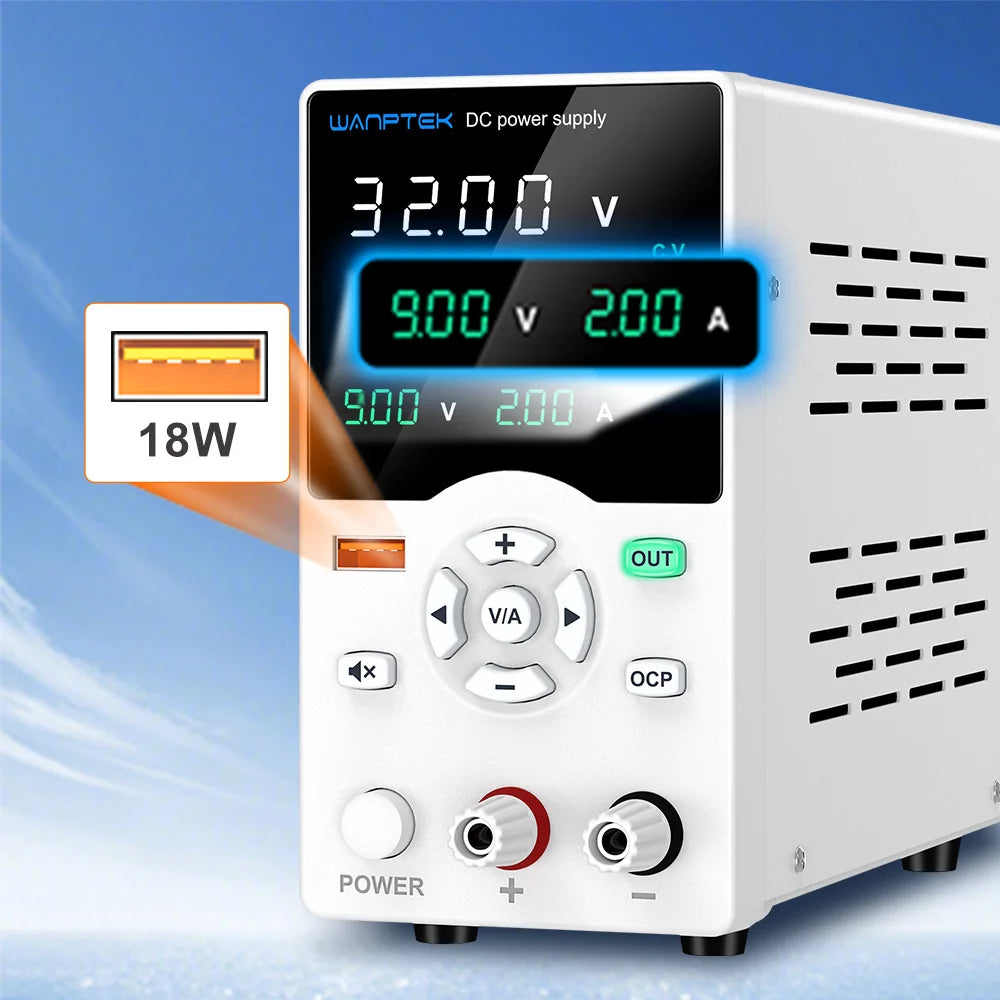

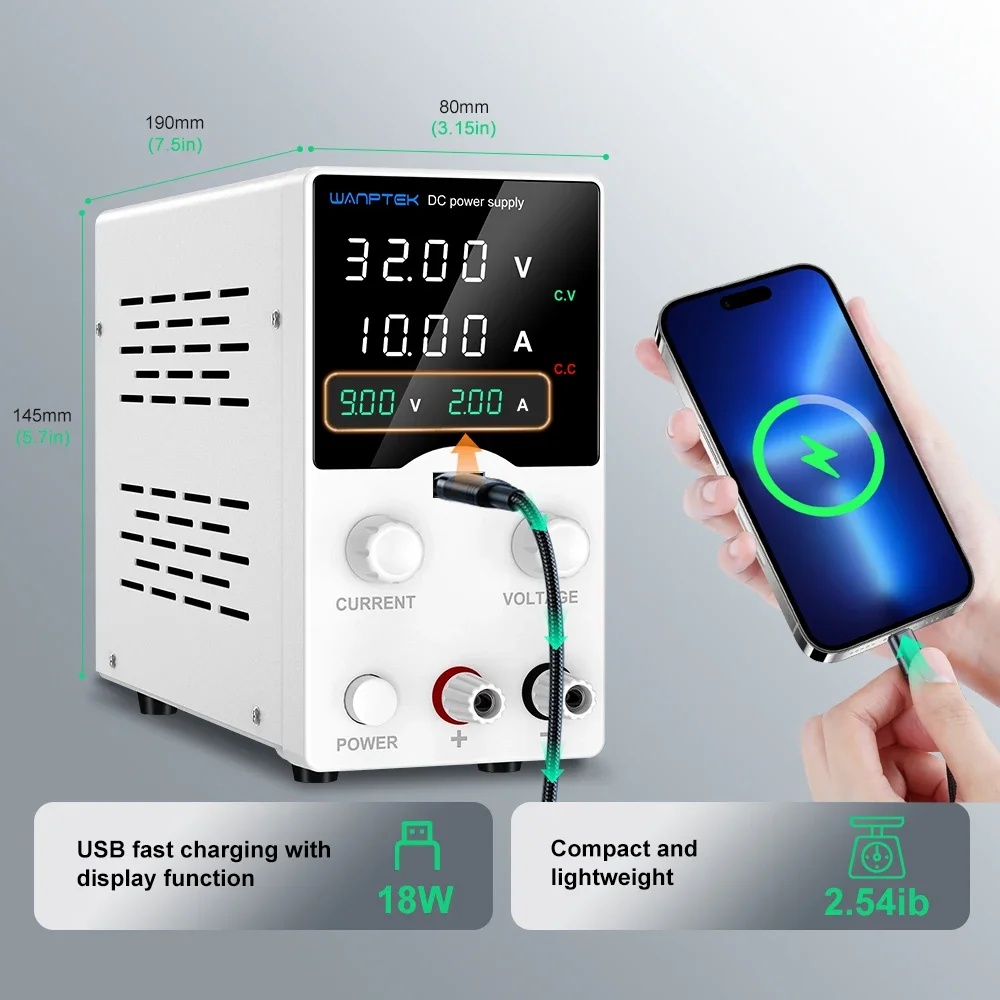

The GA · GC series power supply can display USB A charging voltage and current

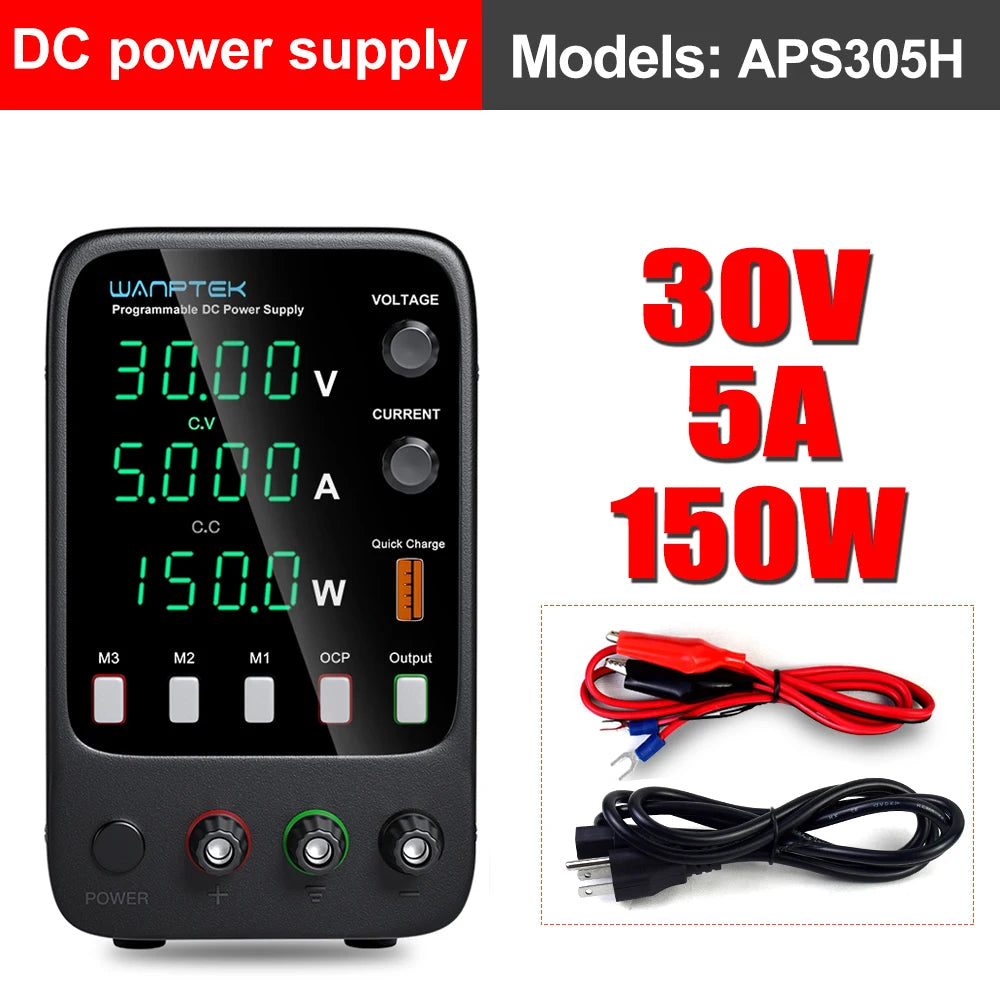

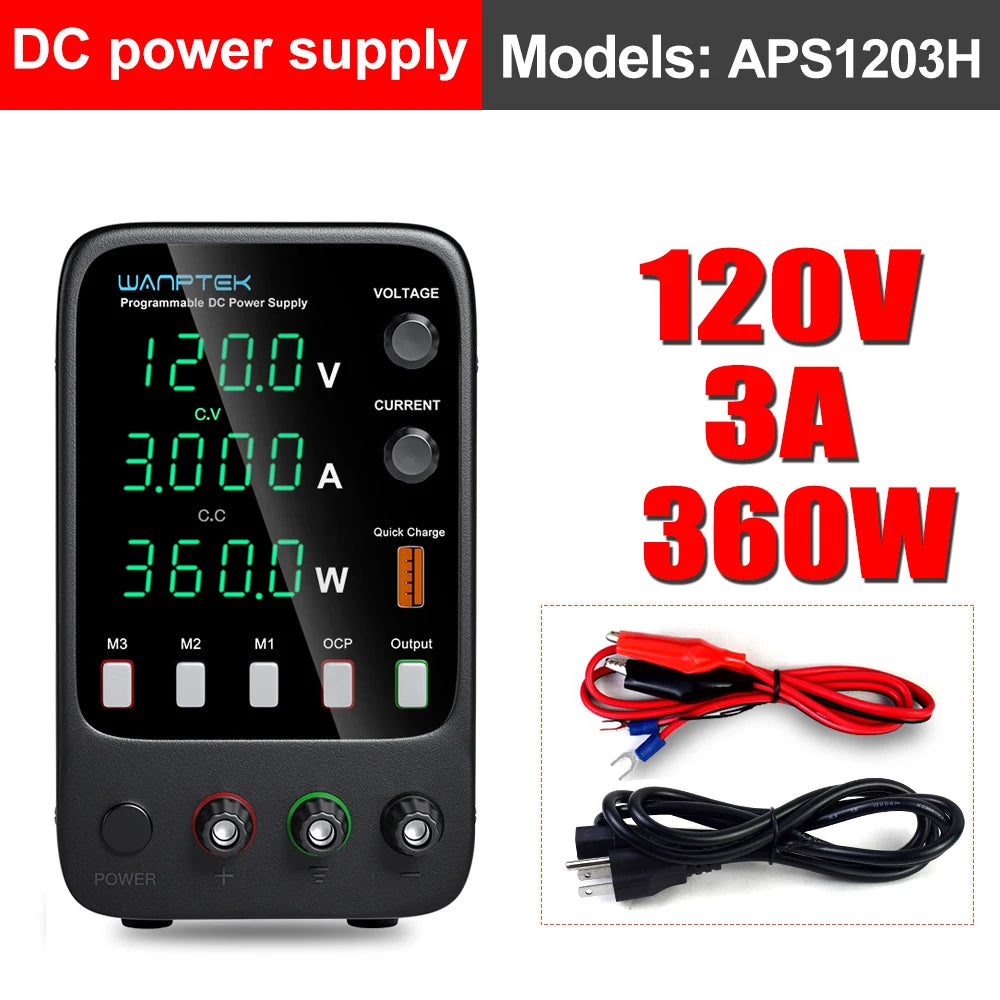

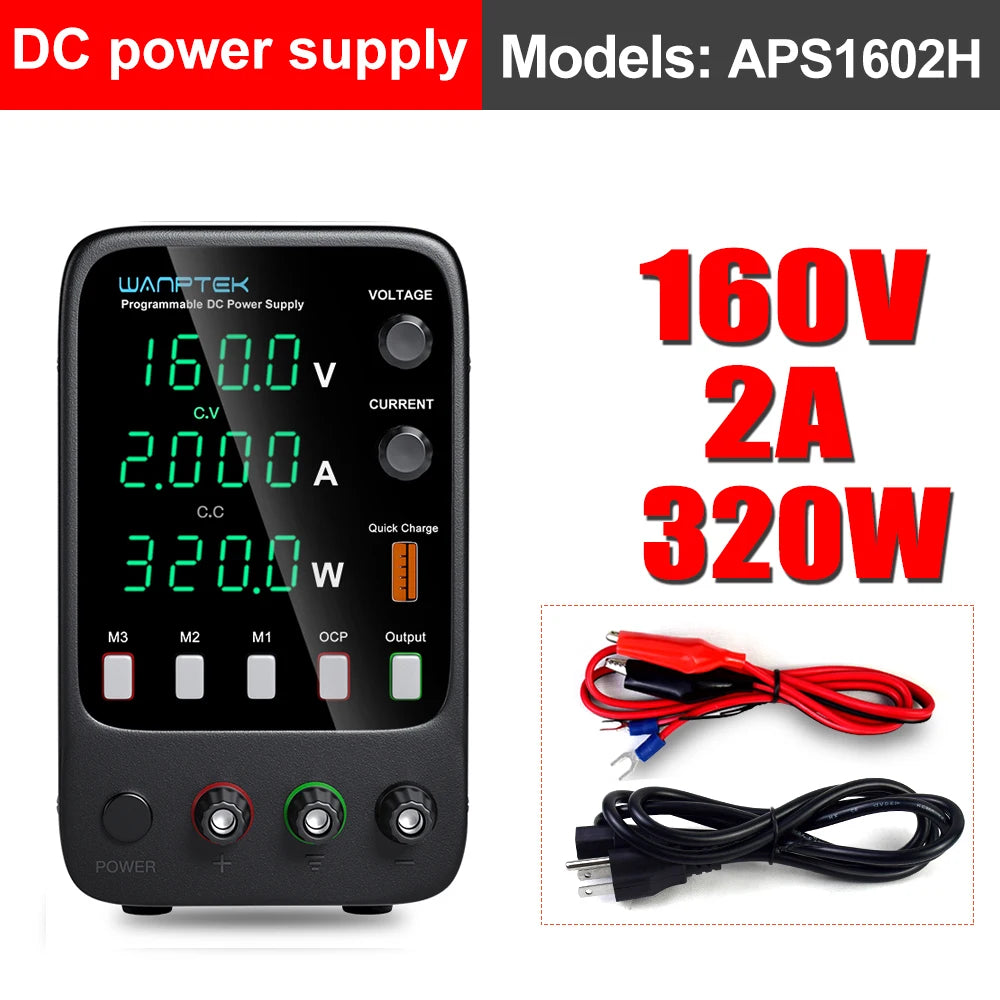

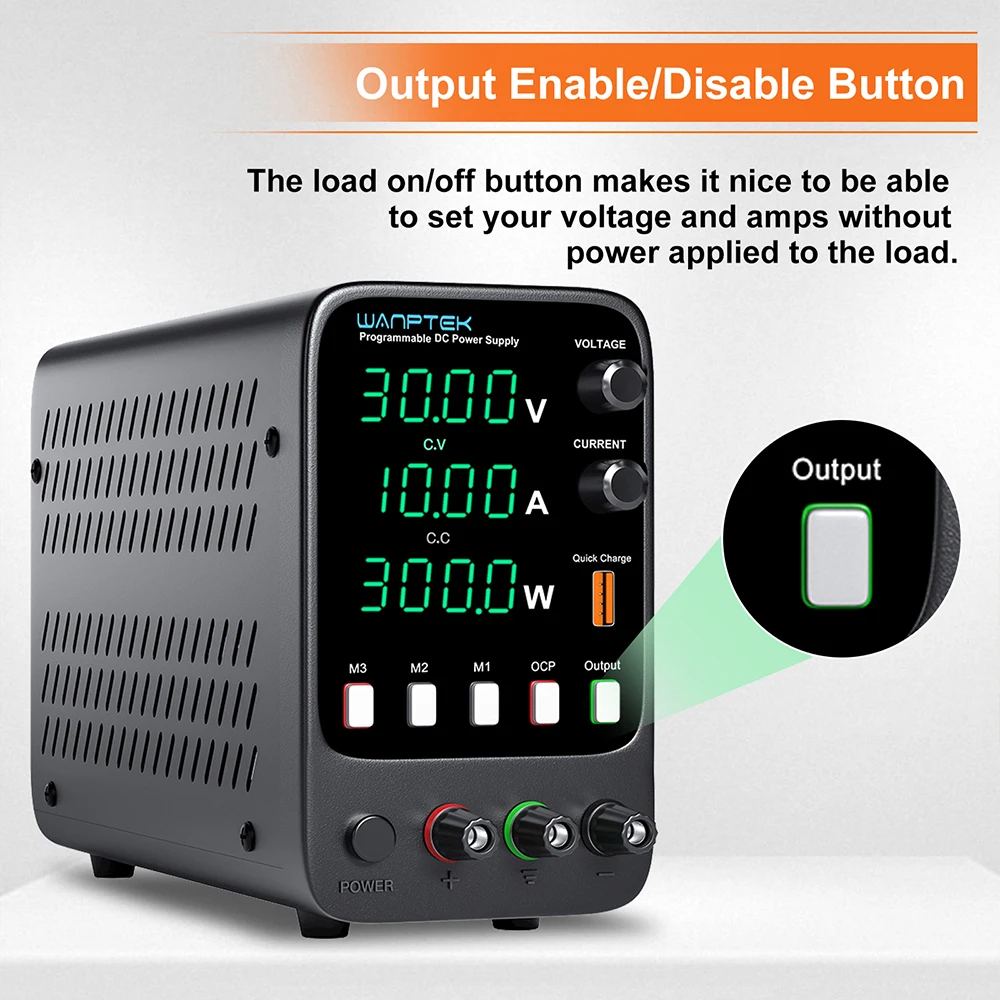

APS series cannot display USB A charging voltage and current

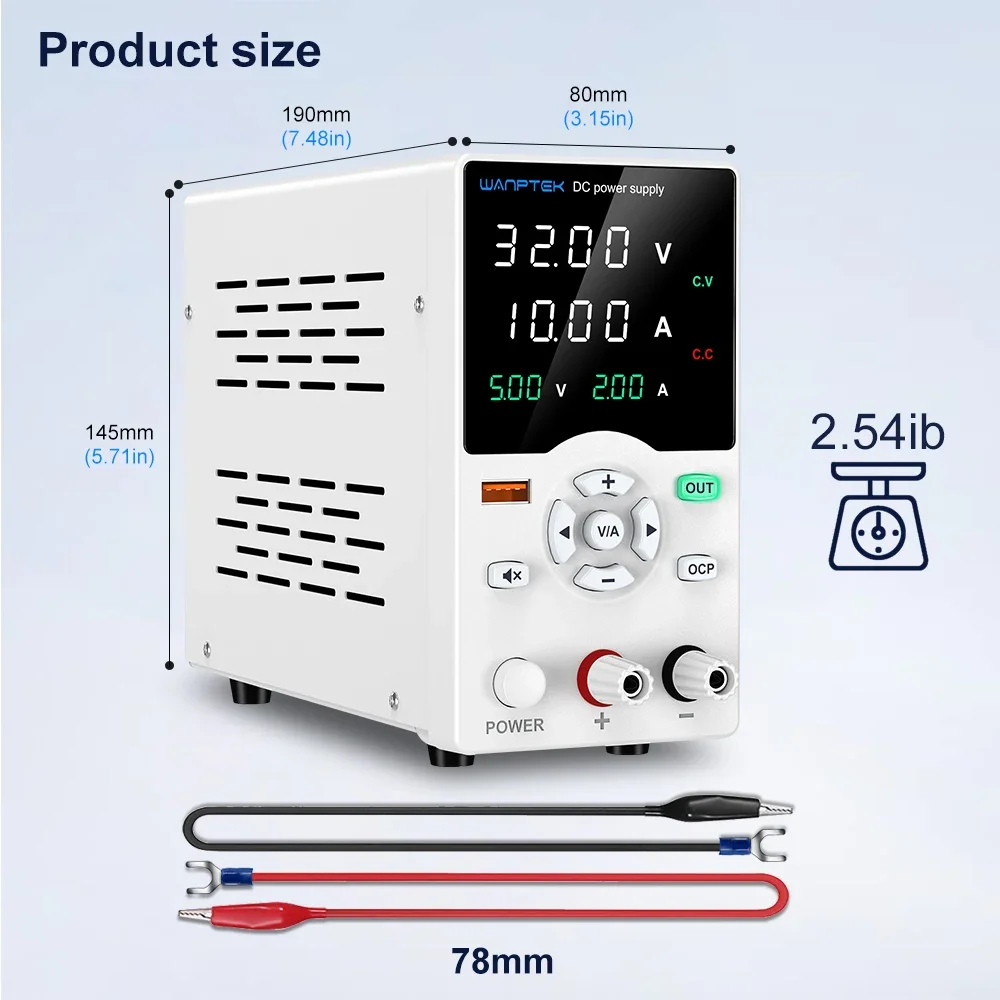

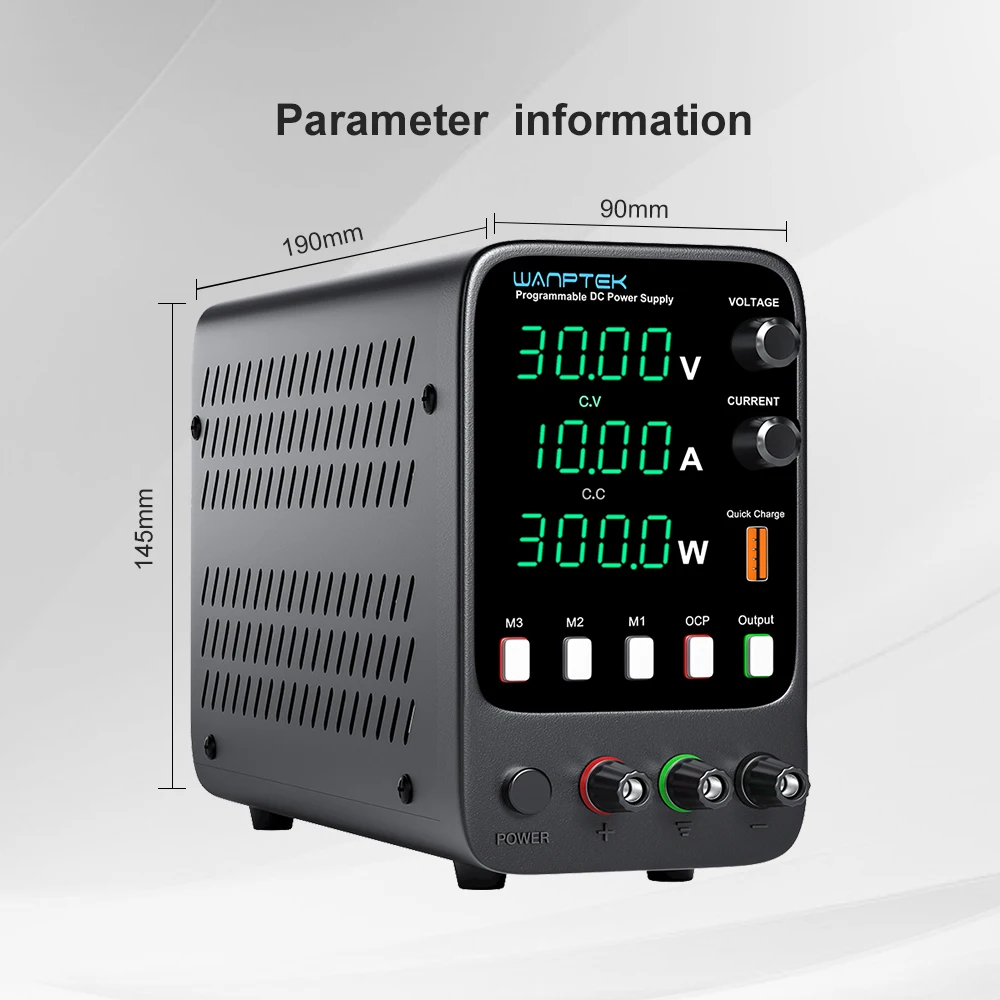

1.Small size, light weight and high power density. weight of only 2.6 pounds. You can easily take the DC power supply to work.
2.Constant pressure and constant current switch automatically.

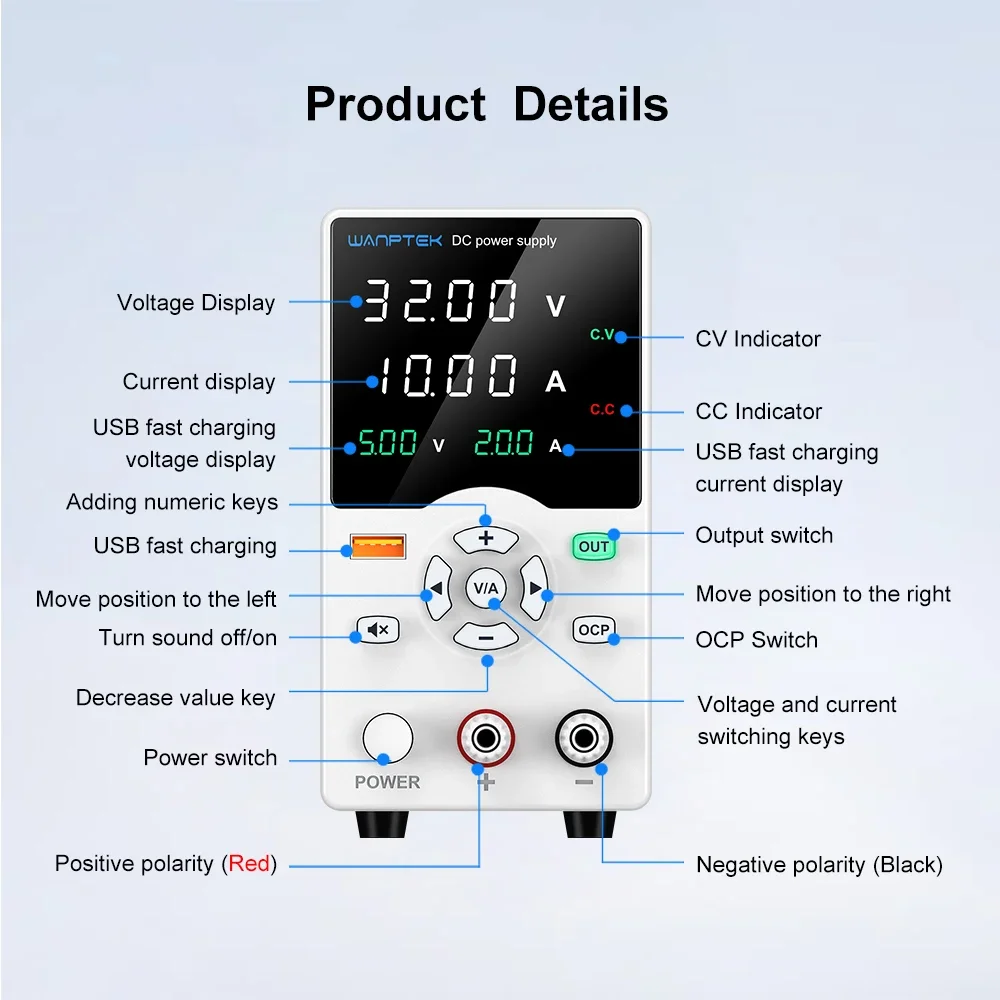

3.LED display of voltage, current and power(optional), high precision and features of voltage stabilization, current limiting, and simple operation.
4.Adjustable Output Voltage & Current: output voltage and output current can be continuously 5.adjusted between 0 and nominal value with fine regulating and coarse regulating

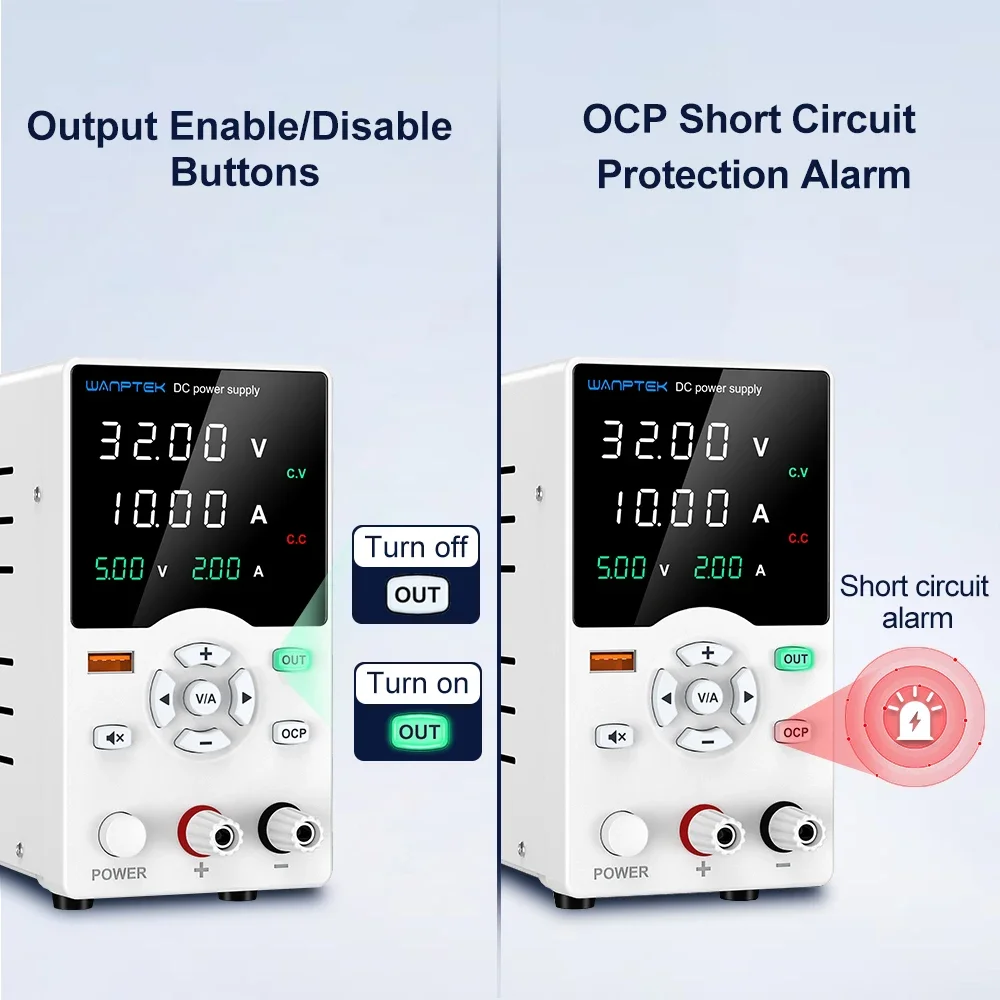

6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection

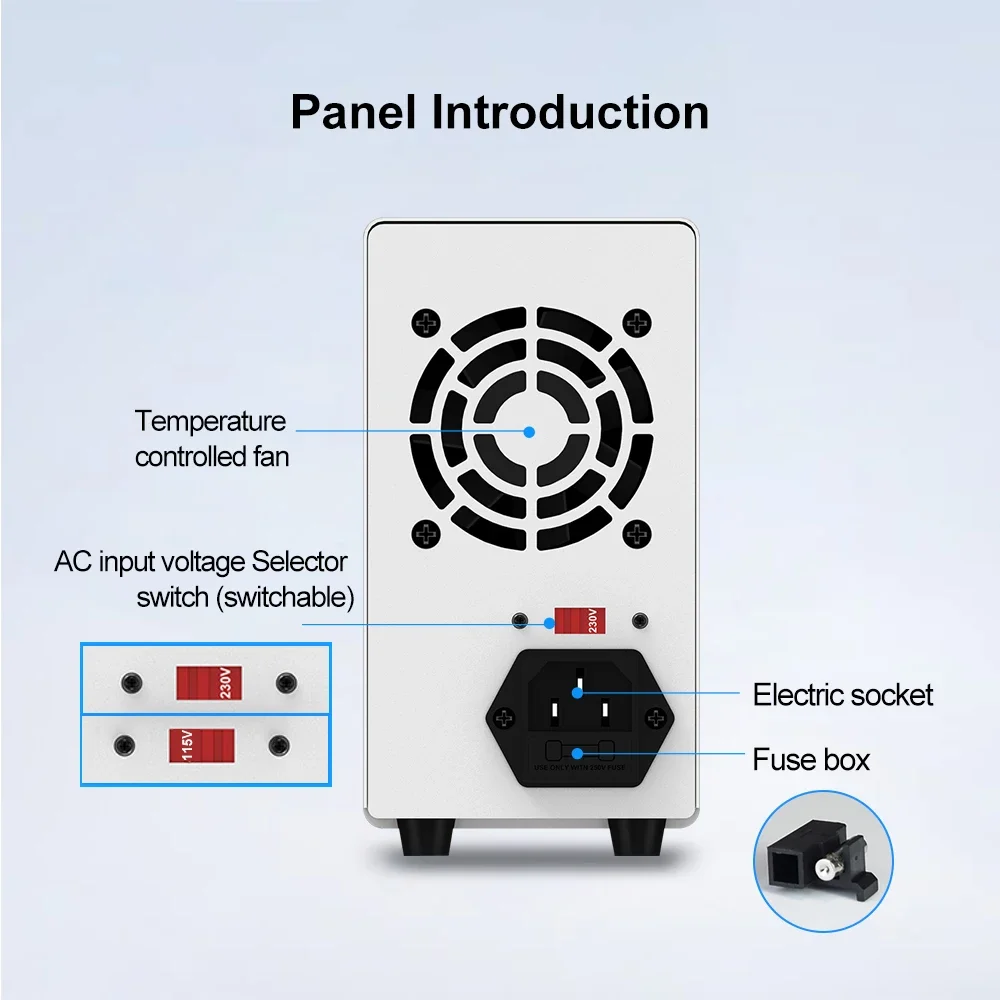

7.Temperature controlled fan cooling, low noise, long life.

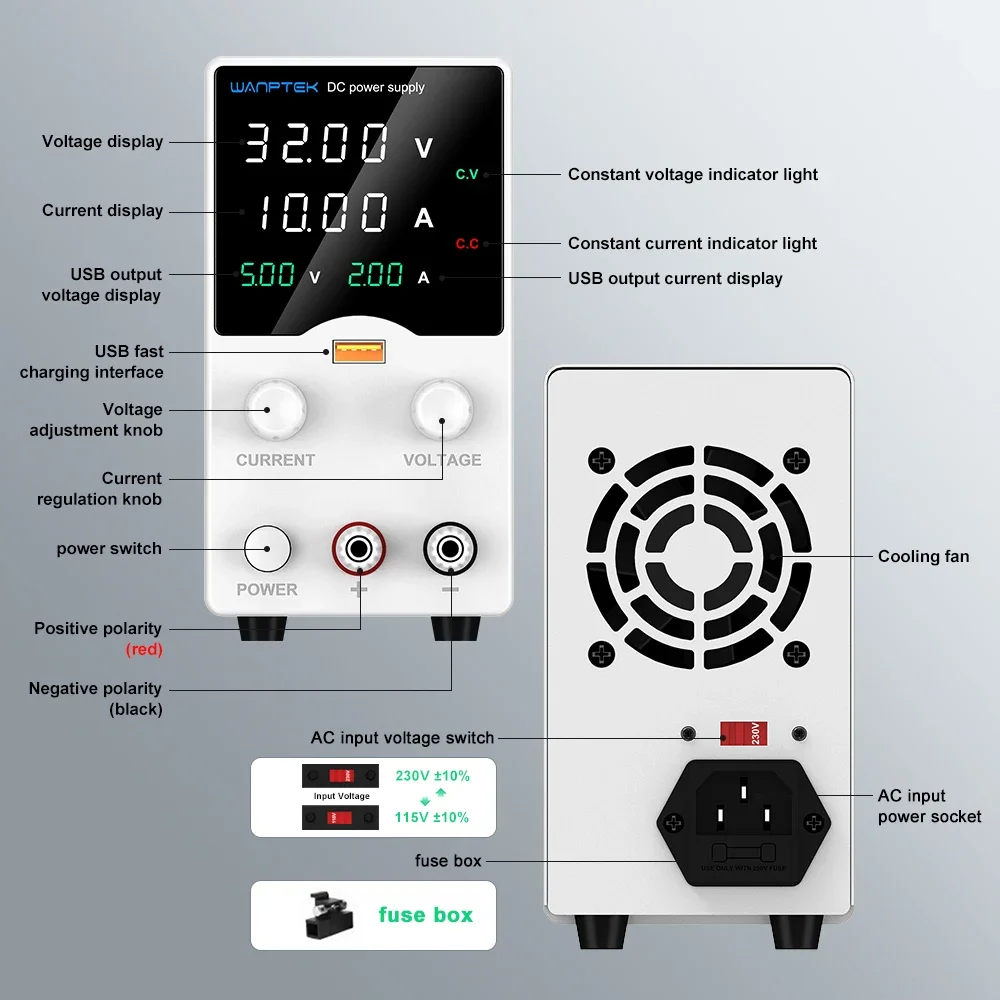

8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
Input voltage:AC 230V/115V±10%;50Hz/60Hz | |
Working temperature:0℃～40℃;relative humidity:<80%RH | |
Storage temperature:-10℃～70℃;relative humidity:<70%RH | |
Constant voltage CV | |
Voltage stability:0.1%±3mV |
|
Load stability: 0.2%±3mV | |
Ripple voltage:≤0.5% Vp-p | |
0 to rated voltage continuously adjustable | |
constant current CC | |
Current stability:0.1%±3mA |
|
Load stability: 0.2%±3mA | |
Ripple current:≤0.5% Vp-p | |
Recovery time:≤500μS | |
Temperature coefficient:≤100ppm/℃ | |
0 to rated current continuously adjustable | |
display | |
LED digit display |
|
Display accuracy:0.5%±digits | |
Display resolution: voltage 0.01V, current 0.001A | |

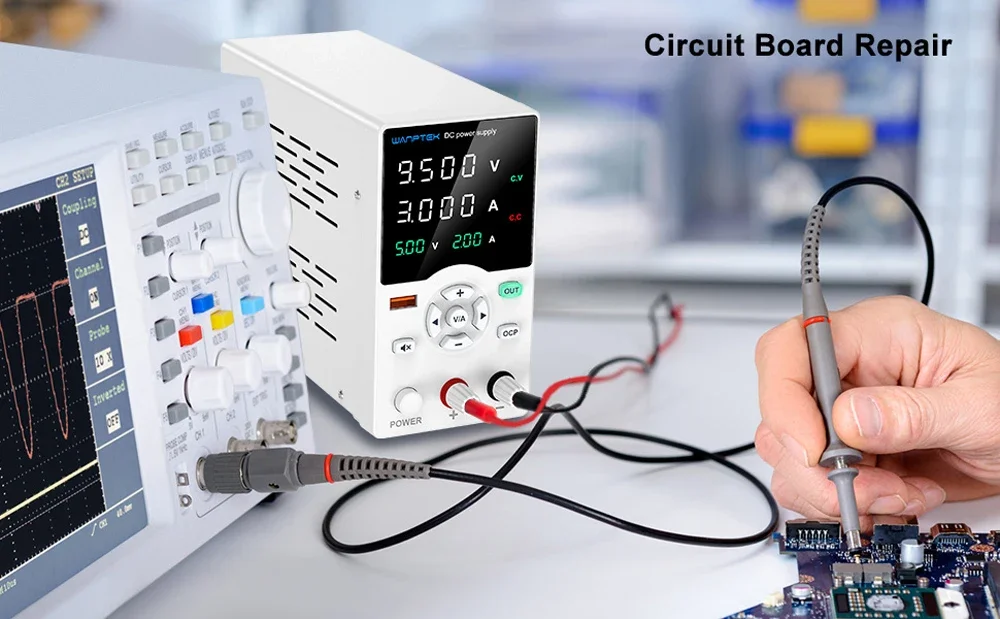

2. Metal anodizin,Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Charge the battery.(Include car battery)
5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use
6. All other occasions requiring DC power supply.

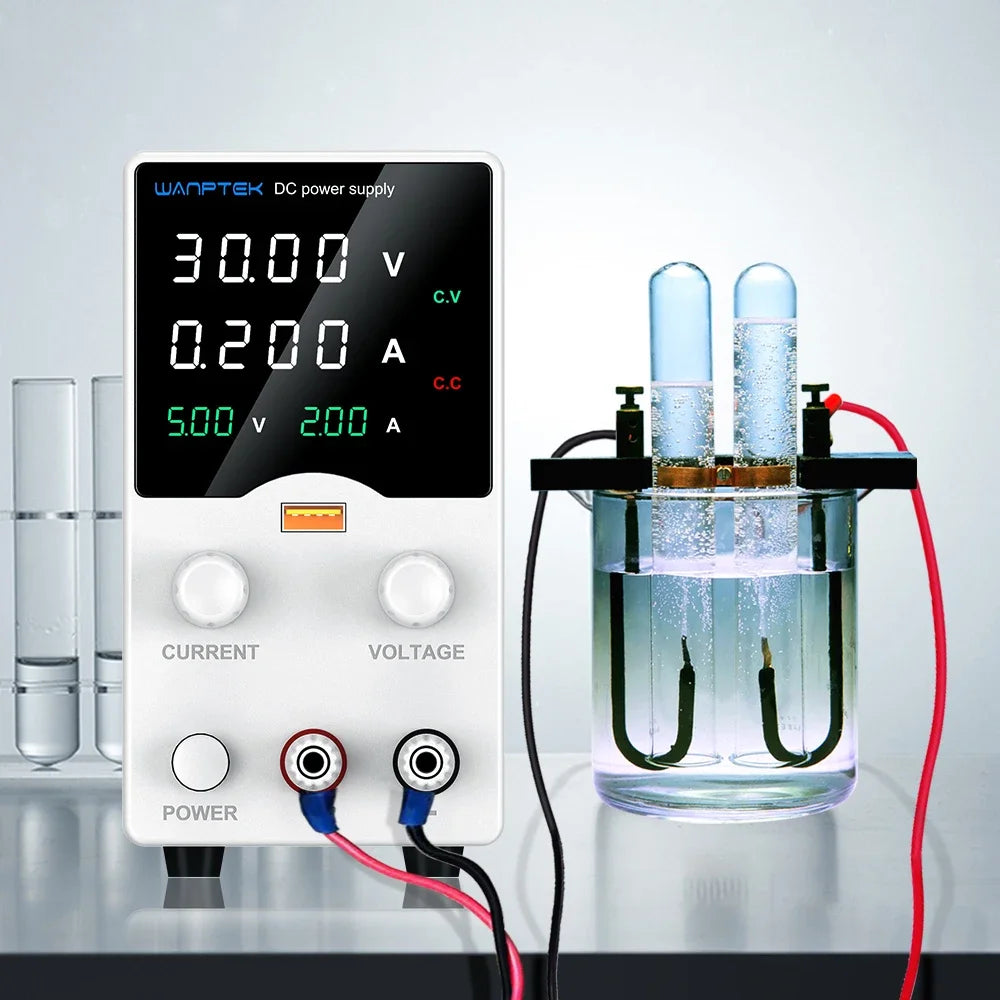

【CE & FCC Certification, Multiple Protection, Various Application】Lab power supplies have passed CE & FCC Certification. DC power supply has multiple protections: overvoltage protection, overcurrent protection, overheating protection, over power protection, short circuit protection, leakage protection. DC power supply is suitable for LiFePO4 battery charging, arduino project, laboratories, schools, electronic maintenance , electrolysis, electroplating, lamp test, aging test, DIY, etc.

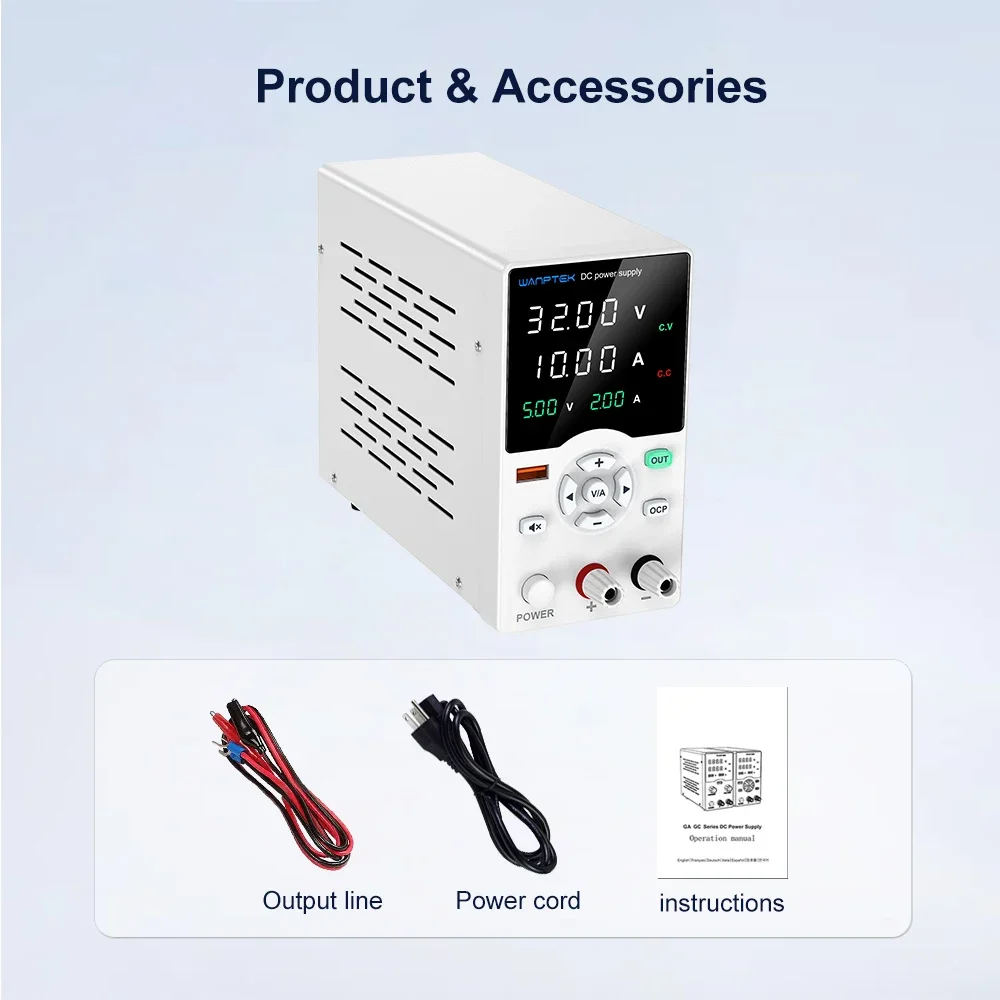

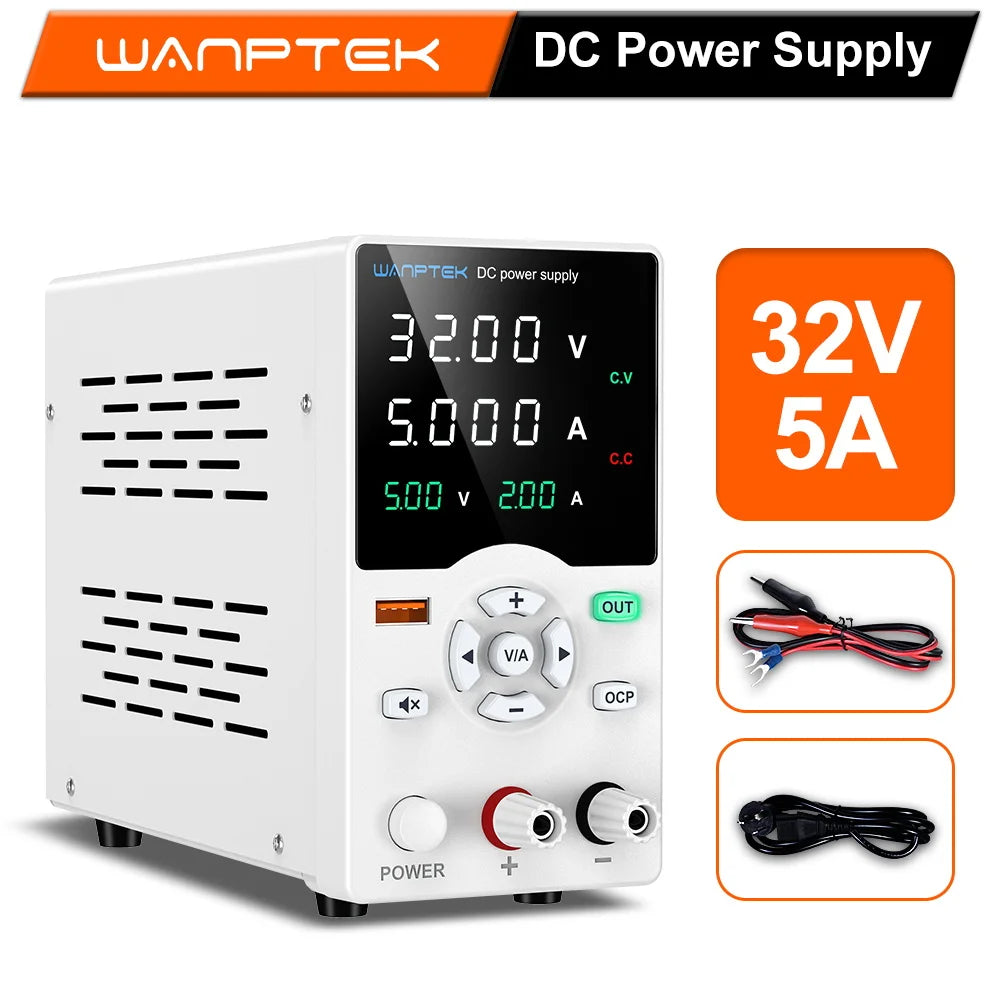

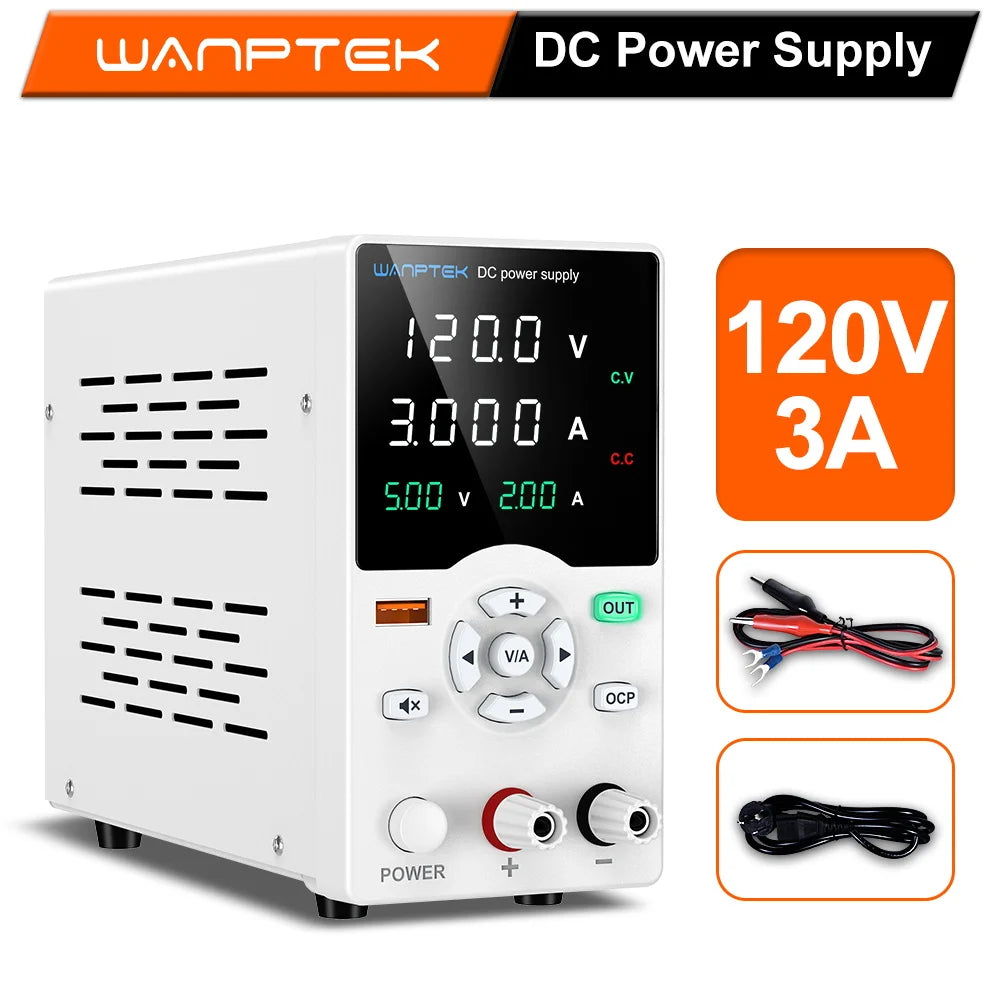

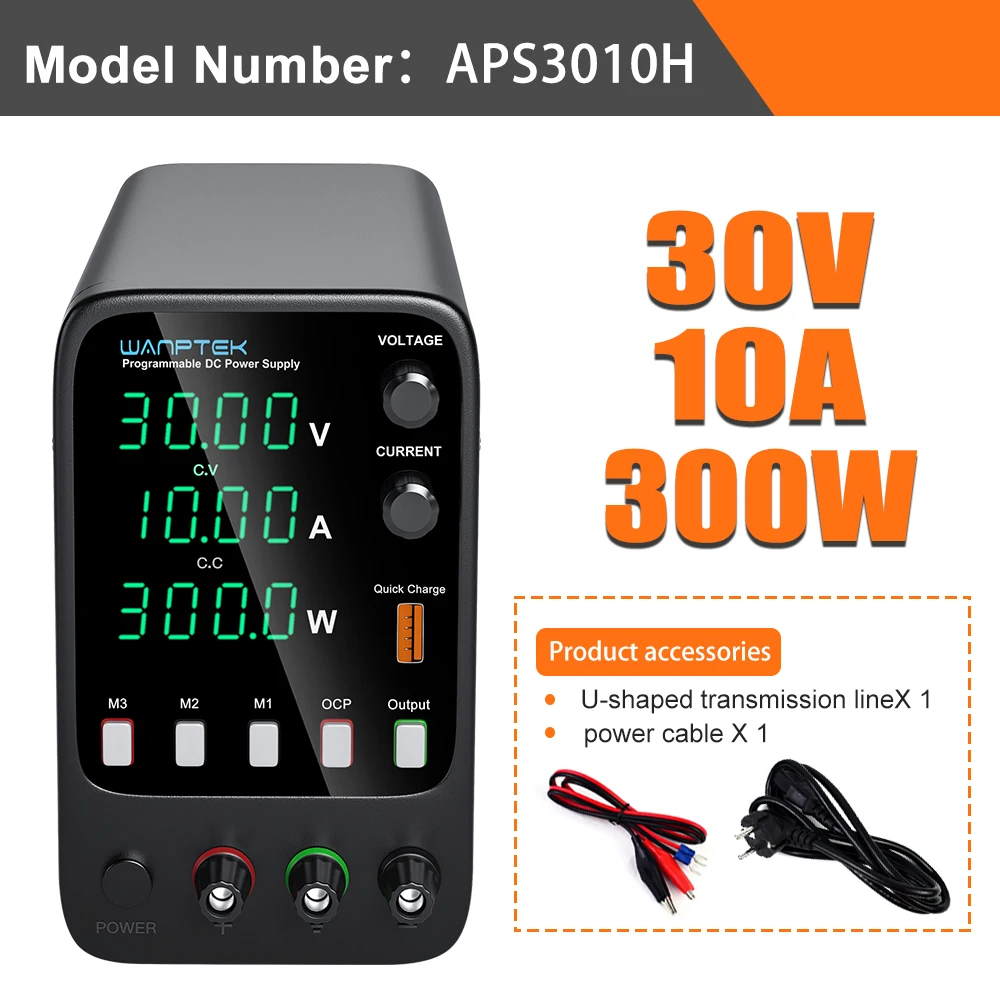

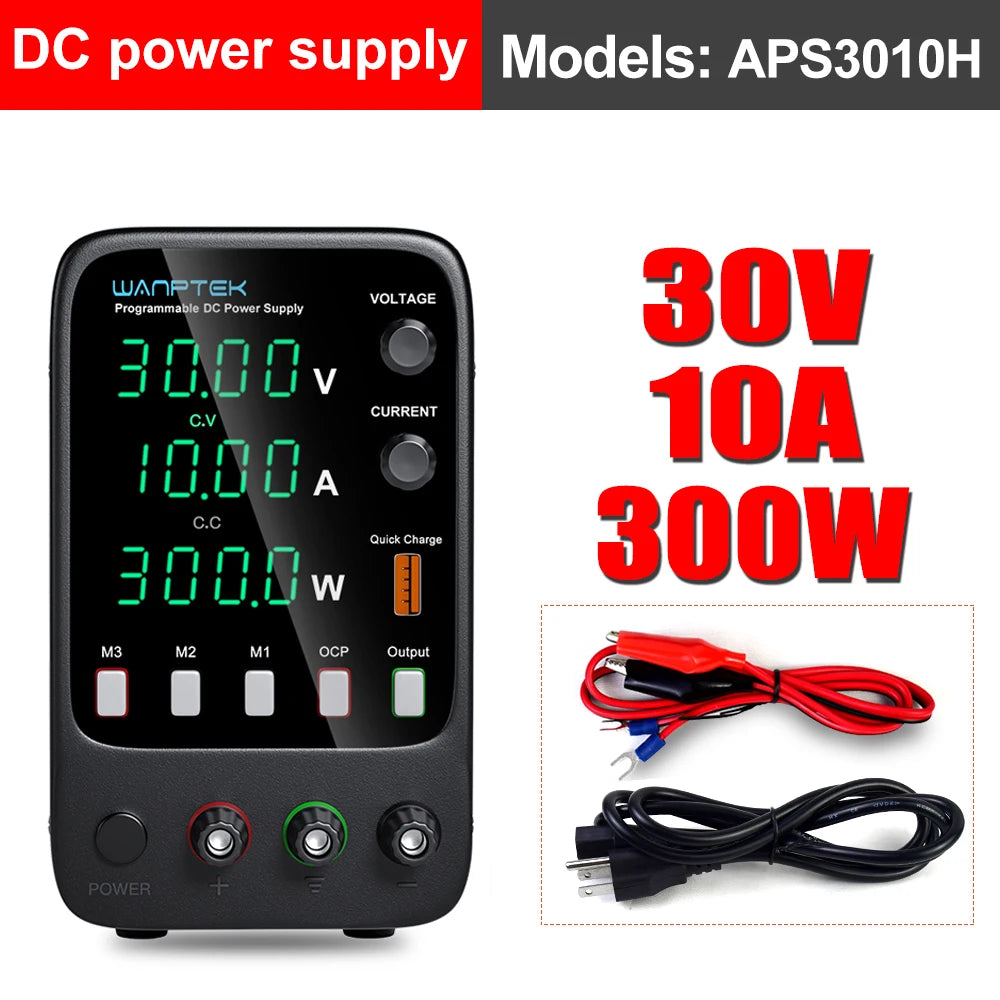

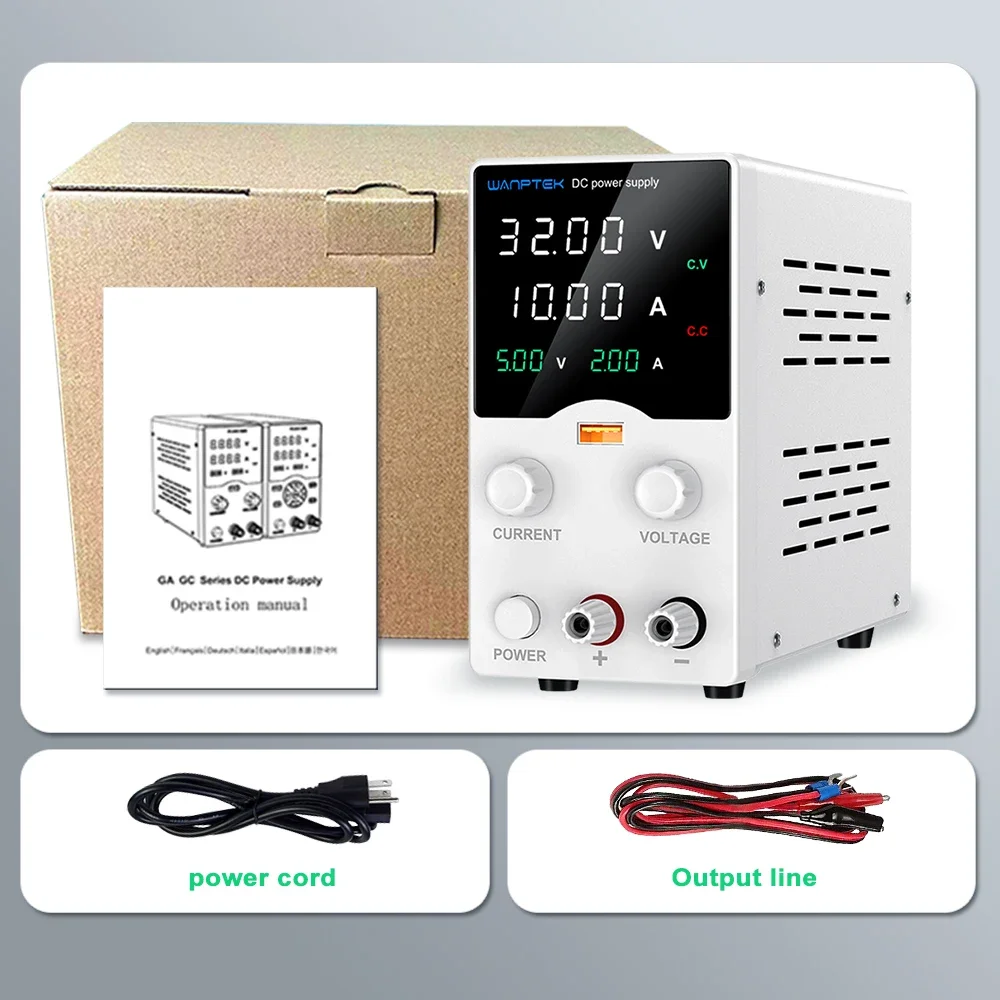

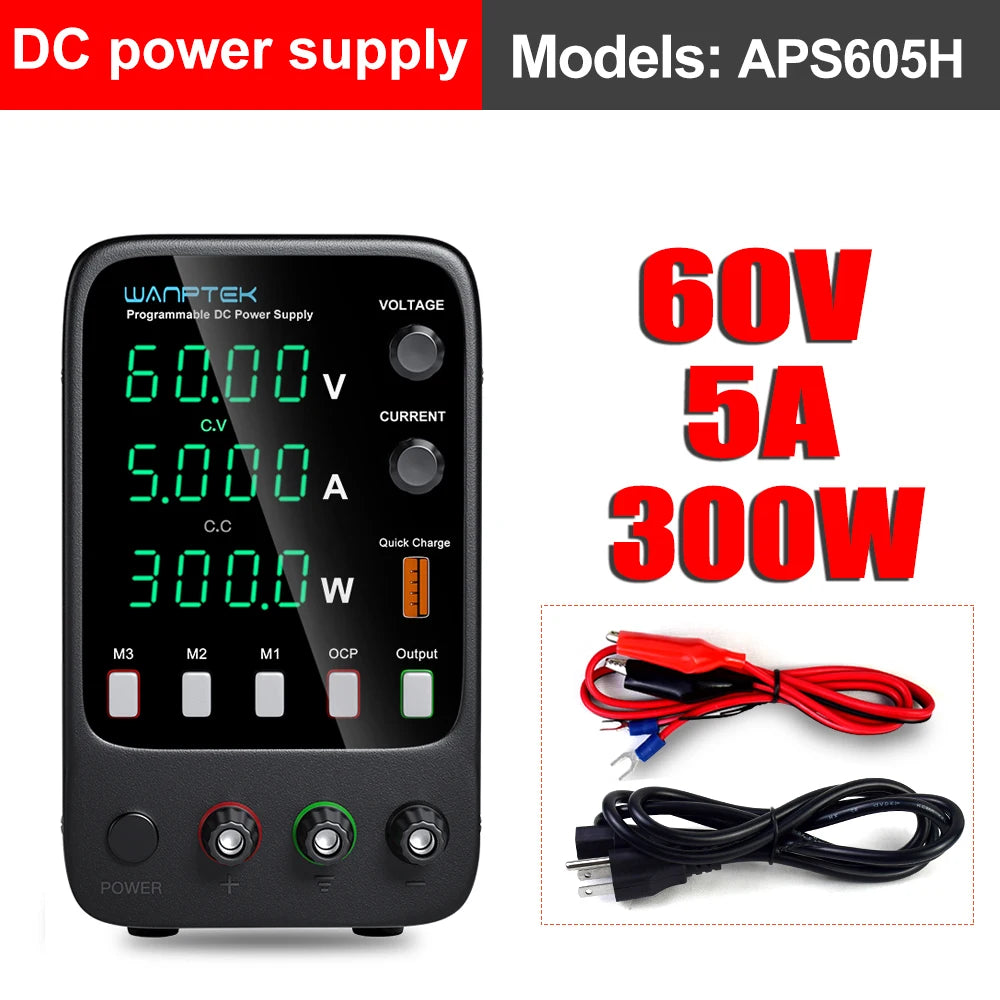

1x DC power supply
1x power cord (EU,US,UK,AU)
1x Test line(gift)
1x Instructions
We will inspect all DC power supply and accessories before shipment to ensure that the quality of the products received by each customer is good. We provide a 12-month warranty policy. If you have any questions about our DC power supply, please feel free to contact us, we will response back within 24 hours.
Note 1: The fan inside the power supply is intelligently temperature controlled. The fan will only rotate when the temperature inside the power supply is above 50 degrees Celsius. When the temperature inside the power supply is below 50 degrees Celsius, the fan will not rotate. This is to effectively save energy and reduce noise
