Description
Motherboard chip
Integrated chip sound card/network card
Main chipset Intel H97
Chipset description Using Intel H97 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC887 8-channel audio chip
Network card chip onboard Intel I218V Gigabit network card
Processor specifications
CPU type Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1150
Memory specifications
Memory type 4×DDR3 DIMM
Maximum memory capacity 16GB
Memory description Support dual-channel DDR3 1600/1333MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics slot
PCI slot 3 × PCI slot
Storage interface 1×M.2 interface, 6×SATA III interface

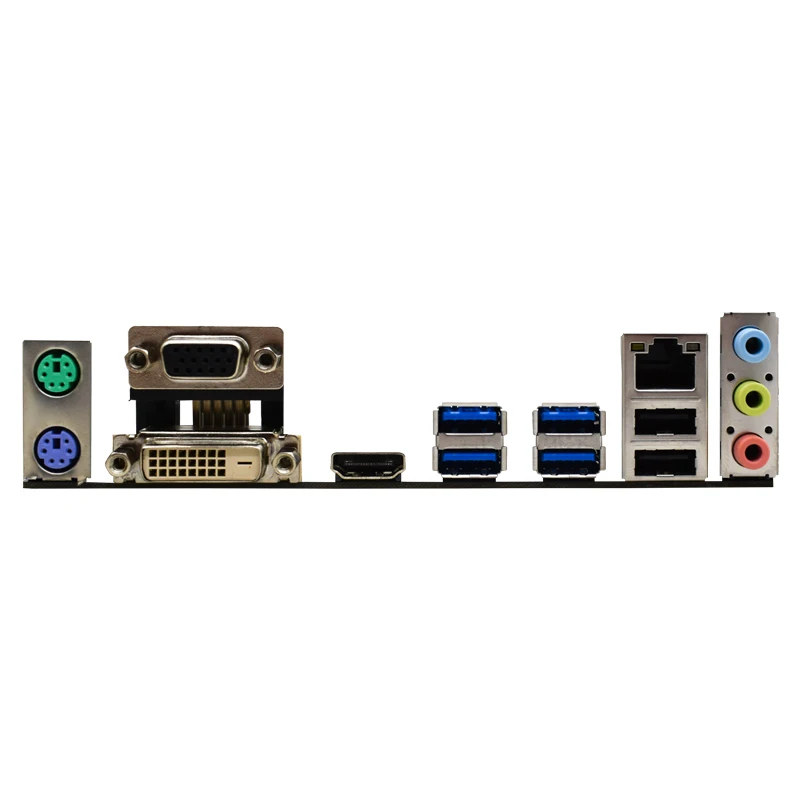

I/O interface
USB interface 8 × USB2.0 interface (4 built-in +6 backplane), 6 × USB3.0 interface (2 built-in +2 backplane)
Video interface 1×VGA port, 1×DVI port, 1×HDMI port
Power connector One 8-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, audio interface, 1×PS/2 keyboard and mouse universal interface
Plate type
Motherboard type Micro ATX type
Dimensions 24.4×19.8cm
Software management
BIOS performance 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, favorites, quick notes, history , F12 screenshots, F3 shortcut keys, memory SPD information
Other parameters
Power supply mode four-phase
Overclocking function support
RAID function Support RAID 0, 1, 5, 10
Other features support Windows 8.1/8/7
