Description
Motherboard chip
Integrated chip Sound card/network card
Main chipset Intel X299
Chipset description Using Intel X299 chipset
Display chip CPU built-in display chip (CPU support required)
Audio chip Integrated Realtek ALC S1220A 8-channel sound chip
Network card chip Onboard Intel I219V Gigabit network card, Intel I211 Gigabit network card
Processor specifications
CPU type Core X-series
CPU slot LGA 2066
Memory specifications
Memory type 8×DDR4 DIMM
Maximum memory capacity 128GB
Memory description DDR4 3600 (overclocked)/4000 (O.C.)/2666/2400/2133 MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 3×PCI-E X16 graphics card slot, 2×PCI-E X4 slot
Storage interface 2×M.2 interface, 8×SATA III interface
I/O interface
USB interface 1×USB3.1 Gen2 interface, 1×USB3.1 Type-A interface, 1×USB3.1 Type-C interface, 8×USB3.1 Gen1 interfaces (4 built-in + 4 backplane), 6×USB2.0 interfaces (2 built-in + 4 backplane)
Power interface One 4-pin, one 8-pin, one 24-pin power interface

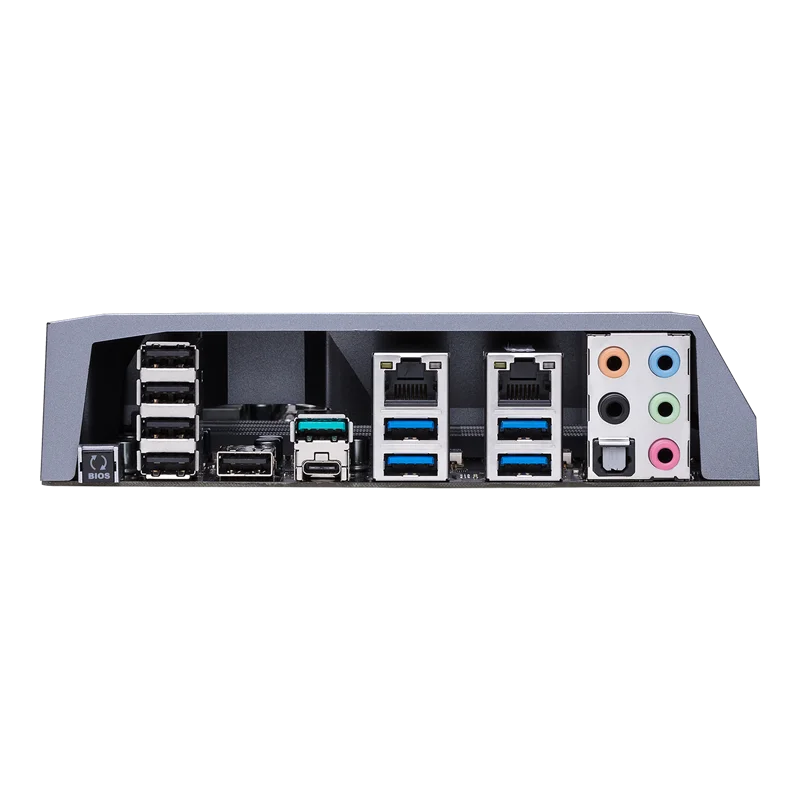

Other interfaces 2×RJ45 network interface, 1×optical interface, 5×audio interface, 5×chassis fan interface, 1×CPU optional fan interface, 1×auxiliary fan interface, 1×system panel interface (Q-Connector), 3×temperature sensor interface, 1×W_PUMP+ interface, 1×PS/2 keyboard and mouse universal interface
Board type
Motherboard type ATX board type
Dimensions 30.5×24.4cm
