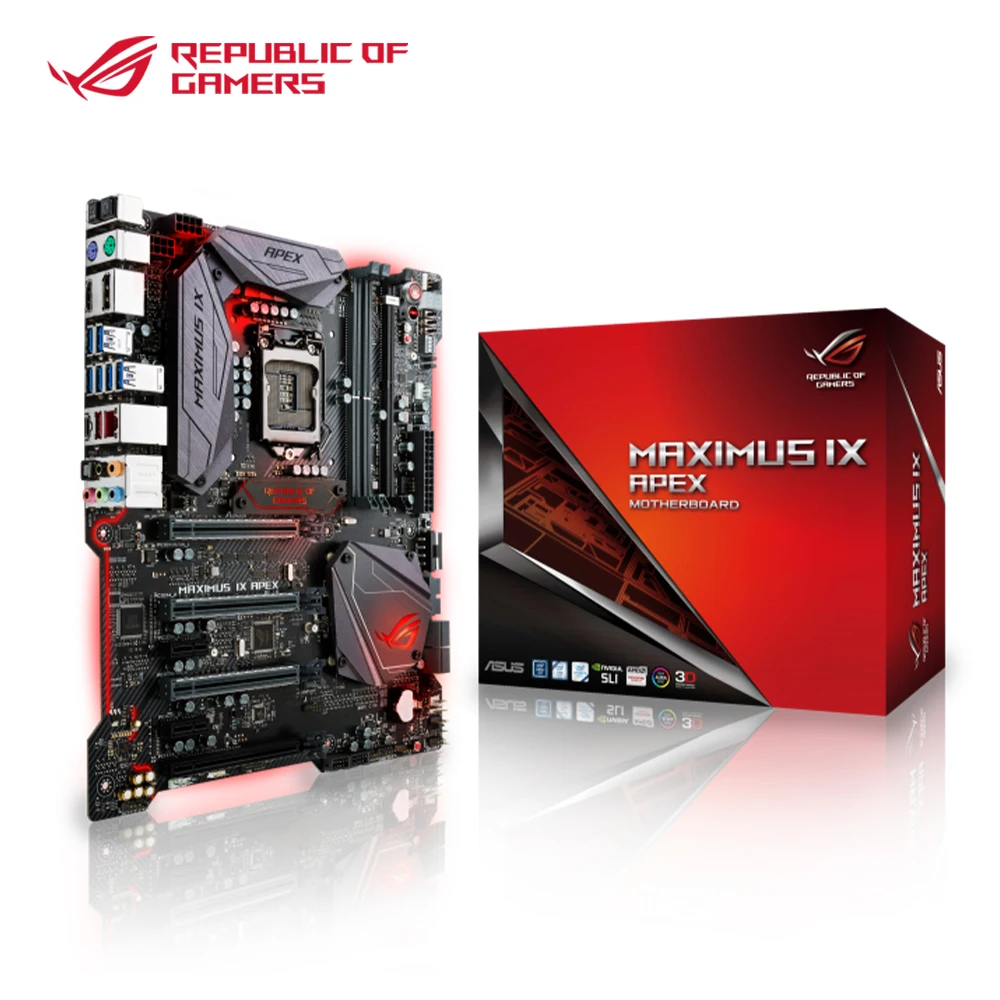

StoneTaskin Original ASUS ROG MAXIMUS IX APEX, With BOX, LGA 1151 Motherboard, Supports Intel Core i7 7700K, 2x DIMMs Max. 32GB DDR4, E-ATX Mainboard High Quality Fully Tested Free Shipping

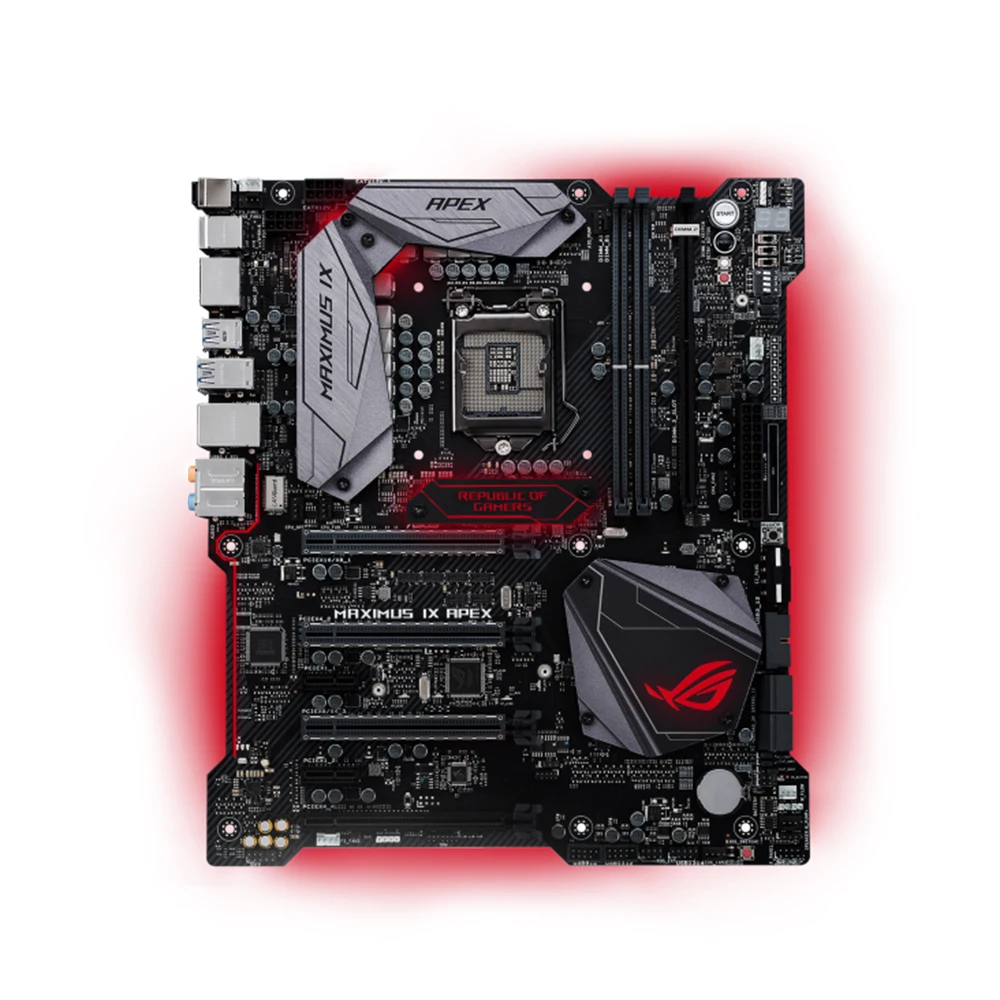

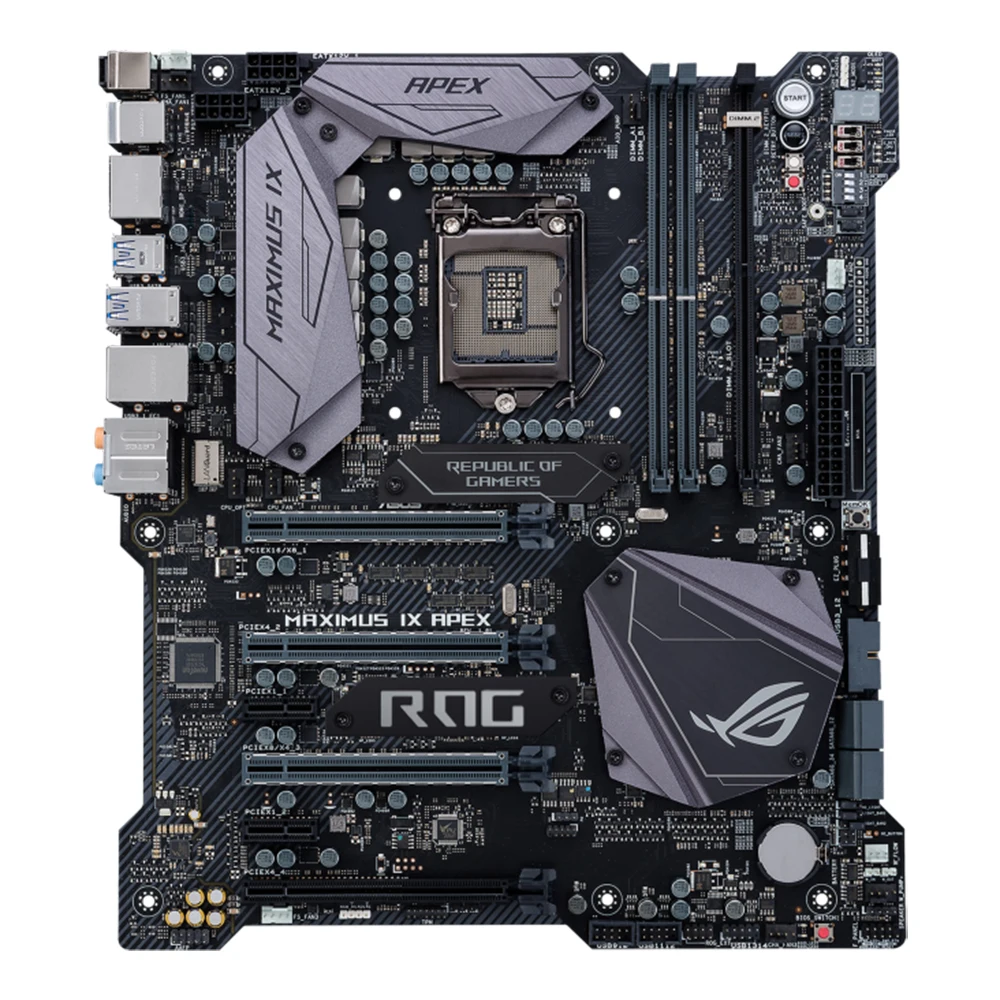

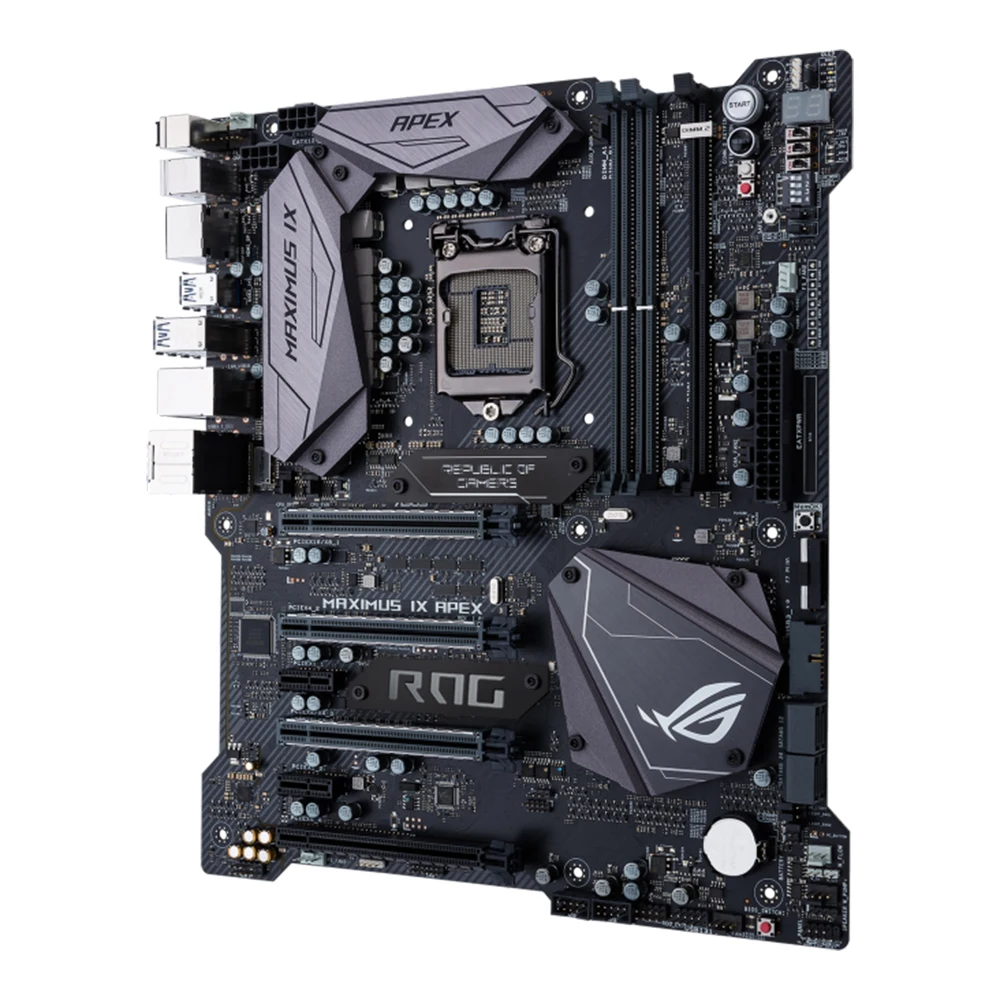

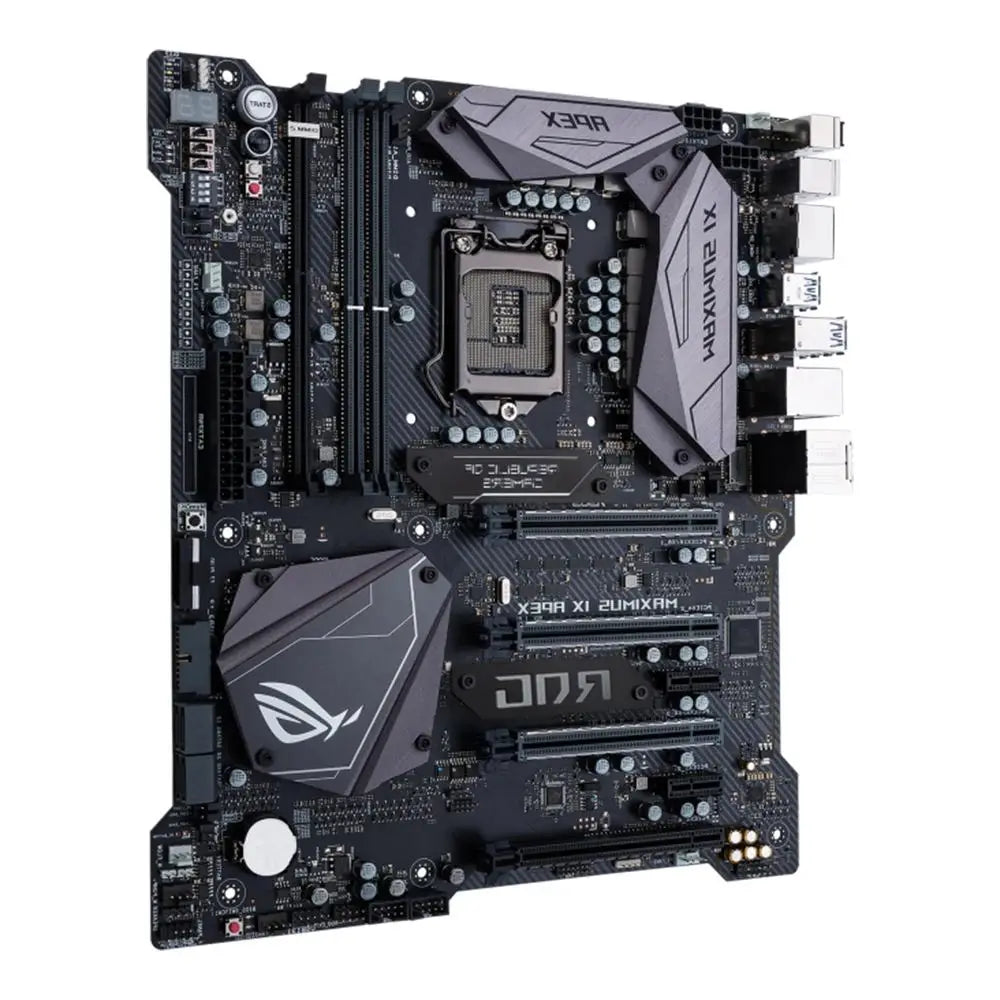

ASUS ROG MAXIMUS IX APEX

Intel Z270 Chipset LGA 1151 Socket

for 7th and 6th Generation Intel Core i7 / i5 / i3 /Pentium / Celeron Processors

Motherboard chip

Integrated chip sound card/network card

Main chipset Intel Z270

The chipset description uses the Intel Z270 chipset

Display chip CPU built-in display chip (requires CPU support)

Audio chip integrated with SupremeFX S1220A 8-channel sound effect chip

Network card chip onboard Intel I219V Gigabit network card

Processor specifications

CPU type 7th/6thgeneration Core i7/i5/i3/Pentium/Celeron

CPU slot LGA 1151

CPU description supports Intel 14nm processors

Memory specifications

Memory type2xDDR4 DIMM

Maximum memory capacity 32GB

Memory description supports dual channel DDR4 4266 (O.C.)/4133 (O.C.)/4000 (O.C.)/3866 (O.C.)/3800 (O.C.)/3733 (O.C.)/3600 (O.C.)/3500 (O.C.)/3466 (O.C.)/3400 (O.C.)/3333 (O.C.)/3300 (O.C.)/3200 (O.C.)/3000 (O.C.)/2800 (O.C.)/2666 (O.C.)/2400 (O.C.)/2133 MHz memory

Storage Expansion

PCI-E standard PCI-E 3.0

PCI-E slot 4xPCI-E X16 graphics card slot, 2xPCI-E X1 slot

Storage interface 2xM.2 interface, 4xSATA III interface

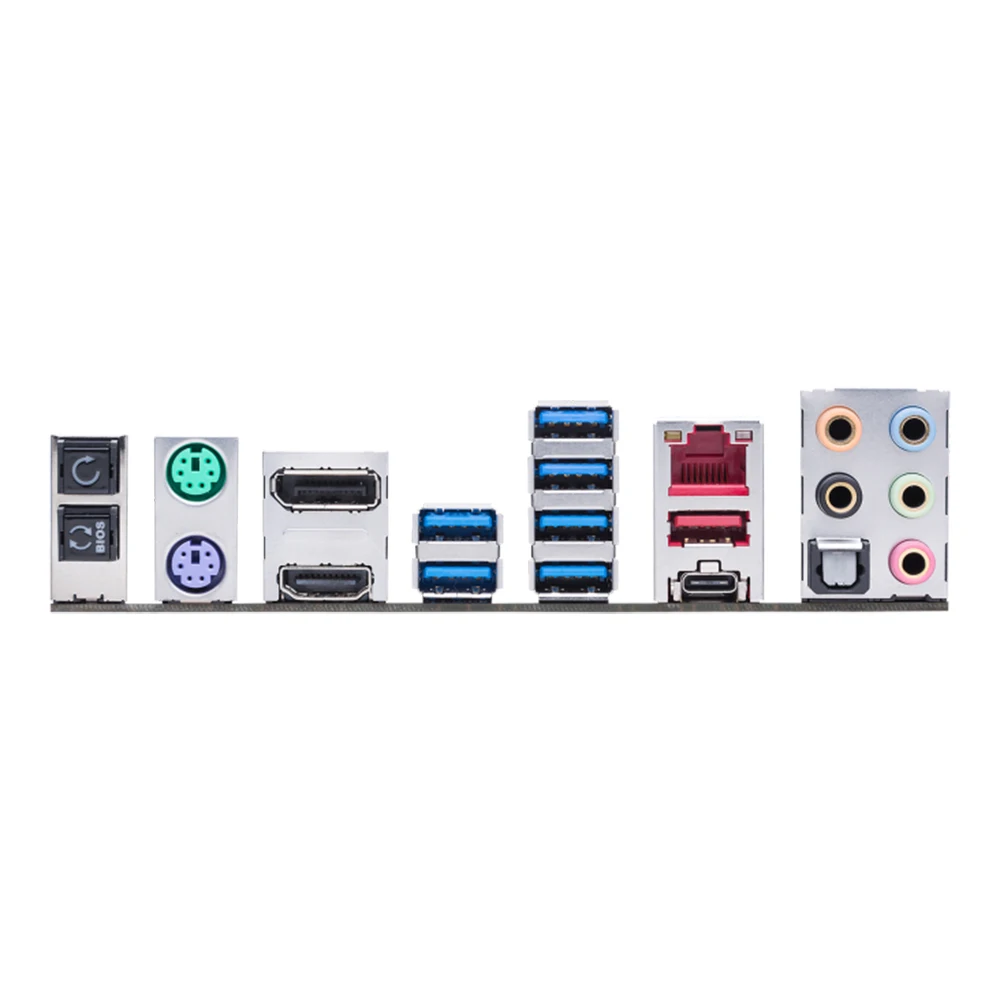

I/O interface

USB interface 1 x USB3.1 Type-A interface, 1 x USB3.1 Type-C interface, 8 x USB3.0 interface, 6 x USB2.0 interface

Video interface 1 x Display Port interface, 1 x HDMI interface

One 8-pin power interface and one 24-pin power interface

Other interfaces: 1 x RJ45 network interface, 1 x fiber optic interface, audio interface, 1 x PS/2 mouse, 1 x PS/2 keyboard interface

Plate type

Main board type E-ATX board type

External dimensions 30.5 x 27.2cm
