Before placing an order, please provide your panel model to us if you are not sure about your lcd
Note: The power supply interface is different, the two models are shipped randomly!

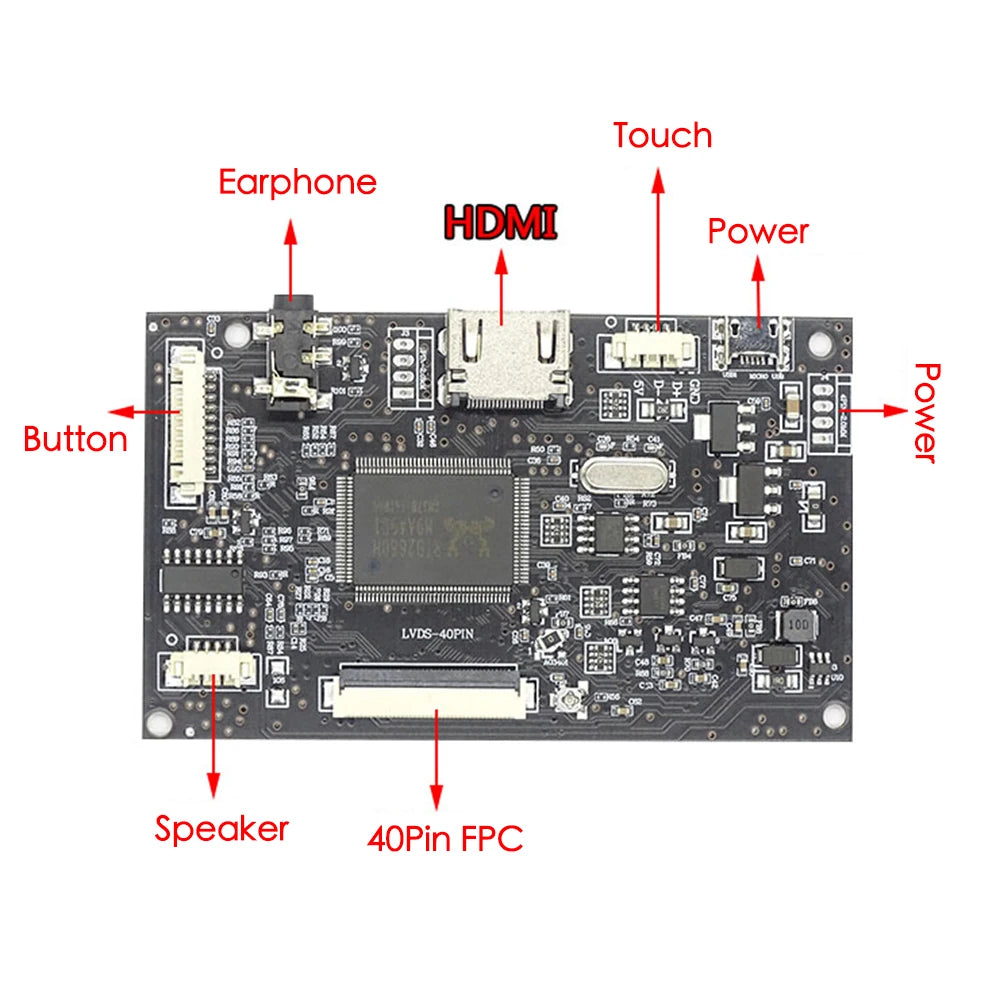

1,USB power supply interface, 5V standard power supply, need to be greater than 1.5A
2, all plug-in seat for 1.25MM, SMD socket

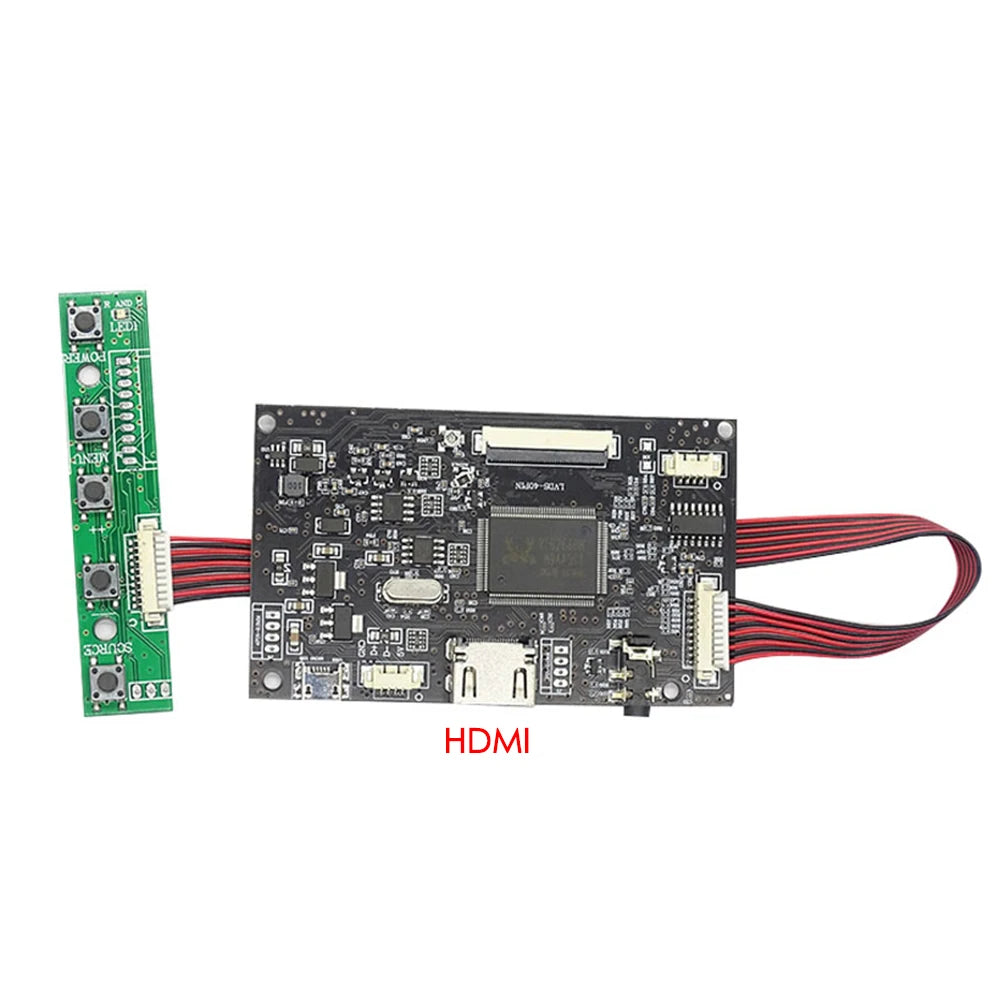

3, 1 HDMI signal input, and the IC support for HDMI1.2
4, HDMI is a high-quality gold-plated seat
6, support for amplifier output, 8 ohm-2W/4 ohm-2W
7, the driver board adopts special circuit design, can drive about 10V LED backlight, and maximum support 200MA current output.
8, support, TTL-40P standard interface (see EJ070NA-13A,), and the standard 5-key keypad.
9, the standard 5-key keypad interface, and support for dual-color LED indicator display
10, support lvds signal output, individual screens need to be adapter boards

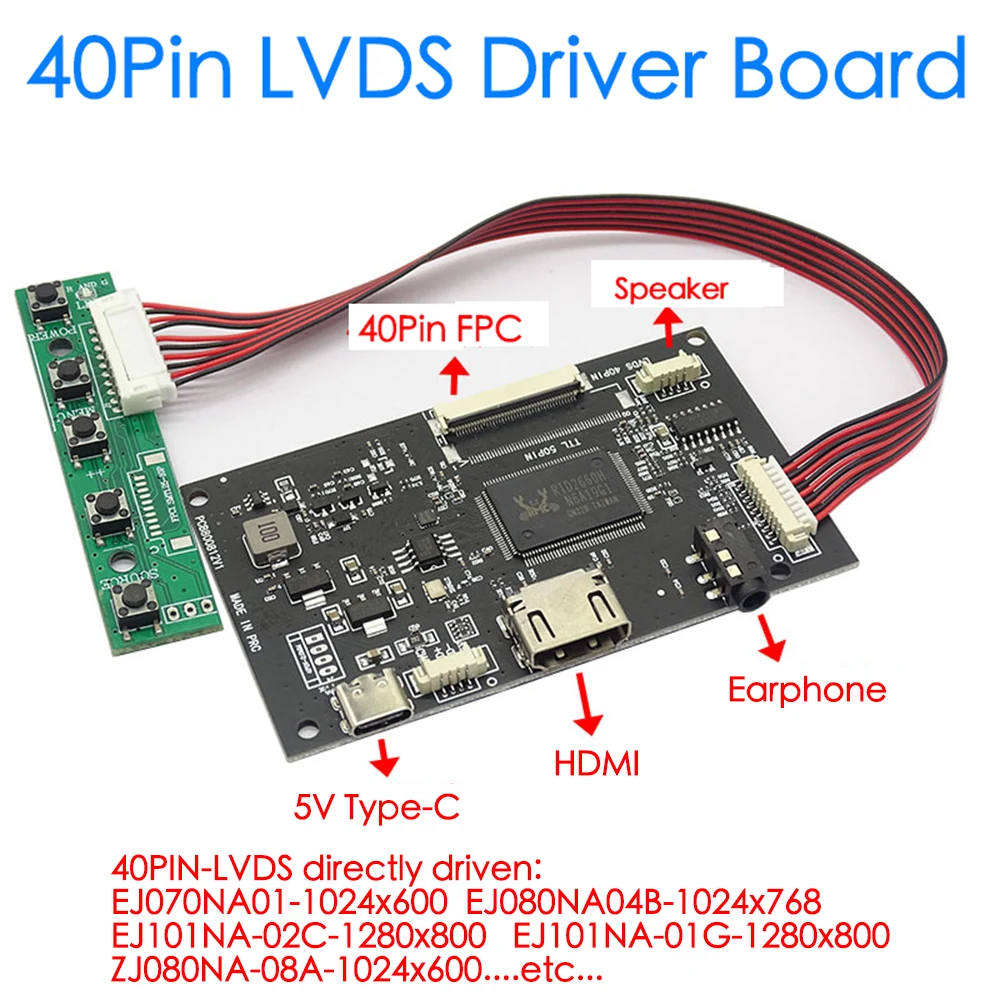

12, 40PIN-LVDS definition interface can be directly driven
EJ070NA01-1024X600
EJ080na04b-1024x768
HJ080IA-01E-1024x768
EJ101na-02c-1280x800
EJ101na-01g-1280x800
ZJ080NA-08A-1024X600 . etc.......
13, HDMI signal display, the default 4S no signal automatically waiter, there is a signal automatically power on the power-saving design features
Package include:
1x driver board
1x button
(not include the screen ,just for reference only）
