We are mainly a store selling used motherboards, mainly selling AM4 interface
motherboards such as B550 X570, as well as some LGA 1151, LGA 1200, LGA 1700 motherboards, X99
X299 series motherboards, and server motherboards.
Our motherboards undergo rigorous testing, including testing of CPU
slots, memory slots, M.2/SATA interfaces, and more.
Before shipment, we will conduct a second shipment test and take pictures of the test results.
Once testing defects are found, we will not ship the product.
Regarding the delivery time, we usually ship within 48 hours. Some orders can
even be shipped within 24 hours.You can purchase motherboards with confidence in our store, and
feel free to contact us if you have any questions. We have professional testers. I can answer
your questions.
In terms of motherboard accessories, we will ship them with a i/o board and SATA cable. For
motherboards that can install antennas, we will also ship with antennas. We will remove the
battery before shipment in order to reset the BIOS settings.
(The battery was not shipped with the package at the time of shipment. You need to equip your
own battery. Hope for understand.)
Regarding the Bios version, we will update the AM4 interface motherboard to the latest Bios
version by default. If you have special requirements, please leave us a message.
Best Regards
Motherboard chip
Integrated chip sound card/network card
Main chipset Intel H310
Chipset description Using Intel H310 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC887 8-channel audio chip
Network card chip Onboard Realtek RTL8111H Gigabit network card
Processor specifications
CPU type 8th generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description Support Intel 14nm processor
Support Intel Turbo Boost 2.0 technology
Memory specifications
Memory type 2×DDR4 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR4 2666/2400/2133MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
PCI slot 3 × PCI slot
Storage interface 1×M.2 interface, 4×SATA III interface

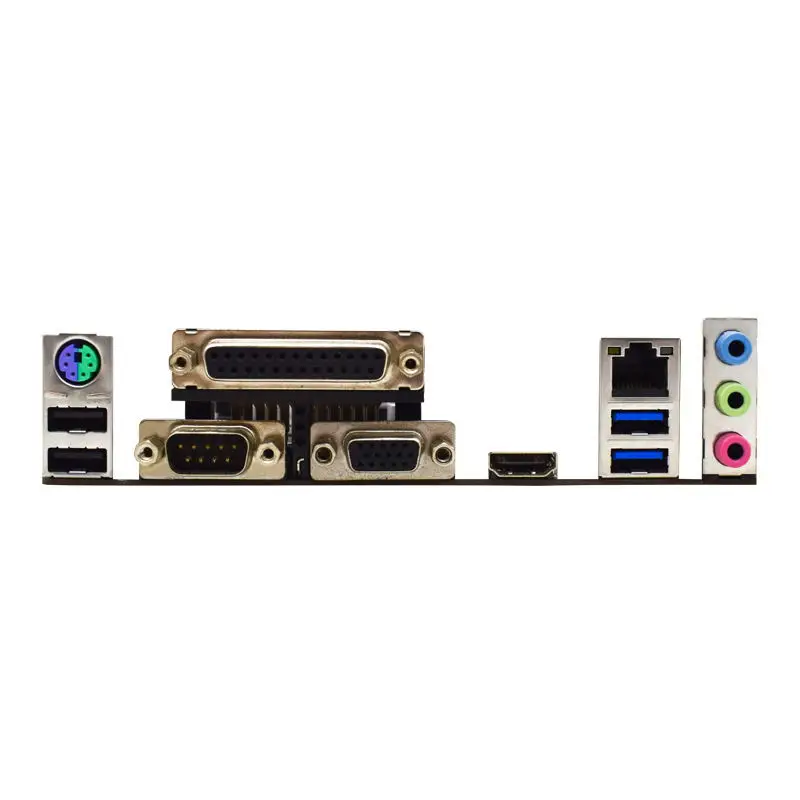

I/O interface
USB interface 4 × USB3.1 Gen1 interface (2 built-in + 2 backplane), 6 × USB2.0 interface (4 built-in + 2 backplane)
Video interface 1×VGA port, 1×HDMI port
Power connector One 4-pin, one 24-pin power connector
Other interfaces
1×RJ45 network interface, 3×audio interface, 1×COM serial port, 1×RGB light bar interface, 1×front panel audio interface (AAFP), 1×system panel interface, 1×PS/2 keyboard and mouse universal interface, 2 ×Chassis fan interface
Board type
Motherboard board type ATX board type
Dimensions 30.5×19.1cm
