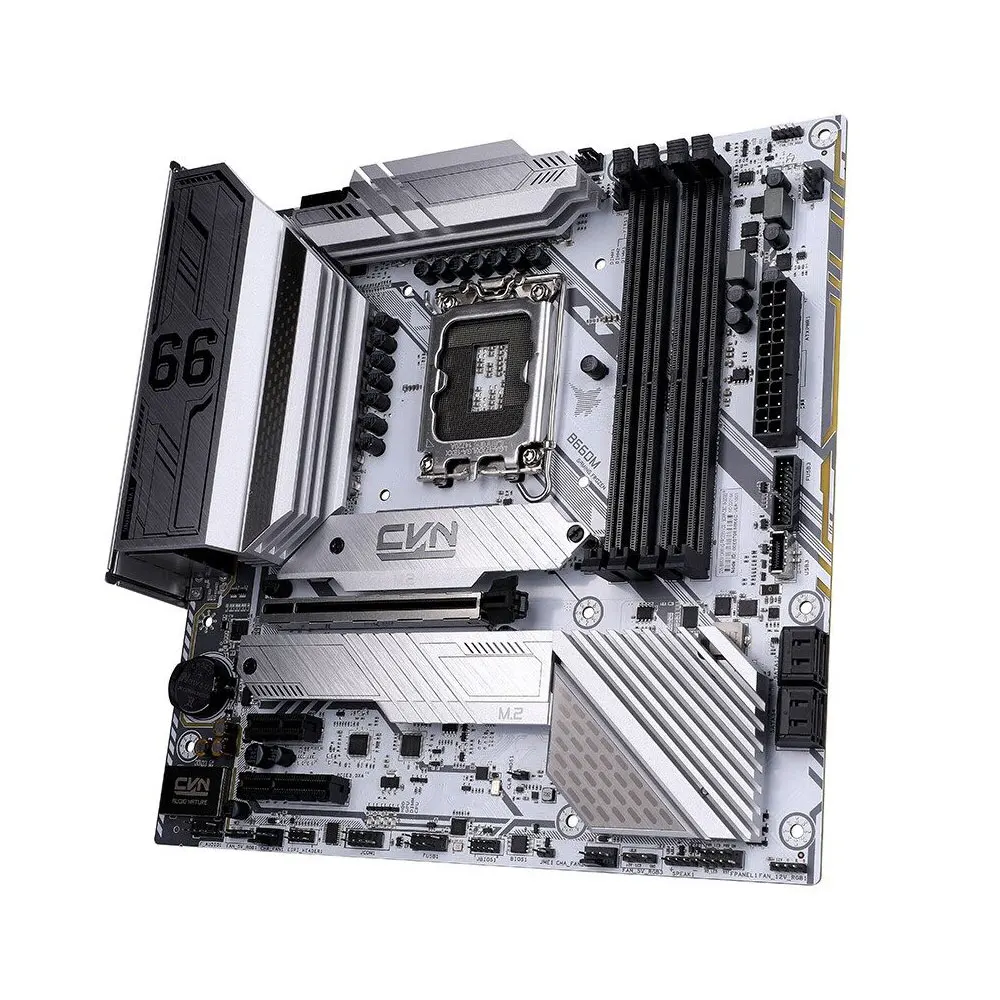

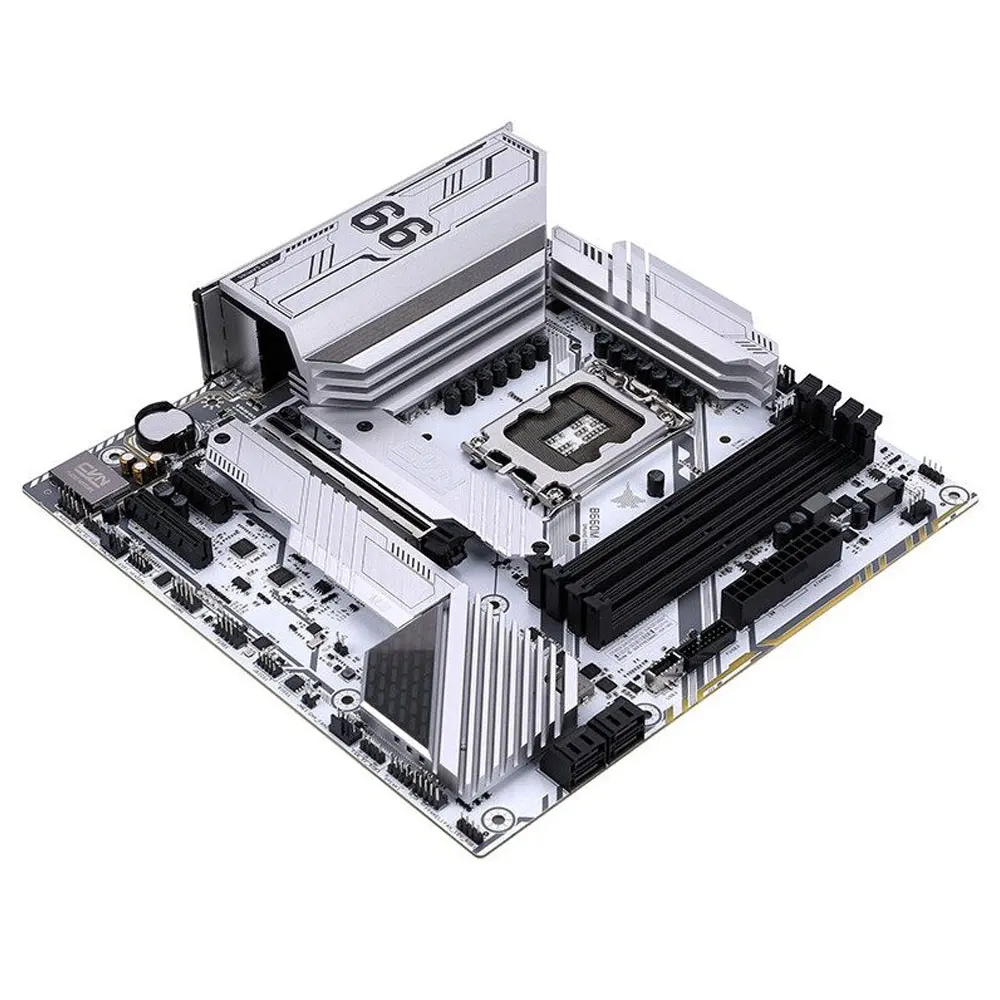

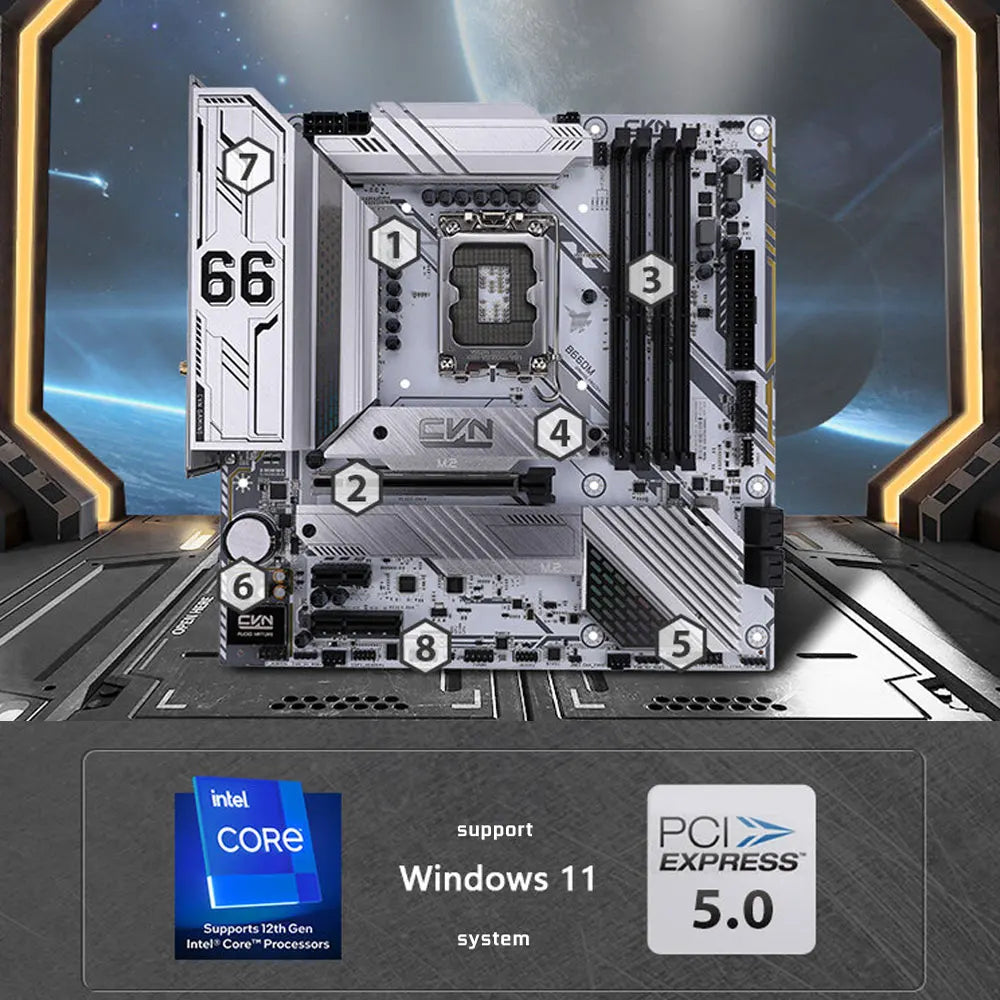

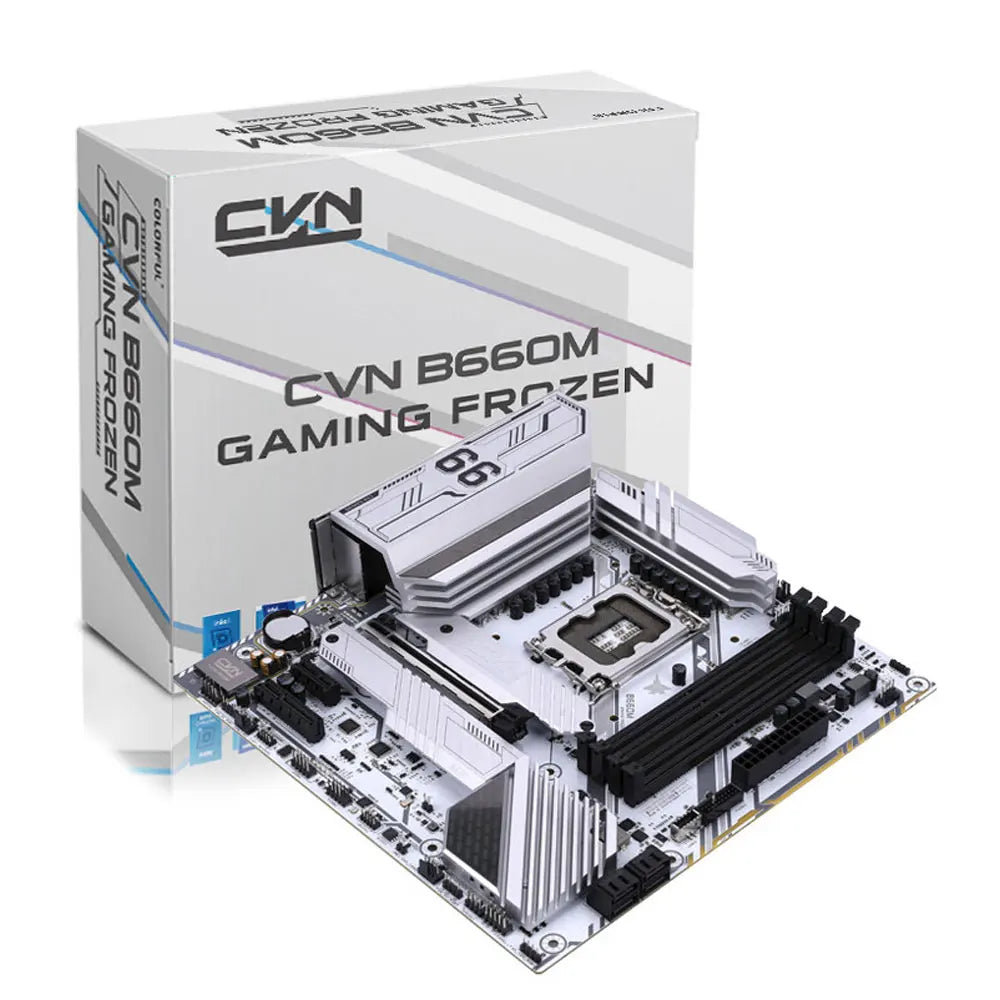

Motherboard Series: |
Intel chipset, CVN series |
|
Chipset: |
Intel B660 |
|
Processor: |
Supports 12th Gen Intel® Core™ Processors(Socket 1700) |
|
Memory: |
4 DIMM slots, support dual channel DDR4-4266(OC)/4000((OC)/3733(OC)/3600(OC) /3200/3000/2800/2666/ |
|
Graphics Support: |
1*PCI Express 5.0 x 16 slot，1*PCI Express 3.0x 4 slot，1*PCI Express 3.0 x1 slot |
|
SATA Ports: |
4*SATA3.0 6Gb/s ports |
|
Board I/O: |
1*HDMI port,1*DP port; 4*USB 2.0 ports,1*USB 3.2 Gen 2 Type-C port ,2*USB 3.2 Gen1 ports,1*WiFi-6, 6*audio ports; |
|
Expansion Slots: |
1*PCI Express 5.0x16 slot,1*PCI Express 3.0x4 slot,2*M.2 slots; |
|
BIOS: |
128M UEFI |
|
Hardware Monitor: |
CPU Fan speed Controlled, SYSTEM Fan speed Monitoring, CPU Temperature Monitoring， |
|
LAN: |
Intel 2.5Gbit LAN |
|
Audio: |
8-Channel High Definition audio CODEC |
|
Configuration: |
245 x 245 mm mATX |
