Colorful GeForce RTX 3060 Ti NB DUO LHR-V
Product Specifications
Chip Series |
GeForce® RTX 3060 Ti |
Product Series |
Colorful Series |
GPU Code Name |
GA104 |
Manufacturing Process |
8nm |
CUDA Cores |
4864 |
Core Clock |
Base:1410Mhz; Boost:1665Mhz |
Memory Speed Grade |
14Gbps |
Memory Size |
8GB |
Memory Bus Width |
256 bit |
Memory Type |
GDDR6 |
Memory Bandwidth |
448GB/s |
Power Connector |
8pin |
Power Supply |
6+2 |
TDP |
200W |
Display Ports |
3DP+HDMI |
Fans Type |
FAN |
Heat Pipe Number/Spec |
2*Φ6 |
Auto Stop Technology |
Y |
Power Suggest |
600W and above |
DirectX |
DirectX 12 Ultimate/OpenGL4.6 |
NV technology Support |
NVIDIA DLSS, NVIDIA G-SYNC, 2nd Gen Ray Tracing Cores |
Slot Number |
2 slot |
Product Size |
253.4*132.5*41mm |
Product Weight |
0.8KG(N.W) |
Accessories |
Warranty Card,Manual |
Hash Rate |
LHR 25 MH/s ETH hash rate (est.) |

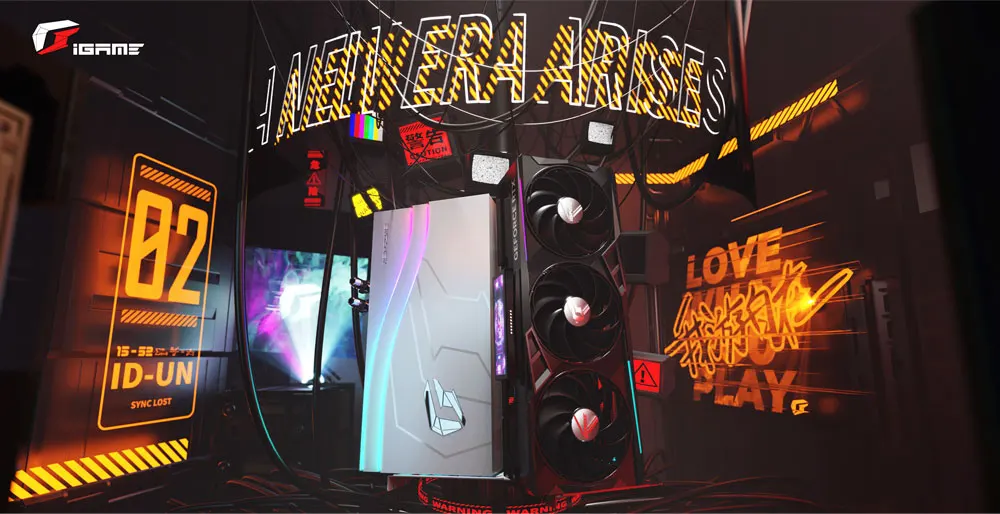

iGame GeForce RTX 3060 Ti Ultra W OC LHR-V
Product Specifications
Chip Series |
GeForce® RTX 3060 Ti |
Product Series |
iGame Series |
GPU Code Name |
GA104 |
Manufacturing Process |
8nm |
CUDA Cores |
4864 |
Core Clock |
Base:1410Mhz;Boost:1665Mhz |
One-Key OC |
Base:1410Mhz; Boost:1770Mhz |
Memory Speed Grade |
14Gbps |
Memory Size |
8GB |
Memory Bus Width |
256 bit |
Memory Type |
GDDR6 |
Memory Bandwidth |
448GB/s |
Power Connector |
2*8Pin |
Power Supply |
8+2 |
TDP |
240W |
Display Ports |
3DP+HDMI |
Fans Type |
FAN |

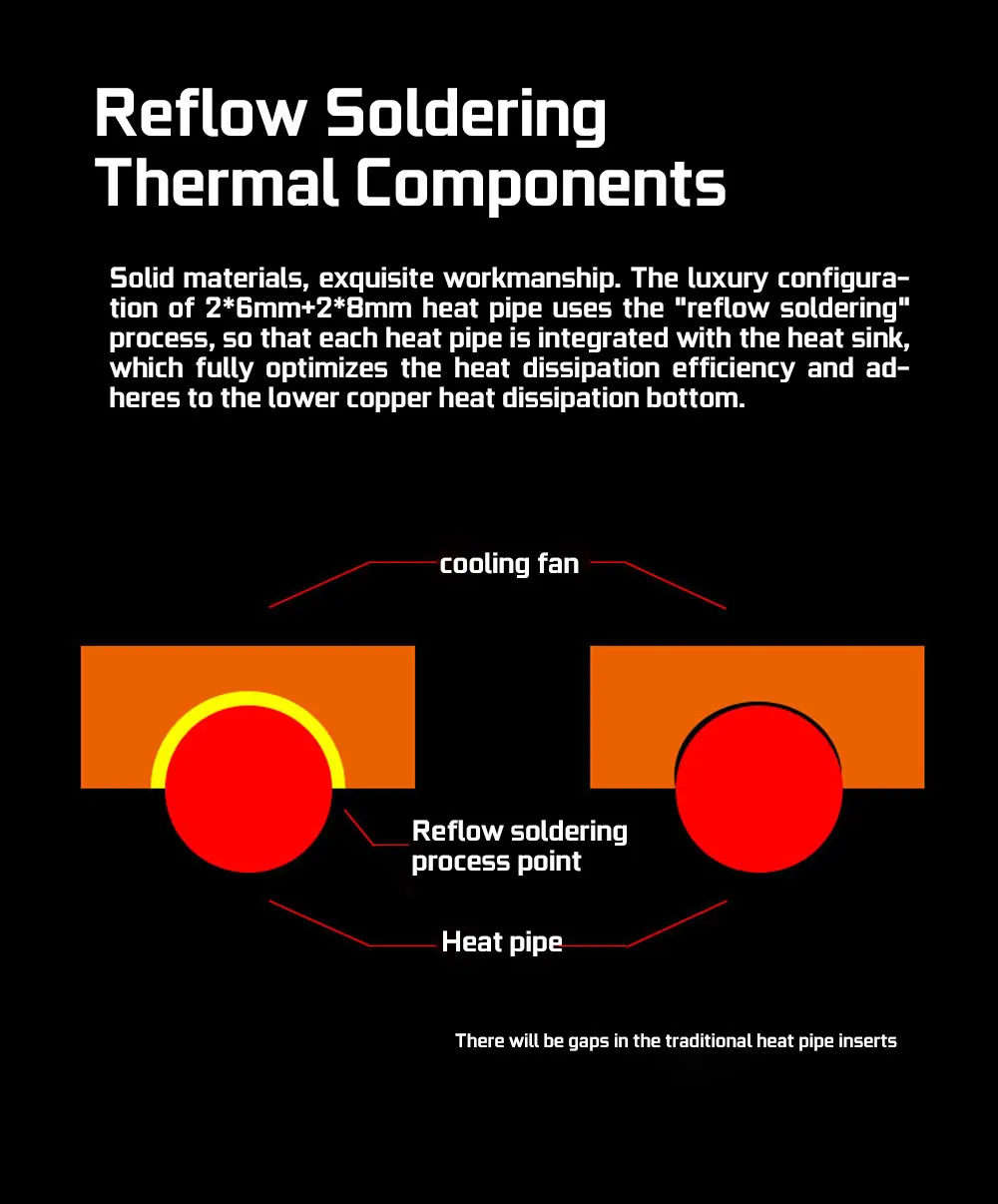

Heat Pipe Number/Spec |
2*Φ6+2*Φ8 |
Auto Stop Technology |
Y |
Power Suggest |
600W and above |
DirectX |
DirectX 12 Ultimate/OpenGL4.6 |
NV technology Support |
NVIDIA DLSS, NVIDIA G-SYNC, 2nd Gen Ray Tracing Cores |
Slot Number |
over 2 slot |
Product Size |
310*131.5*56mm |
Product Weight |
1.1KG(N.W) |
Accessories |
Warranty Card,Manual |
Hash Rate |
LHR 25 MH/s ETH hash rate (est.) |
iGame GeForce RTX 3060 Ti Ultra W G6X V2
Product Specifications
Chip Series |
GeForce® RTX 3060 Ti |
Product Series |
iGame Series |
GPU Code Name |
GA104 |
Manufacturing Process |
8nm |
CUDA Cores |
4864 |
Core Clock |
Base:1410Mhz;Boost:1665Mhz |
One-Key OC |
Base:1410Mhz; Boost:1665Mhz |
Memory Speed Grade |
19Gbps |
Memory Size |
8GB |
Memory Bus Width |
256 bit |
Memory Type |
GDDR6X |
Memory Bandwidth |
608GB/s |
Power Connector |
2*8Pin |
Power Supply |
9+3 |
TDP |
225W |
Display Ports |
3DP+HDMI |
Fans Type |
FAN |
Heat Pipe Number/Spec |
6*Φ6 |
Auto Stop Technology |
Y |
Power Suggest |
600W and above |
DirectX |
DirectX 12 Ultimate/OpenGL4.6 |
NV technology Support |
NVIDIA DLSS, NVIDIA G-SYNC, 2nd Gen Ray Tracing Cores |
Slot Number |
over 2 slot |
Product Size |
310*131.5*56mm |
Product Weight |
1.34KG(N.W) |
Accessories |
Warranty Card,Manual |
Hash Rate |
LHR 25 MH/s ETH hash rate (est.) |
