Model
CPU

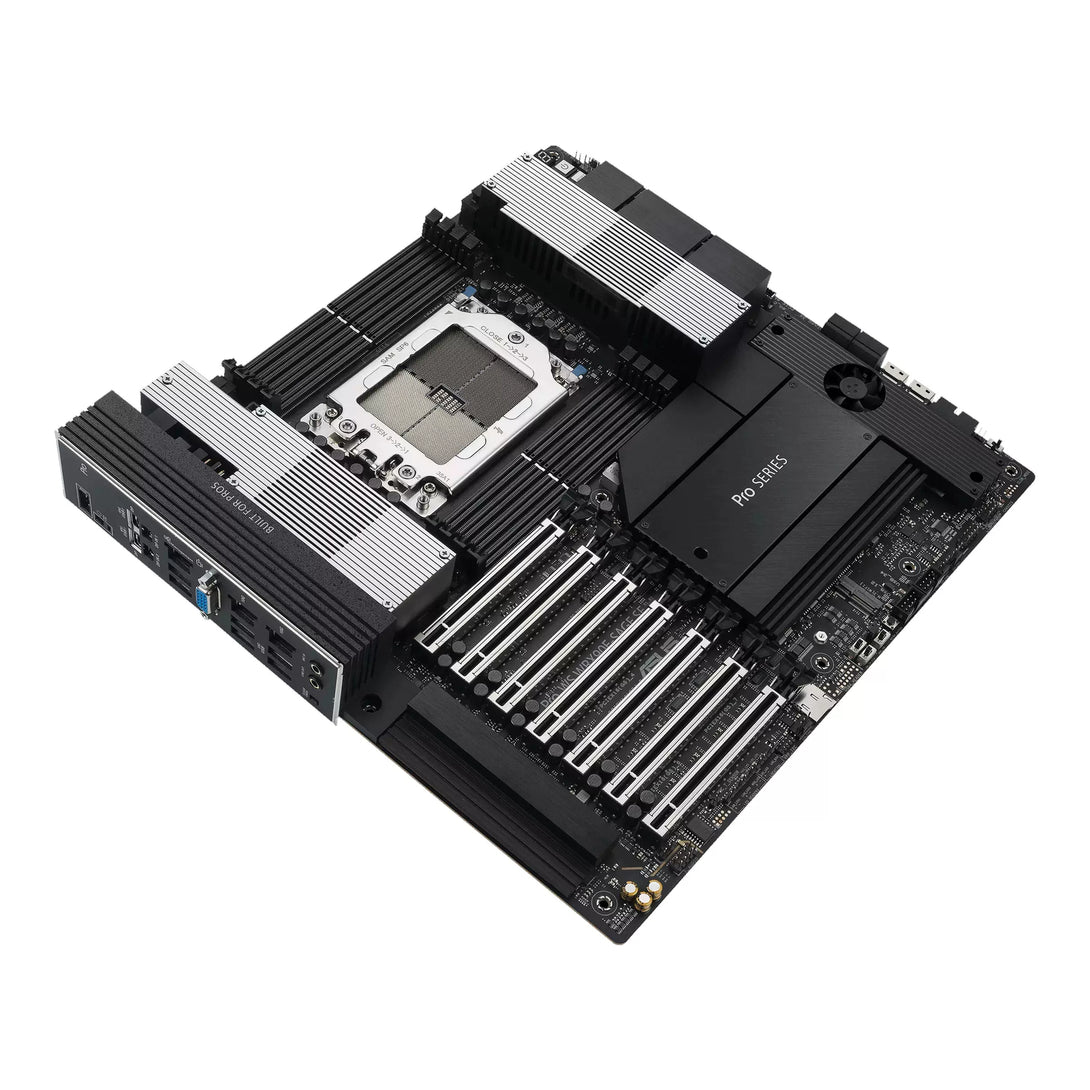

Pro WS WRX90E-SAGE SE
AMD Socket sTR5 for Ryzen Threadripper PRO 7000 WX-Series
*Refer to www.asus.com for CPU support list.
Chipset
Memory
AMD WRX90 Chipset
8 x DIMM slots, DDR5, ECC Registered Memory8 Channel Memory Architecture
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration,for more information please refer to CPU/Memory Support list under the Support tab of product
Expansion Slots
Storage
AMD Ryzen Threadripper PRO7000 WX-Series Processors6xPCle 5.0x16 slots
1 x PCle 5.0 x16 slot (x8 mode)
*Please check the PCle bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507)*To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supportedperipherals.
Total supports 4 x M2 slots,2xslimsAsports and 4xSATA 6Gb/s portsAMD Ryzenm ThreadripperPRO7000 WX-Series ProcessorsM.2 1 slot (Key M), type 2242/2260/2280/22110 (supports PCle 5.0 x4 mode)M.2 2 slot (Key M), type 2242/2260/2280/22110 (supports PCle 5.0 x4 mode)M.2 3 slot (Key M), type 2242/2260/2280 (supports PCle 5.0 x4 mode)M.2 4 slot (Key M), type 2242/2260/2280 (supports PCle 5.0 x4 mode)
AMD WRX90 Chipset2 x SlimSAS slots support PCle 4.0 x4 mode NVMe device
4x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports both PCle RAID 0/1/5/10 and SATA RAID 0/1/5/10.
Ethernet
1x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
1 xIntel" dual 10Gb EthernetASUS LANGuard
USB
Rear USB(Total 9 ports)2x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 x USBType-C)
6x USB 10Gbps ports (6 xType-A)xUSB 2.0 ports(2xType-A)
Front USB (Total7 ports)
1x USB 20Gbpsconnector (supports USB Type-C)I x USB 5Gbps header supports 2 additional USB 5G ports
2x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek ALC1220P Surround Sound High Definition Audio CODEC
Impedance sense for front and rear headphone outputs
lnternal audio Amplifier to enhance the highest quality sound for headphone and speakersSupports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)Supports up to 32-Bit/192 kHz playback
Audio Features
Premium audio capacitors
Dedicated audio PCB layers
Unique de-pop circuit
A chassis with an HD audio module in the front panel is required to support 51 Surround Sound audio output.This motherboard will only support up to 5.1the number of audio ports available on themotherboard.

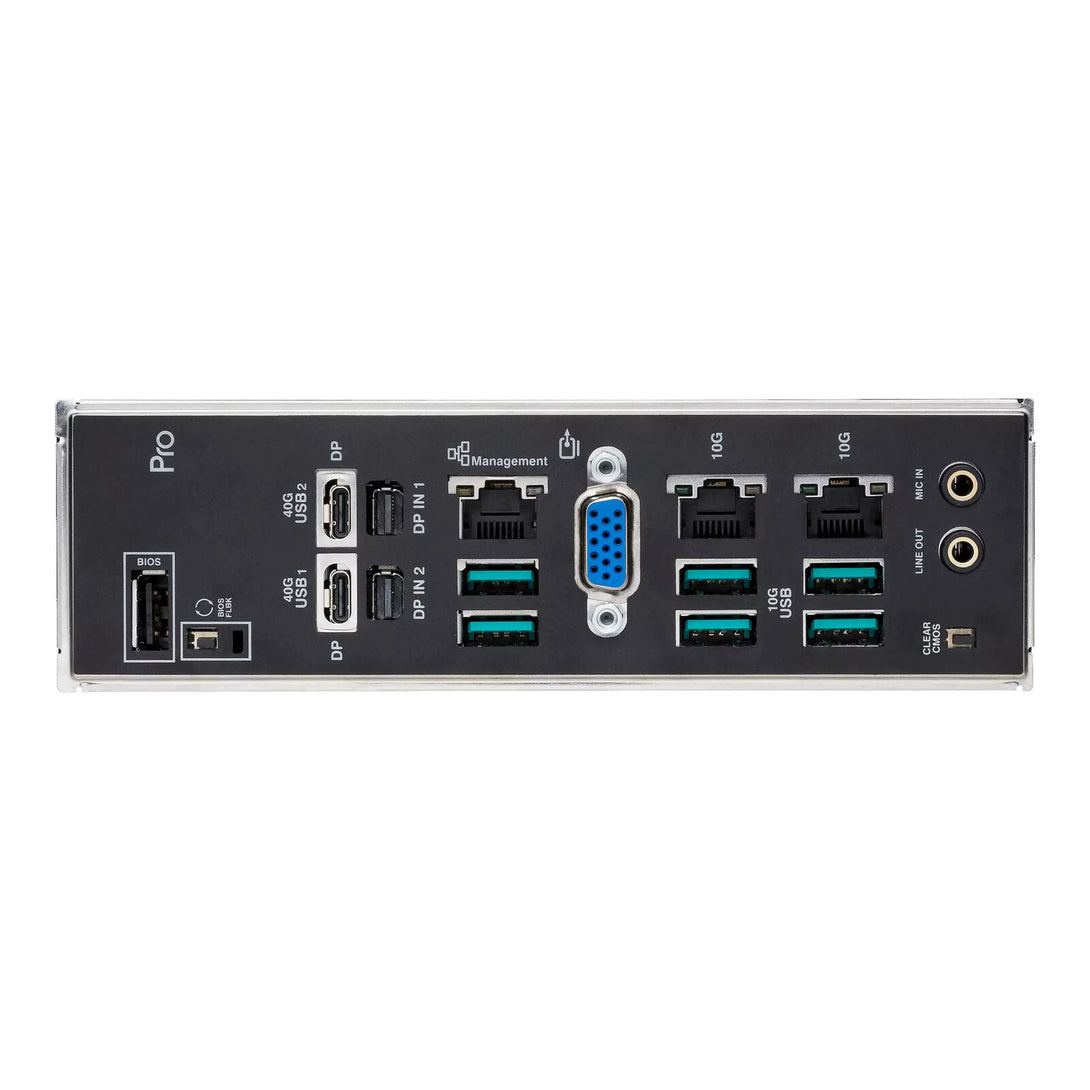

Back Panell/O Ports
2x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 USBType-C6xUSB 10Gbps ports (6 xType-A)xUSB 2.0 port(2xType-A)
xUSB 2.0 port(2xType-A)
1xVGA port
2 x mini DisplayPort IN
1 x Intel' dual 10Gb Ethernet ports
1 x Realtek 1Gb Ethernet port
2 x Audio jacks
1x BIOS FlashBack" button
1 x Clear CMOS button
Internall/O Connectors
Fan and Cooling related1x4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
xWPUMP+header
5 x 4-pin Chassis Fan headers
2x 4-pin VRM Fan header (with VRM FAN onboard)
1 x 4-pin M.2 Fan header (with M2 FAN onboard)
Power related
1 x 24-pin Main Power connectors
2x 8-pin +12V Power connectors
2 x 8-pin PCle to CPU power connectors
2x 8-pin PCle Power connector
Storage related4 x M.2 slots (Key M)
4xSATA 6Gb/s ports
2x SlimSAS port
USB
1x USB 20Gbps connector supports USBType-C1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2x USB 2.0 headers support additional 4 USB 2.0 ports
Yiscellaneous1x Chassis intrusion header1x COM port headerx FlexKey button1 x Front panel audio header (FAUDIO)1xLN2 modejumper1 x M.2 slot (Key E)7 x Probelt measurement pointsx ReTry button1x RSVD switch1x Slow mode switch1 x Safe boot button1x SPITPM header(14-1 pin)1x Start button1 x 10-1 pin system panel header1 xThermal sensor header
Special Features
ASUS 5XPROTECTIONIIIDIGl+ VRM(Digital power design with SPS)-ESD GuardsLANGuardOvervoltage protectionSafeSlotStainless-steel back I/0ASUS O-DesignM2 0-LatchO-Release Slim (with PCle SafeSlot)Q-CodeO-ConnectorODIMM.Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])OSlot
Accessories

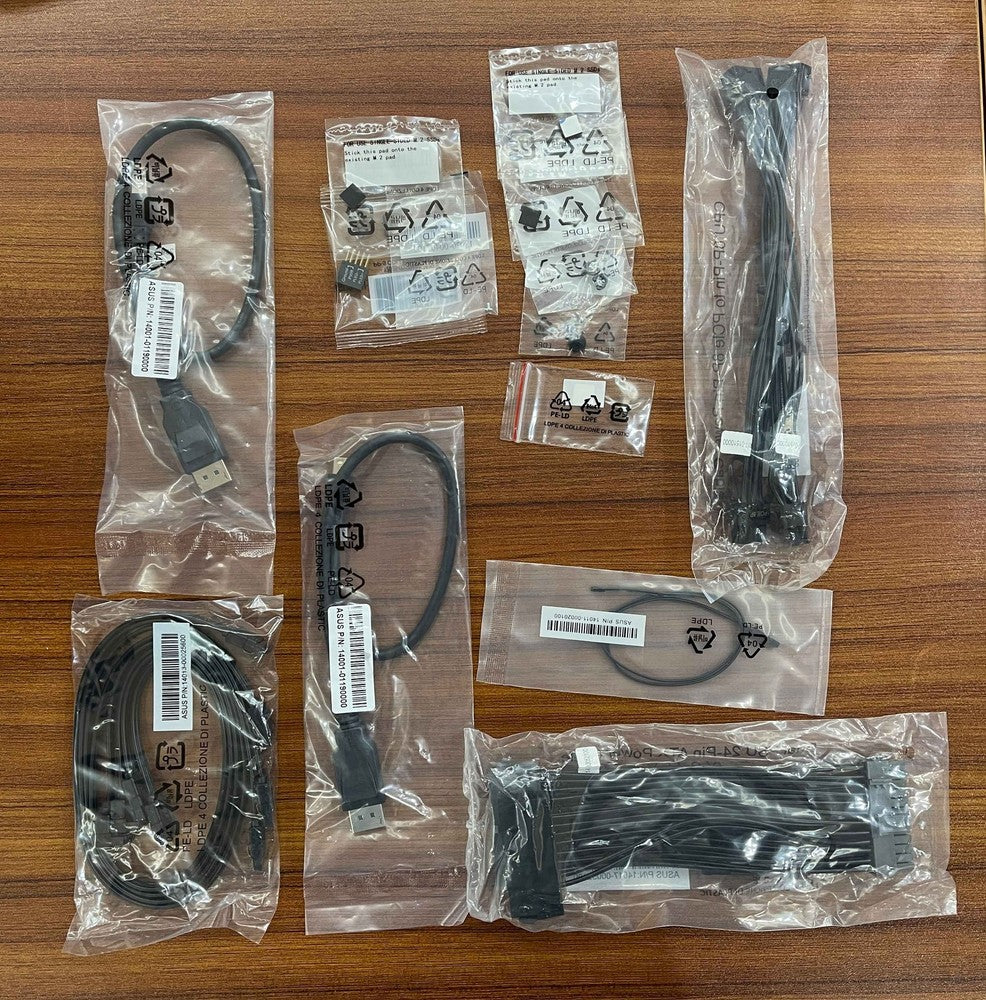

Cables
2x PCle 8-pin to CPU power cables
1 x 24-pin power cable (Y cable)2x Mini DisplayPort cables4 x SATA 6Gb/s cables
1 xThermistor cable pack
Miscellaneous
1 x Q-connector
1x M2 Q-Latch package
1x AMI license sticker
4 x M2 rubber packages
1 x Screw package for M.2 Key E
Documentation
1 x ACC Express Activation Key Card
1 x Quick start quide
Operating System
Form Factor
Windows11
Windows10 64-bit
EEB Form Factor
12 inch x 13 inch
(30.5 cm x33 cm)
Software Features
ASUS Exclusive SoftwareArmoury Crate
Fan Xpert 4
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFIBIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUSTeKEzFlash Utility
FlexKeyIT Management software supportedASUS Control Center Express(ACCE)
BIOS
Manageability
256 Mb Flash ROM,UEFI AMI BIOS(text-based)
WOL by PME PXE(UEFI mode)
