Motherboard chip
Integrated chip graphics card/sound card/network card
Main chipset Intel Z490
Chipset description uses Intel Z490 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated with Realtek ALC1220 7.1 channel sound effect chip
Network card chip onboard Dragon RTL8125BG gigabit network card
Processor specifications
CPU type: 10th generation Core/Pentium/Celeron
CPU slot LGA 1200
Memory specifications
Memory type 2 × DDR4 DIMM
Maximum memory capacity 64GB
Memory description supports dual channel DDR4 4666+(OC)/4600/4500/4400/4333/4266 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3800 (OC)/3733 (OC)/3600 (OC)/3200 (OC)/2933/2800/2666/2400/2133Mhz memory
Storage Expansion
PCI-E Standard PCI-E 3.0
PCI-E slot 1 x PCI-E X16 graphics card slot
Storage interface 3 x M.2 interface, 4 x SATA III interface

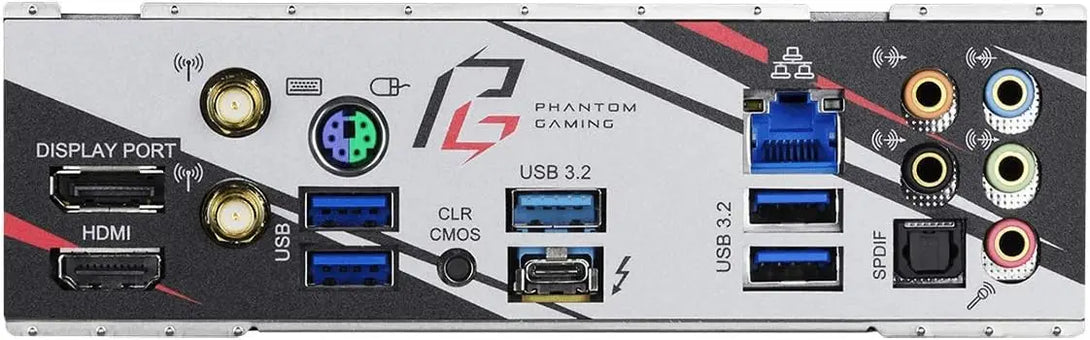

I/O interface
USB interface 4 x USB 3.2 Gen2 interface (3 x Type-A, 1 x Type-C, supporting ESD electrostatic protection), 2 x USB 3.2 Gen2 interface (supporting ESD electrostatic protection), 2 x USB 2.0 interface (supporting ESD electrostatic protection)
Video interface 1 x HDMI interface, 1 x Display Port interface
One 8-pin power interface and one 24 pin power interface
Other interfaces: 1 x PS/2 universal keyboard and mouse interface, 1 x RJ45 network interface, 5 x audio interface
Plate type
Main board type Mini ITX board type
Dimensions 17.0 × 17.0cm
