Description

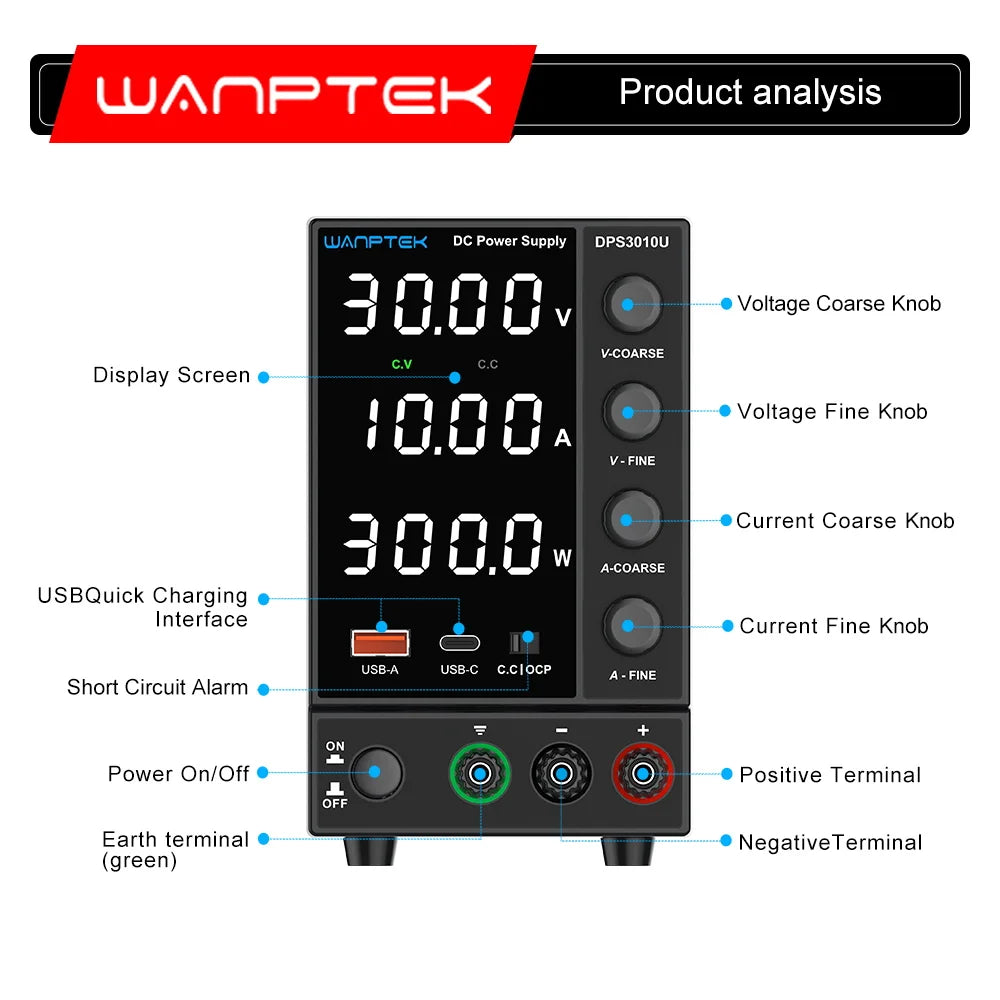

Wanptek's new series products. This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine

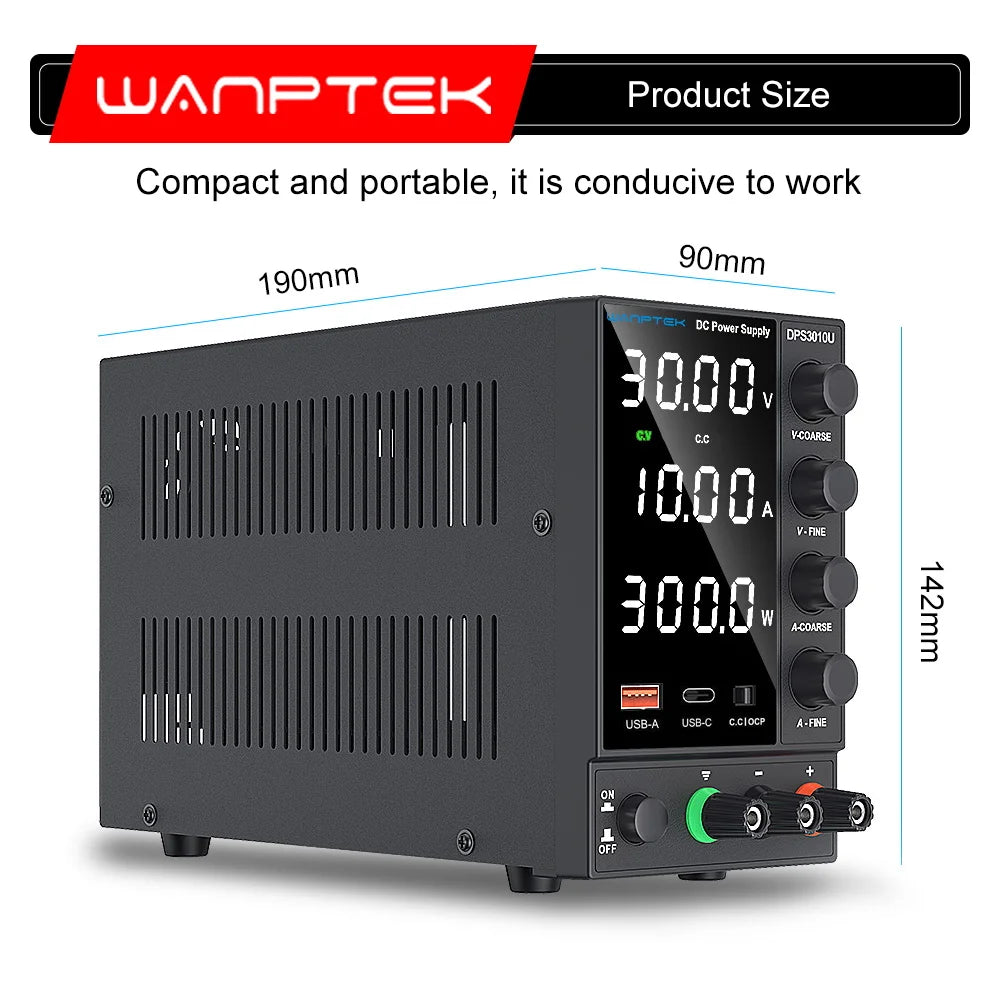

1.Small size, light weight and high power density. weight of only 2.6 pounds. You can easily take the DC power supply to work.

2.Constant pressure and constant current switch automatically.

3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.

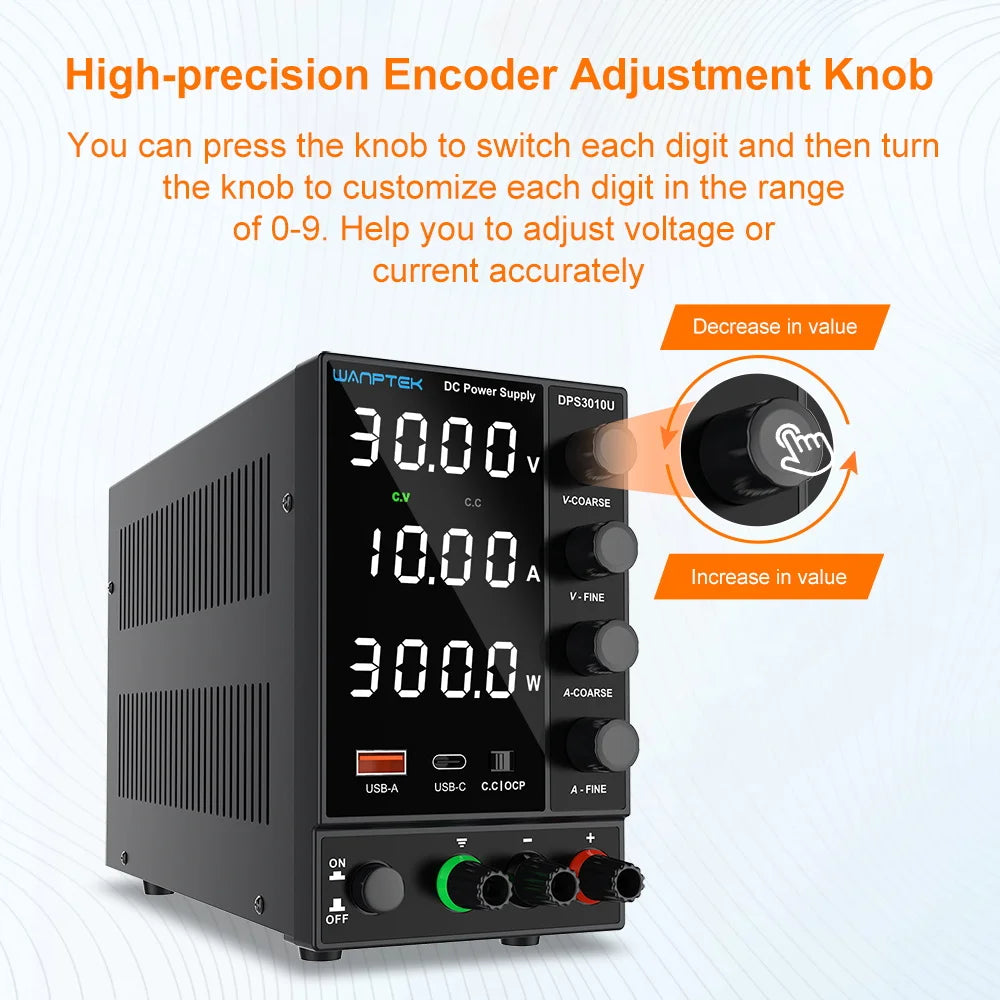

4.Adjustable Output Voltage & Current: output voltage and output current can be continuously

5.adjusted between 0 and nominal value with fine regulating and coarse regulating

6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection

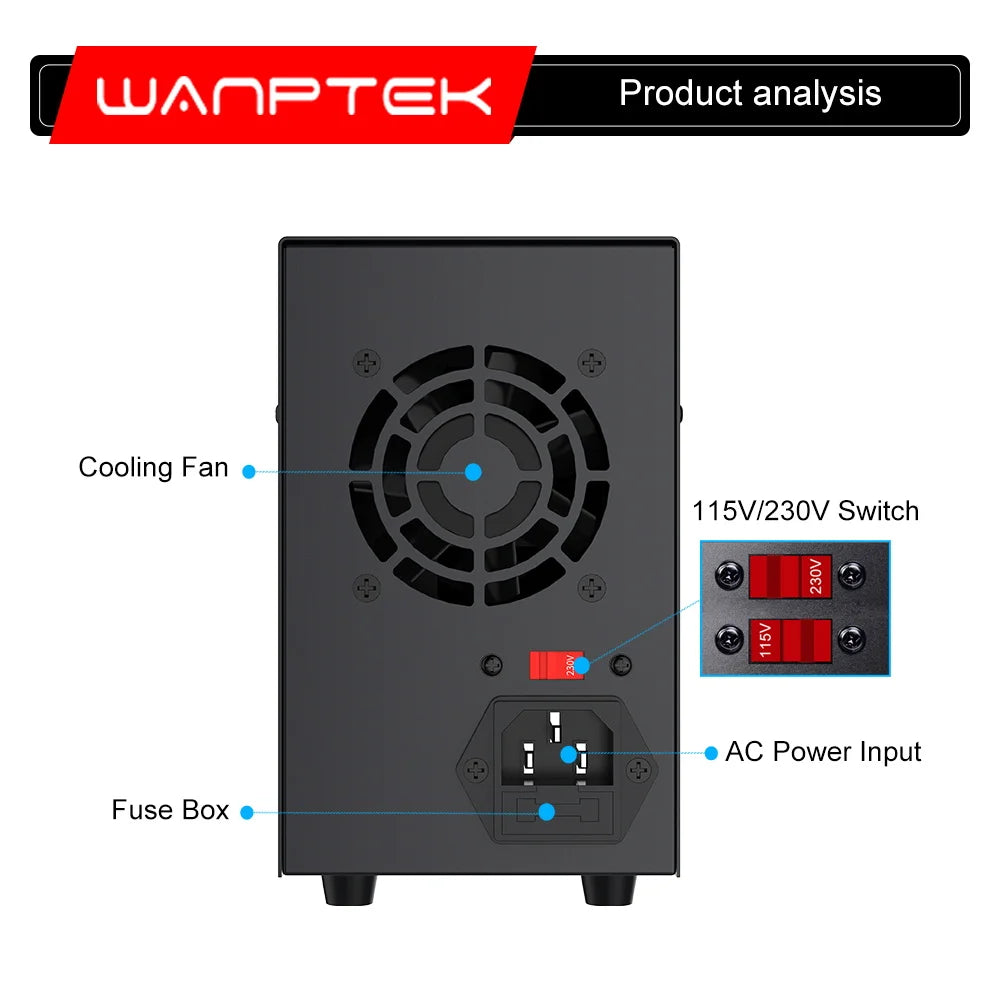

7.Temperature controlled fan cooling, low noise, long life.

8.Dual voltage input and convenient choice.

9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .

10.Output current ranges from 0 to rating current with continuous adjustment

input voltage：AC 230V/115V±10%；50Hz/60Hz
Working temperature：0℃～40℃;relative humidity:<80%RH
Storage temperature：-10℃～70℃;relative humidity:<70%RH
Constant voltage CV
	Voltage stability：0.1%±3mV
	Load stability： 0.2%±3mV
	Ripple voltage：≤0.5% Vp-p
	0 to rated voltage continuously adjustable
constant current CC
	Current stability：0.1%±3mA
	Load stability： 0.2%±3mA
	Ripple current：≤0.5% Vp-p
	Recovery time：≤500μS
	Temperature coefficient：≤100ppm/℃
	0 to rated current continuously adjustable
display
	LED digit display
	Display accuracy：0.5%±digits
	Display resolution： voltage 0.1V/0.01V， current 0.01A/0.001A

1. Production line test.(24hours Working)

2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.

3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.

4. Charge the battery.(Include car battery)

5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use

6. All other occasions requiring DC power supply.

【CE & FCC Certification, Multiple Protection, Various Application】Lab power supplies have passed CE & FCC Certification. DC power supply has multiple protections: overvoltage protection, overcurrent protection, overheating protection, over power protection, short circuit protection, leakage protection. DC power supply is suitable for LiFePO4 battery charging, arduino project, laboratories, schools, electronic maintenance , electrolysis, electroplating, lamp test, aging test, DIY, etc.
