StoneTaskin Lab DC Power Supply 30V 10A 60V 5A Encoder adjustment Adjustable Power Source Stabilized Switch 120V 3A 160V 2A for PC connect Fully Tested Free Shipping

Name: StoneTaskin Lab DC Power Supply 30V 10A 60V 5A Encoder adjustment Adjustable Power Source Stabilized Switch 120V 3A 160V 2A for PC connect Fully Tested Free Shipping
Brand: StoneTaskin
SKU: 45557212872858
Price: 124.84 USD
Availability: InStock

~~$139.84~~ $124.84 СОХРАНИТЬ 11 %

color: WPS305B 30V 5A

Гарантированная безопасная оплата

Быстрая стандартная доставка всех заказов. Ориентировочная доставка 7-15 дней.

Описание

Отзывы

Описание

Four-digit display 0.01 V/0.001 A

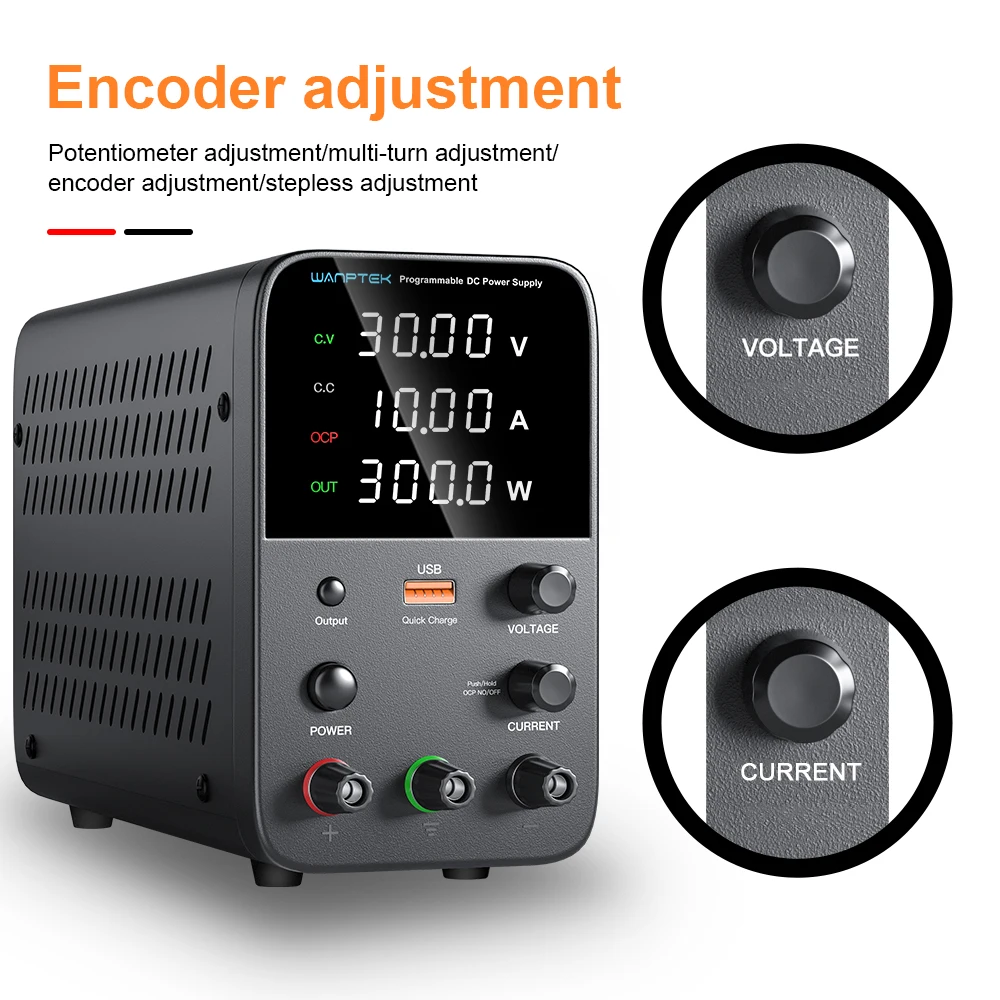

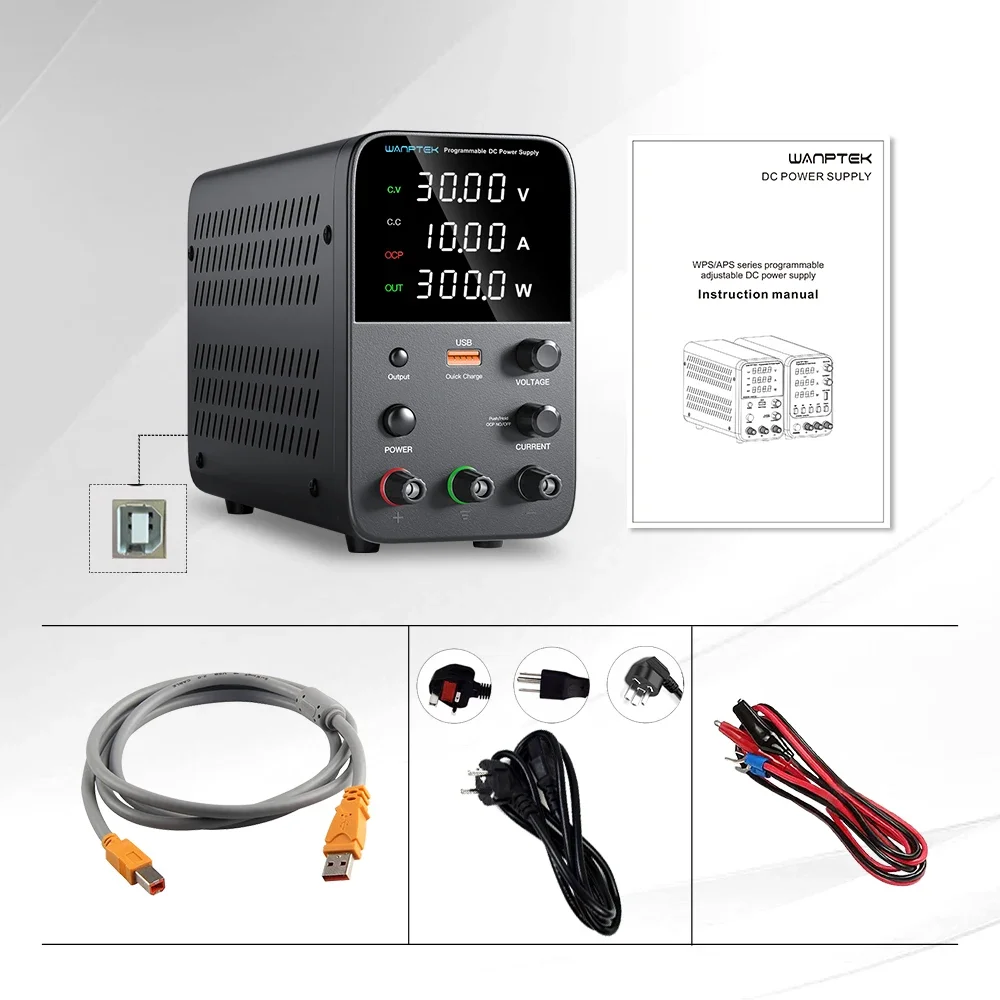

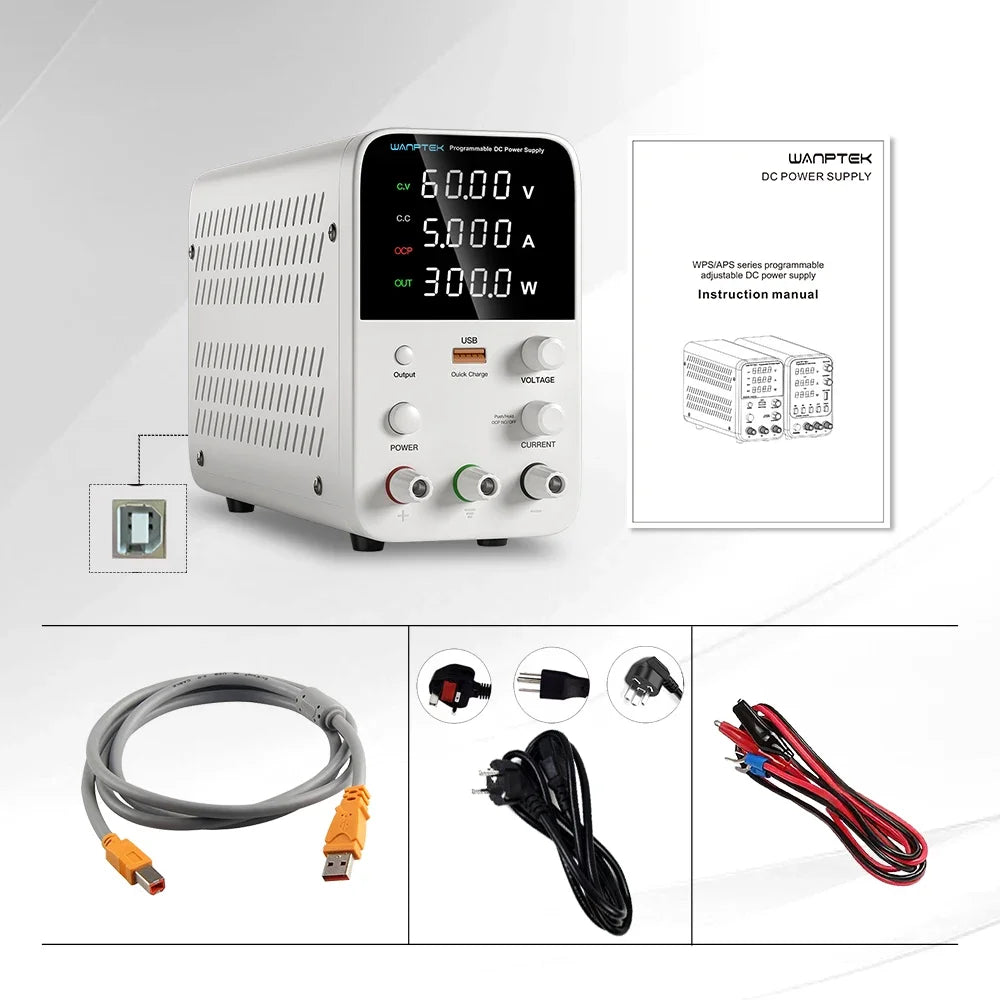

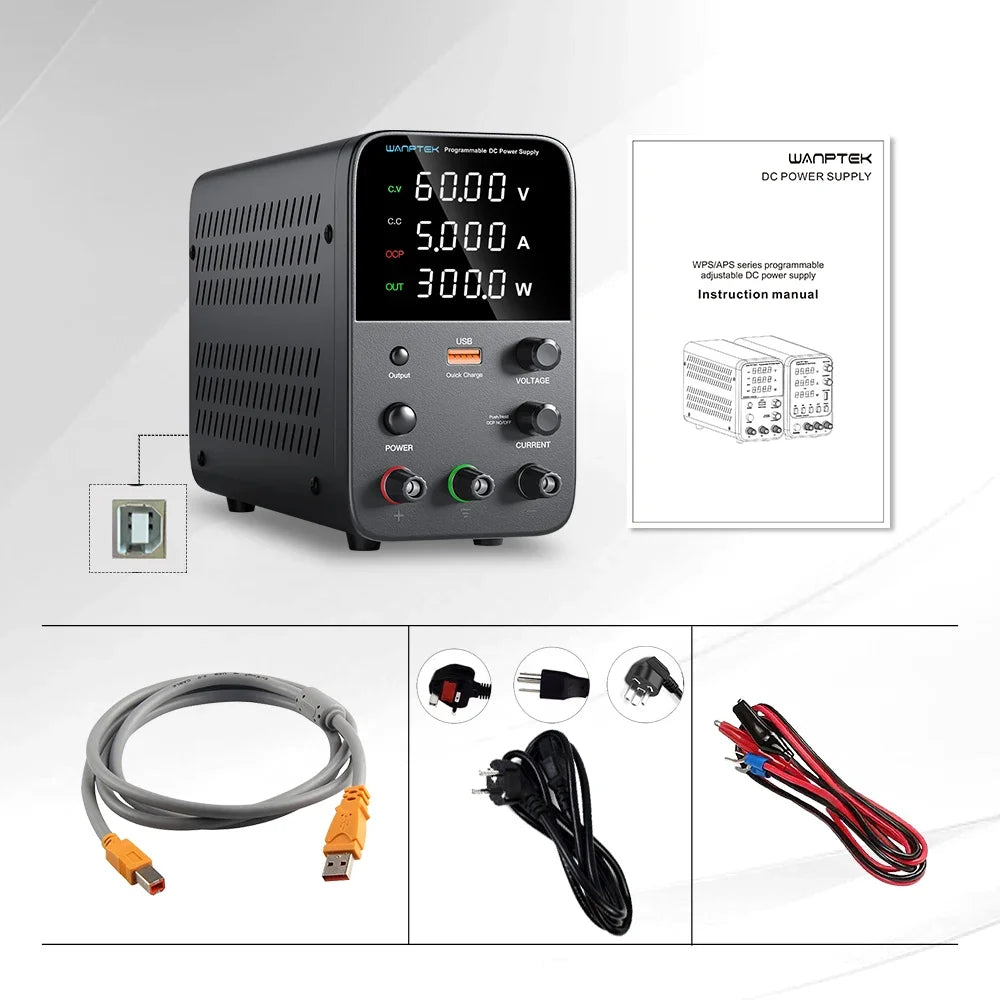

1.WPS3010H/WPS605H/WPS305H Encoder adjustment DC power supply,Can connect to the computer and use the computer to control the power supply

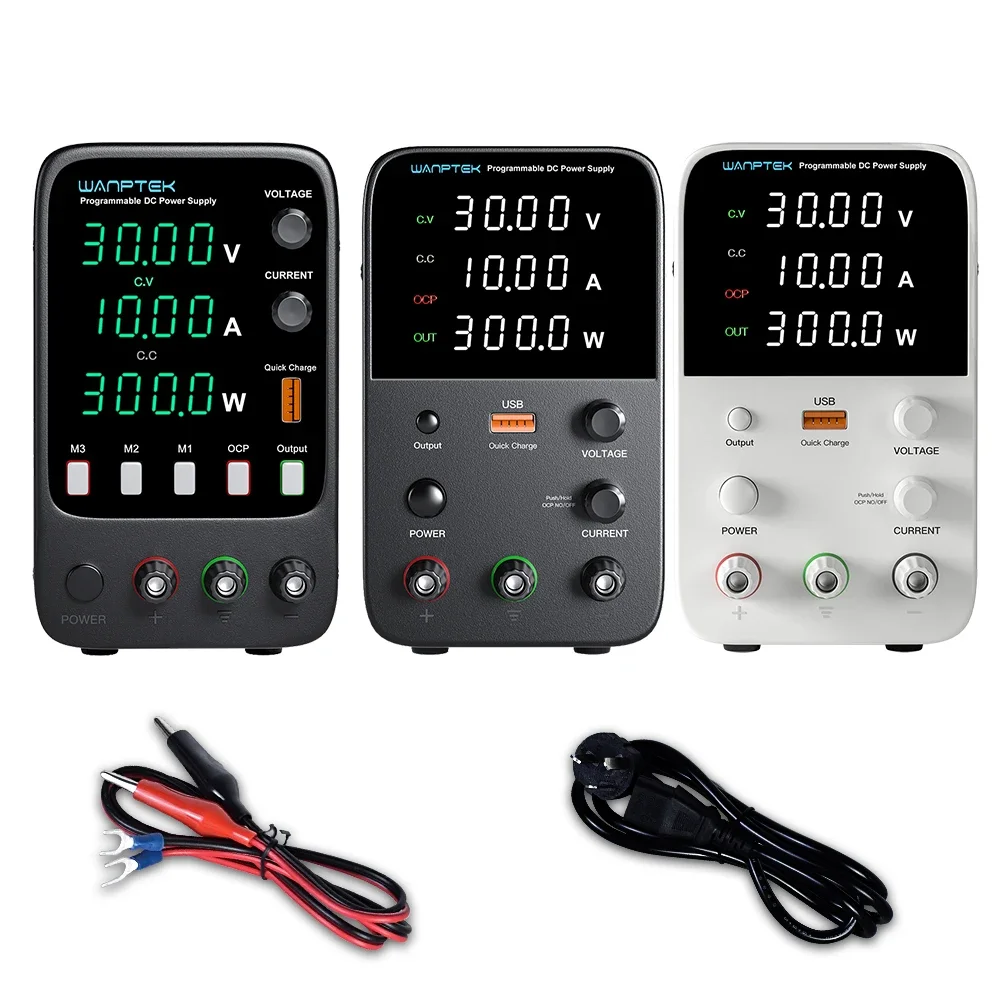

2.APS1602H/APS1203H/APS3010H/APS605H/APS305H Encoder adjustment (With memory storage function) DC power supply,Can connect to the computer and use the computer to control the power supply

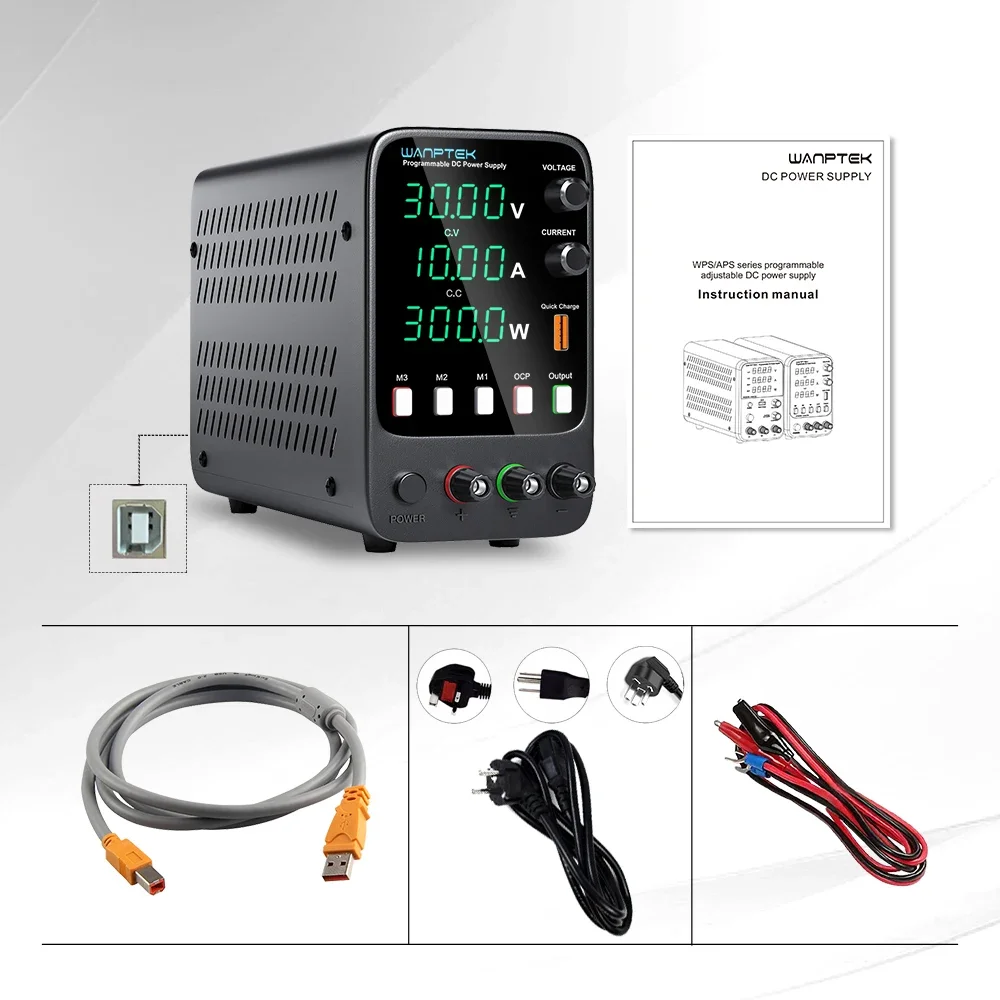

After receiving the power supply, please remember to contact me and give you the program software, otherwise the computer cannot control the power supply!!!

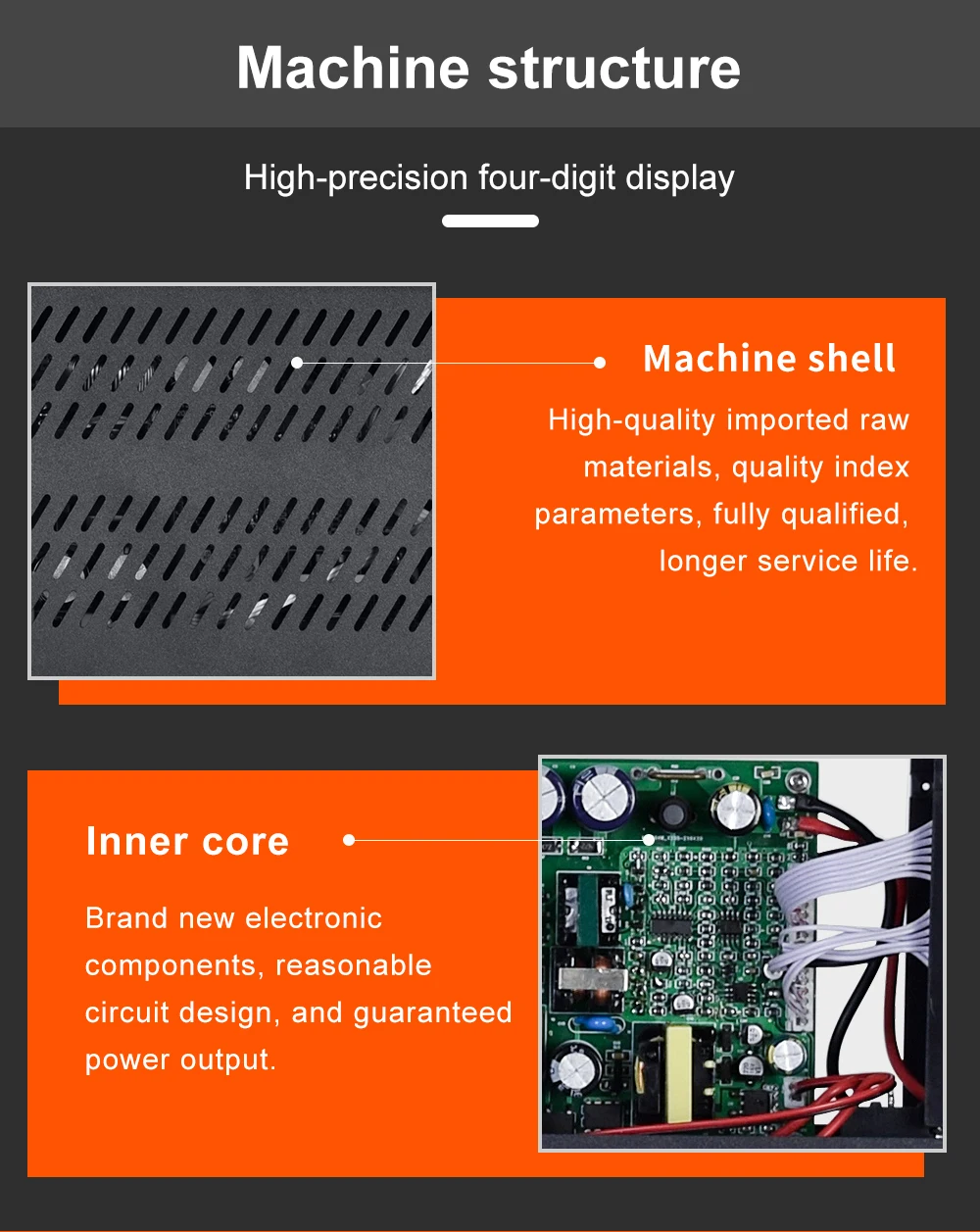

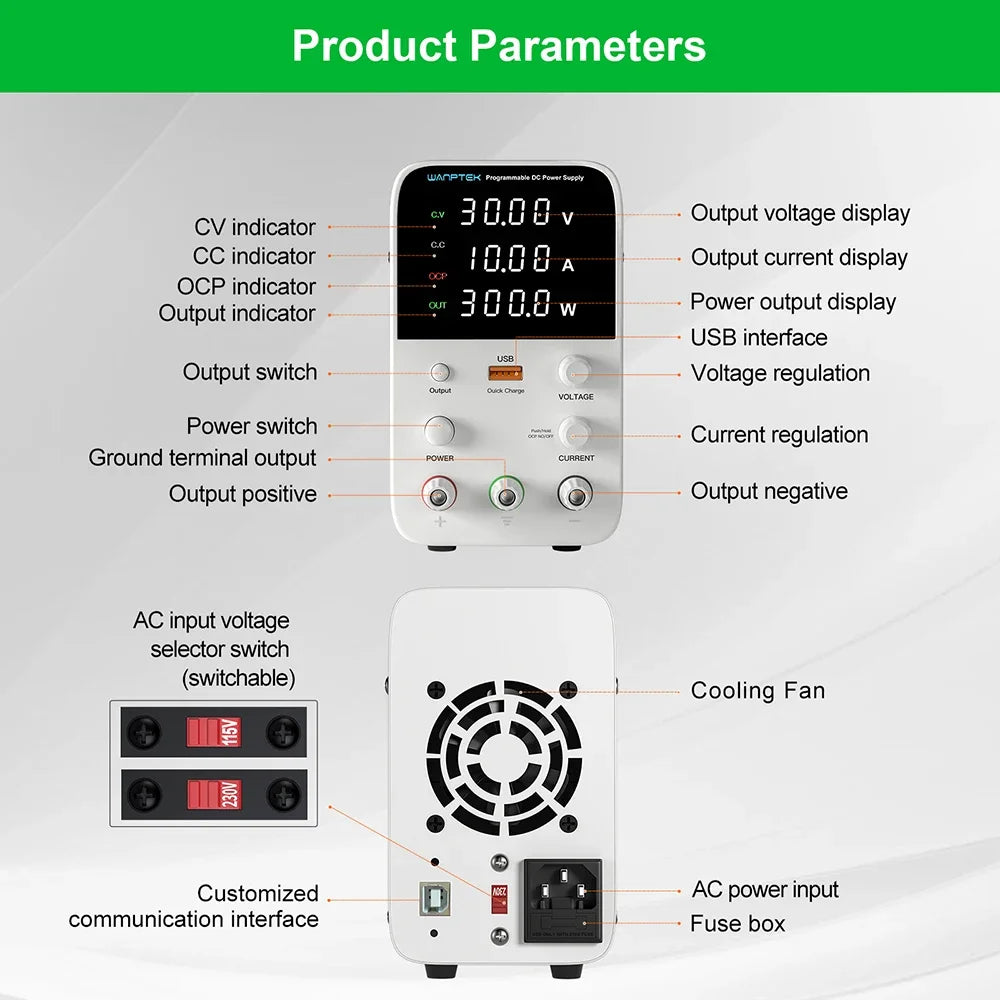

Wanptek's new series products. This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine

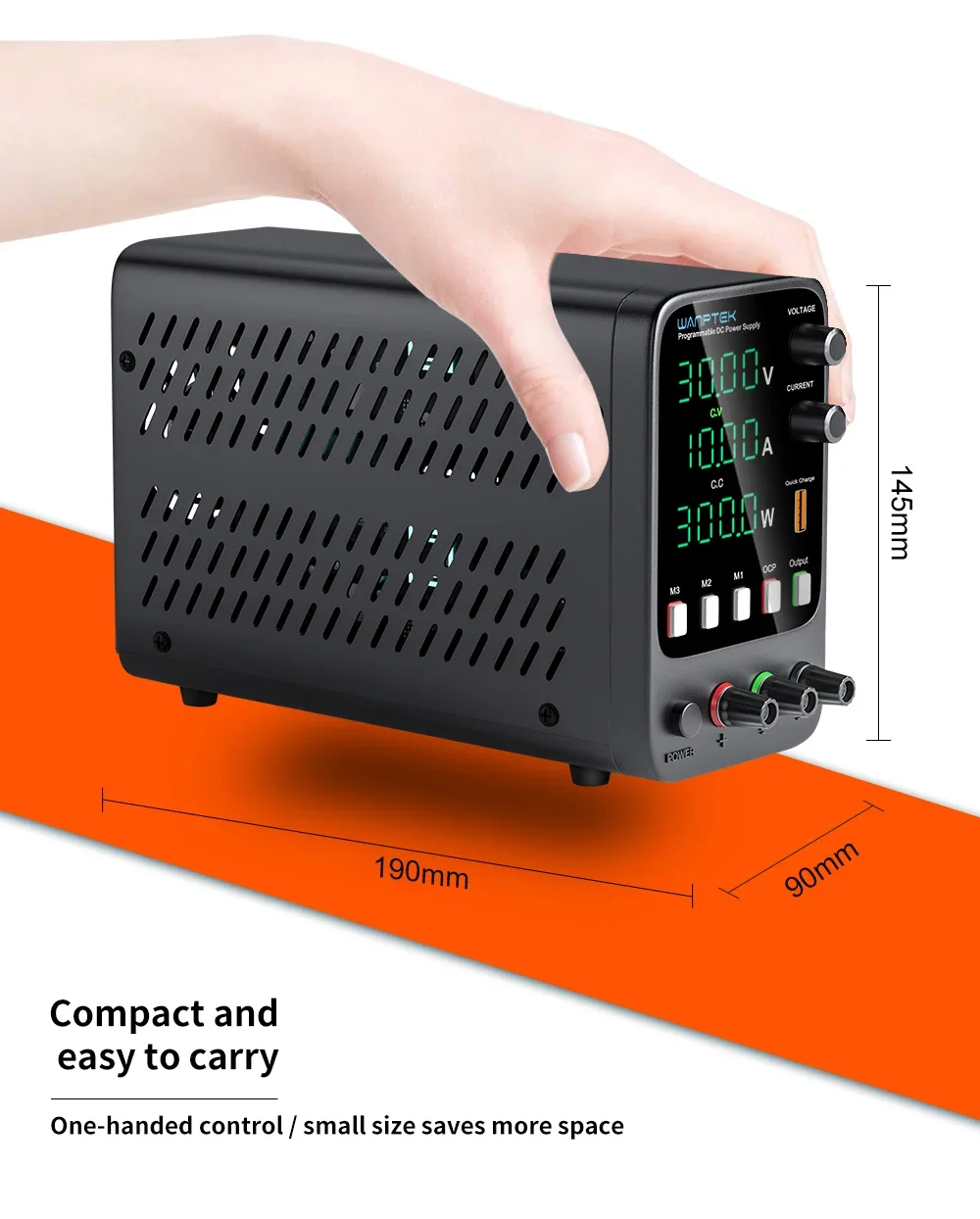

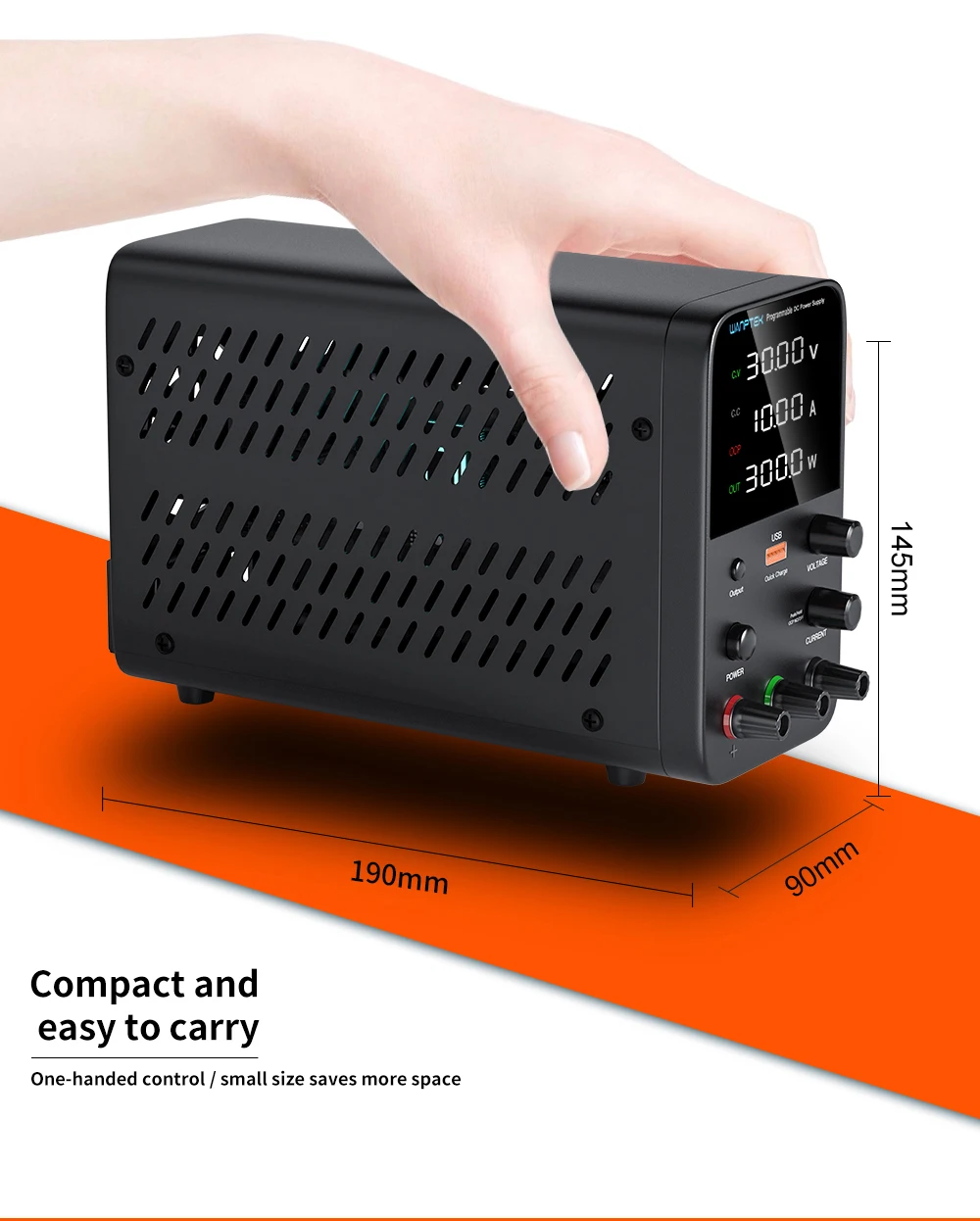

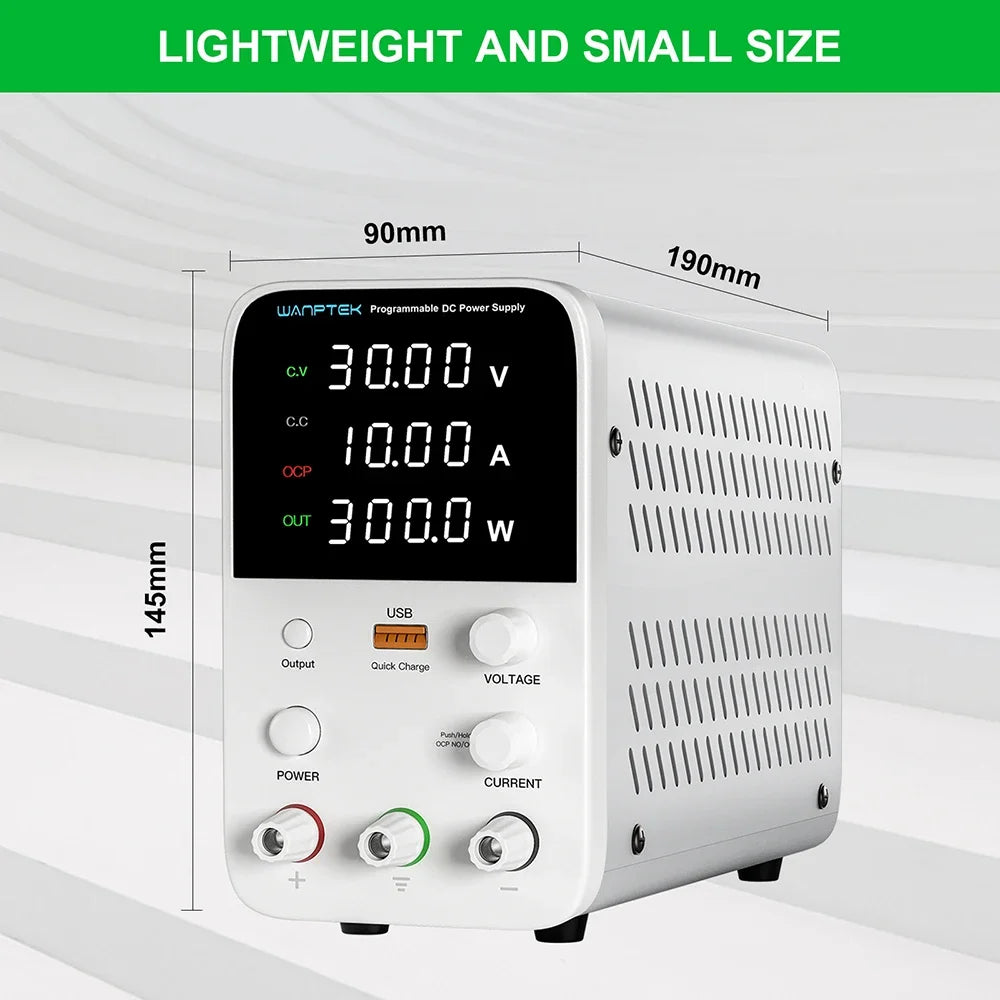

1.Small size, light weight and high power density.

2.Constant pressure and constant current switch automatically.

3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.

4.Adjustable Output Voltage & Current: output voltage and output current can be continuously 5.adjusted between 0 and nominal value with fine regulating and coarse regulating

6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection

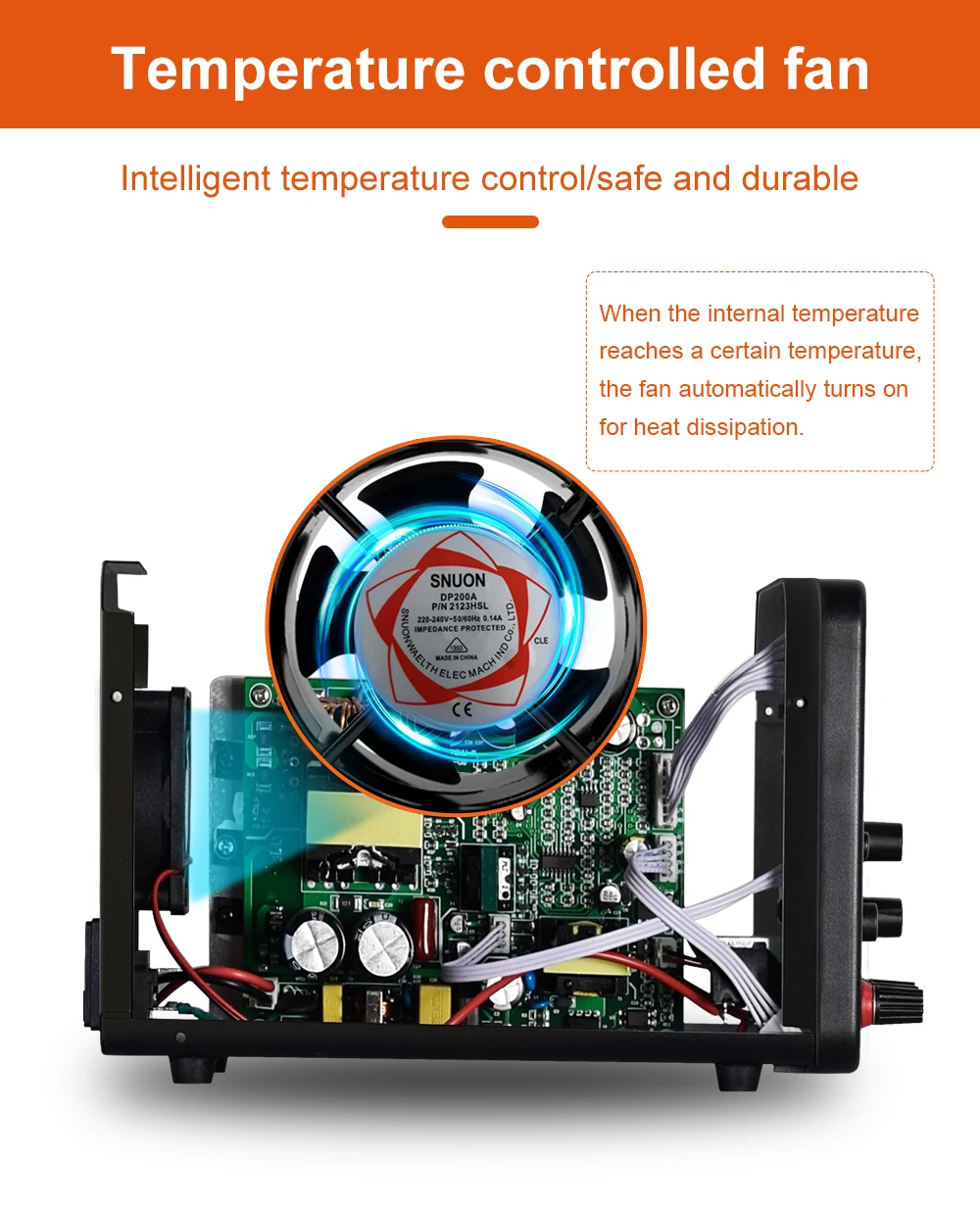

7.Temperature controlled fan cooling, low noise, long life.

8.Dual voltage input and convenient choice.

9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .

10.Output current ranges from 0 to rating current with continuous adjustment

11. AC 110v and 220v can work , rest assured to choose.

12. Encoder adjustment (With memory storage function) (Optional) DC power supply

FCC & CE certified product

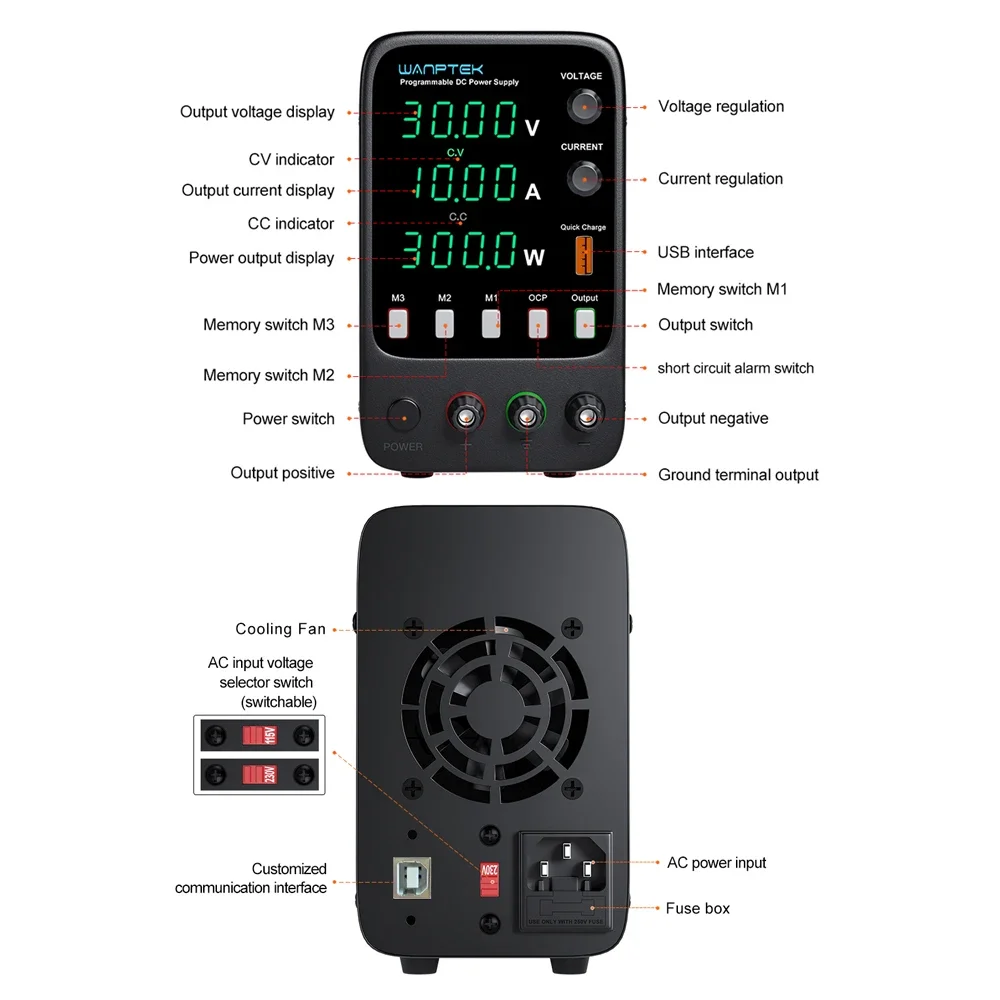

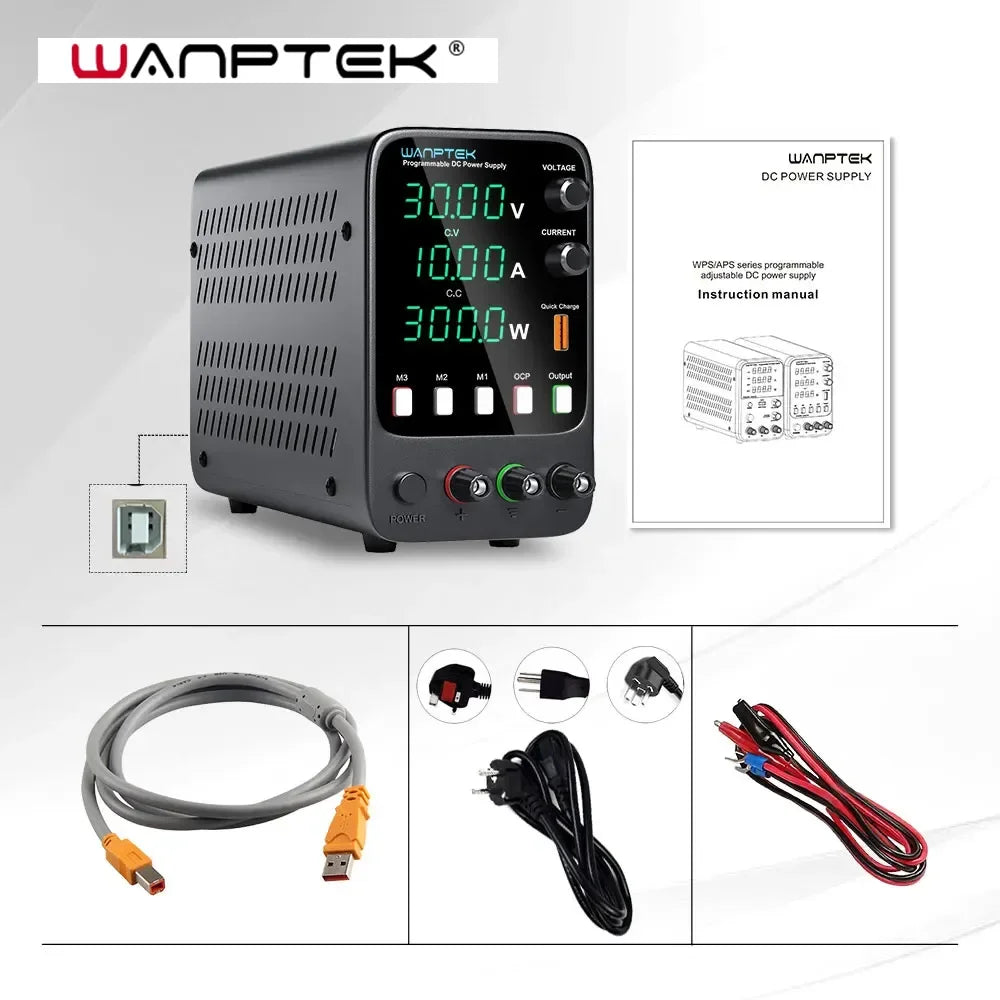

【STORAGE AND RECALL MEMORY FUNCTION】: Features 3 buttons with Storage and recall memory function. Easily storage or recall the commonly used current/voltage only by pressing the button. Support Constant Current (C.C.) and Constant Voltage (C.V.) modes.

Memory Function

1) Rotate the Knob to set the value you want to save.

2) Long press the "M1" button until the indicator is on, which means the value saved in the "M1" button successfully.

3) Press the "M1" button to light the button. The saved value will be read when the indicator is on. (M1/ M2/ M3 button works essentially the same way).

Output Power	150W/300W/320W/360W
Output voltage	0~30V/60V/120V/160V
Output current	0~2A/3A/5A/10A
working environment
	input voltage:AC 230V/115V±10%;50Hz/60Hz
	Working temperature:0℃～40℃;relative humidity:<80%RH
	Storage temperature:-10℃～70℃;relative humidity:<70%RH
Constant voltage CV
	Voltage stability:0.1%±3mV
	Load stability: 0.2%±3mV
	Ripple voltage:≤0.5% Vp-p
	0 to rated voltage continuously adjustable
constant current CC
	Current stability:0.1%±3mA
	Load stability: 0.2%±3mA
	Ripple current:≤0.5% Vp-p
	Recovery time:≤500μS
	Temperature coefficient:≤100ppm/℃
	0 to rated current continuously adjustable
display
	LED digit display
	Display accuracy:0.5%±digits
	Display resolution: voltage 0.01V, current 0.001A
