Description
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Processor socket LGA1700
Chipset
Intel® B660 Chipset
Memory
4x DDR4 memory slots, support up to 128GB 1
Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333+ MHz
1DPC 2R Max speed up to 4000+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 3600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memoryy
Supports Intel® Extreme Memory Profile (XMP)

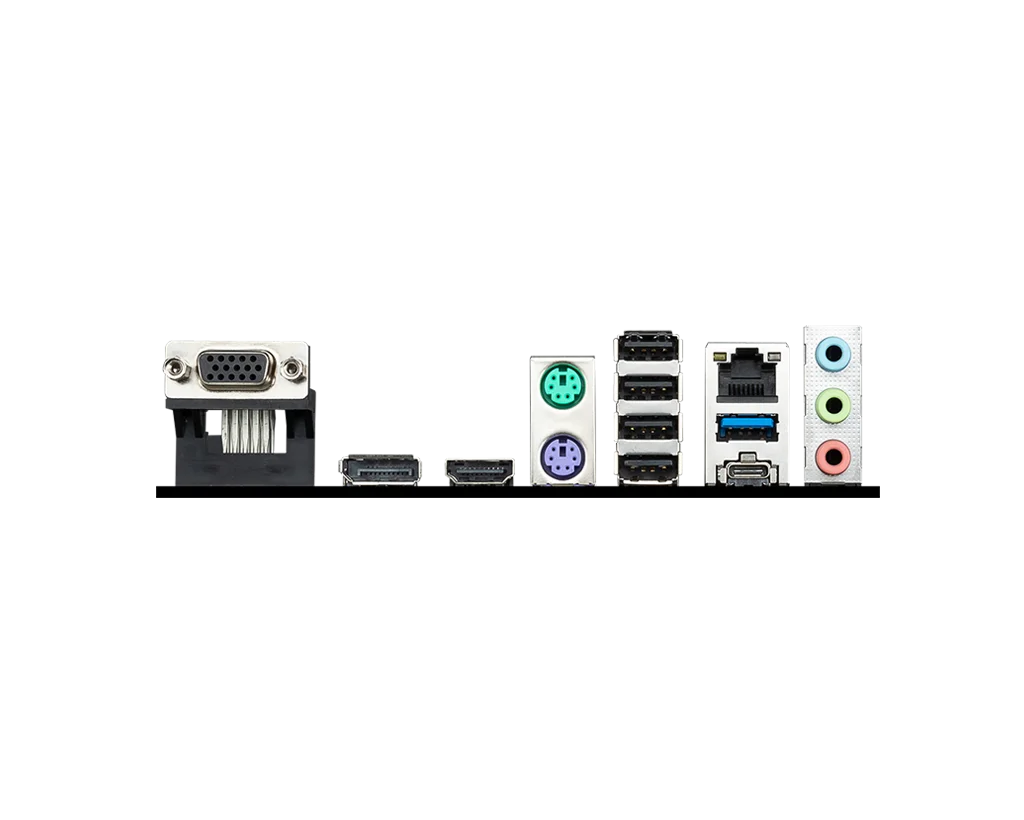

Back panel ports
Keyboard / Mouse
DisplayPort
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 2.0
HDMI™
USB 3.2 Gen 2 10Gbps Type-A
Dimensions
Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
