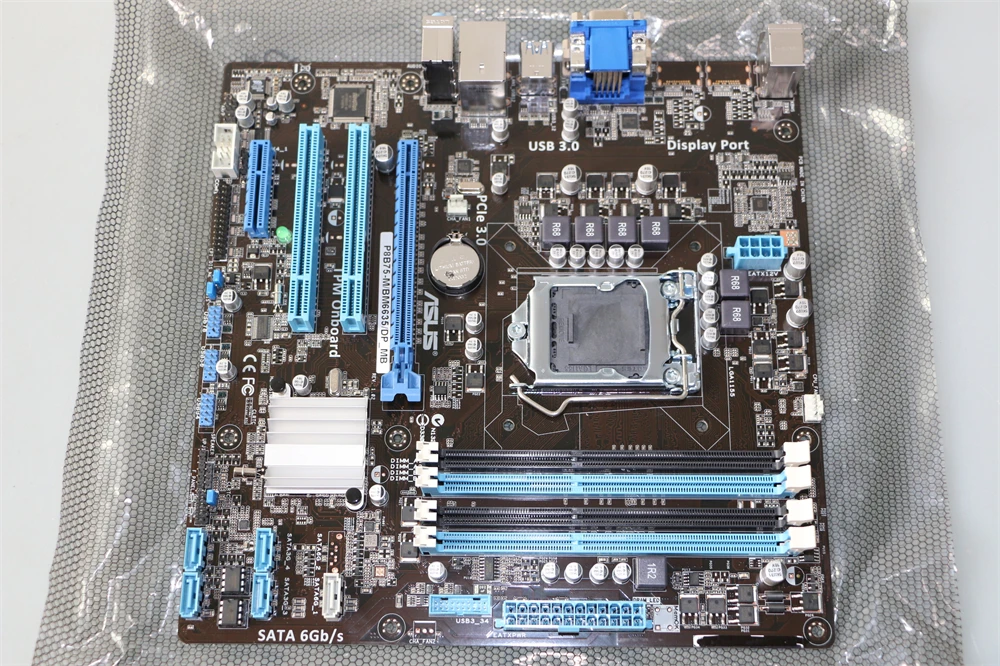

Motherboard Chip
Integrated chip sound card/network card
Main Chipset Intel B75
Chipset Description Using Intel B75 Chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated VIA VT1708S 8-channel sound chip
Network card chip Onboard Realtek RTL8111F Gigabit network card
Processor Specifications
CPU Type Core i7/Core i5/Core i3/Pentium/Celeron

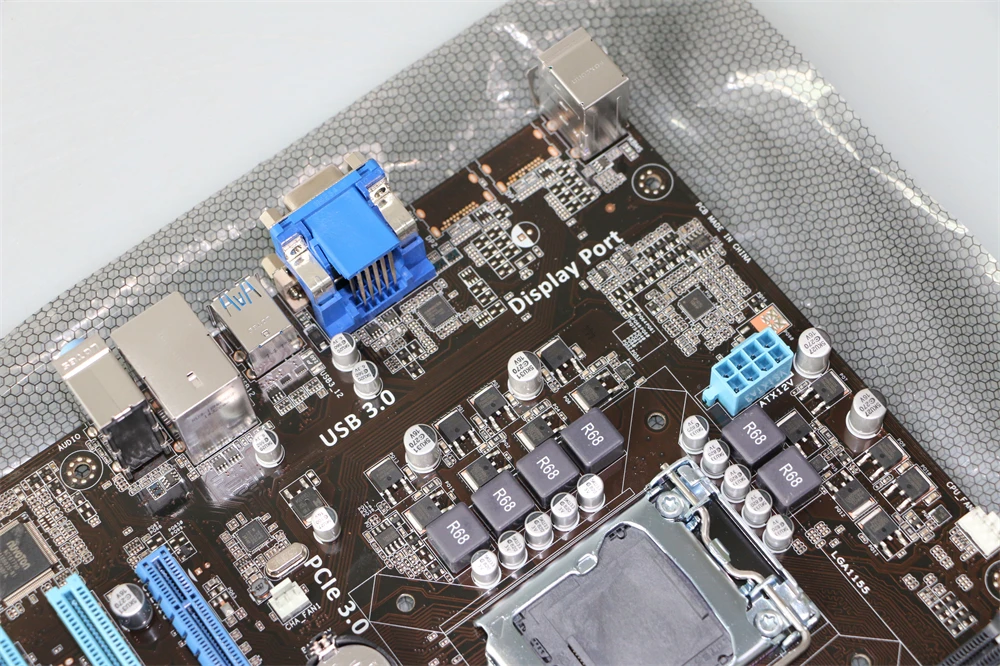

CPU socket LGA 1155
CPU Description Support Intel 22/32nm processor
Memory Specifications

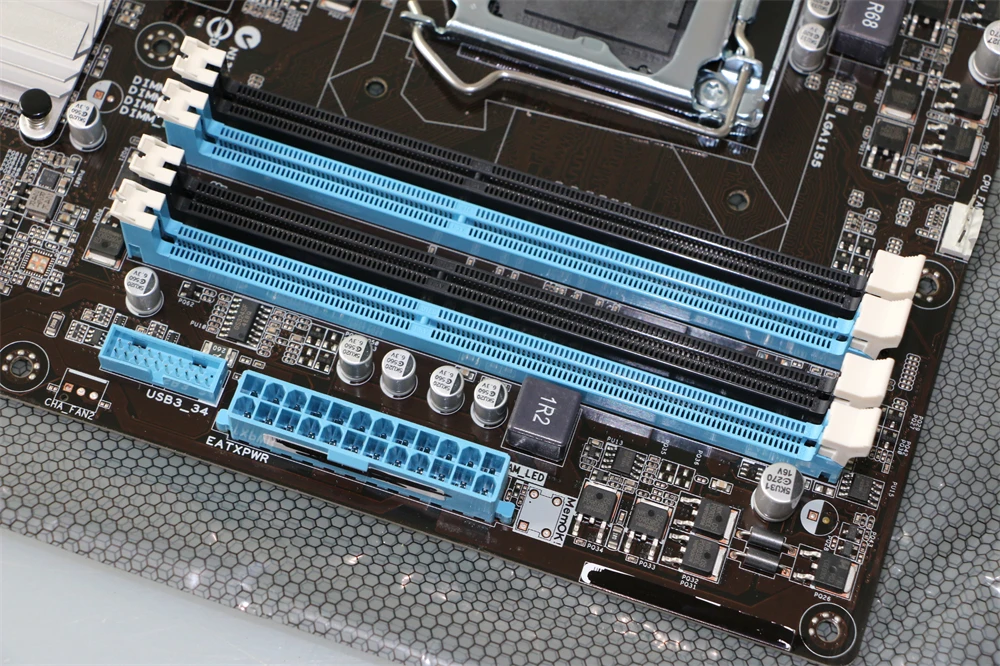

Memory type 4×DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR3 1600/1333/1066MHz memory
Storage Expansion
PCI-E Standard PCI-E 3.0 Standard

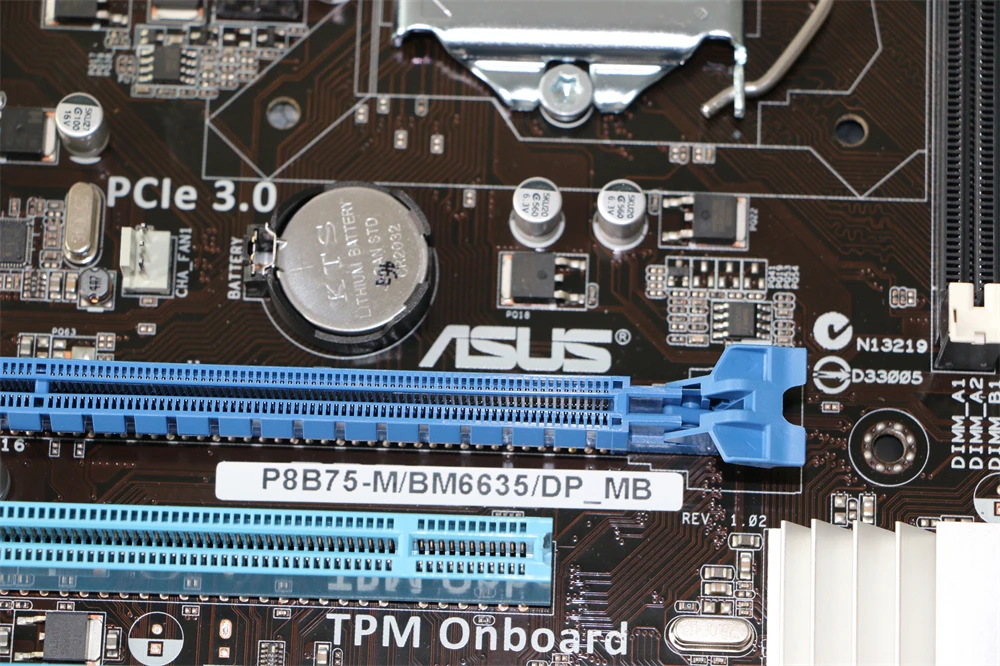

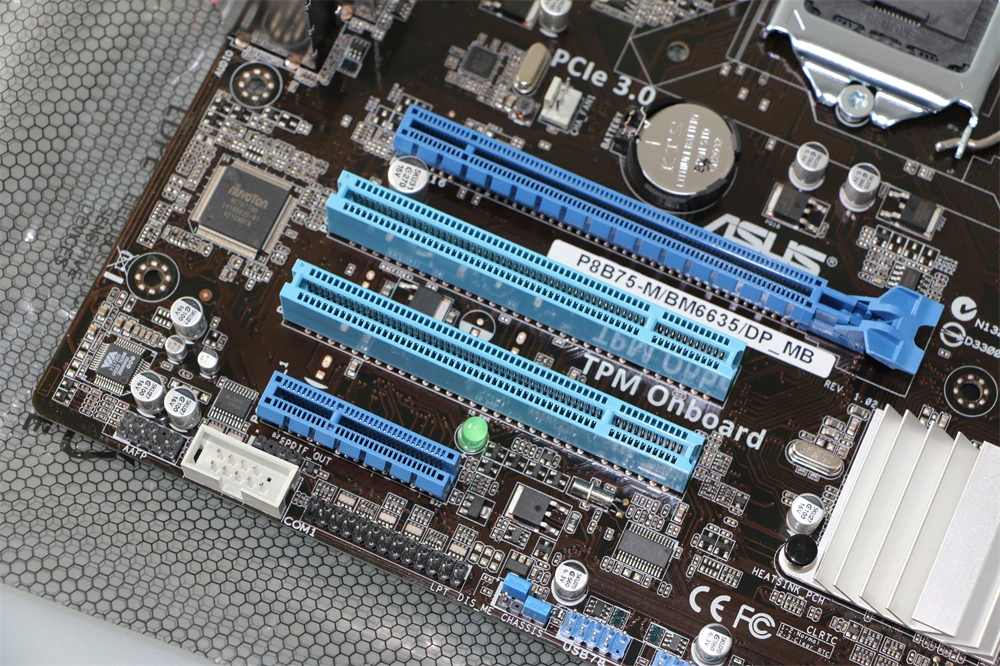

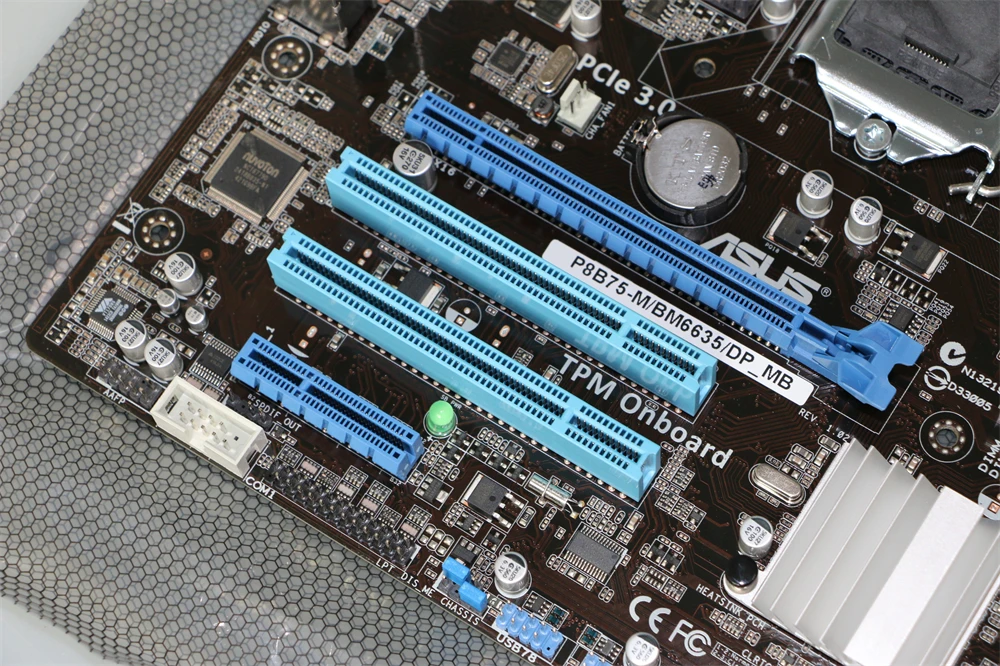

PCI-E slot 1×PCI-E X16 graphics card slot, 1×PCI-E X4 slot
PCI slot 2×PCI slot

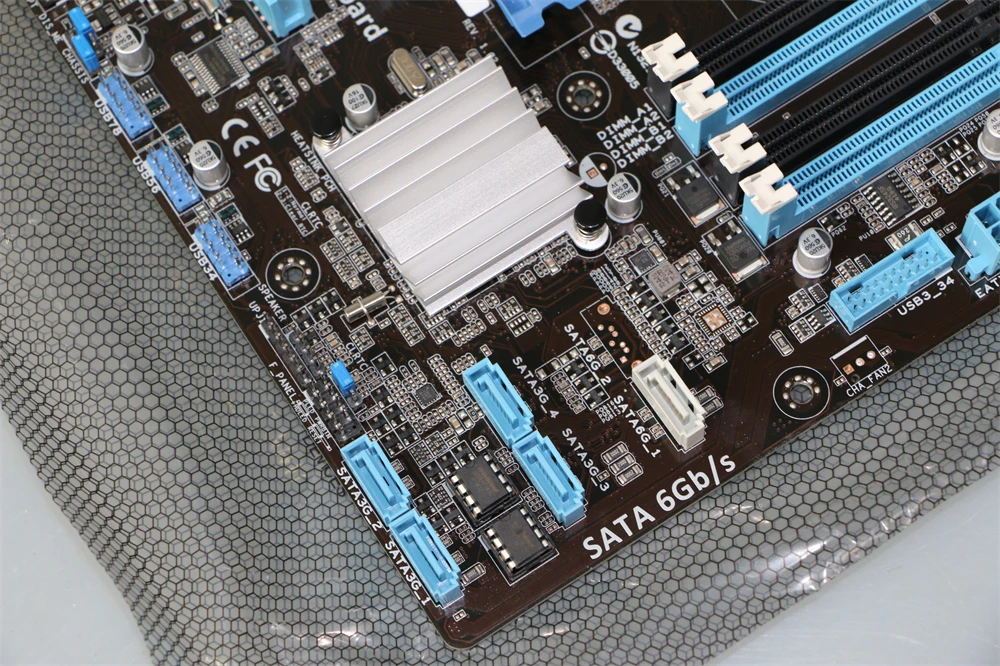

Storage interface 5 x SATA II interface; 1 x SATA III interface
I/O interface
USB interface 8 x USB2.0 interface (4 built-in + 4 backplane); 4 x USB3.0 interface (2 built-in + 2 backplane)
Video interface 1×DVI interface, 1×VGA interface, 1×HDMI interface
Power connector one 4-pin, one 24-pin power connector

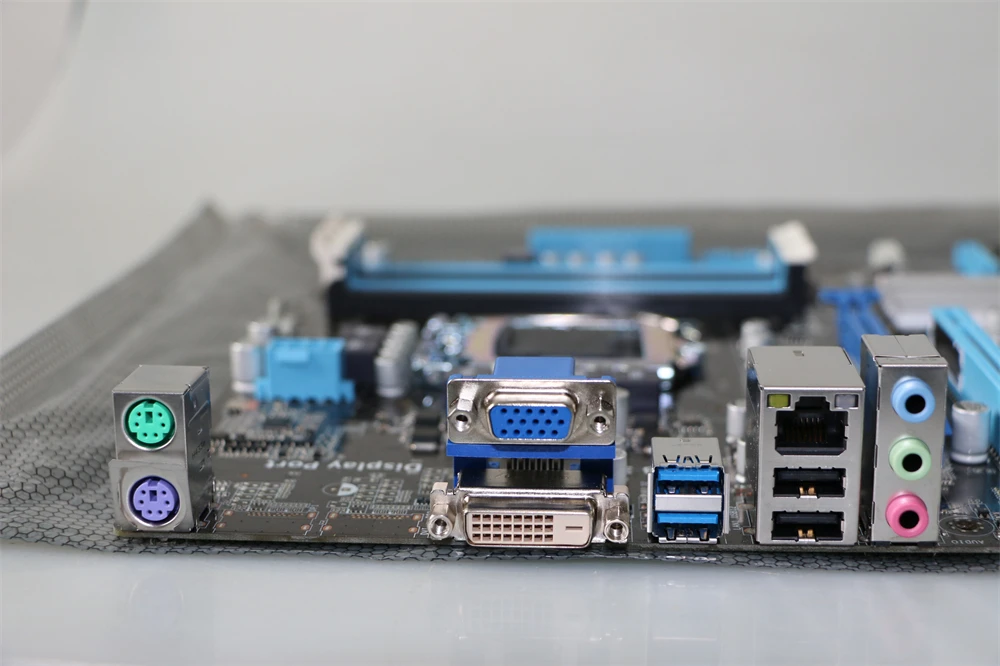

Other interfaces 1×RJ45 network interface, audio interface, PS/2 mouse, PS/2 keyboard interface
Plate Type
Mainboard form factor uATX form factor
Dimensions 24.4×22.6cm
