StoneTaskin Wanptek Lab DC Power Supply Encoder adjustment Memory Adjustable 30V 10A Bench Power Source 160V 120V 60V 5A 3A Metal anodizing Fully Tested Free Shipping

Name: StoneTaskin Wanptek Lab DC Power Supply Encoder adjustment Memory Adjustable 30V 10A Bench Power Source 160V 120V 60V 5A 3A Metal anodizing Fully Tested Free Shipping
Brand: StoneTaskin
SKU: 45557216444570
Price: 101.48 USD
Availability: InStock

~~$116.48~~ $101.48 SAVE 13%

color: APS3010H

Guaranteed Safe Checkout

Fast standard shipping on all orders. Estimated shipping is 7-15 days.

Description

Reviews

Description

Four-digit display 0.01 V/0.001 A

1.APSEncoder adjustment (With memory storage function)DC power supply with USB A charging interface（Unable to display USB A charging interface output voltage and current）

2.EPSEncoder adjustment (With memory storage function)DC power supply with USB A/C charging interface（Unable to display USB A/C charging interface output voltage and current）

3.TPSEncoder adjustment (With memory storage function)DC power supply with USB A charging interface（Can display the output voltage and current of USBA charging interface）

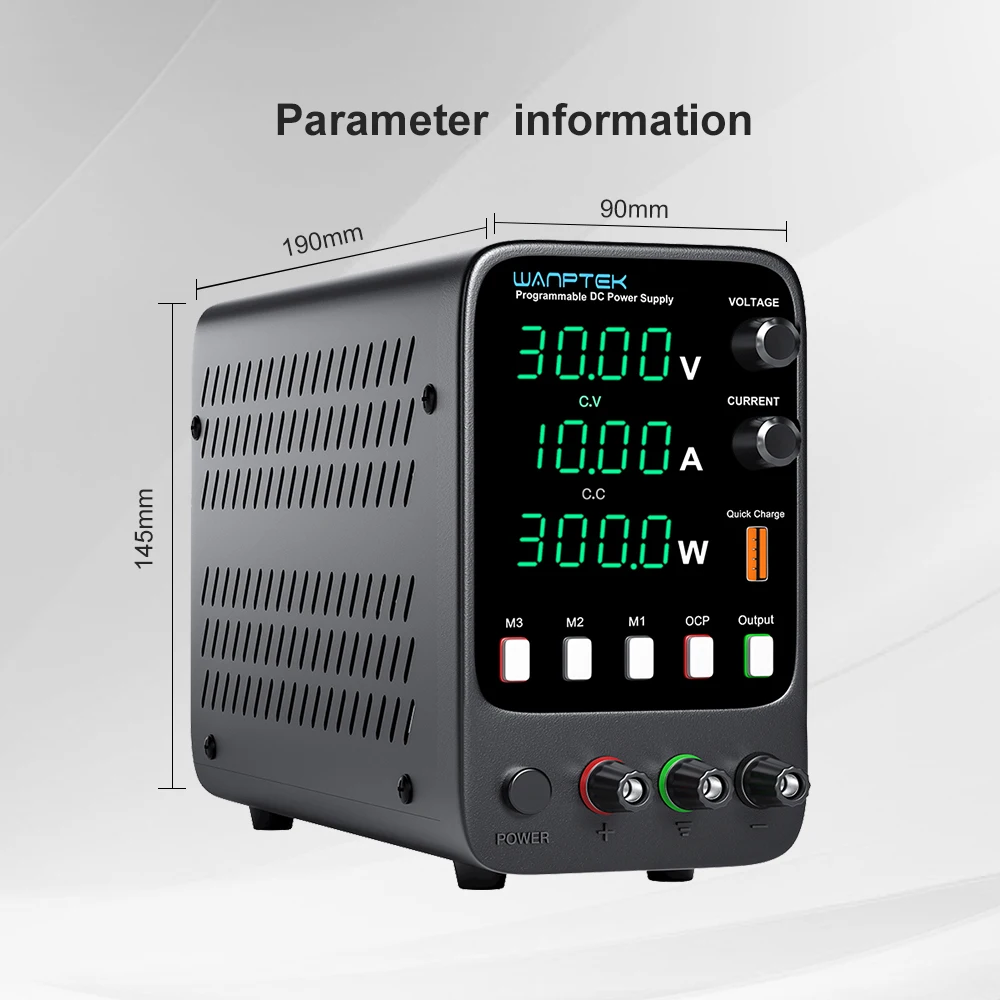

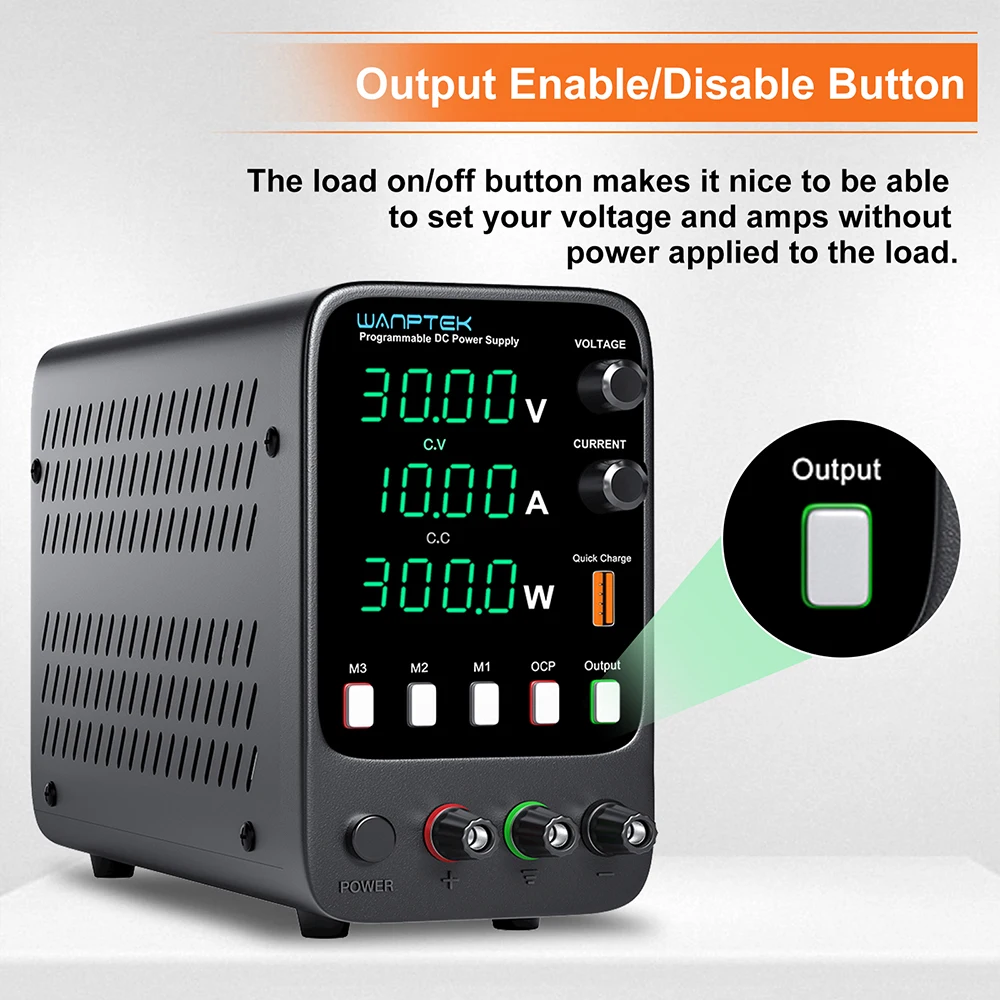

Wanptek's new series products. This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by Encoder adjustment, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power（optional）, so that users can intuitively see the current use status and various parameters of the machine

1.Small size, light weight and high power density.

2.Constant pressure and constant current switch automatically.

3.LED display of voltage, current and power（optional）, high precision and features of voltage stabilization, current limiting, and simple operation.

4.Adjustable Output Voltage & Current: output voltage and output current can be continuously 5.adjusted between 0 and nominal value with fine regulating and coarse regulating

6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection

7.Temperature controlled fan cooling, low noise, long life.

8.Dual voltage input and convenient choice.

9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .

10.Output current ranges from 0 to rating current with continuous adjustment

11.AC 110v and 220vcan work, rest assured to choose.

12.Encoder adjustment (With memory storage function)DC power supply

Output Power	160W/300W/320W/360W
Output voltage	0~32V/62V/120V/160V
Output current	0~2A/3A/5A/10A
working environment
	input voltage:AC 230V/115V±10%;50Hz/60Hz
	Working temperature:0℃～40℃;relative humidity:<80%RH
	Storage temperature:-10℃～70℃;relative humidity:<70%RH
Constant voltage CV
	Voltage stability:0.1%±3mV
	Load stability: 0.2%±3mV
	Ripple voltage:≤0.5% Vp-p
	0 to rated voltage continuously adjustable
constant current CC
	Current stability:0.1%±3mA
	Load stability: 0.2%±3mA
	Ripple current:≤0.5% Vp-p
	Recovery time:≤500μS
	Temperature coefficient:≤100ppm/℃
	0 to rated current continuously adjustable
display
	LED digit display
	Display accuracy:0.5%±digits
	Display resolution: voltage 0.01V, current 0.001A
