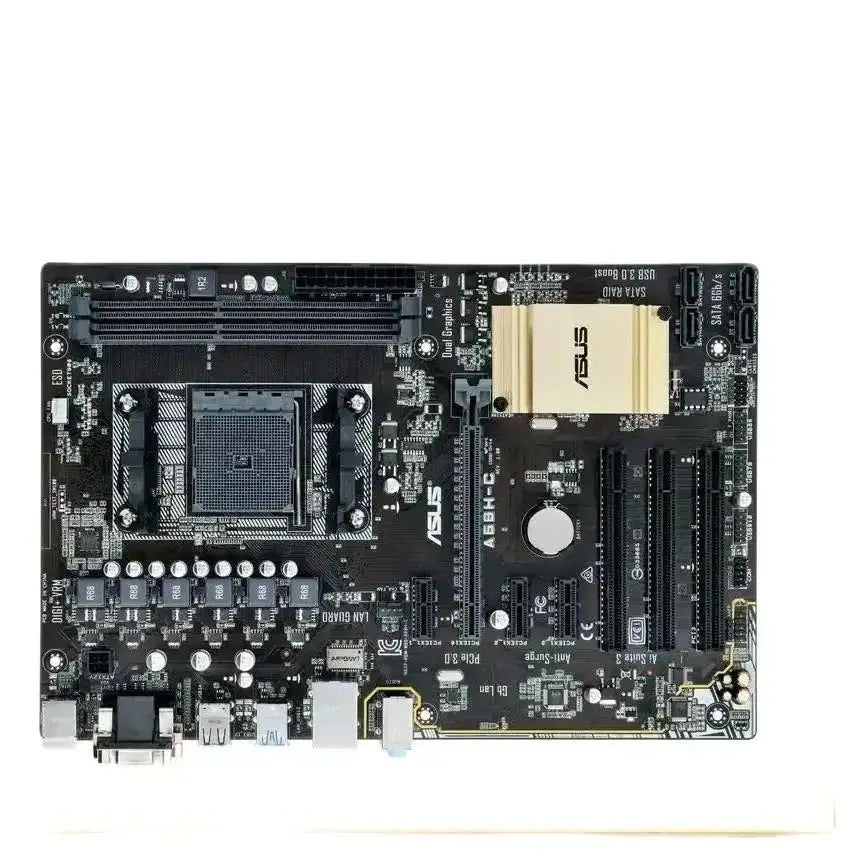

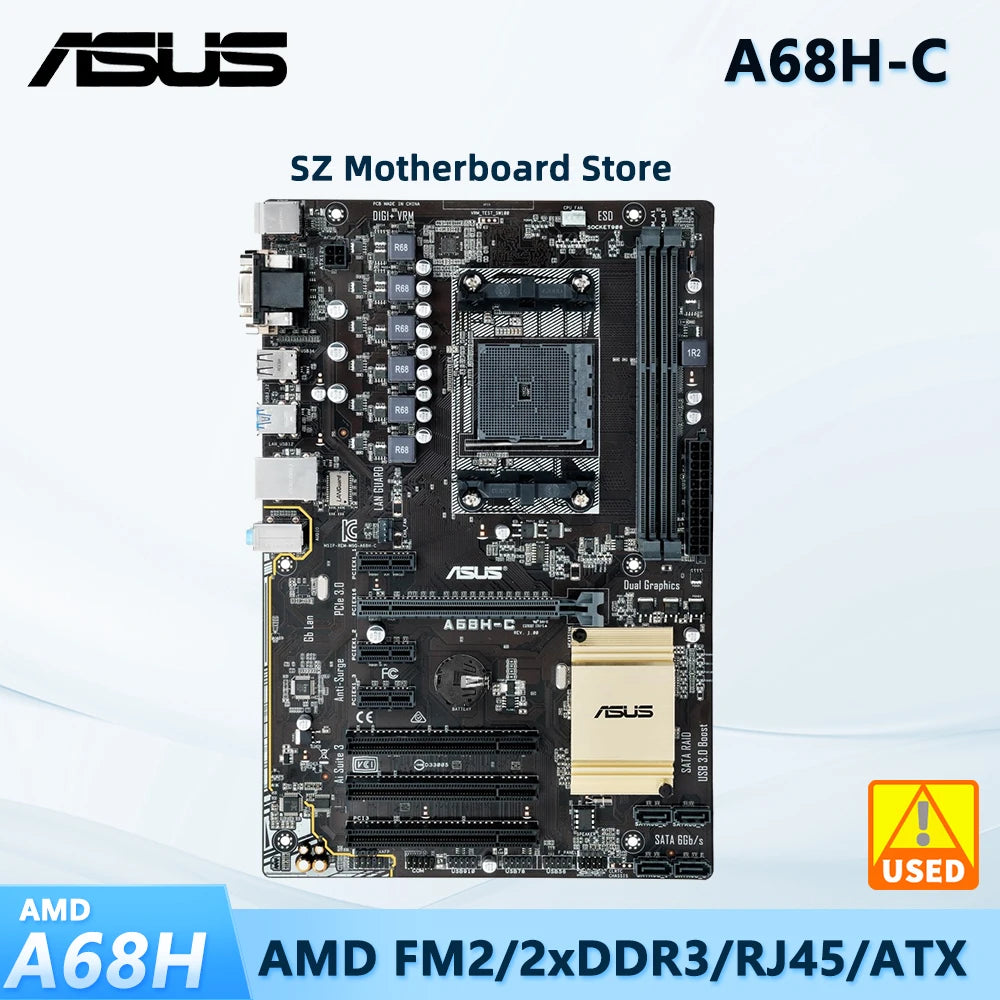

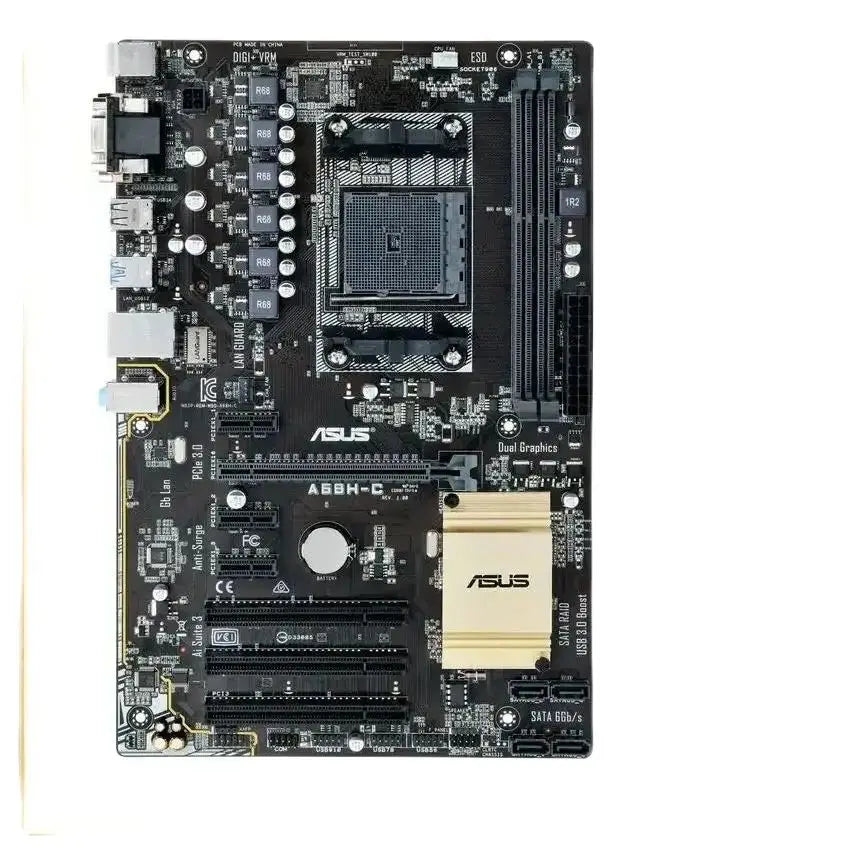

motherboard chip
Integrated chip sound card/network card
Main Chipset AMD A68H
Chipset Description Using AMD A68H Chipset
Display chip APU built-in display chip (requires APU support)
Audio chip Integrated Realtek ALC887-VD 8-channel sound chip
Network card chip Onboard Realtek RTL8111GR Gigabit network card
Processor Specifications
CPU type AMD A10/A8/A6/A4/Athlon
CPU socket Socket FM2+
CPU description Support AMD Turbo Core 3.0 technology
Memory Specifications
Memory type 2×DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR3 2400 (overclocking)/2133/1600/1866/1333MHz memory
storage expansion
PCI-E Standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics card slot, 3×PCI-E X1 slot
PCI slot 3×PCI slot
Storage interface 4×SATA III interface
I/O interface
USB interface 2 × USB3.0 interface, 10 × USB2.0 interface (6 built-in + 4 backplane)
Video interface 1 × VGA interface, 1 × DVI interface
Power connector one 4-pin, one 24-pin power connector
Other ports 1×RJ45 network port, audio port, 1×PS/2 mouse, 1×PS/2 keyboard port, 1×COM port
plate type
Mainboard form factor ATX form factor
Dimensions 30.5×20.1cm
