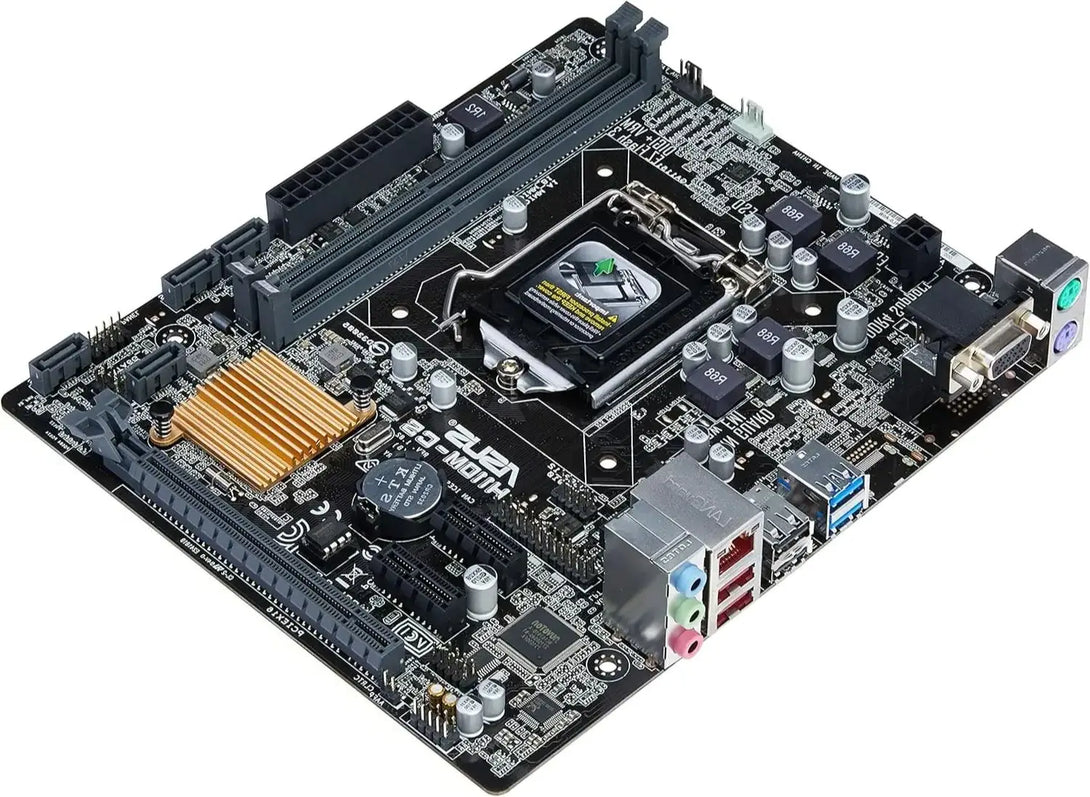

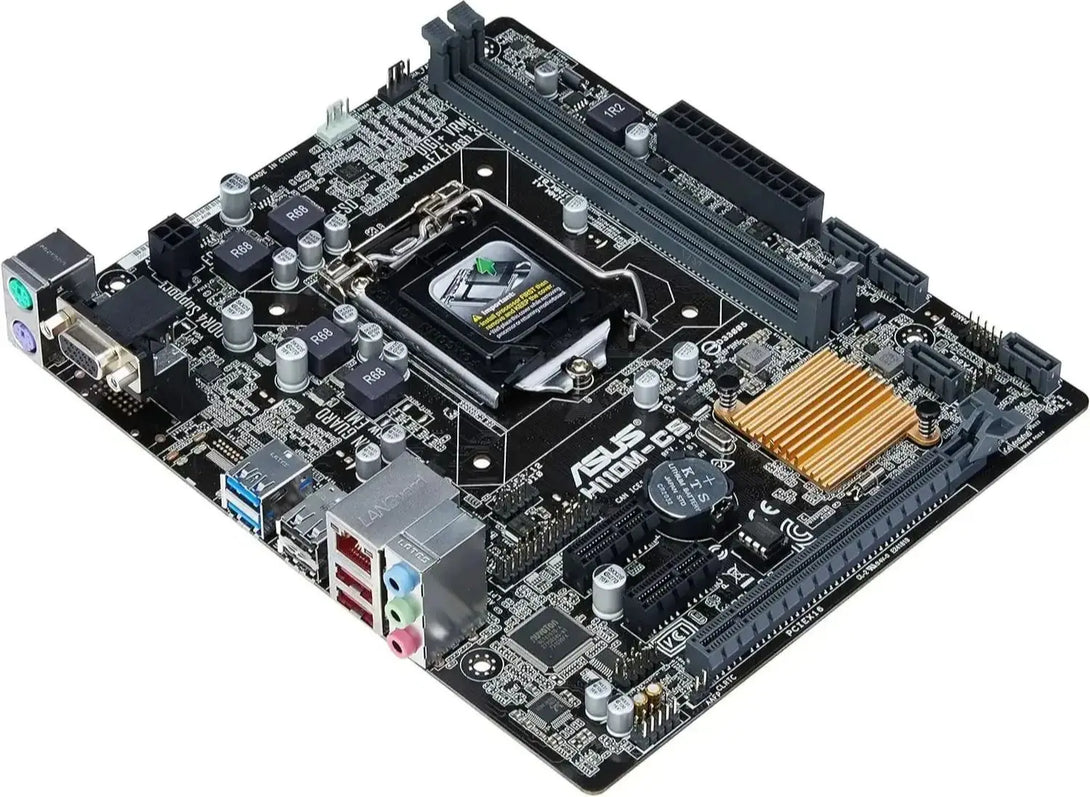

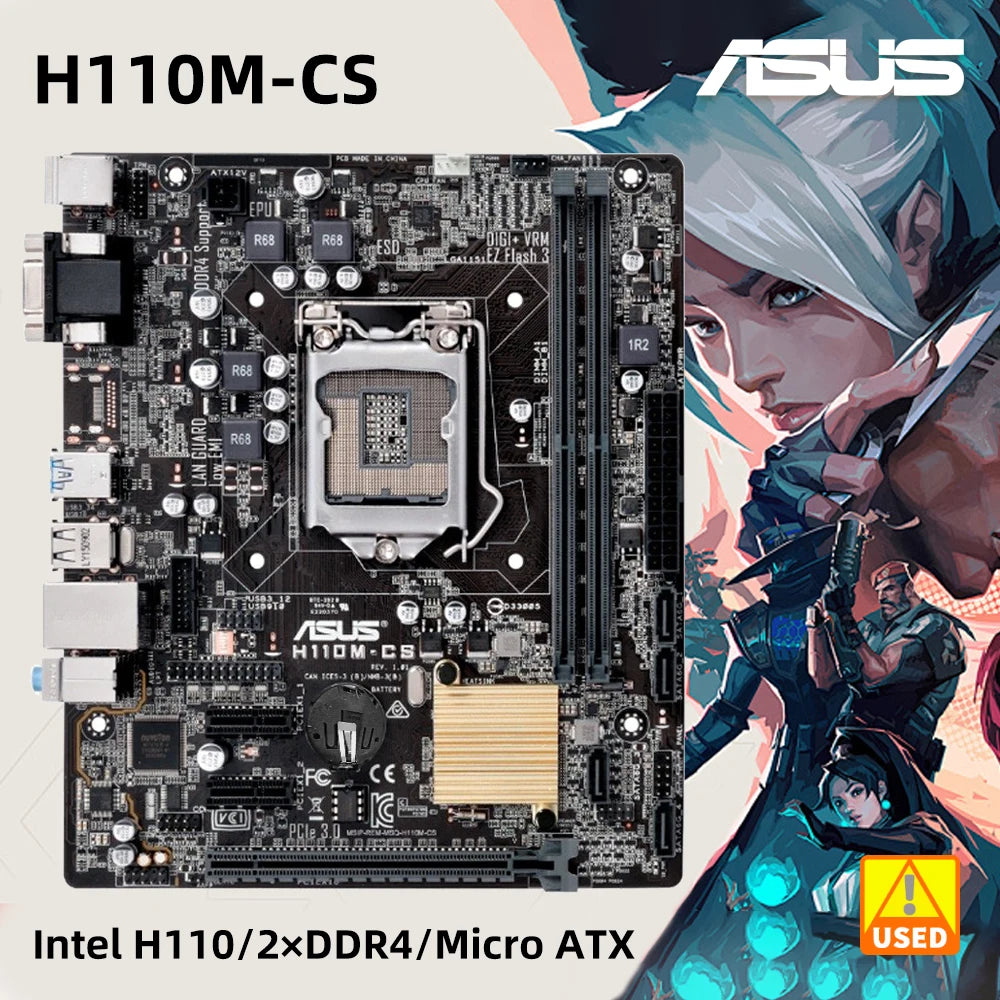

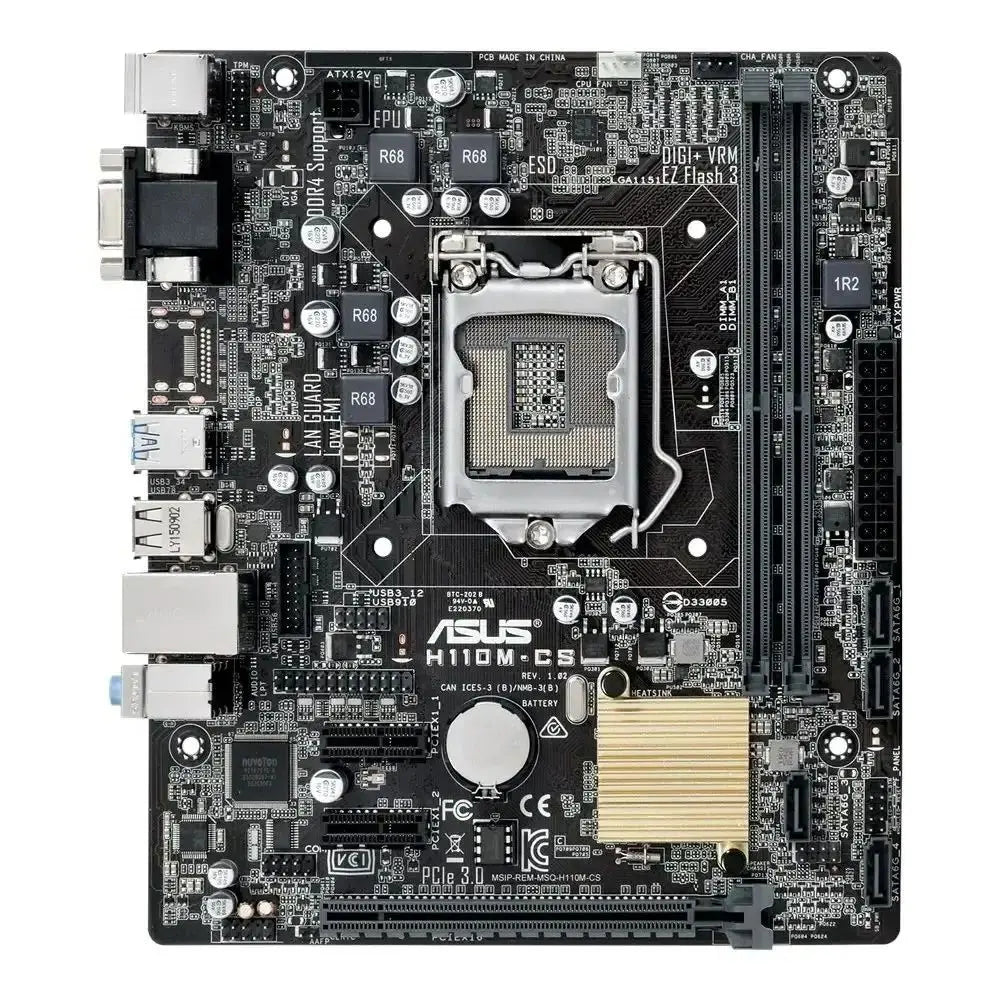

ASUS H110M-CS
Intel H110 Chipset LGA 1151 Socket
Supports Core i3 6100T 6300T, Intel H110 Chipset, 2x DIMM Max 32GB DDR4 2133MHz, Micro ATX Form Factor
Intel H110 Chipset
2x DIMM, max 32 GB, DDR4 2133 MHz, non-ECC, un-buffered memory*Dual-channel memory architecture
Expansion slots
1 x PCI Express 3.0/2.0 x16 slot (@ x16 mode)
2 x PCI Express 2.0 x1 slots
Graphics
Integrated graphics processor - Intel HD Graphics support
Supports D-Sub with maximum resolution 1920 x 1200 @60Hz
Maximum shared memory of 1024 MB
Storage
Intel H110 Chipset and Intel Rapid Storage Technology 14 support*
- 4 x SATA 6.0 Gb/s ports (gray)
* This function works depending on the CPU installed.

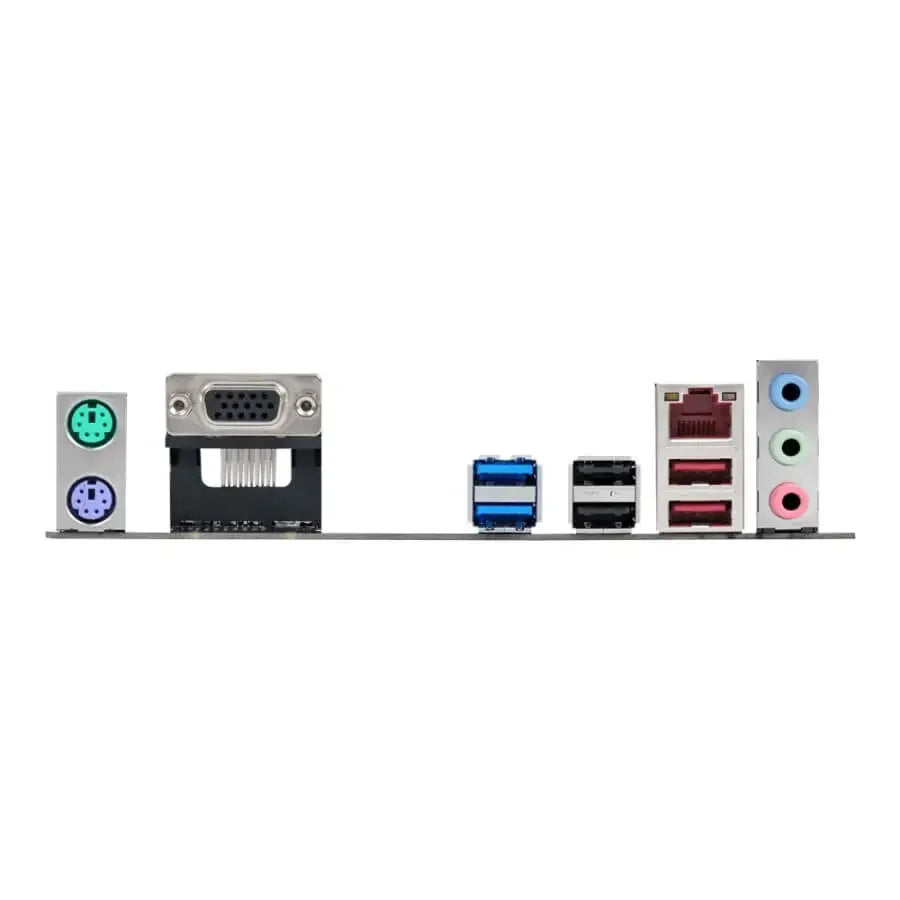

Rear panel I/O ports
1 x PS/2 keyboard port (purple)
1 x PS/2 mouse port (green)
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x D-Sub port
1 x LAN (RJ-45) port
3 x Audio jacks support 8-channel audio output
* Use a chassis with HD audio module in the front panel to support an 8-channel audiooutput.
