Motherboard chip
Integrated chip sound card / network card
Main chipset Intel B150
Chipset description using Intel B150 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated SupremeFX 8-channel audio chip
Network card chip Onboard Intel I219V Gigabit network card
Processor specifications
CPU type 6th generation Core i7 / i5 / i3 / Pentium / Celeron
CPU socket LGA 1151
CPU description Support Intel 14nm processor
Memory specifications
Memory type 2 × DDR4 DIMM
Maximum memory capacity 32GB
Memory description Support DDR4 2133MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 1 × PCI-E X16 graphics slot
Storage interface 1 × M.2 interface, 4 × SATA III interface

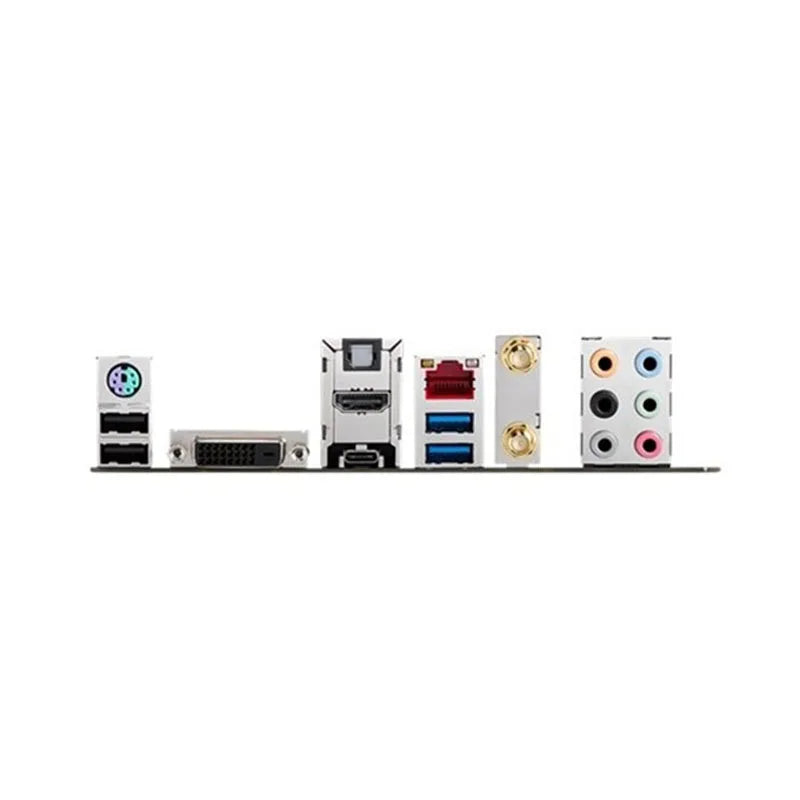

I / O interface
USB interface 5 × USB3.0 interface (2 built-in +3 backplane), 4 × USB2.0 interface (2 backplane +2 built-in)
Video interface 1 × DVI interface, 1 × HDMI interface
Power connector: one 8-pin, one 24-pin power connector
Other interfaces 1 × RJ45 network interface, 1 × TPM interface, 1 × CPU fan power interface, 1 × chassis fan interface, 1 × internal speaker interface, 1 × system panel interface, 1 × water pump dedicated interface, audio interface, 1 × PS / 2 keyboard and mouse universal interface
Plate type

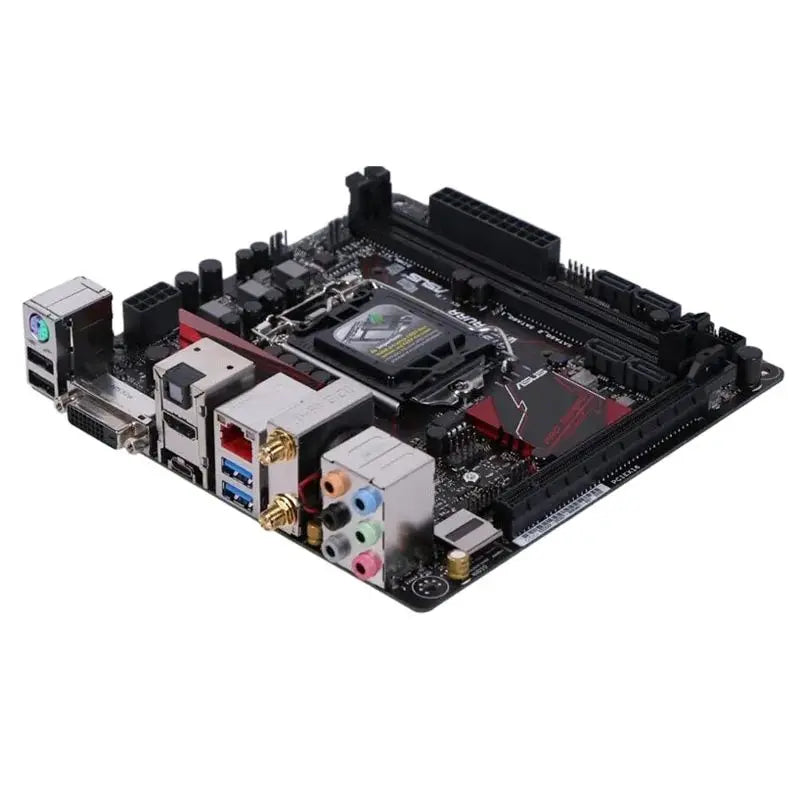

Board type Mini-ITX board type
Dimensions 17.0 × 17.0cm
Software management
BIOS performance 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 setup wizard, F6 Qfan control, F3 favorites , Quick notes, history, F12 screenshots, F3 shortcut keys, and ASUS DRAM SPD (Serial Presence Detect) memory information
Other parameters
Power supply mode 4 + 3 phase
Overclocking function support
Other features Wireless: support 802.11 a / b / g / n / acWiFi standard; support 11ac wireless communication standard, can support transmission speed up to 867Mbps; support 2.4 / 5GHz wireless dual frequency; support Bluetooth 4.1
Other parameters SupremeFX game sound effects, Sonic Radar II sound wave radar, GameFirst game without delay technology
Listing Date April 2016
