StoneTaskin Huidu asynchronous Full Color Banner Screen Control Card HD-D16 with wifi mode Fully Tested Free Shipping

Huidu asynchronous Full Color Banner Screen Control Card HD-D16 come with wifi

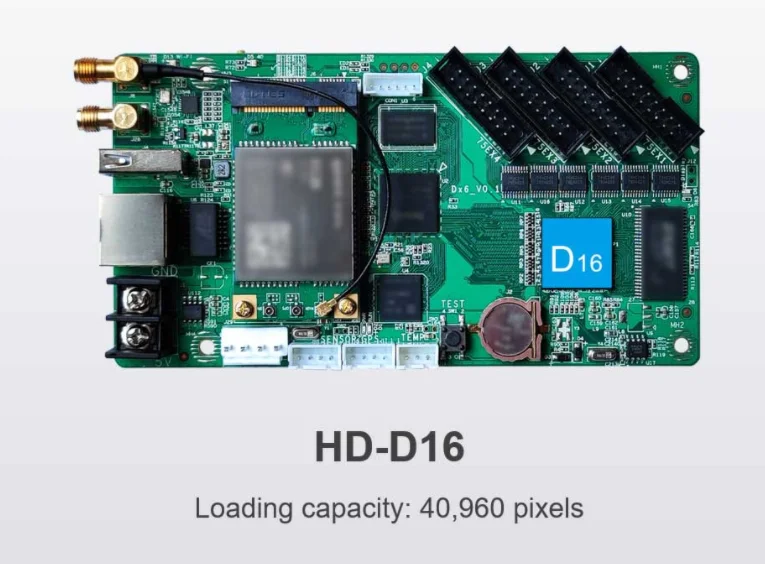

HD-D16 is a smallest video control card for full color LED screen, the maximum load capacity is 40,960 pixels, the widest is 640 pixels, the highest is 128 pixels, come with Wi-Fi module, mobile APP wireless management, it can support optional 4G module, Internet remote cluster control, it used extensively for lintel led screens, car screen and full color small size led screens.

• Standard Wi-Fi module, mobile App wireless management;

• Support 256~65536 grayscale;

• Support Video, Picture, Animation, Clock, Neon background;

• Support word art, animated background, neon light effect;

• U-disk unlimited expansion program, plug in broadcast;

• No need set IP, HD-D16 could be identified by controller ID automatically;

• Support 4G/Wi-Fi/ and network cluster management remote management;

• Support 720P video hardware decoding, 60HZ frame rate output.

•

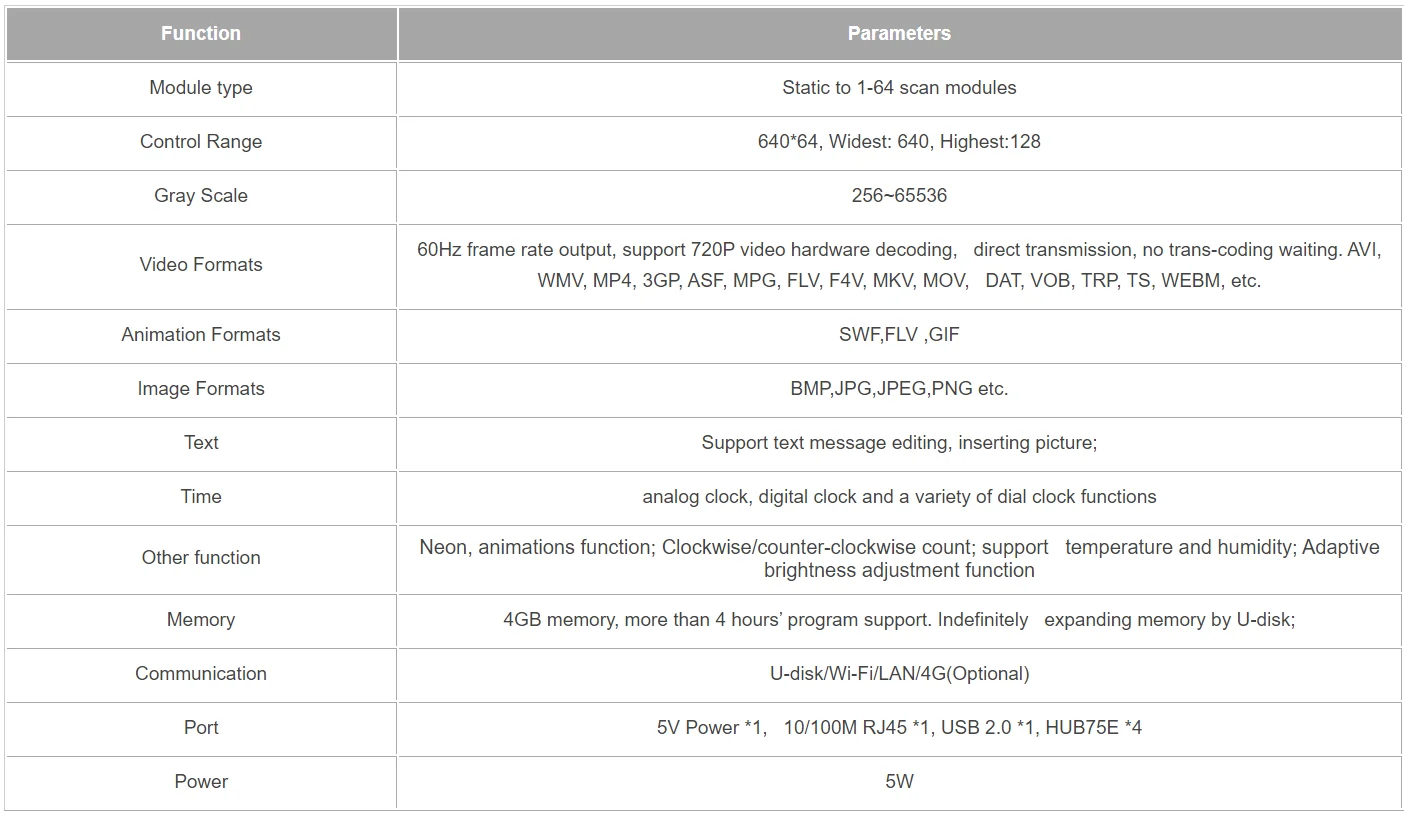

Parameter:

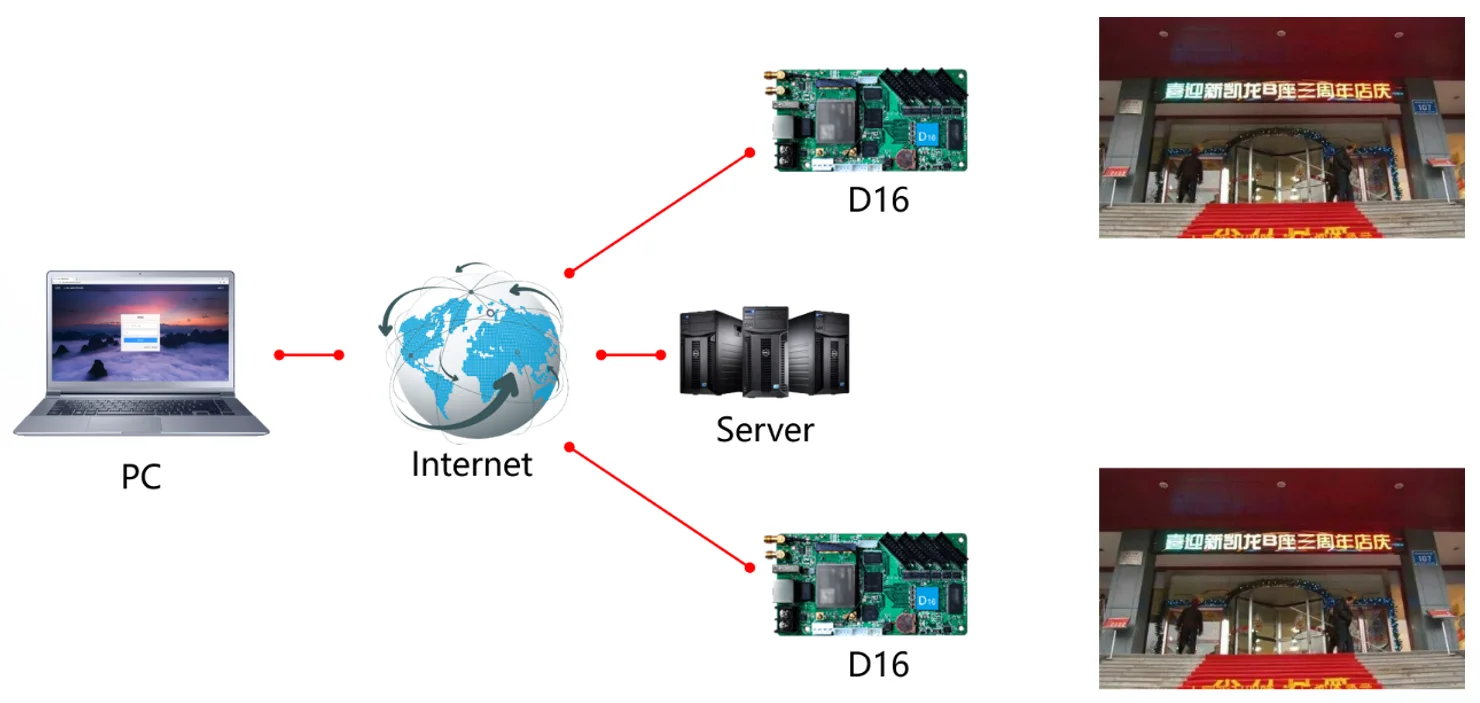

The internet cluster management diagram is as follows:

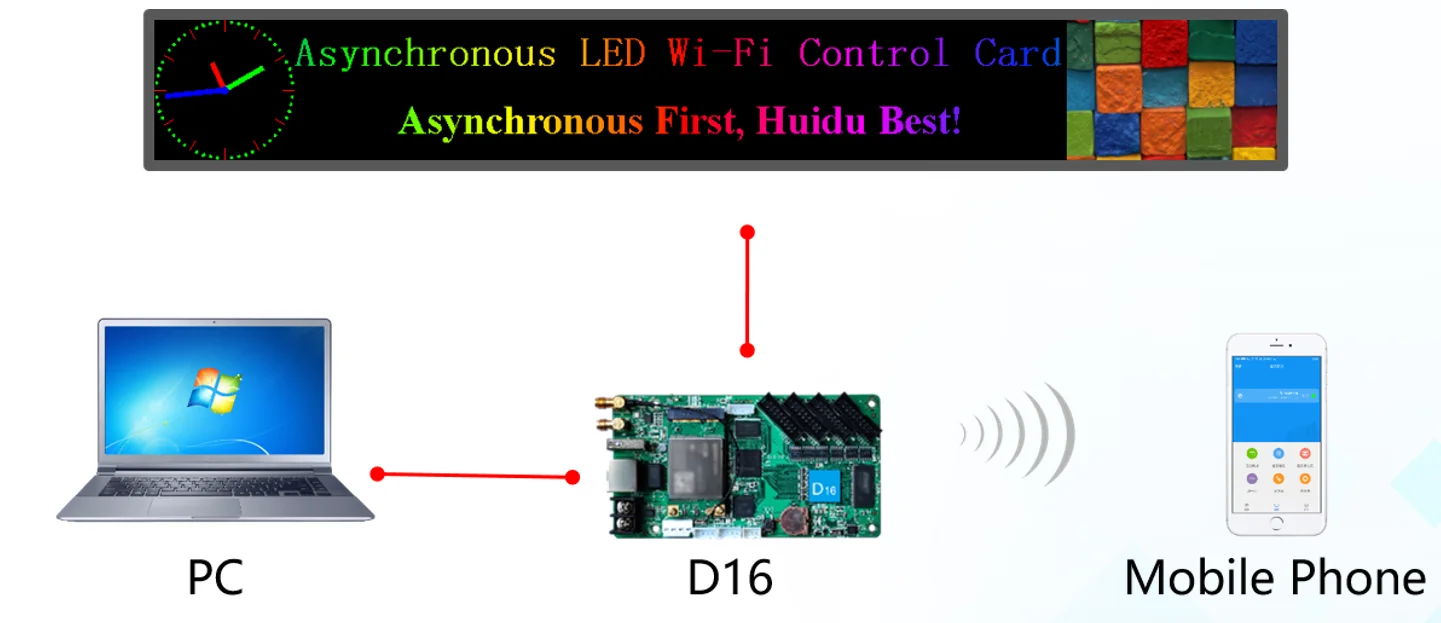

The control card can be connected directly with the computer Wi-Fi to update the programs, as shown below:

C15（384*320）, C15C（384*320）, C35（1024*512），C35C（1024*512）

C15/C15C Widest 1024, Highest 512, C35/C35C Widest 1024, Highest 1024

Can be use for one receiving card

Equipped with Wi-Fi, Mobile APP management

Support 3G/4G (Optional), Internet remote cluster control

Support video hard decoding, 60Hz output

4 GB Memory, Expending memory by U-disk

Android OS, Quad-core Cortex-A9 1.6GHz CPU
