NOTE: 1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
LCD Screen Parameters

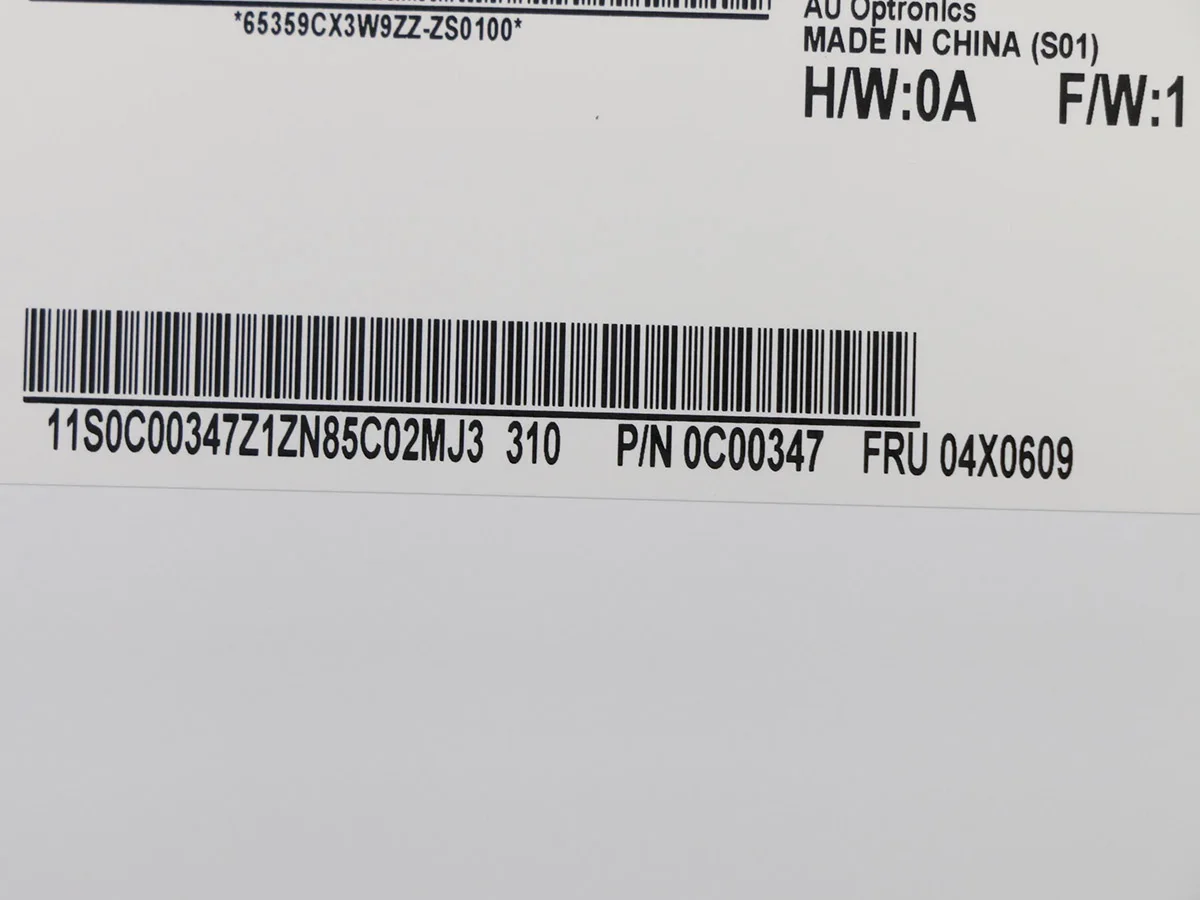

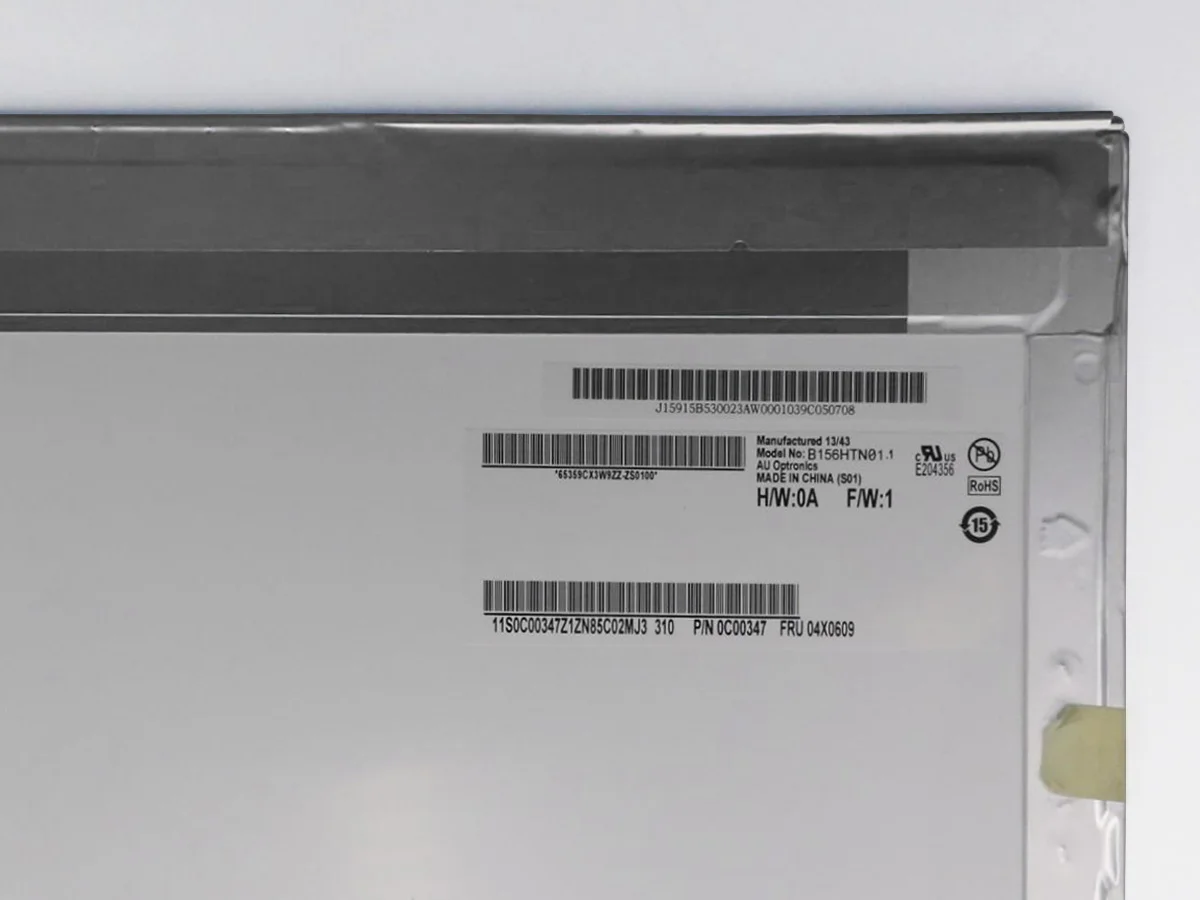

Panel Model: B156HTN01.1 or Compatible model.
Screen Size: 15.6"
Screen Type: TN
Pixel Number: 1920(RGB)x1080, FHD, 141PPI.
Frequency: 60Hz.
Display Colors: 262K.
NTSC Ratio: 60%.
Contrast Ratio: 400:1 (Typ.) (TM)
Brightness: 220 cd/m² (Typ.)
Viewing Angle: 45/45/15/35 (Typ.)(CR≥10).
Surface: Matte/Glossy.
Signal Interface: LVDS (2 ch, 6-bit) , 40 pins Connector.
Quality: A, Tested well before shipping
Warranty: 180 days
LVDS (2 ch, 6-bit) , 40 pins Connector.
