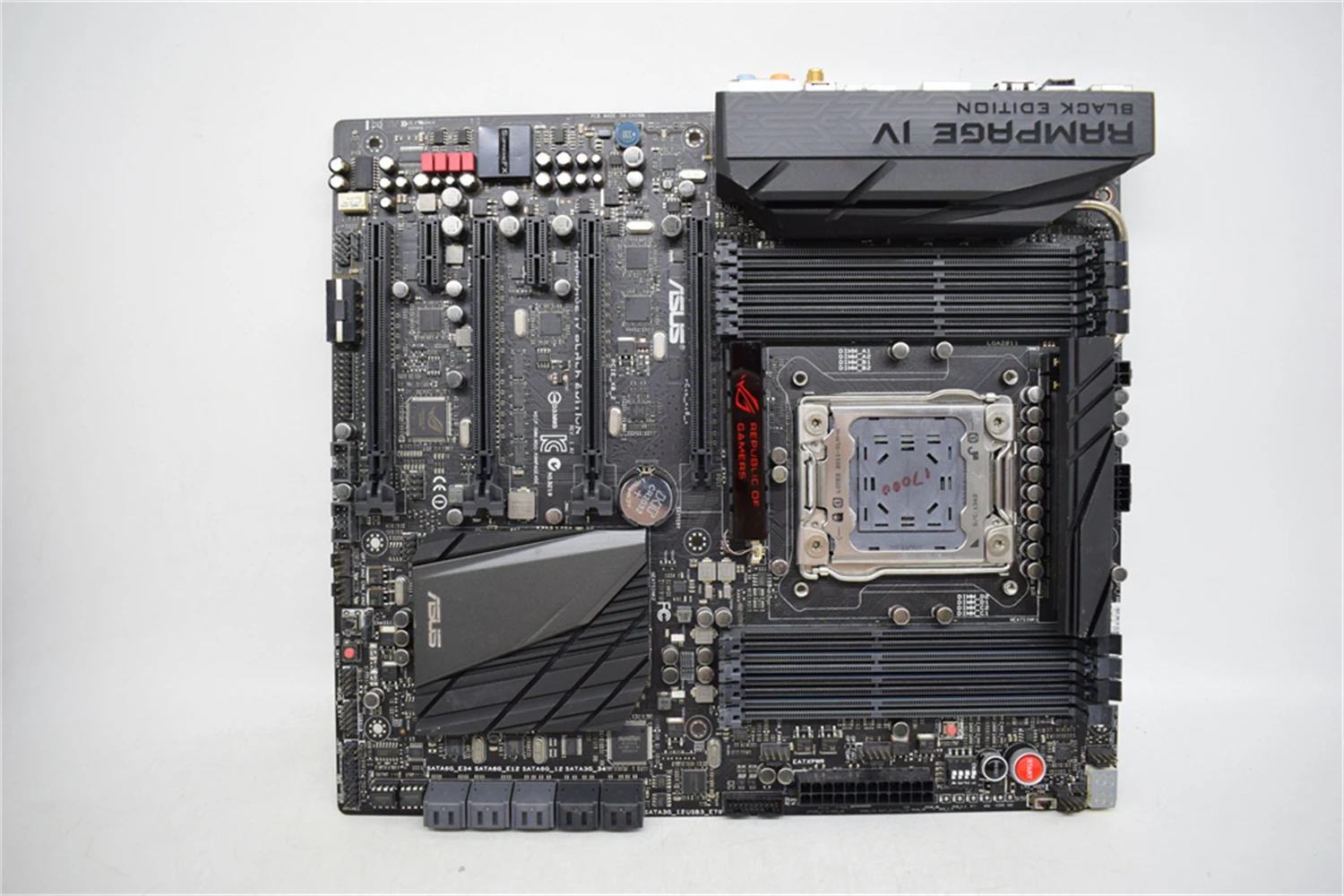

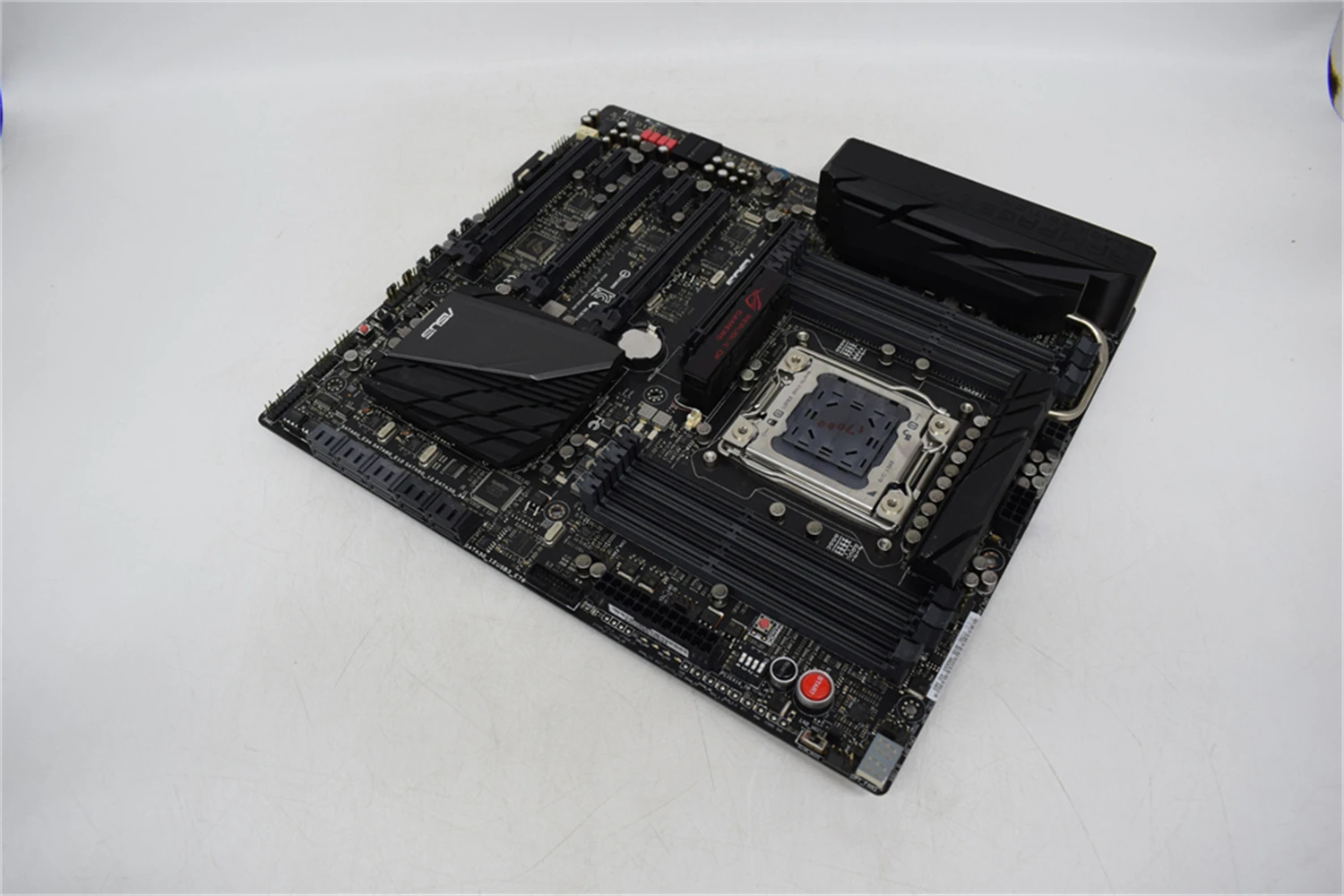

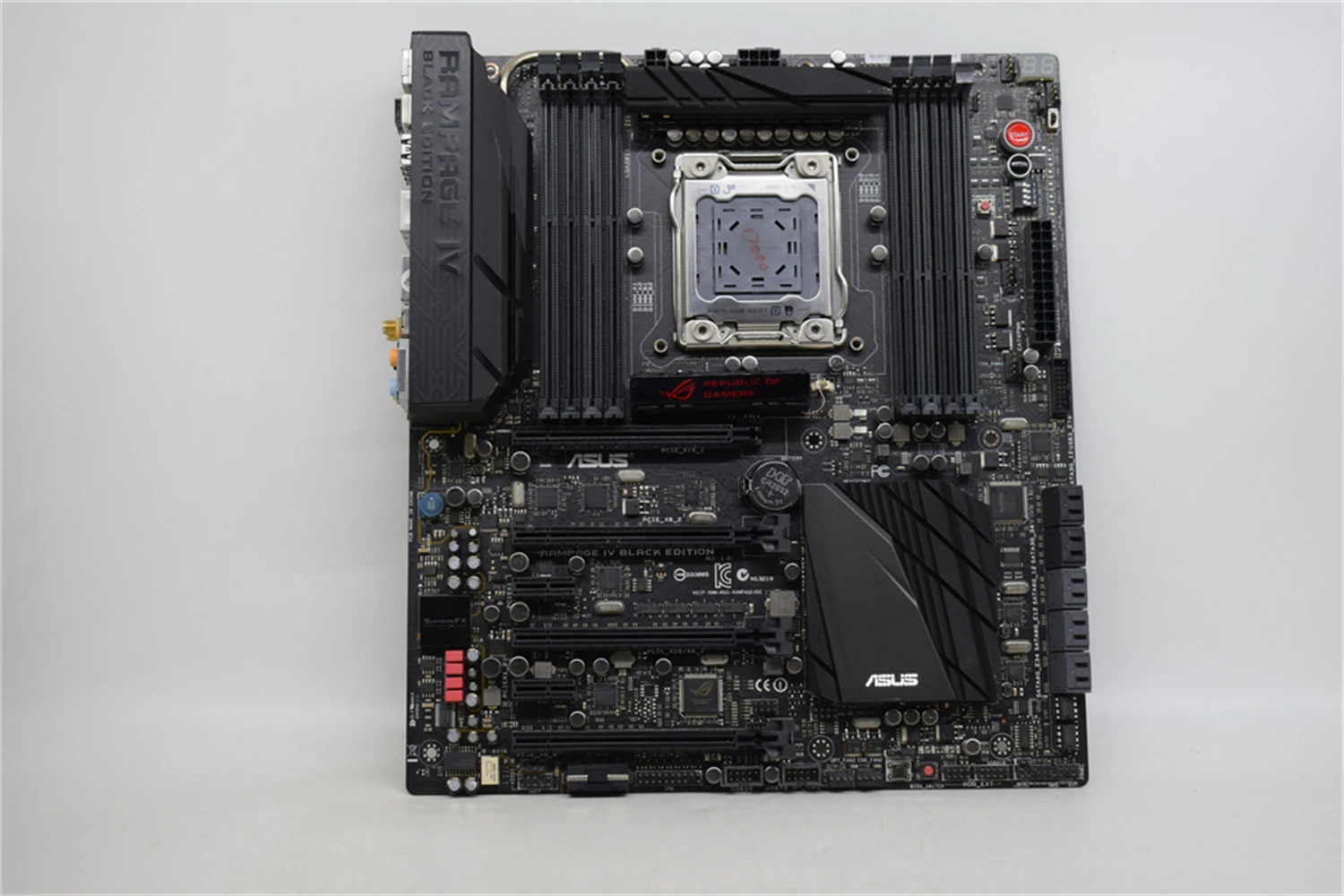

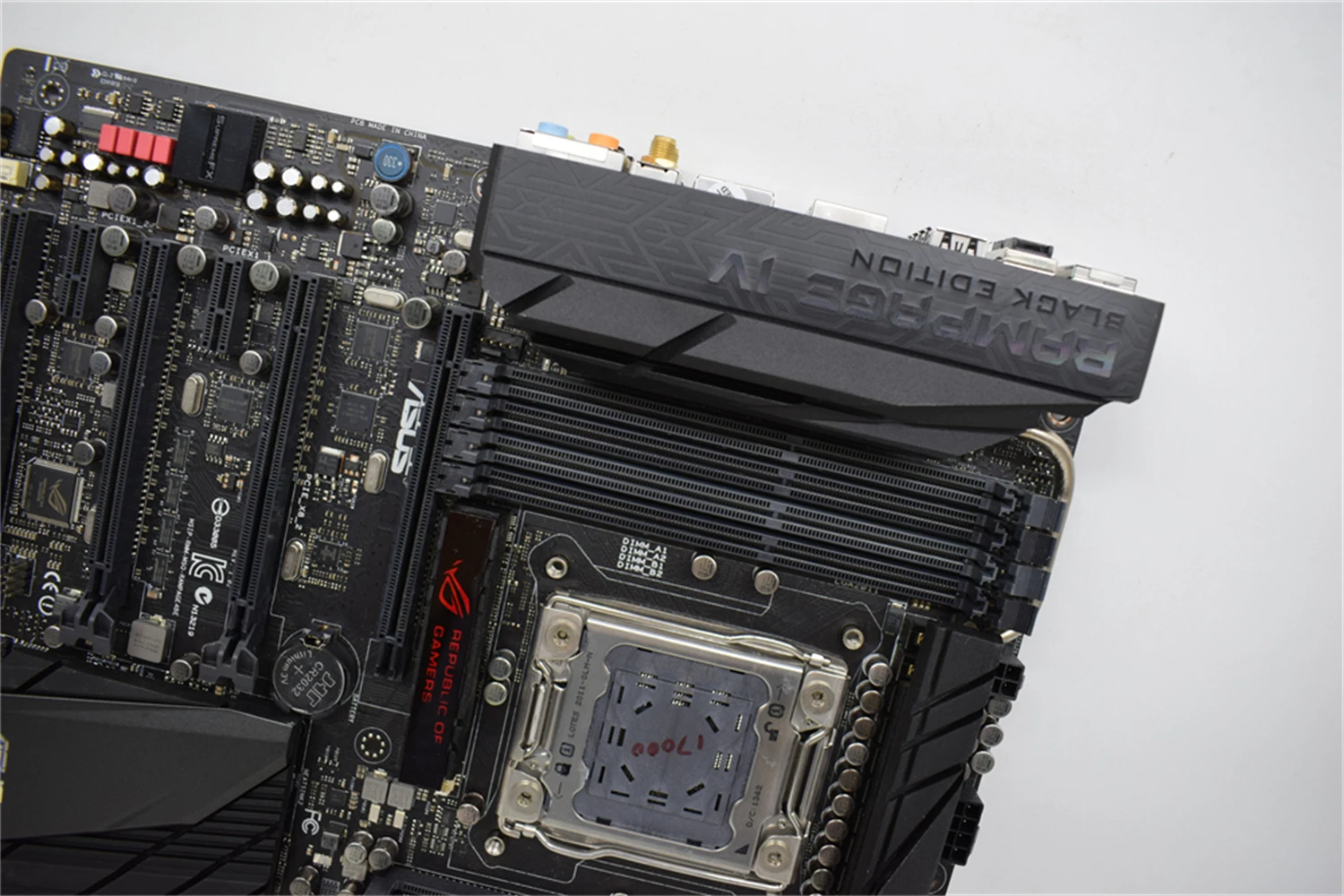

StoneTaskin Used For ASUS Rampage IV Black Edition Motherboard Intel X79 Chipset LGA 2011 Socket Supports Intel 22nm Processor DDR3 64GB PCI-E 3.0 Mainboard Fully Tested Free Shipping

Motherboard Chip

Integrated chip sound card/network card
Main Chipset Intel X79
Chipset Description Using Intel X79 Chipset
Audio chip Onboard SupremeFX Formula sound card
Network card chip Onboard Intel 82579V Gigabit network card

Processor Specifications

CPU type Core i7

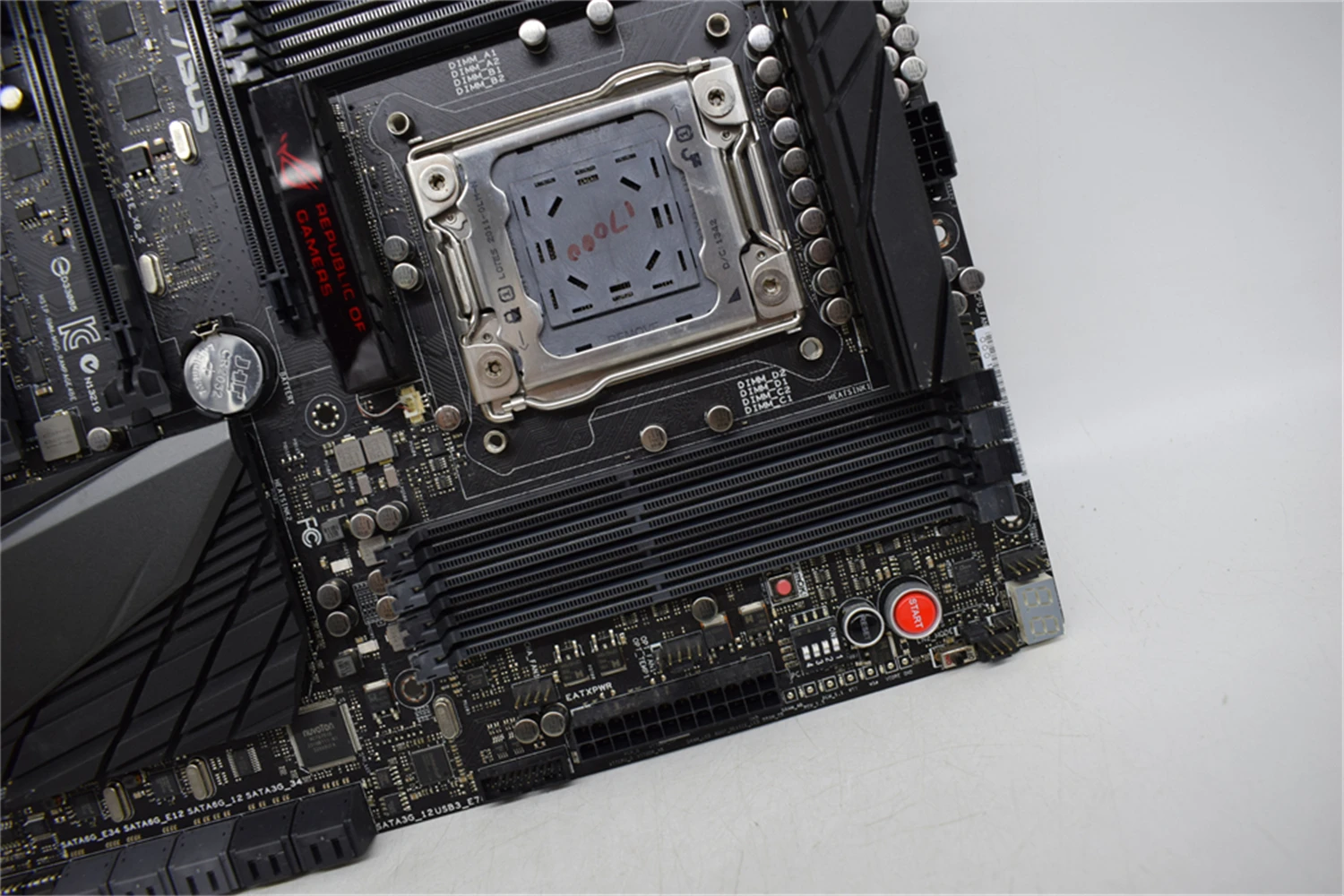

CPU socket LGA 2011
CPU description Support Intel 22nm processor

Memory Specifications

Memory type 8×DDR3 DIMM
Maximum memory capacity 64GB
Memory description Supports four-channel DDR3 2800(OC)/2666(OC)/2400(OC)/2133(OC)/1866/1600/1333/1066MHz memory

Storage Expansion

PCI-E Standard PCI-E 3.0

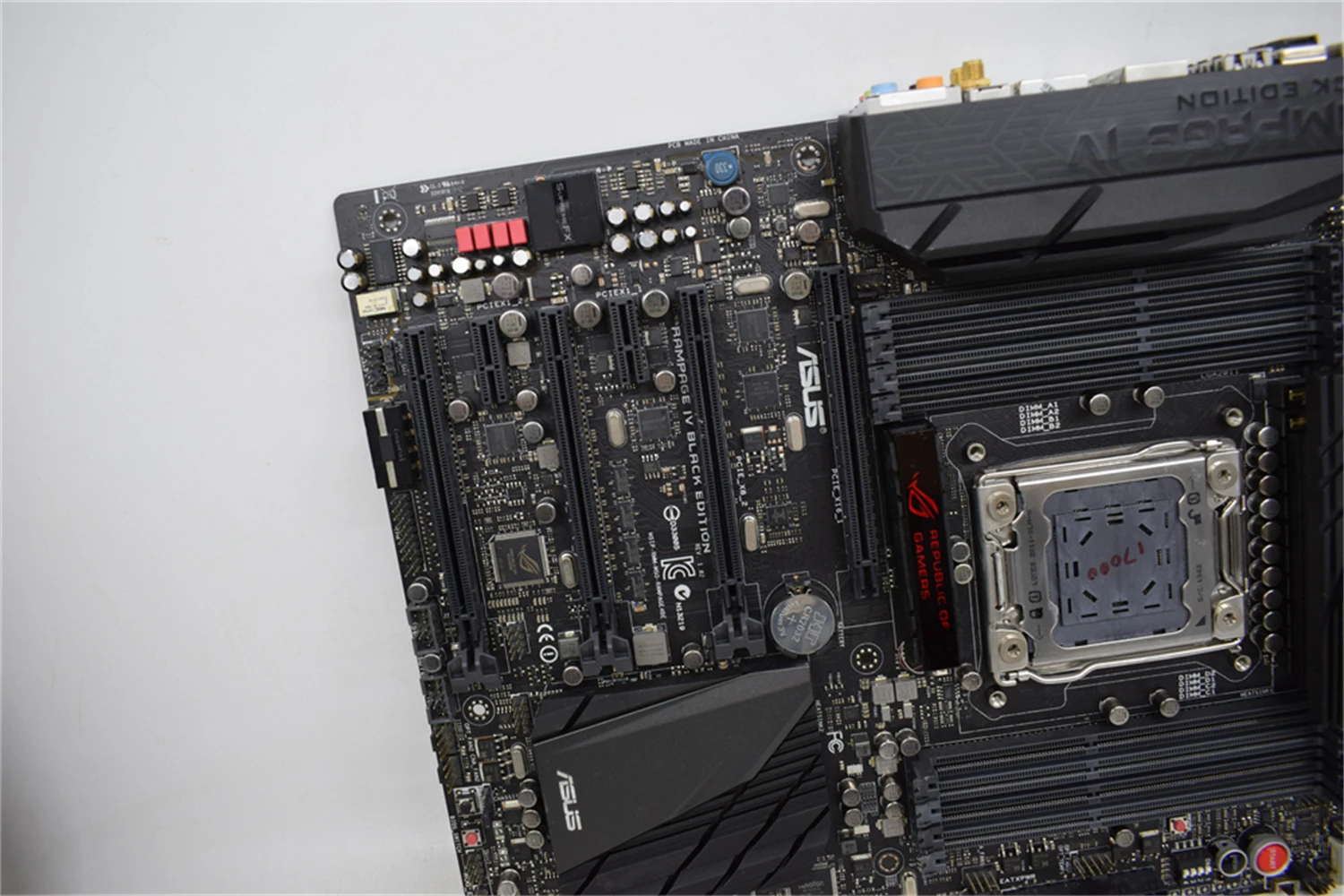

PCI-E slot 4×PCI-E X16 graphics card slot
2×PCI-E X1 slot

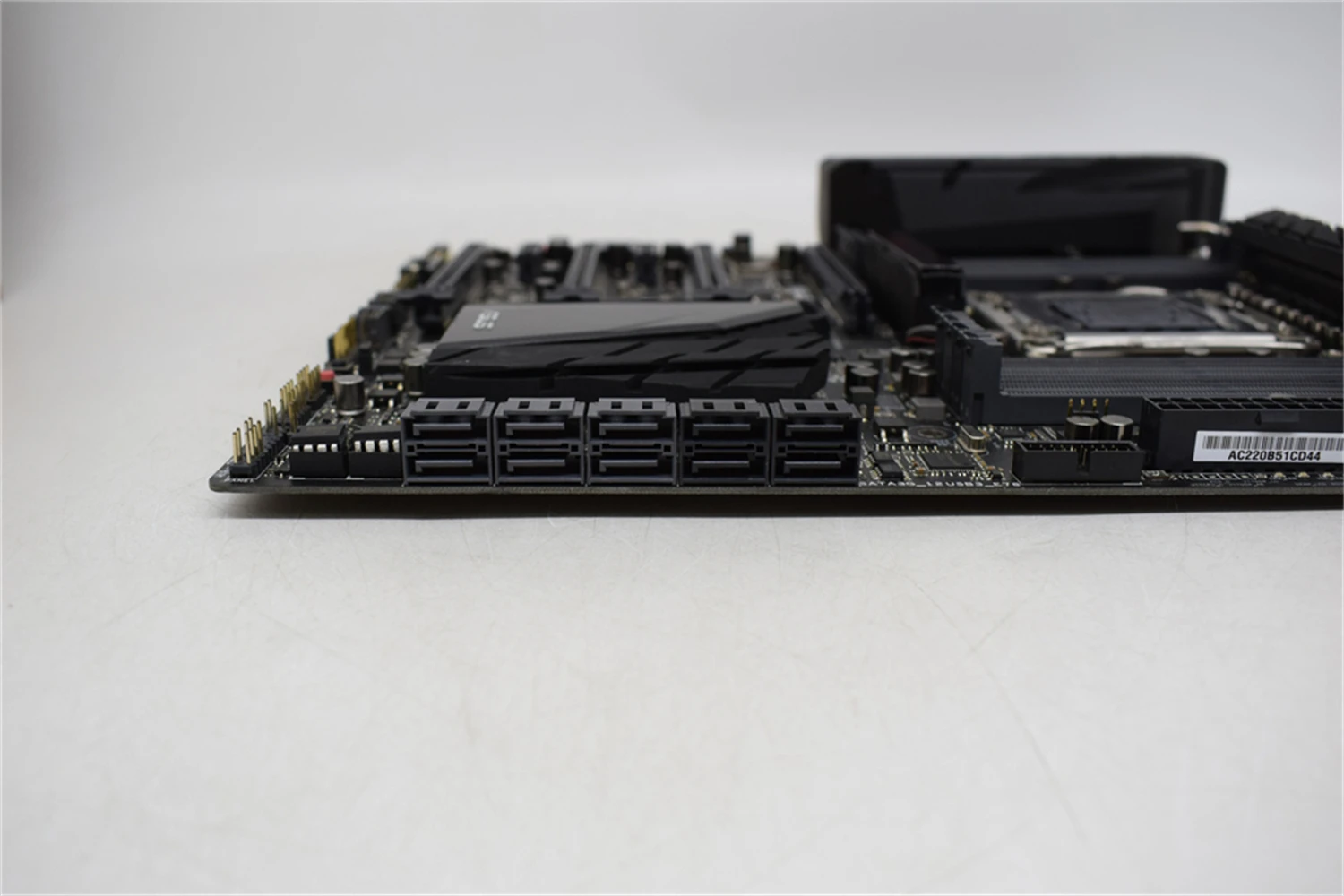

Storage interface 8×SATA III interface; 4×SATA II interface

I/O interface

USB interface 8×USB3.0 interface (2 built-in +6 backplane); 10×USB2.0 interface (6 built-in +4 backplane)
Power connector One 4-pin, one 8-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, audio interface, PS/2 keyboard and mouse general interface

Plate Type

Mainboard form factor E-ATX form factor
Dimensions 30.5×27.2cm

BIOS Performance

2 x 64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a, Multilingual BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, Favorites, Quick Notes, History, F12 screenshot, F3 shortcut key function and ASUS DRAM SPD (Serial Presence Detect) memory information
