motherboard chip
Integrated Chip Sound Card/Network Card
Main Chipset Intel Z690
Chipset Description Intel Z690 Chipset
Audio chip Integrated Realtek ALC897 7.1 channel audio chip
Network card chip Onboard Intel I225V 2.5GbE network card
Processor Specifications
CPU Type Twelfth Generation Core/Pentium/Celeron
CPU socket LGA 1700
memory specification
Memory type 4×DDR4 DIMM
Maximum memory capacity 128GB
Memory description Supports dual-channel DDR4 5200 (OC) MHz memory
storage expansion
PCI-E standard PCI-E 4.0
3 PCI-E X16 slots (1 supports X16 operation specification, 1 supports X4 operation specification, and 1 supports X1 operation specification)
PCI-E X1 slot 1
Storage interface 4×M.2 interface, 6×SATA III interface

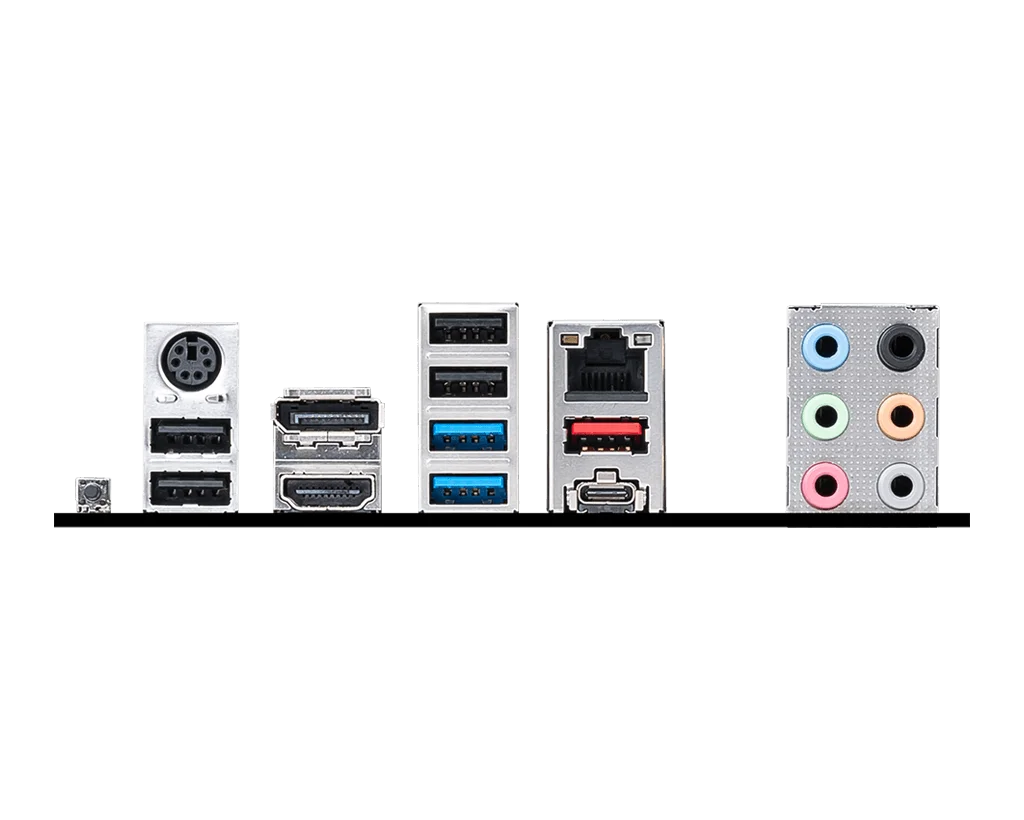

I/O interface
USB (backplane) 1×USB3.2 Gen2x2 Type-C interface
1×USB3.2 Gen2 Type-A interface
2×USB3.2 Gen1 Type-A interface
4 x USB2.0 interface
USB (built-in) 1×USB3.2 Gen2 Type-A interface
4×USB3.2 Gen2 Type-C interface
4 x USB2.0 interface
Video interface 1×DisplayPort interface, 1×HDMI interface
Other interfaces 1×PS/2 common interface for keyboard and mouse, 1×RJ45 network interface, 6×audio interface
plate type
Motherboard form factor ATX
