Model: 853AAA+
Parameter:
Power: 1200W(max)
Voltage range:AC 220V~240V,50Hz / AC 100V~125V,60Hz
Outline dimensions:L320xW220xH270mm ±5mm
Working environment:0~40°C/32~104°F
Storage environment:-20~80°C/-4~176°F
Storage humidity:35%~45%
Preheating station part:
Temperature range:50°C~400°C/122~752°F
Temperature stability:±2°C (static state)
Display form: LED

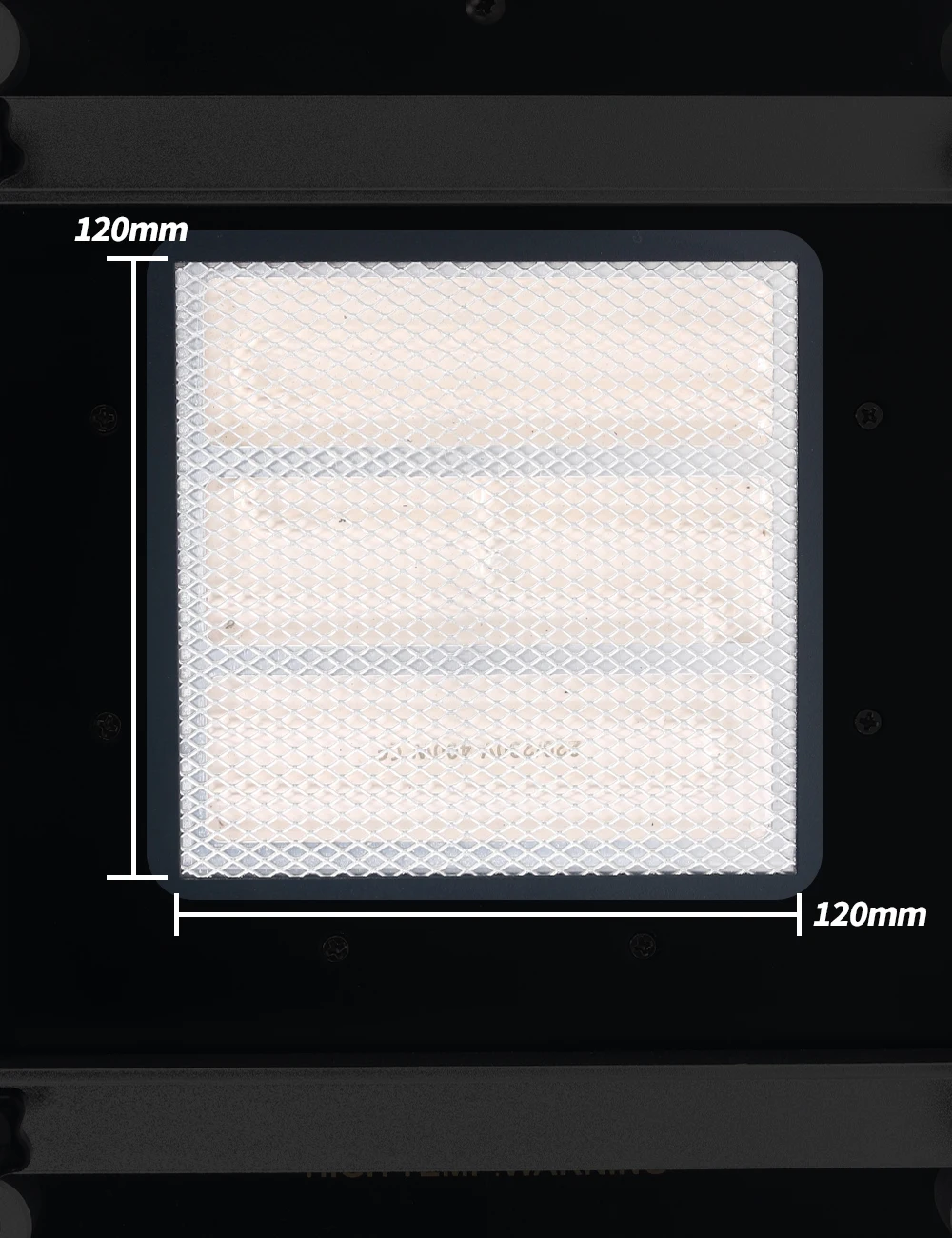

Heated region area: 120*120
Air gun part:
Airflow type: brushless fan with soft wind
airflow: ≤120L/min
Temperature range: 100°C-480°C/212°F-896°F
Display mode: LED
Temperature stability:±1°C (static state)
Handle length:≥100CM

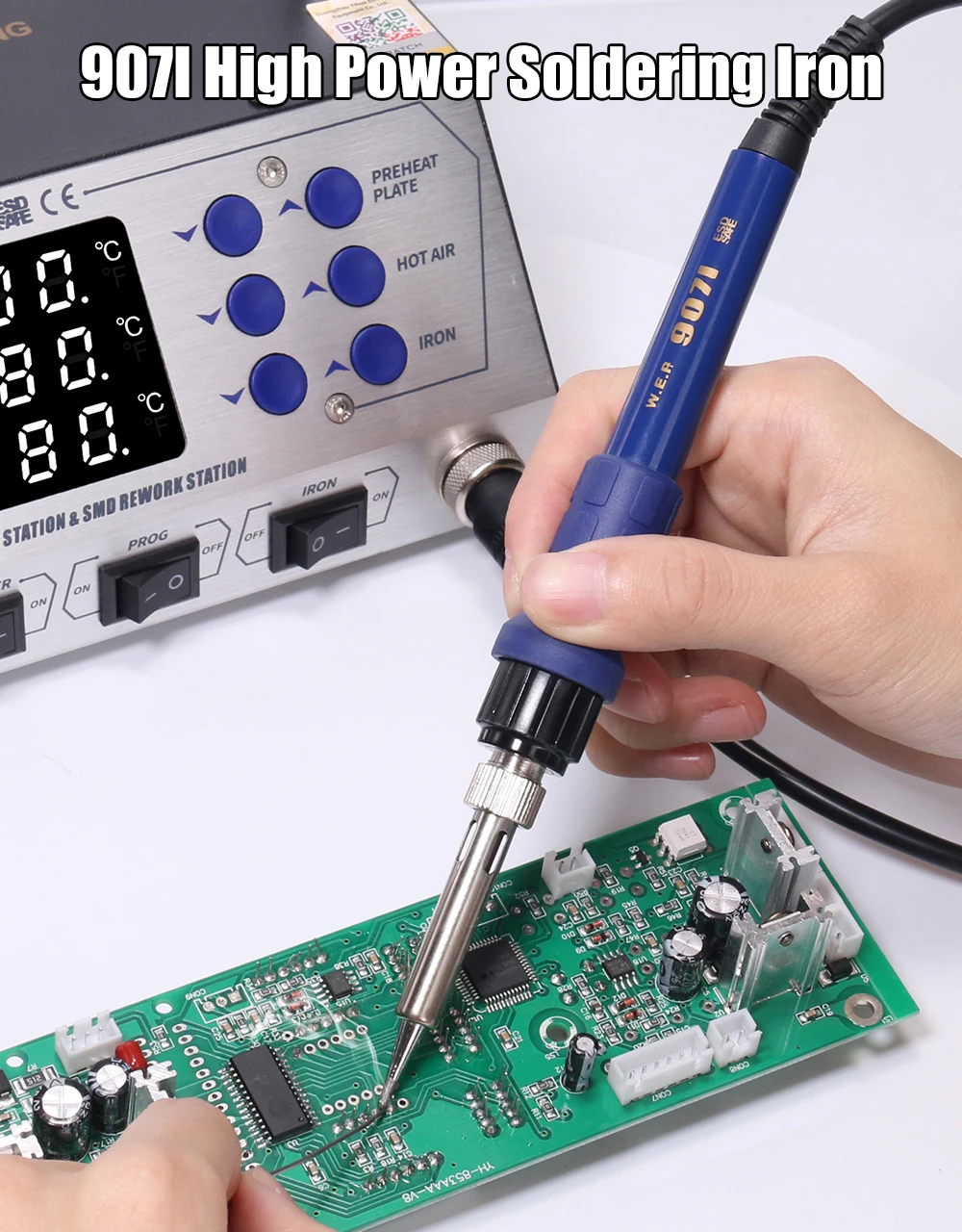

Soldering iron part:
Temperature range: 200°C-480°C/392°F-896°F
Display mode: LED
Temperature stability:±1°C (static state)
Soldering iron tip over the ground resistance:<2ohm
Soldering iron tip over the ground voltage:<2mV
Handle length:≥100CM
Function:
1.3 in 1 rework station，preheater/heat gun/soldering iron，use at the same time, high efficient welding
2.50-400C preheater，double heating desoldering ，easier to remove
3.Preheating plate multilayer heat transfer
4.Pluggable handle，ceramics heating element，rapid temperature rise, evenly heated
5.Humanization design，no operation 10 mins, start sleep，save energy, protect the iron tip
5. 3 values storage setting，directly use, save time and no worry
6. 2 temperature display options，meet the different country need
7. Temperature calibration，when the display temperature is different from the test, can use this function, designed for A long time using
How to use:
This unit is suitable for desoldering and soldering components including BGA, SOIC, CHIP, QFP, PLCC and more. It is especially suitable for desoldering BGA modules, computer CPU sockets, mobile phone circuit boards, all-types of SMD ICs, LED lights and more. It can also be used for heat shrinking, drying, paint stripping, adhesive removal, defrosting, pre-heating, glue soldering, etc.
853AAA+ Package Content
1. WEP853AAA+ soldering station
2. Nozzles (4 pcs)
3. IC extractor (1 pcs)
4. Air gun heating element (1 pcs)
5. Soldering handle heating element (1 pcs)
6.Tweezers (2 pcs)
7. Tubular soldering wire (1.0mm15g) (1 pcs)
Programming function

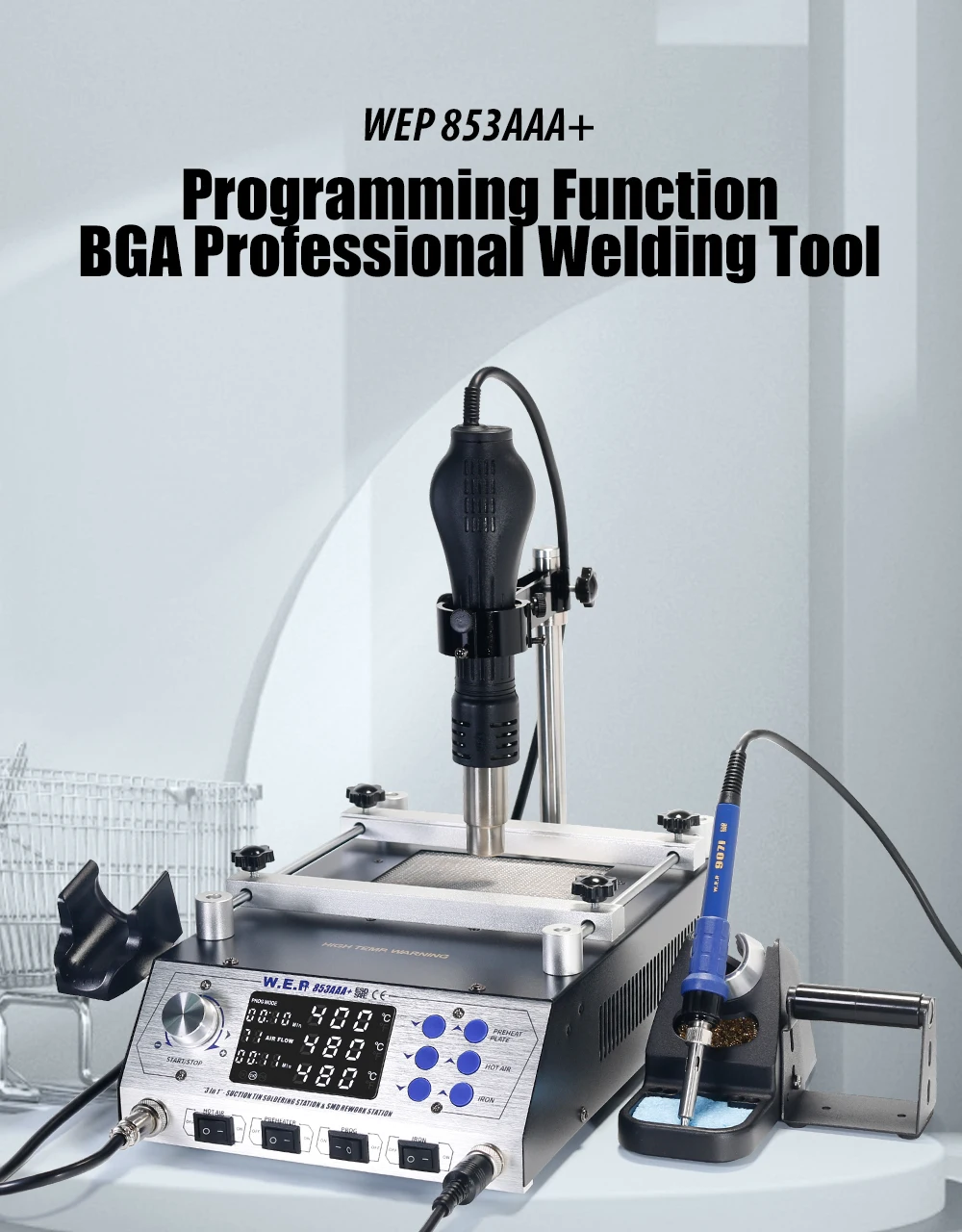

WEP 853AAA+ bga professional welding tool

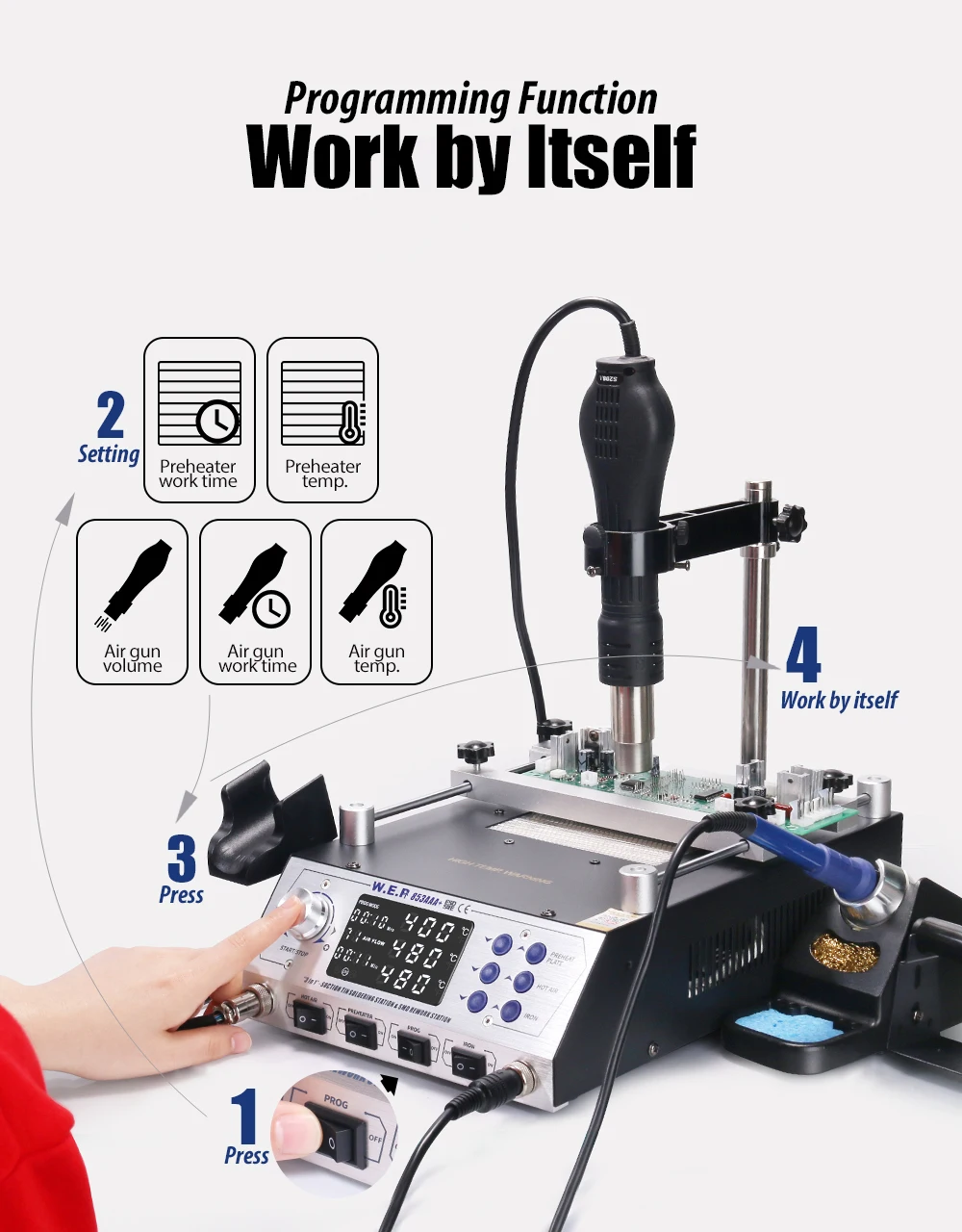

Work by itself
programming function

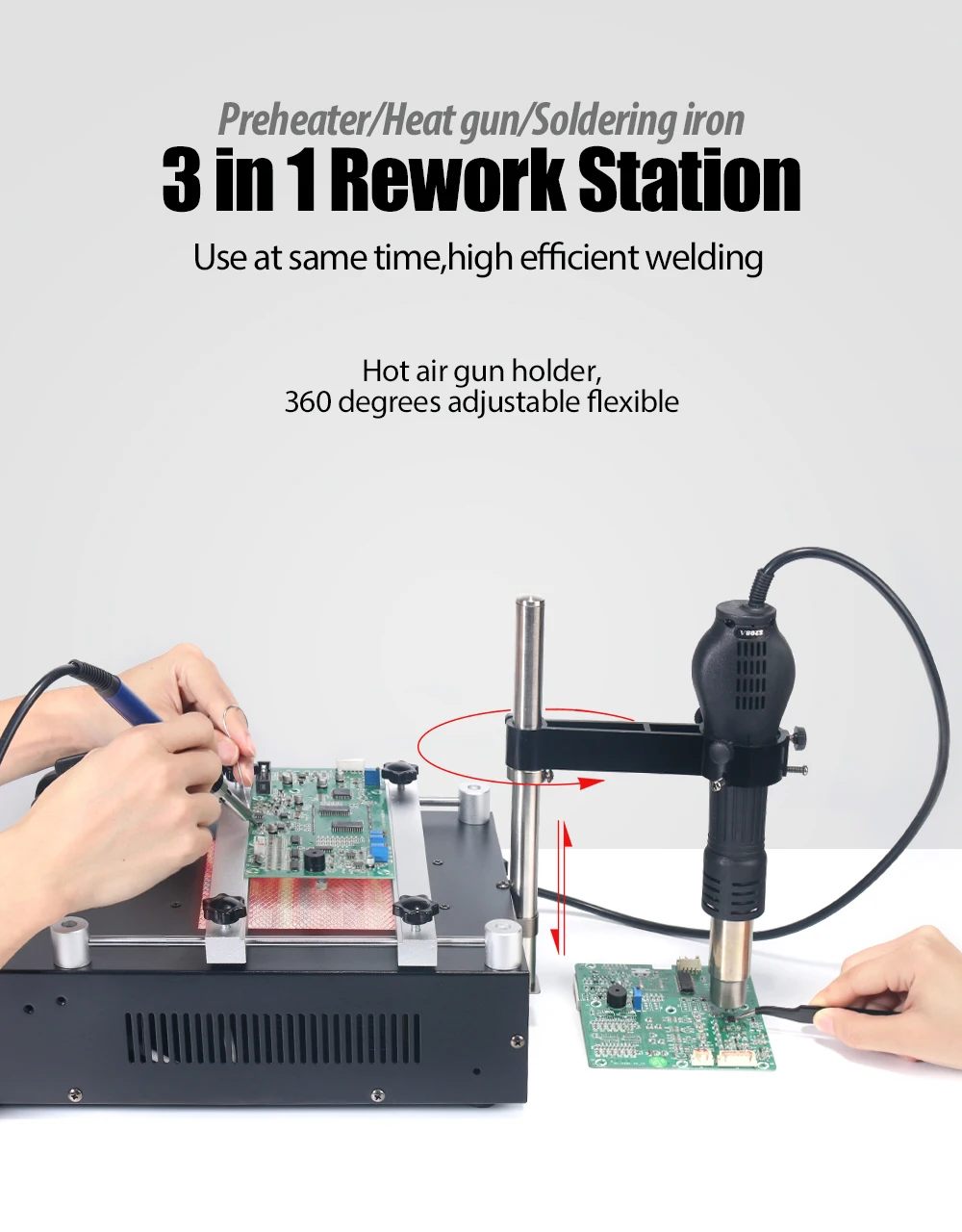

3 in 1 rework station
preheater/heat gun/soldering iron
use at the same time, high efficient welding

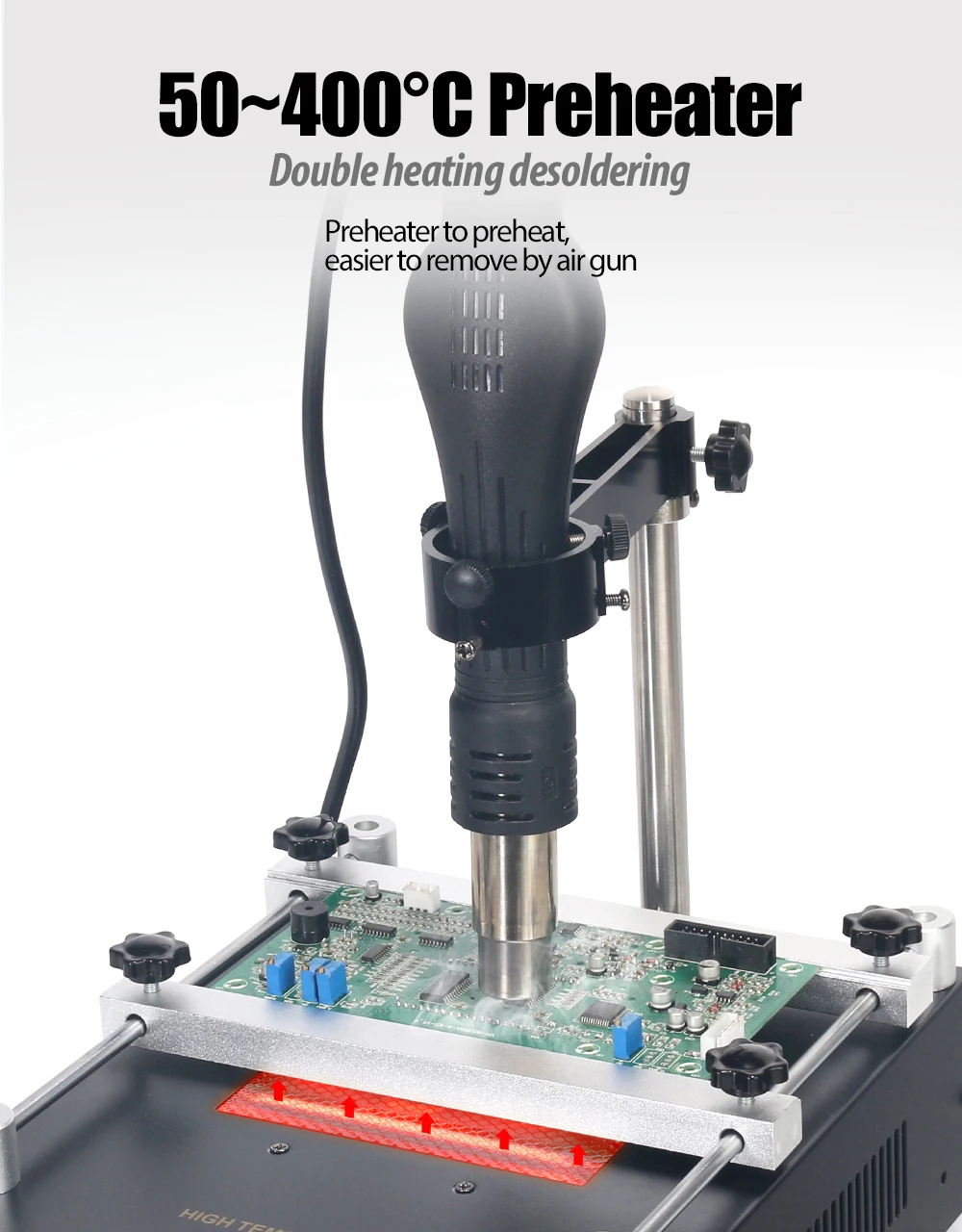

50-400C preheater
double heating desoldering
easier to remove by air gun

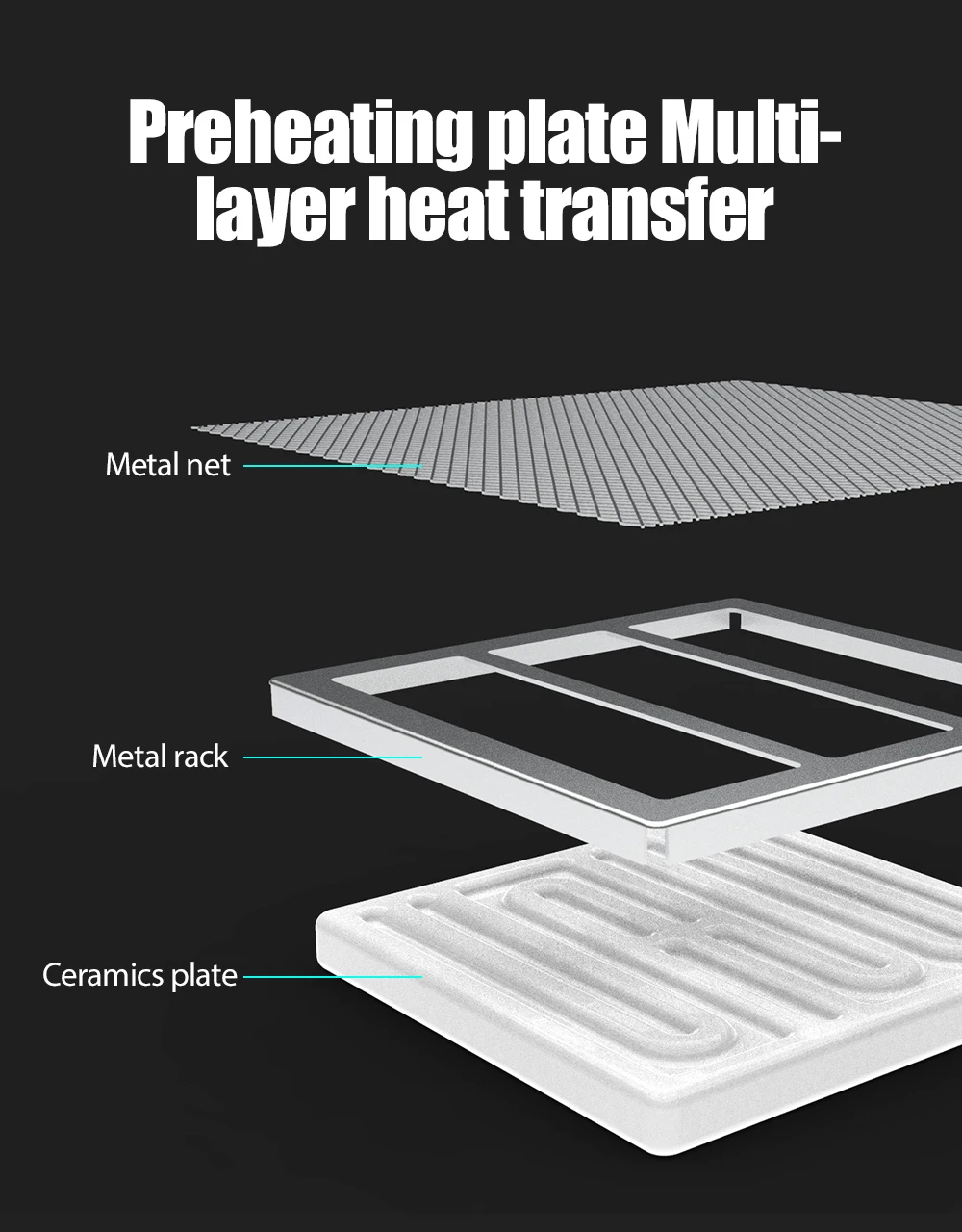

preheating plate multilayer heat transfer
pluggable handle

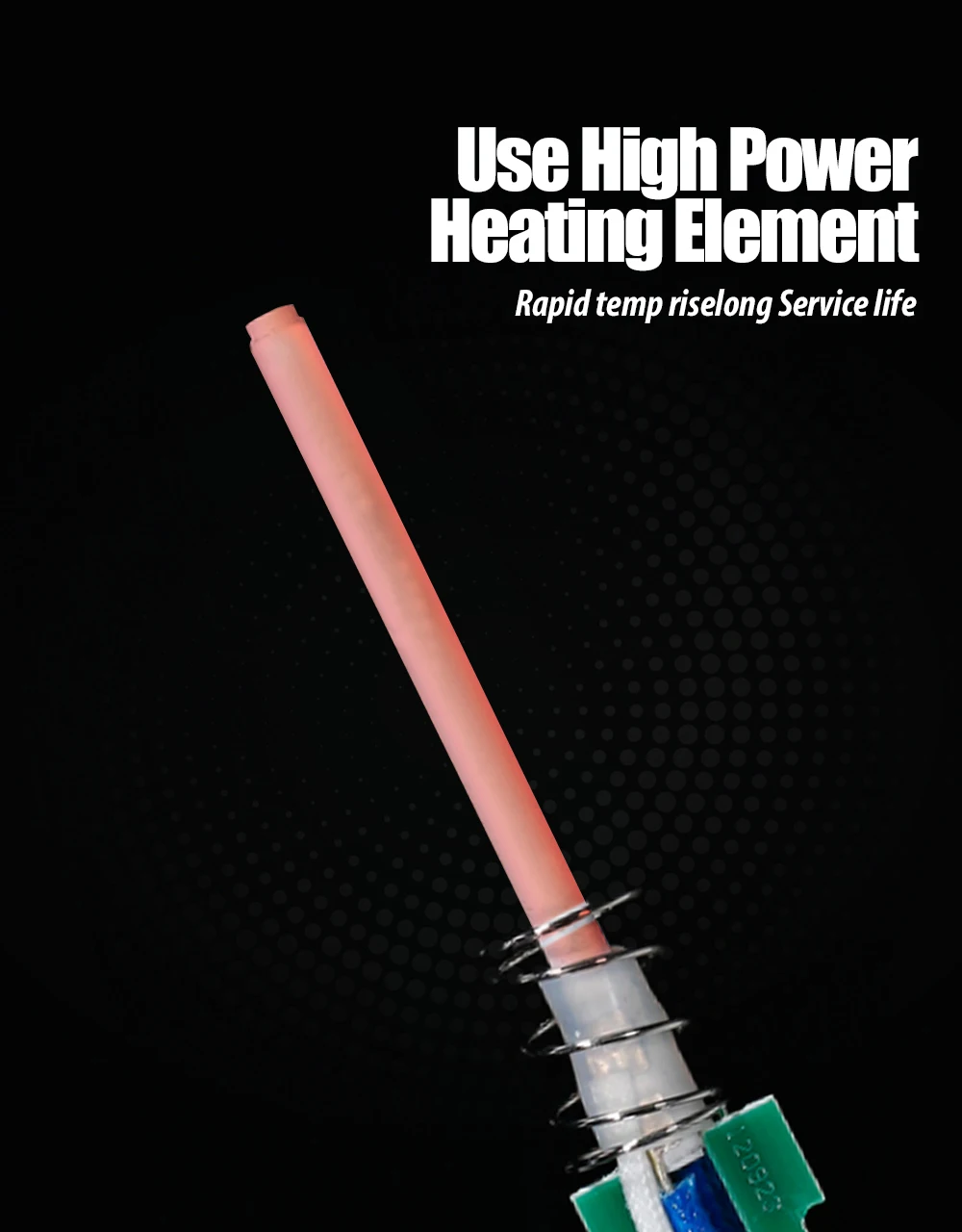

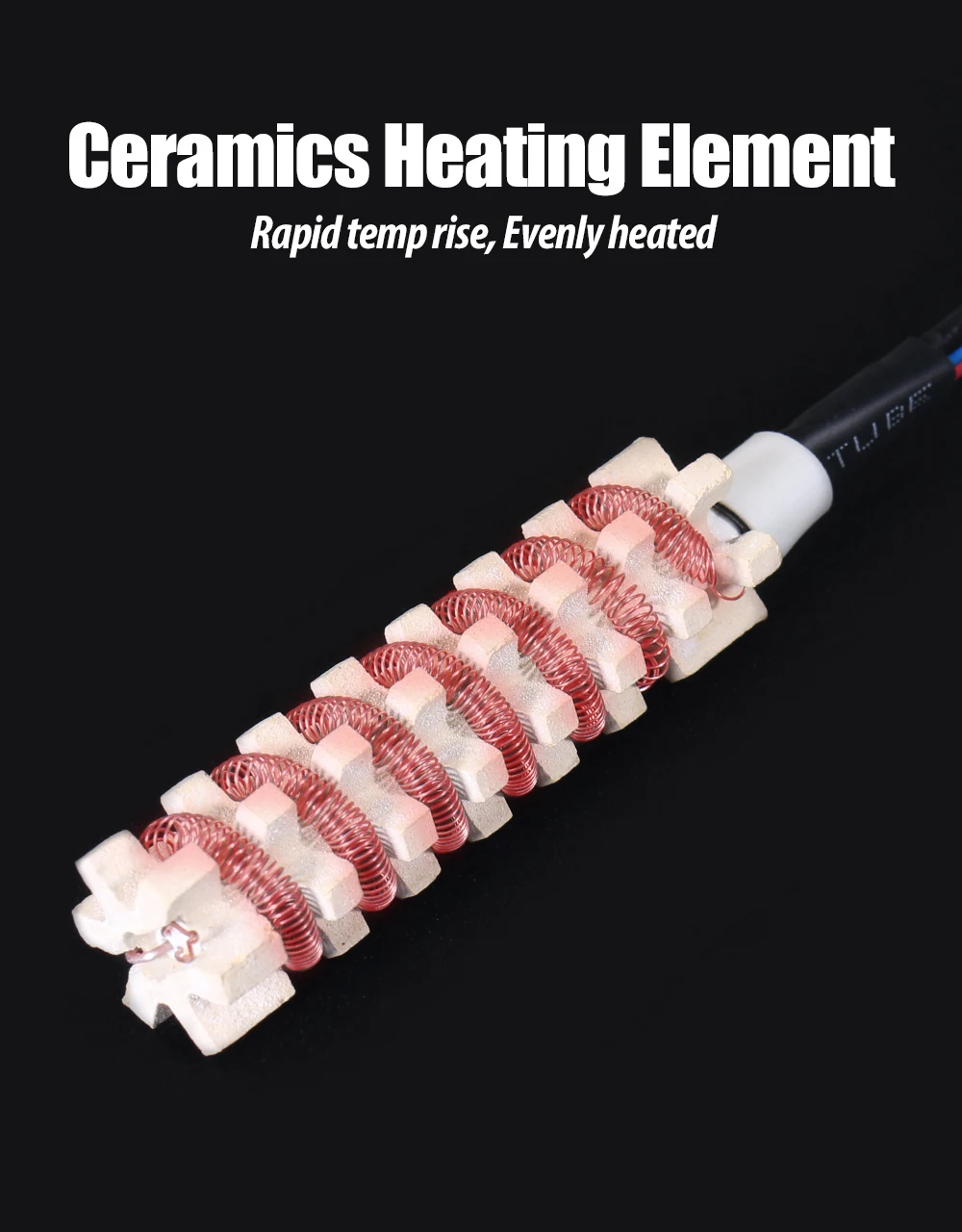

ceramics heating element
rapid temperature rise, evenly heated

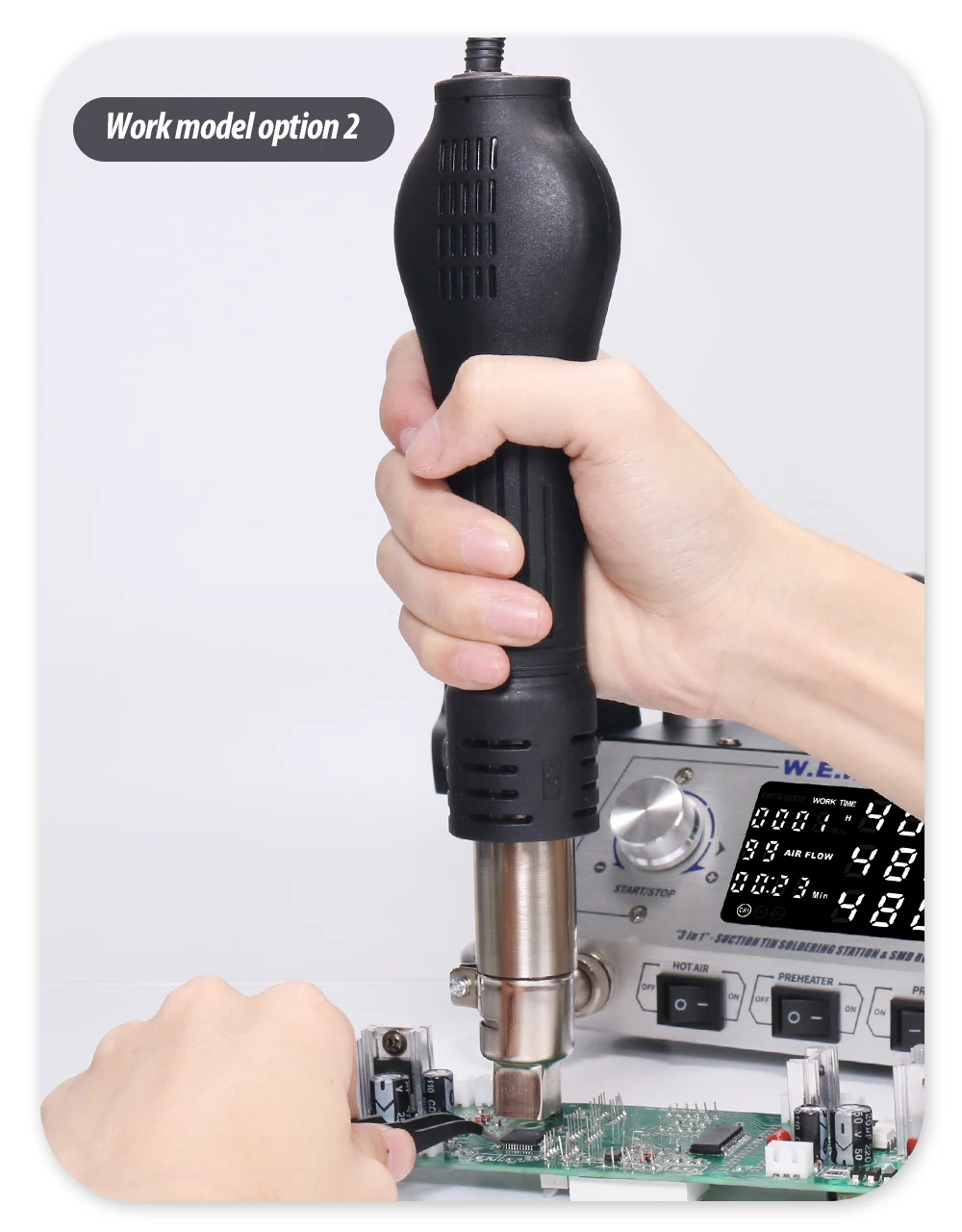

Two working mode of air gun

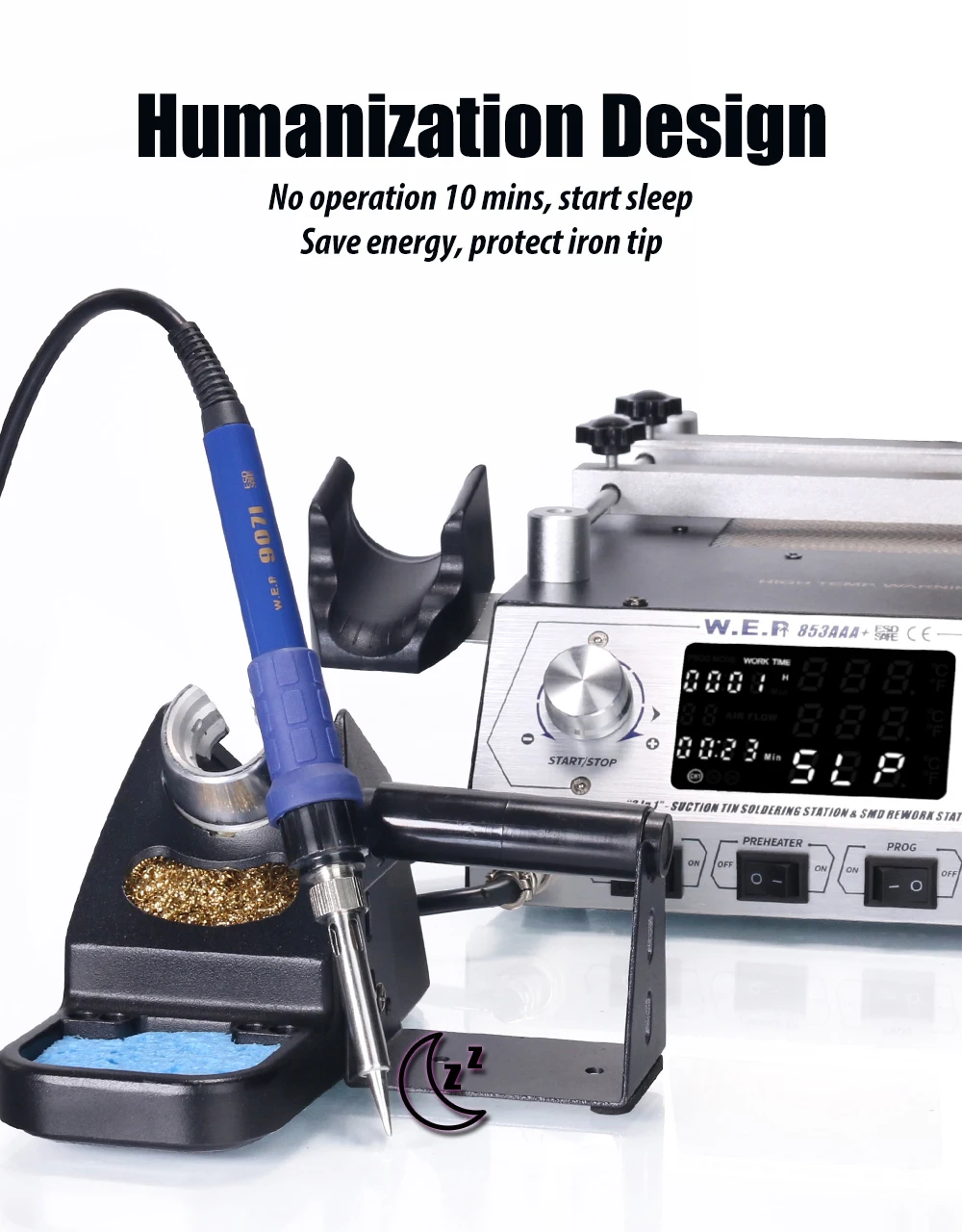

humanization design
no operation 10 mins, start sleep
save energy, protect iron tip

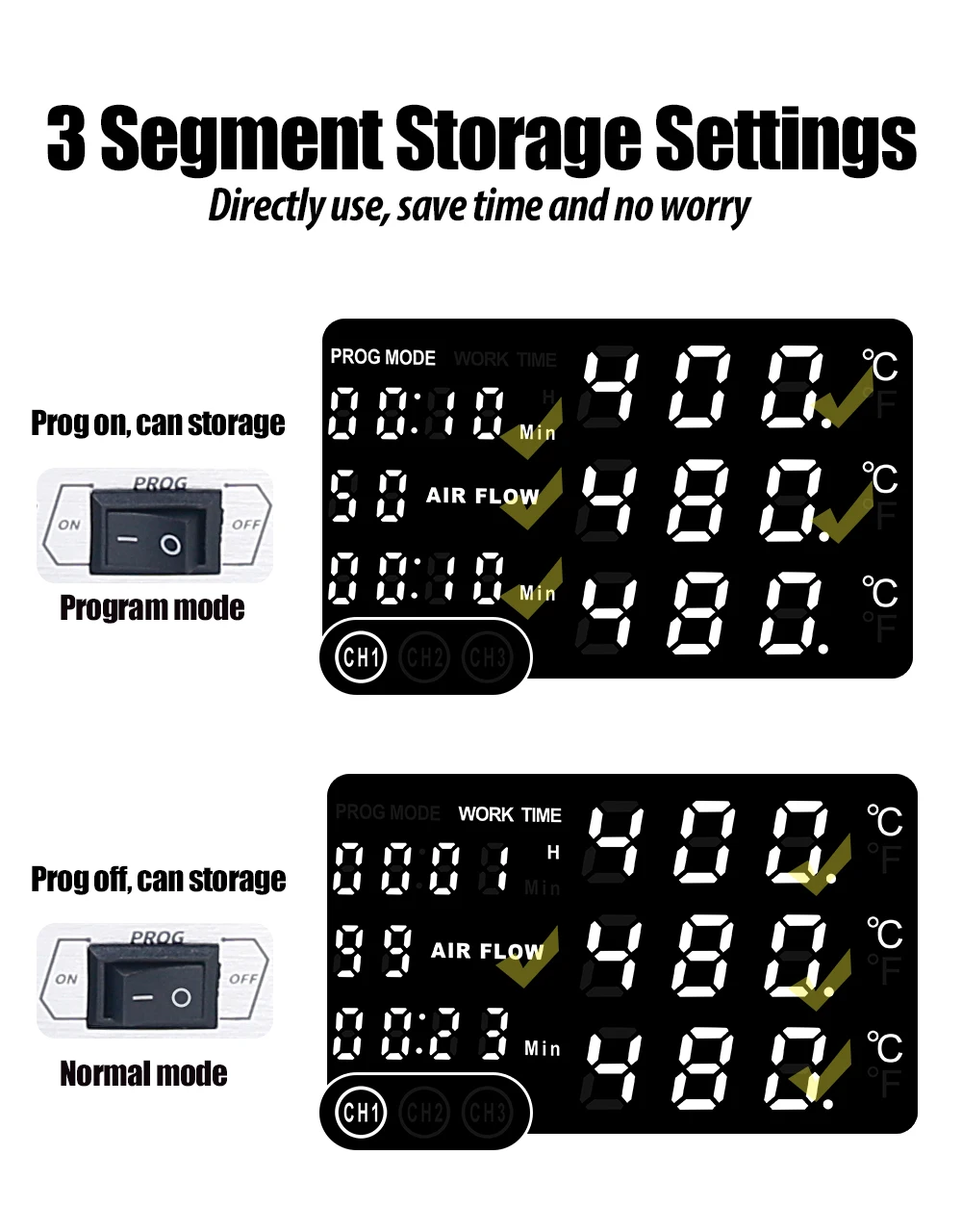

3 values storage setting
directly use, save time and no worry

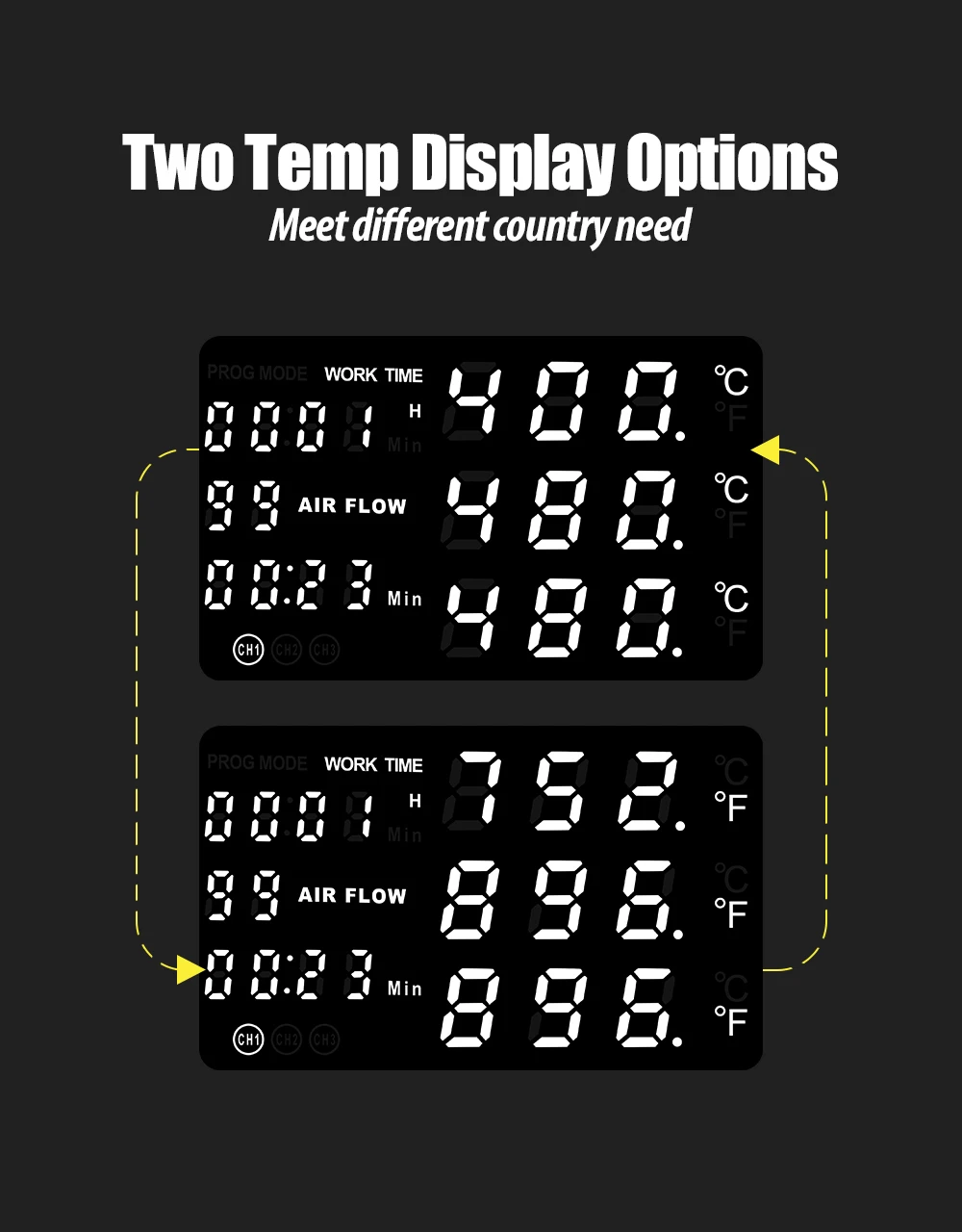

2 temperature display options
meet different country need

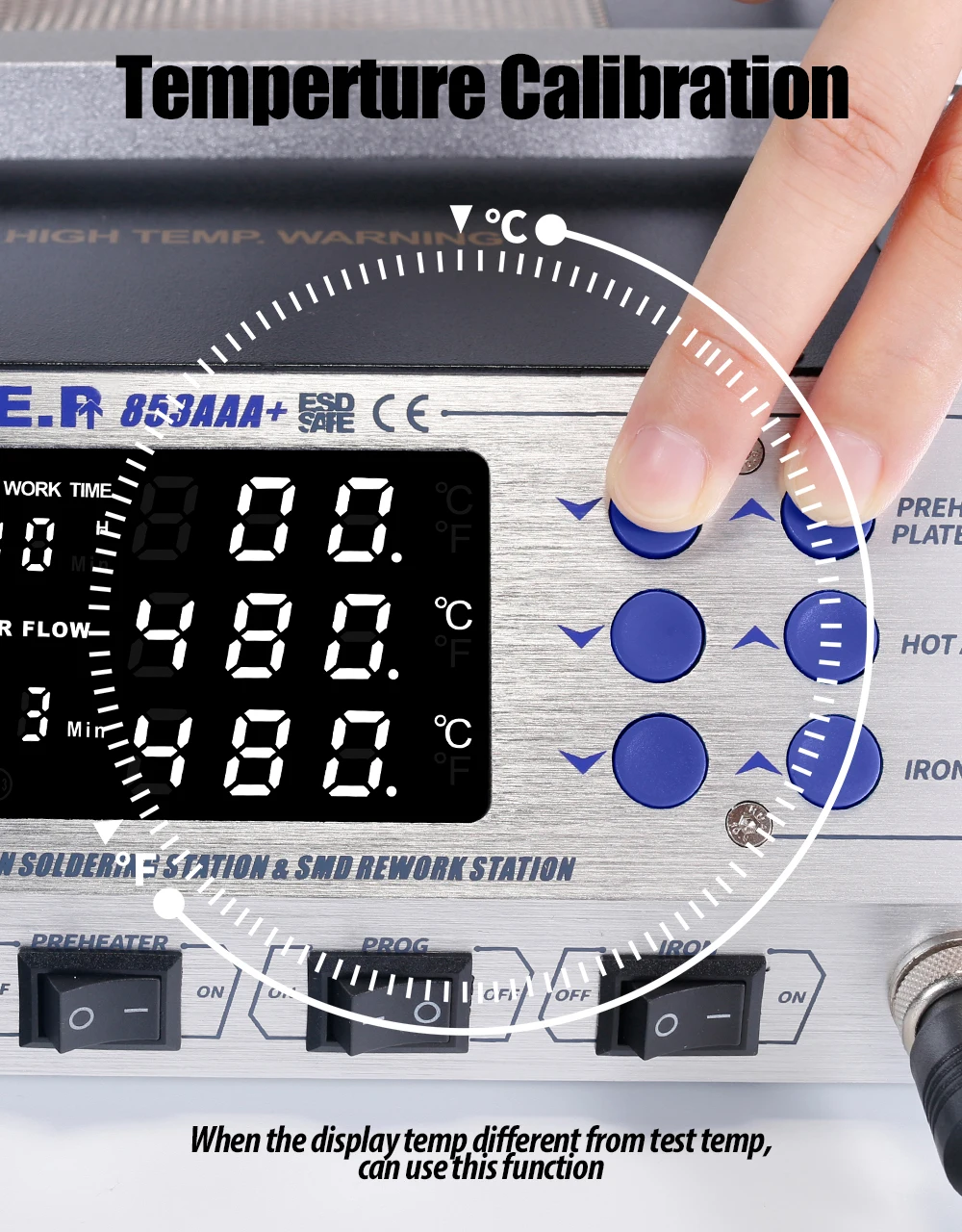

temperature calibration
when the display temperature different from the test, can use this function, designed for long time using
