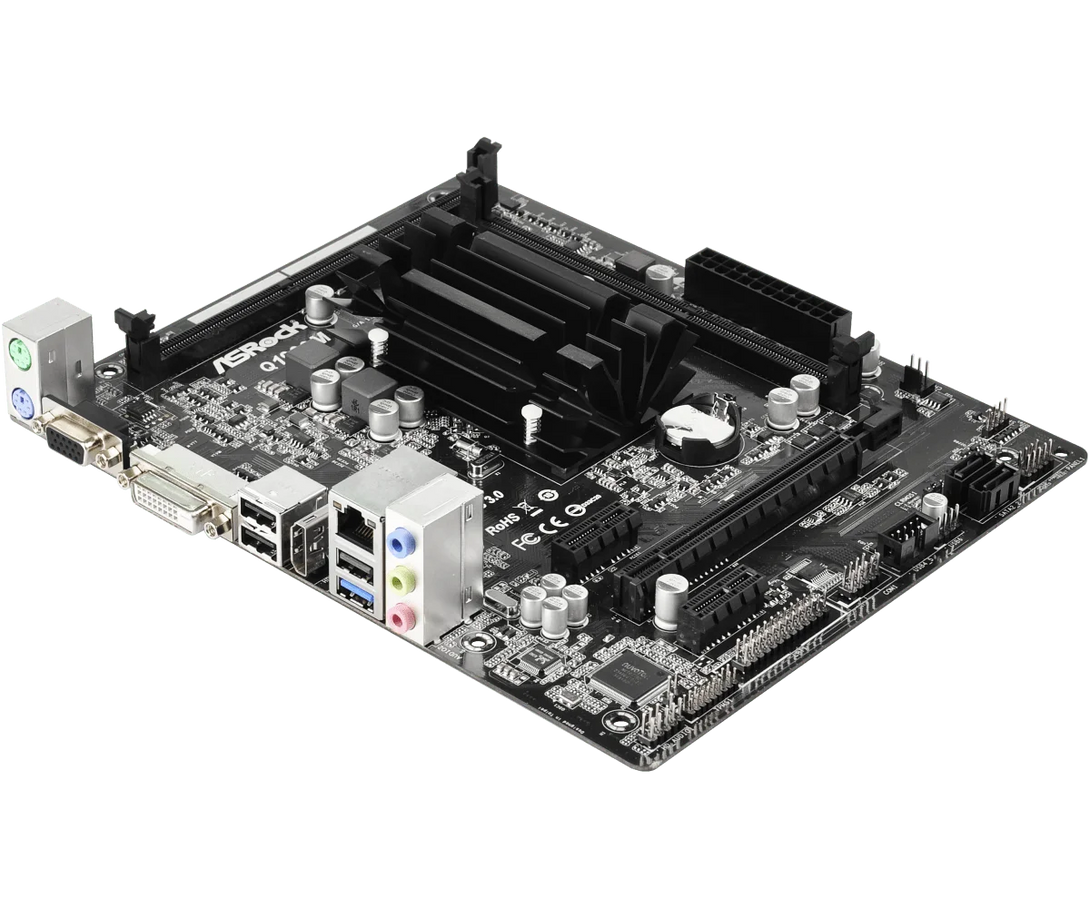

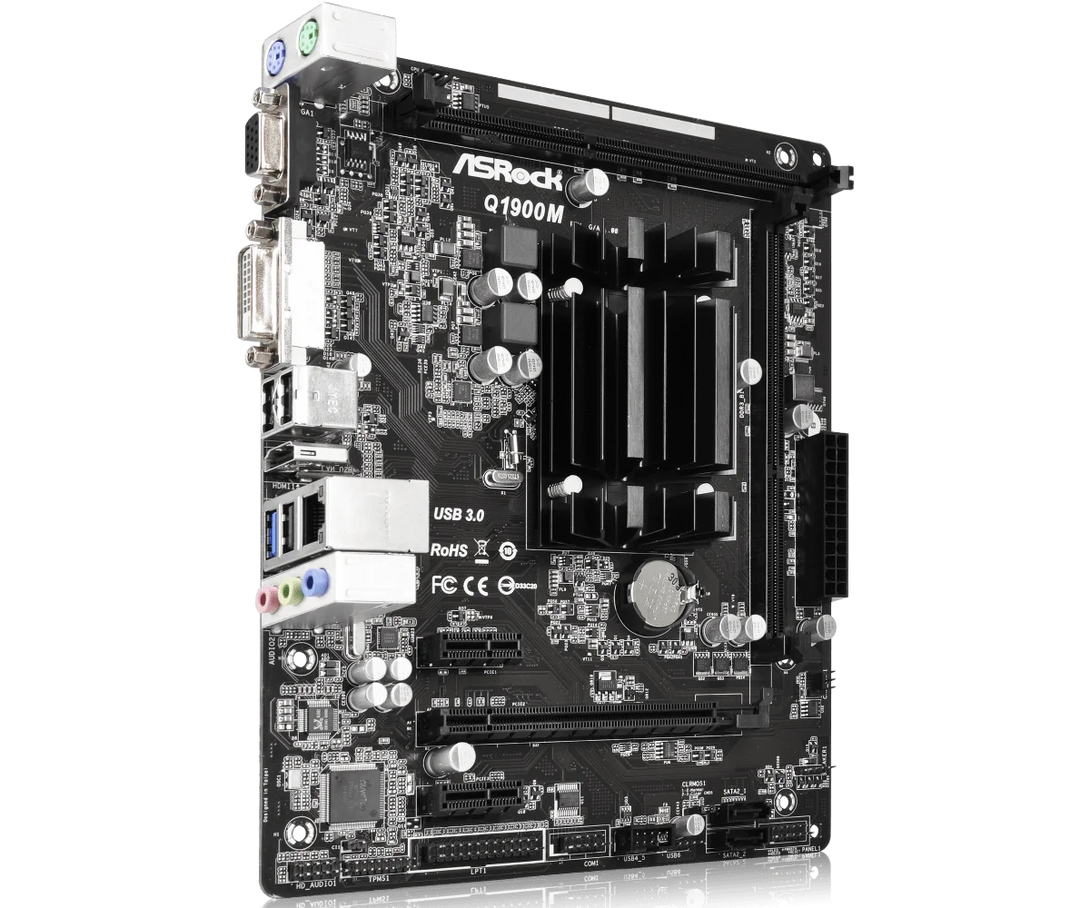

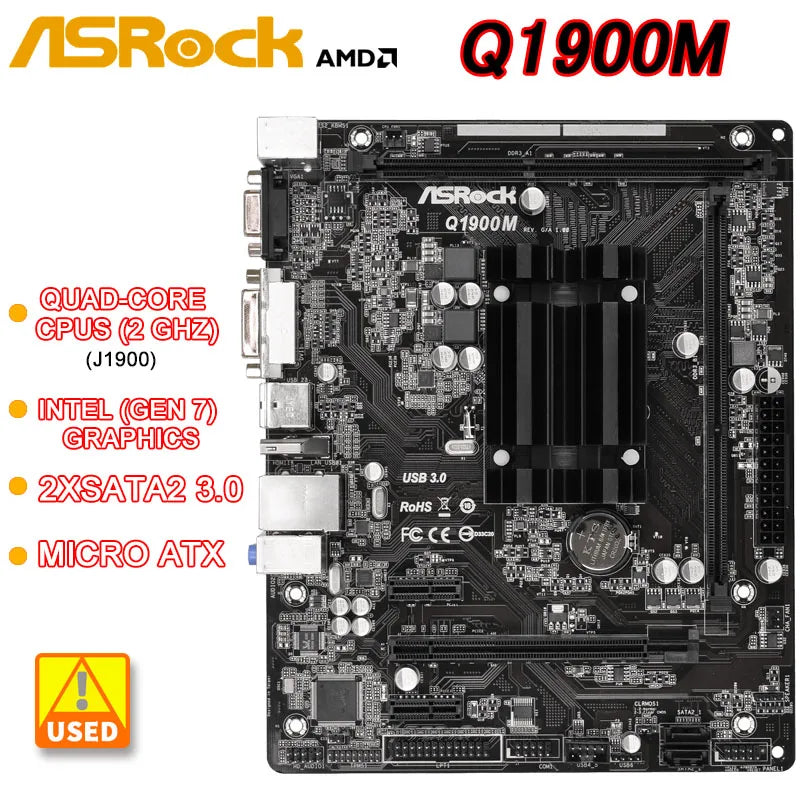

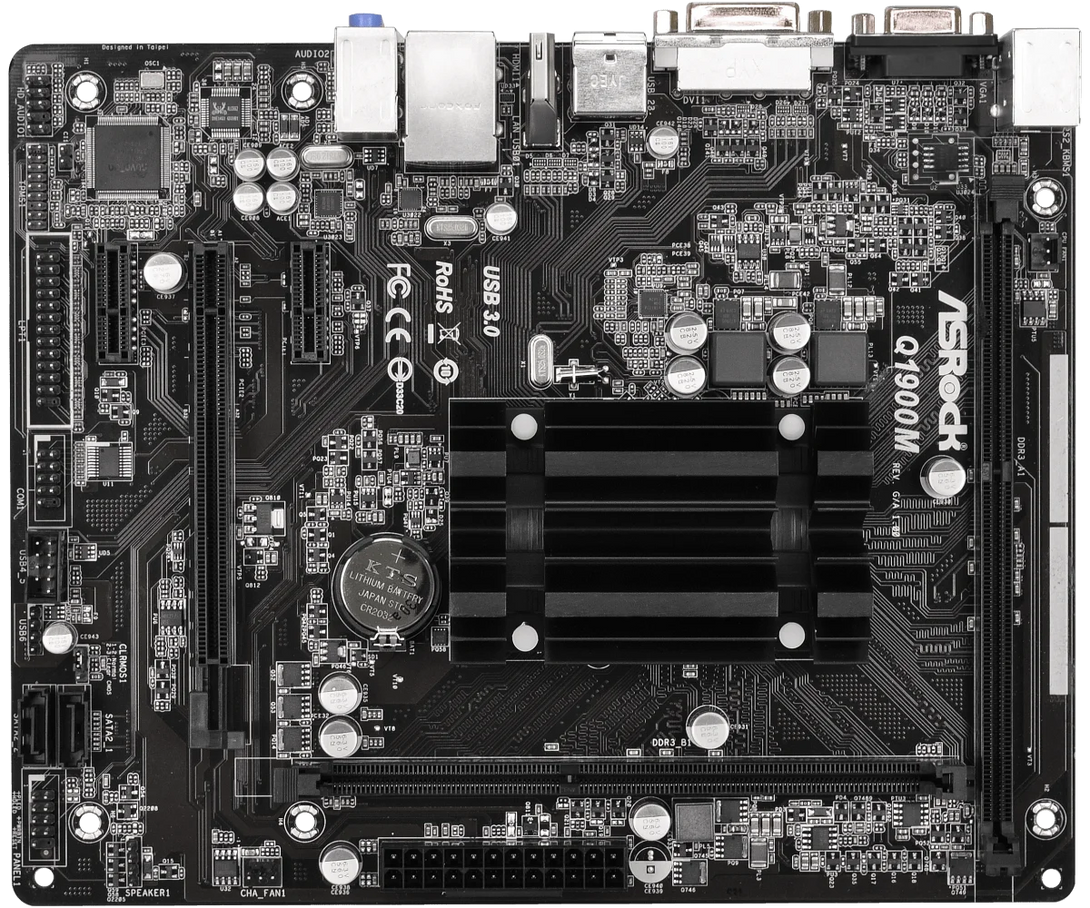

motherboard chip
Integrated Chip Graphics Card/Sound Card/Network Card
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC662 6-channel audio chip
Network card chip Onboard Realtek RTL8111GR Gigabit network card
Processor Specifications
CPU type Quad-core Celeron processor J1900 (2GHz)
CPU socket Onboard CPU
CPU description Onboard Intel Bay Trail-D Celeron J1900 quad-core processor
memory specification
Memory type 2×DDR3 DIMM
Maximum memory capacity 16GB
Memory description Support dual-channel DDR3 1333/1066MHz memory
storage expansion
PCI-E standard PCI-E 2.0
PCI-E slot 1×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 2×SATA II interface

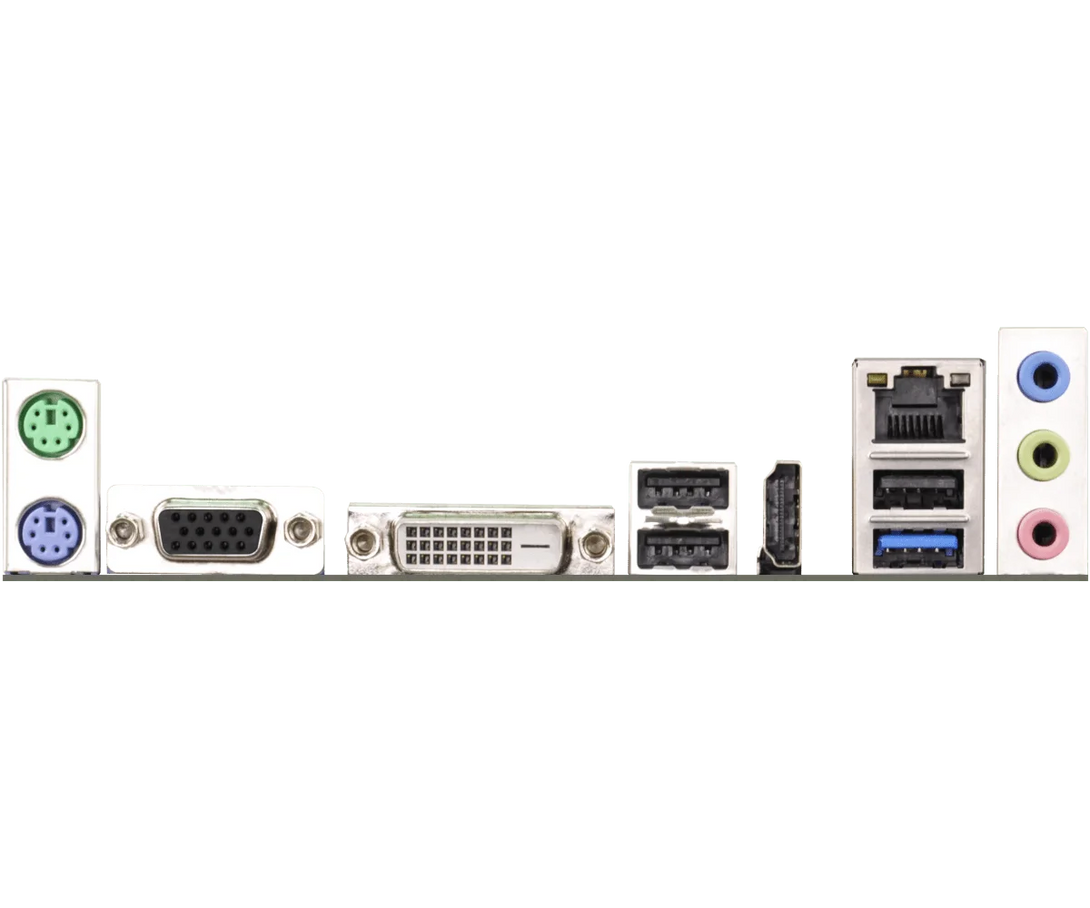

I/O interface
USB interface 1×USB3.0 interface, 3×USB2.0 interface
Video interface 1×VGA interface, 1×DVI interface, 1×HDMI interface
Power interface One 24-pin power interface
Other interfaces 1×RJ45 network interface, audio interface, PS/2 mouse, PS/2 keyboard interface
plate type
Motherboard form factor Micro ATX form factor
