Motherboard chip
Integrated chip sound card/network card
Main chipset Intel Z170
Chipset description Using Intel Z170 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated SupremeFX 8-channel audio chip
Network card chip onboard Intel I219V Gigabit network card
Processor specifications
CPU type Sixth generation Core i7/i5/i3/Pentium/Celeron

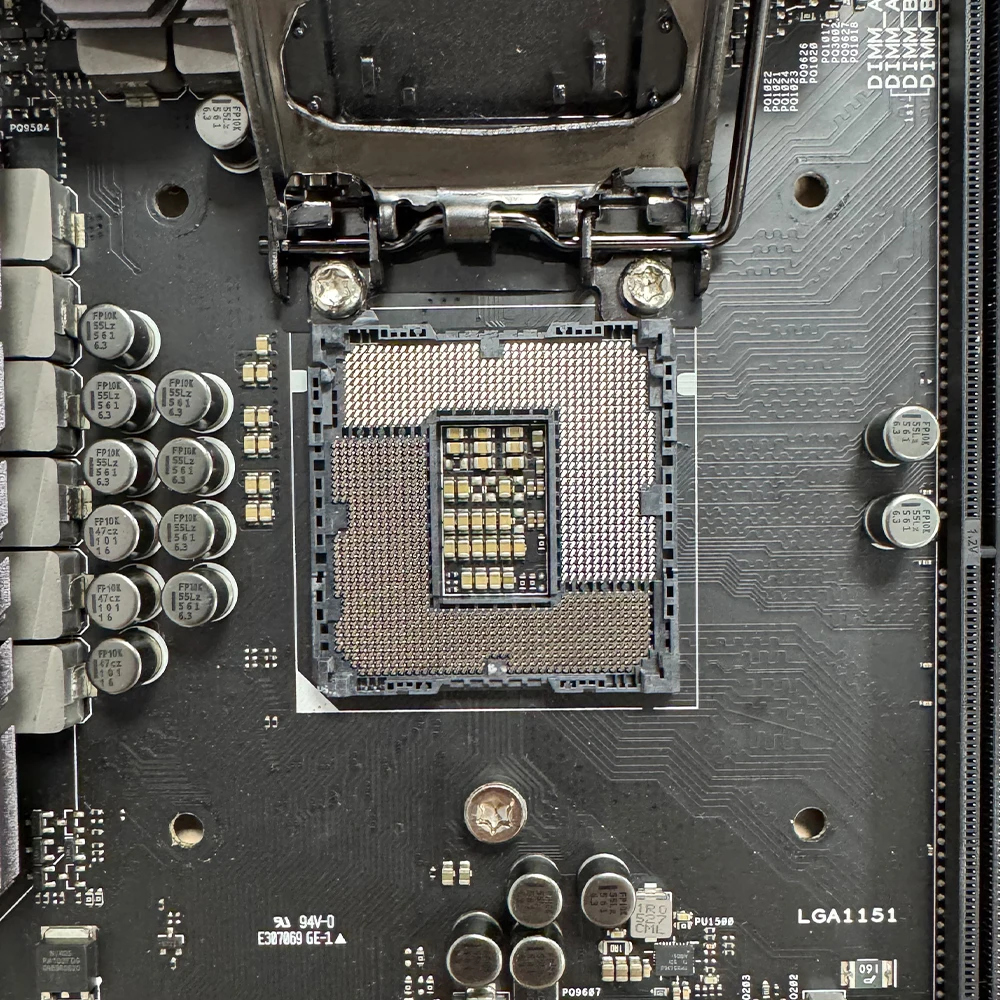

CPU socket LGA 1151
CPU description Support Intel 14nm processor
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 64GB
Memory description Support dual-channel DDR4 3600(OC)/3466(OC)/3400(OC)/3300(OC)/3200(OC)/3000(OC)/2800(OC)/2666(OC)/2400(OC) /2133MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 3×PCI-E X16 graphics card slot, 3×PCI-E X1 slot
Storage interface 1×M.2 interface, 2×SATA Express interface, 6×SATA III interface
I/O interface

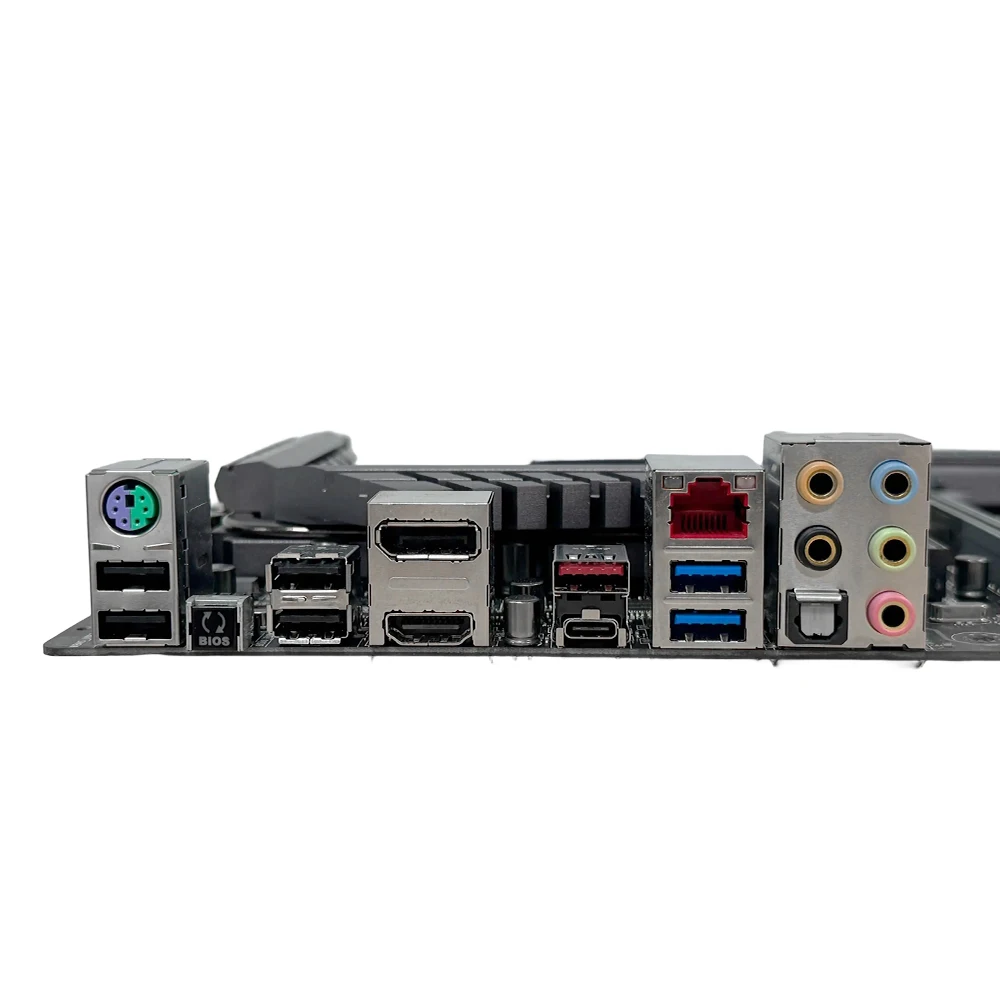

USB interface 1 × USB3.1 Type-A interface, 1 × USB3.1 Type-C interface, 6 × USB3.0 interface (4 built-in + 2 backplane), 8 × USB2.0 interface (4 built-in + 4 backplane )
Video interface 1×Display Port interface, 1×HDMI interface

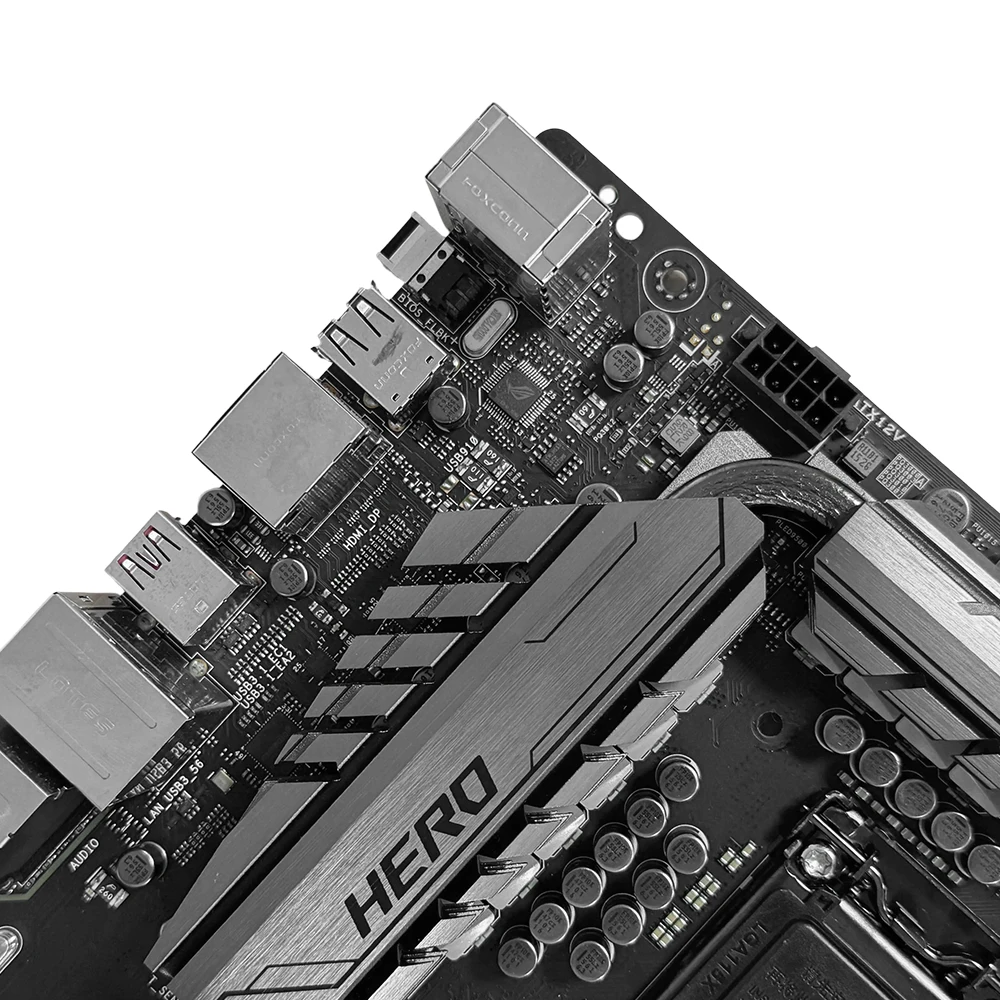

Power connector One 8-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, 1×optical interface, audio interface, 1×PS/2 keyboard and mouse universal interface
Board type
Motherboard board type ATX board type
Dimensions 30.5×24.4cm
Software management
BIOS performance 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 setting wizard, F6 Qfan control, F3 Favorites, quick notes, history, F12 screenshots, F3 shortcut keys, and ASUS DRAM SPD (Serial Presence Detect) memory information
Other parameters
Multi-graphics technology supports AMD Quad-GPU CrossFireX dual-card four-core crossfire technology
Support NVIDIA Quad-GPU SLI dual card four core crossfire technology
Support NVIDIA SLI two-way crossfire technology
Support AMD 3-Way CrossFireX technology
Power supply mode 10 phases
Overclocking function support
RAID function Support RAID 0, 1, 5, 10
Other features support HIFI
Other parameters Belief light, ROG belief sound effect,
Listing date December 2015
