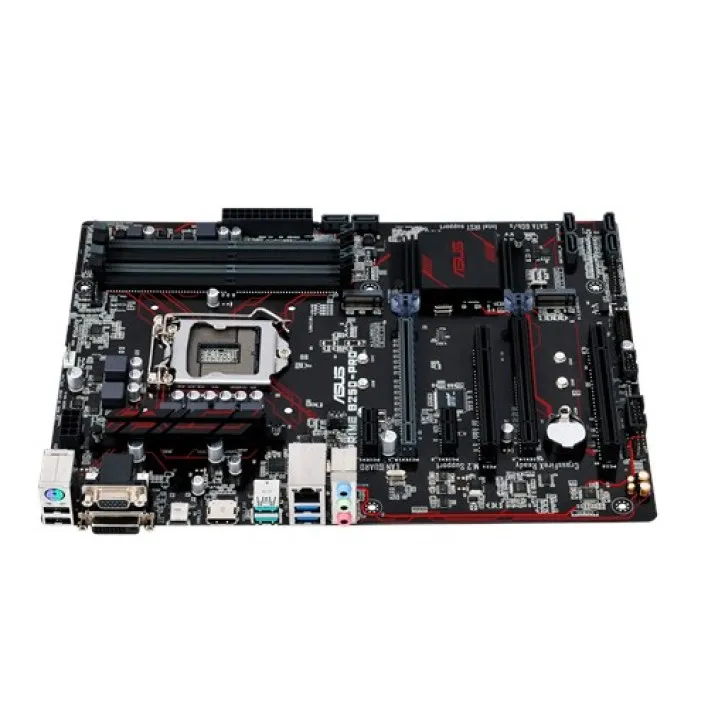

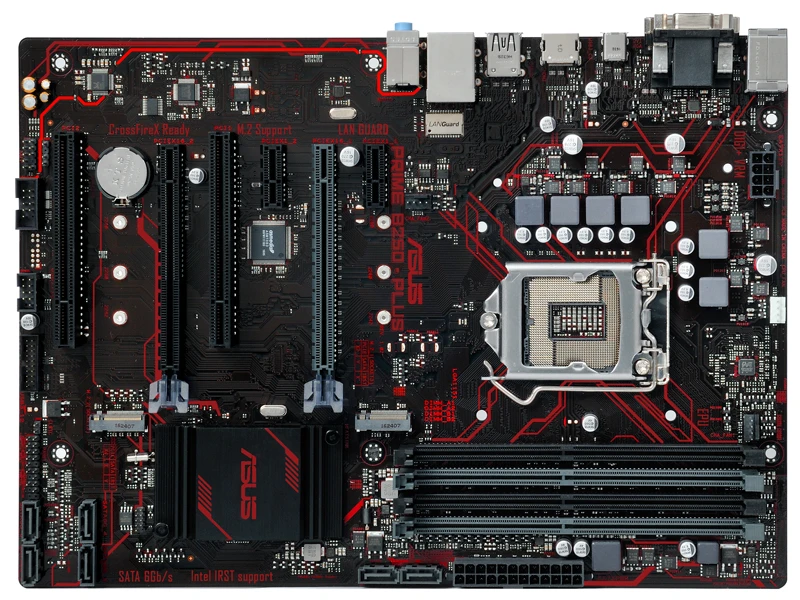

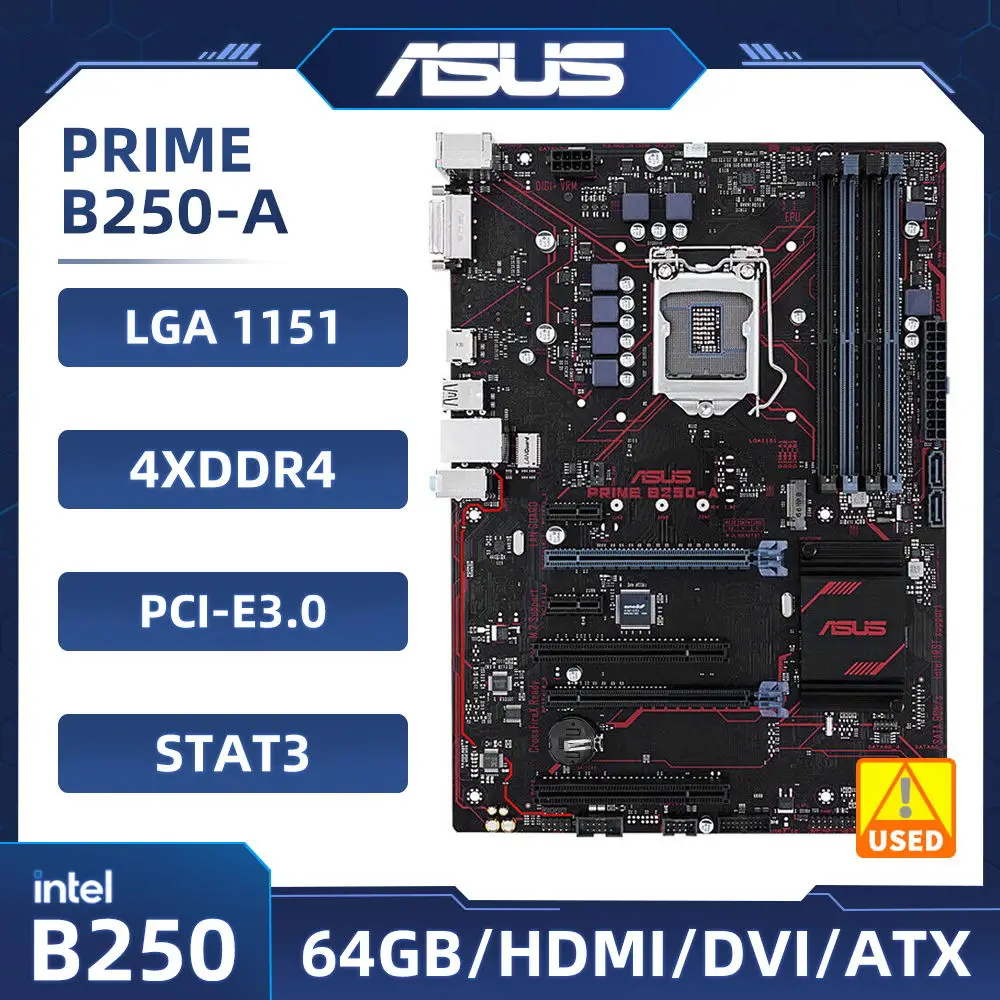

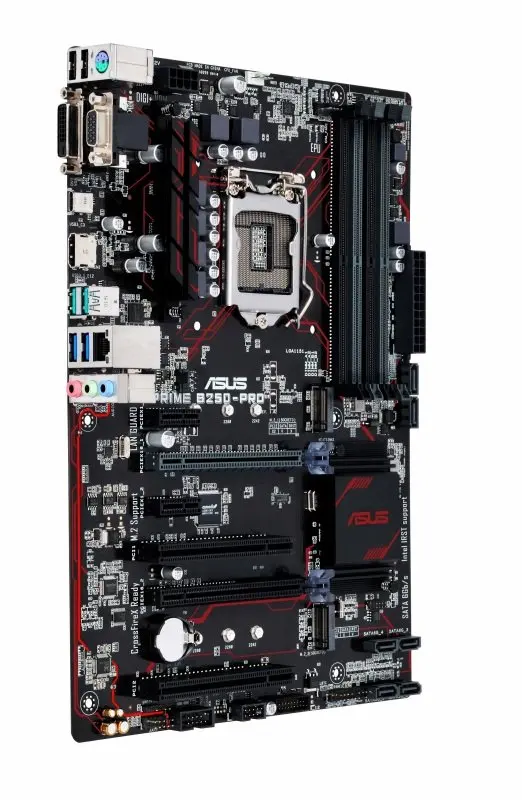

ASUS PRIME B250-A
Intel B250 Chipset LGA 1151 Socket
B250 Motherboard ASUS PRIME B250-A for i3 6300 7350K LGA 1151 Motherboard for i7 6700 7700 i5 6500 6600 7500 7600 i3 6100 7100
Motherboard chip
Integrated chip sound card/network card
Main chipset Intel B250
Chipset description using Intel B250 chipset
Display chip CPU built-in display chip (requires CPU support)
Integrated audio chip with Realtek ALC887 8-channel sound effect chip
Network card chip onboard Realtek RTL8111H Gigabit network card
Processor specifications
CPU type 7th/6th generation Core i7/i5/i3/Pentium/Celeron
CPU slot LGA 1151
CPU description supports Intel 14nm processors
Memory specifications
Memory type 4xDDR4 DIMM
Maximum memory capacity 64GB
Memory description supports dual channel DDR4 2400/2133MHz memory
Storage Expansion
PCI-E standard PCI-E 3.0
PCI-E slot 2xPCI-E X16 graphics card slot, 2xPCI-E X1 slot
PCI slot 2 x PCI slot
1 x M.2 storage interface, 6 x SATA III interface
I/O interface
USB interface 4 x USB 3.0 interface (2 built-in+2 backplane), 6 x USB 2.0 interface (2 built-in+4 backplane)
Video interface 1 x DVI interface, 1 x HDMI interface
One 8-pin power interface and one 24-pin power interface
Other interfaces: 1 x RJ45 network interface, 3 x audio interface, 1 x chassis fan interface, 1 x front panel audio interface (AAFP), 1 x system panel interface, 1 x PS/2 keyboard and mouse universal interface
Plate type
Main board type ATX board type
External dimensions 30.5 x 21.8cm
