Motherboard chip
Integrated chip sound card/network card
Main chipset Intel Z270
Chipset description Using Intel Z270 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated SupremeFX S1220 8-channel audio chip
Network card chip onboard Intel I219V Gigabit network card
Processor specifications
CPU type 7th/sixth generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description Support Intel 14nm processor
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 64GB
Memory description Support dual-channel DDR4 3733(overclock)/3600(overclock)/4133(OC)/3466(overclock)/4000(OC)/3400(overclock)/3866(OC)/3333(overclock)/3300(overclock) /3200(overclock)/3000(overclock)/2800(overclock)/2666(overclock)/2400(overclock)/2133MHz memory
Storage expansion
PCI-E standard PCI-E 3.0

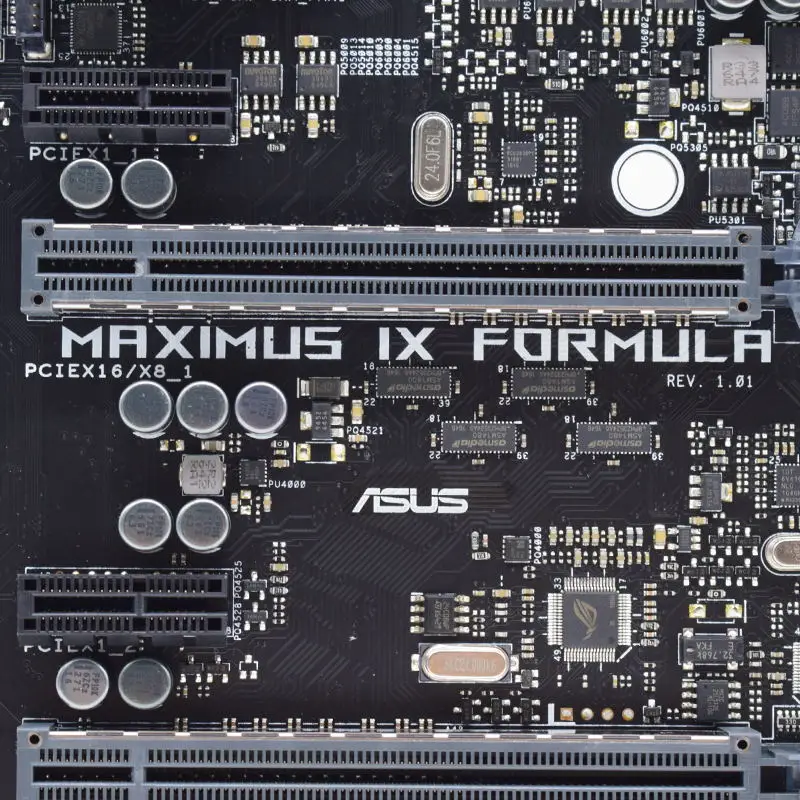

PCI-E slot 3×PCI-E X16 graphics card slot, 3×PCI-E X1 slot
Storage interface 2×M.2 interface, 6×SATA III interface
I/O interface

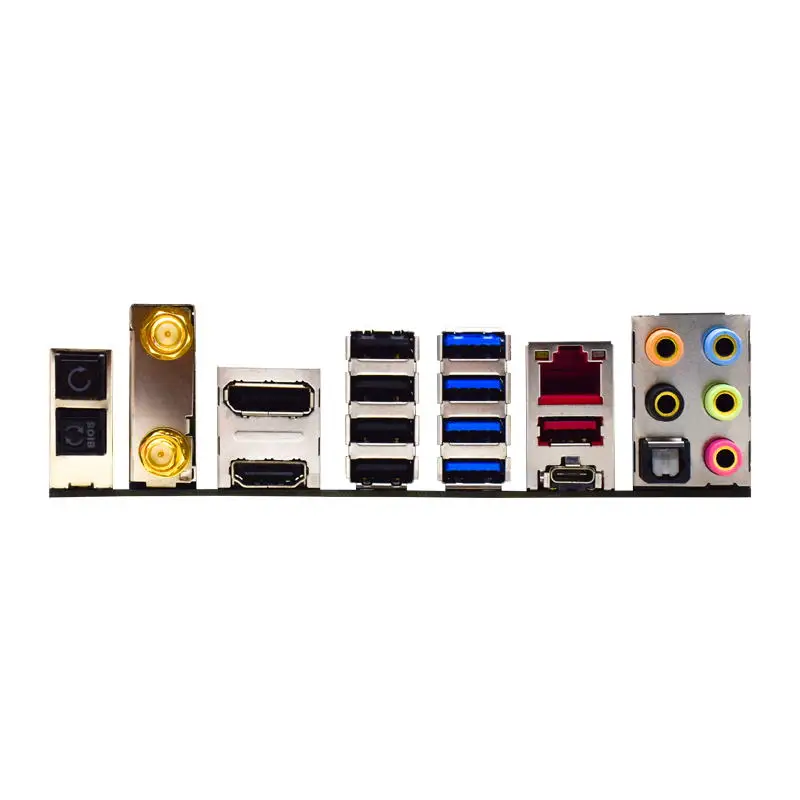

USB interface 1×USB3.1 port, 1×USB3.1 Type-A port, 1×USB3.1 Type-C port, 6×USB3.0 port (2 built-in +4 backplane), 6×USB2.0 port (2 built-in +4 backplane)
Video interface 1×Display Port interface, 1×HDMI interface
Power connector One 8-pin, one 24-pin power connector
Other interfaces
1×RJ45 network interface, 1×optical interface, 5×audio interface, 1×TPM interface, 3×chassis fan interface, 1×CPU optional fan interface, 1×front panel audio interface (AAFP), 1×system panel interface , 1×W_PUMP+ interface, 1×AIO_ water pump interface, 1×PS/2 keyboard and mouse universal interface
Plate type
Motherboard board type ATX board type
Dimensions 30.5×24.4cm
