Chipset
Integrated chip sound card/network card
Main chipset Intel H270
Chipset description uses Intel H270 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated with Realtek ALC887 8-channel sound effect chip
Network card chip onboard Intel I219V gigabit network card
Processor specifications
CPU type 7th/6th generation Core i7/i5/i3/Pentium/Celebron
CPU slot LGA 1151
CPU description supports Intel 14nm processors
Memory specifications
Memory type 4xDDR4 DIMM
Maximum memory capacity 64GB
Memory Description: Supports dual channel DDR4 2400/2133 MHz memory
Storage Expansion
PCI-E Standard PCI-E 3.0
PCI-E slot 2 x PCI-E X16 graphics card slot, 2 x PCI-E X1 slot
2 PCI slots
Storage interface 2 x M.2 interface, 6 x SATA III interface

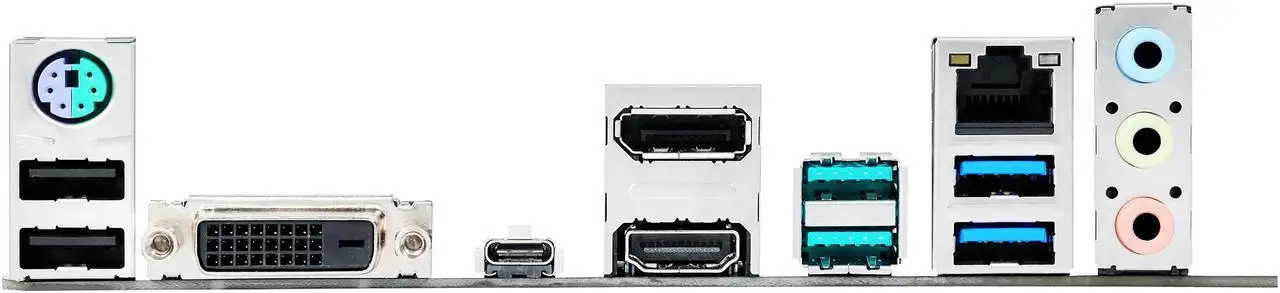

I/O interface
USB interface 2 x USB 3.0 Type-A interface, 6 x USB 3.0, 6 x USB 2.0 interface
Video interface 1 x DVI interface, 1 x Display Port interface, 1 x HDMI interface
One 8-pin power interface and one 24 pin power interface
Other interfaces: 1 x RJ45 network interface, 1 x fiber optic interface, audio interface, 1 x PS/2 keyboard and mouse universal interface
Plate type
Motherboard type ATX board type
Dimensions 30.5 × 22.6cm
