Description
Chipset
Integrated chip sound card/network card
Main chipset Intel H570
Chipset description uses Intel H570 chipset
Audio chip integrated with Realtek ALC897 7.1 channel sound effect chip
Network card chip onboard Intel I219V 1Gb network card
Processor specifications
CPU type 11th/10th generation Core/Pentium/Celeron
CPU slot LGA 1200
CPU Description Turbo Boost Max 3.0 Technology
Memory specifications
Memory type 2 × DDR4 DIMM
Memory Description: Supports dual channel DDR4 4600 (overclocking)/4400 (overclocking)/4266 (overclocking)/4000 (overclocking)/3733 (overclocking)/3600 (overclocking)/3466 (overclocking)/333 (overclocking)/3200 (overclocking)/2933/2800/2666/2400/2133 MHz
Support ECC Un buffered memory modules
Supports Intel Extreme Memory Profile (XMP)
Storage Expansion
PCI-E Standard PCI-E 4.0
PCI-E X16 slot 1
1 PCI-E X4 slot
3 PCI-E X1 slots
Storage interface 2 x M.2 interface, 6 x SATA III interface

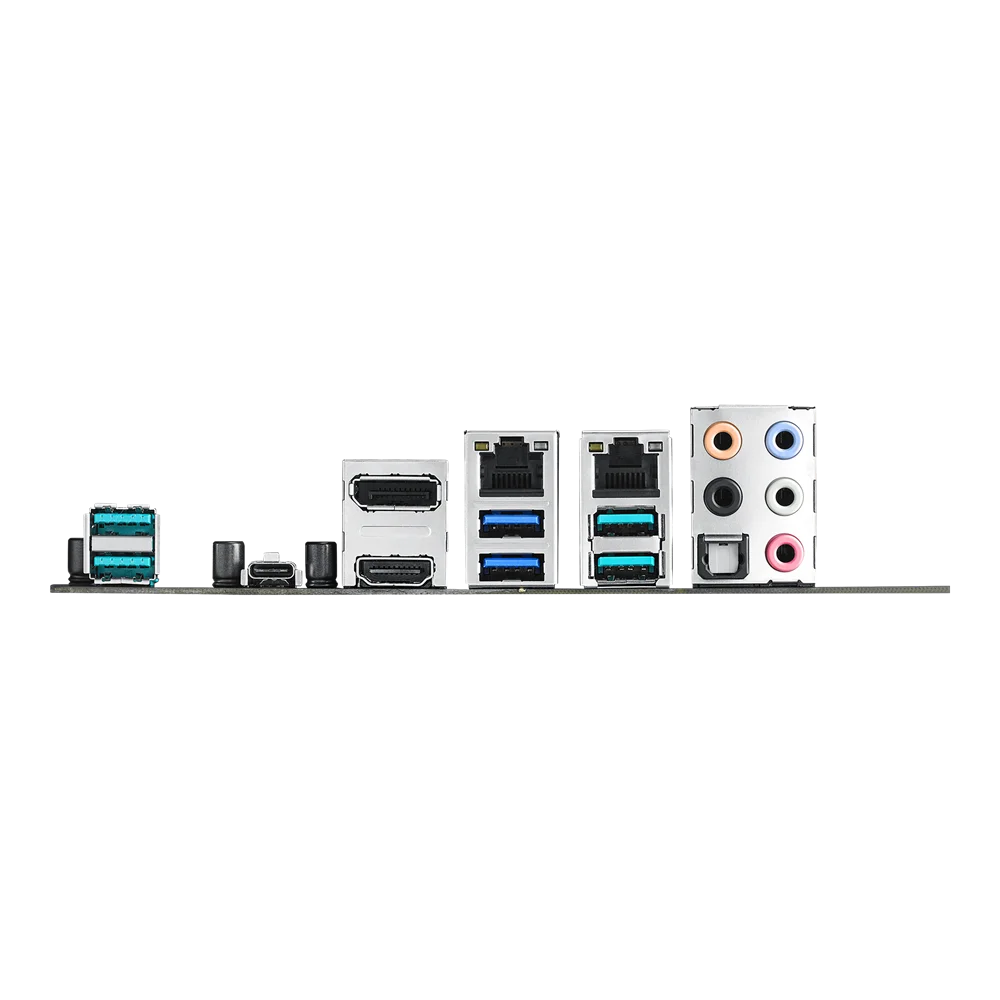

I/O interface
USB interface 2 x USB 3.2 Gen 2 interface
1 x USB 3.2 Gen 2 interface
4 x USB 2.0 interface
2 x USB 3.2 Gen 1 ports expandable 4 USB 3.2 Gen 1 interfaces
2 x USB 2.0 ports expandable with 4 USB 2.0 interfaces
Video interface 1 x HDMI interface, 1 x DisplayPort 1.4 interface
One 8-pin power interface and one 24 pin power interface
Other interfaces: 1 x PS/2 keyboard/mouse dual-use interface, 1 x Intel I219-V network port, 3 x audio interface
Software management
BIOS Performance 194Mb Flash ROM, UEFI AMI BIOS
OTHERS
Overfrequency function support
