motherboard chip
Integrated Chip Sound Card/Network Card
Main Chipset Intel Z170
Chipset Description Intel Z170 Chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC1150 8-channel audio chip
Network card chip Onboard Intel I219V Gigabit network card, Intel I211-AT Gigabit network
Processor Specifications
CPU type Sixth generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description Support Intel 14nm processor
memory specification
Memory type 4×DDR4 DIMM
Maximum memory capacity 64GB
Memory description Support dual-channel DDR4 4000 (overclocking) / 3866 (overclocking) / 3800 (overclocking) / 3733 (overclocking) / 3600 (overclocking) / 3466 (overclocking) / 3400 (overclocking) / 3333 (overclocking) / 3300 (overclocking) /3200(OC)/3000(OC)/2800(OC)/2666(OC)/2400(OC)/2133(OC)MHz memory
storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 3×PCI-E X16 graphics card slot, 4×PCI-E X1 slot
Storage interface 1×M.2 interface, 2×SATA Express interface, 8×SATA III interface

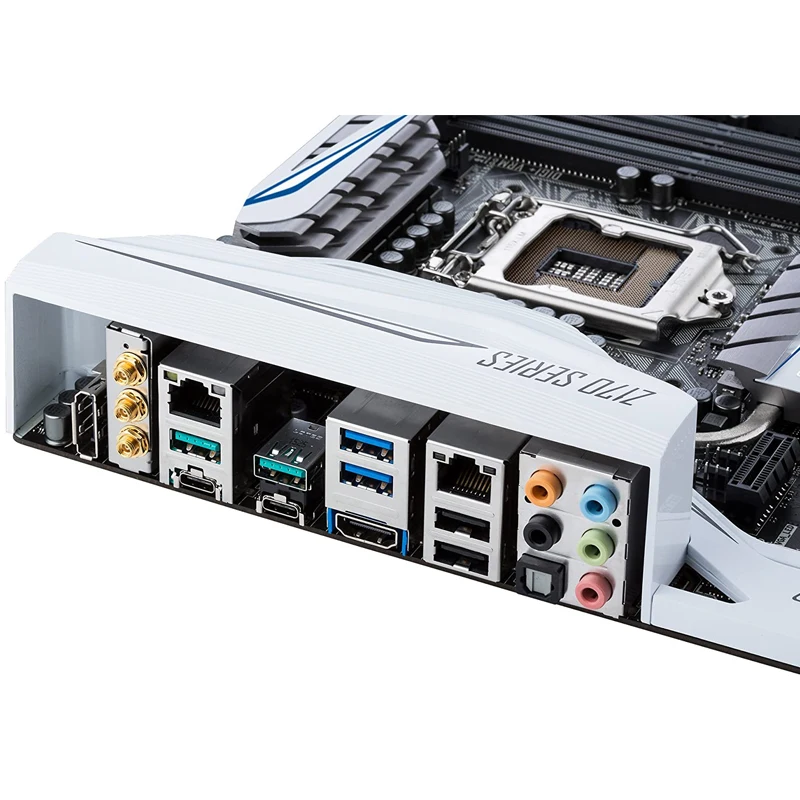

I/O interface
USB interface 2×USB3.1 Type-A interface (back panel), 2×USB3.1 Type-C interface (back panel), 6×USB3.0 interface (4 built-in + 2 back panel), 6×USB2.0 Interface (4 built-in + 2 backplane)
Video interface 1×Display Port interface, 1×HDMI interface
Power interface One 8-pin, one 24-pin power interface
Other interfaces 2×RJ45 network interface, 1×optical fiber interface, audio interface, 1×PS/2 keyboard and mouse universal interface
plate type
Motherboard form factor ATX form factor
Dimensions 30.5×24.4cm
