Novastar MSD600-1 LED Screen Sending Card Full Color Type-B USB Port 1920×1200@60Hz Four Ethernet Outputs MSD600 MSD300 High Quality Free Shipping Fully Tested

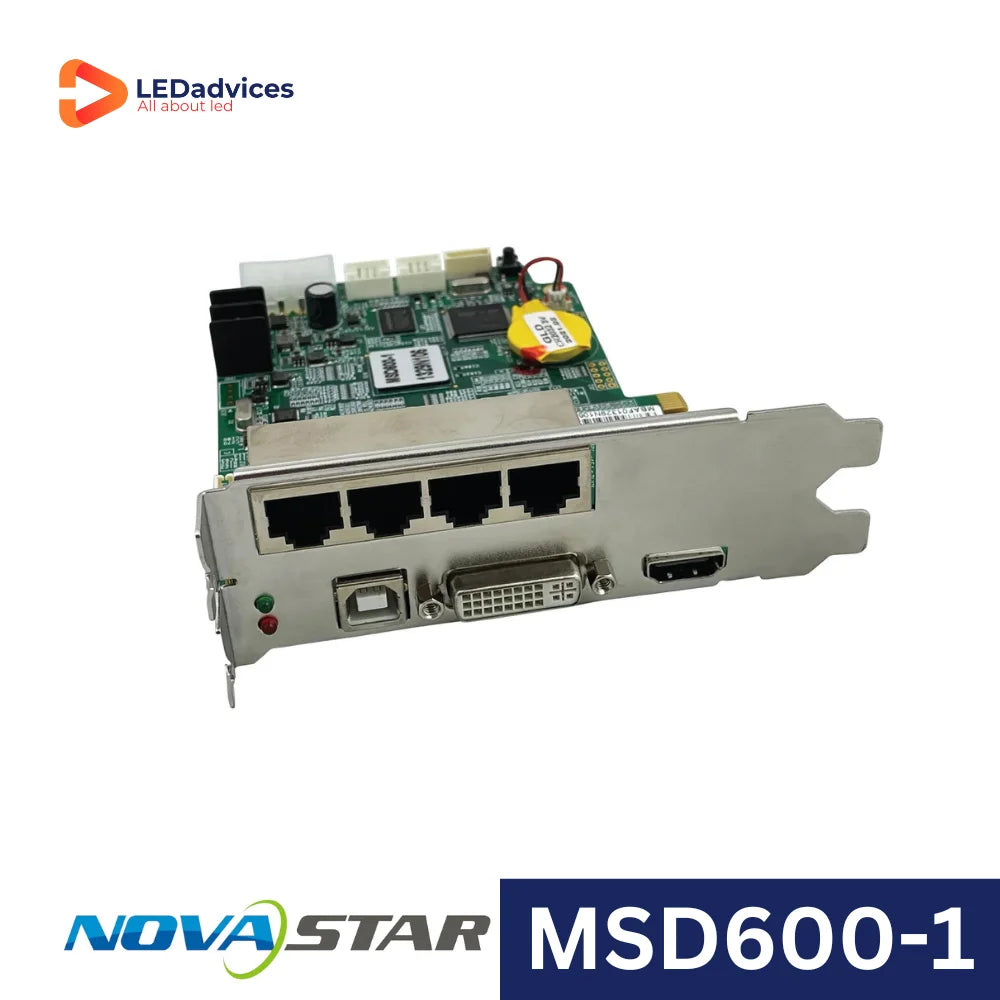

Novastar MSD600-1 LED Screen Sending Card

MSD600 has discontinued, remove the audio port.

The MSD600-1 is a sending card developed by NovaStar. It supports 1x DVI input, 1x HDMI input, and 4x Ethernet outputs. A single MSD600-1 supports input resolutions up to 1920×1200@60Hz. The MSD600-1 communicates with PC via type-B USB port. Multiple MSD600-1 units can be cascaded via UART port. As a highly cost-effective sending card, the MSD600 can be mainly used in rental and fixed installation applications, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.

Features:

• 2 types of input connectors
  − 1x SL-DVI
  − 1x HDMI 1.3

• 4x Gigabit Ethernet outputs

• 1x light sensor connector

• 1x type-B USB control port

• 2x UART control ports
  They are used for device cascading. Up to 20 devices can be cascaded.

• Pixel level brightness and chroma calibration
  Work with NovaStar’s high-precision calibration system to calibrate the brightness and chroma of each pixel, effectively removing brightness differences and chroma differences, and enabling high brightness consistency and chroma consistency.

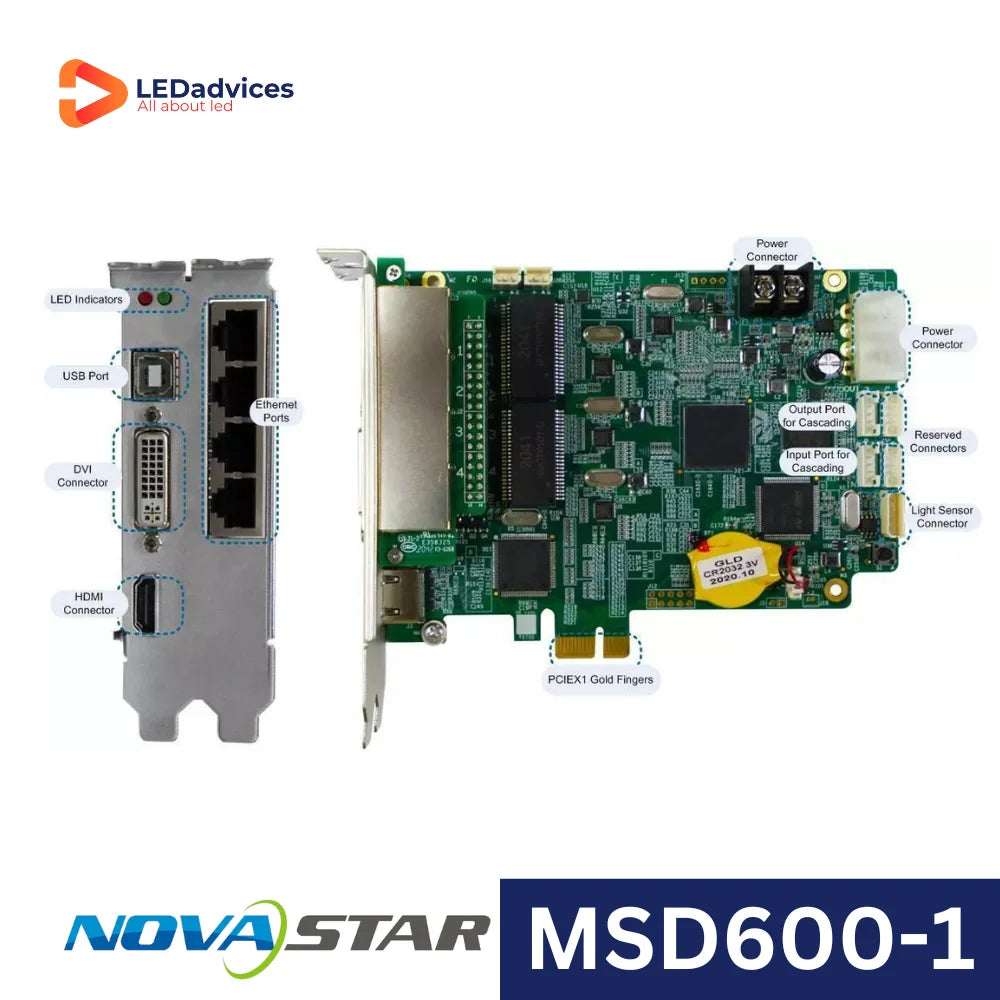

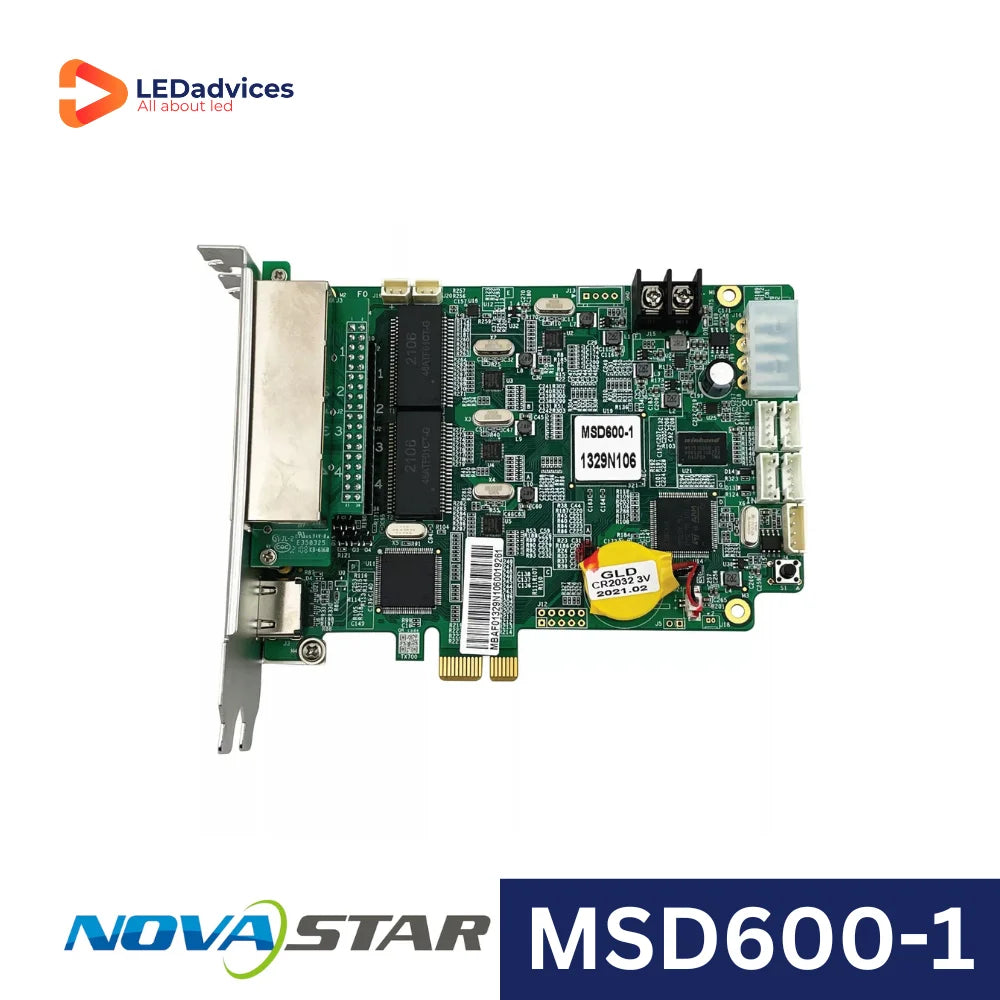

Appearance
