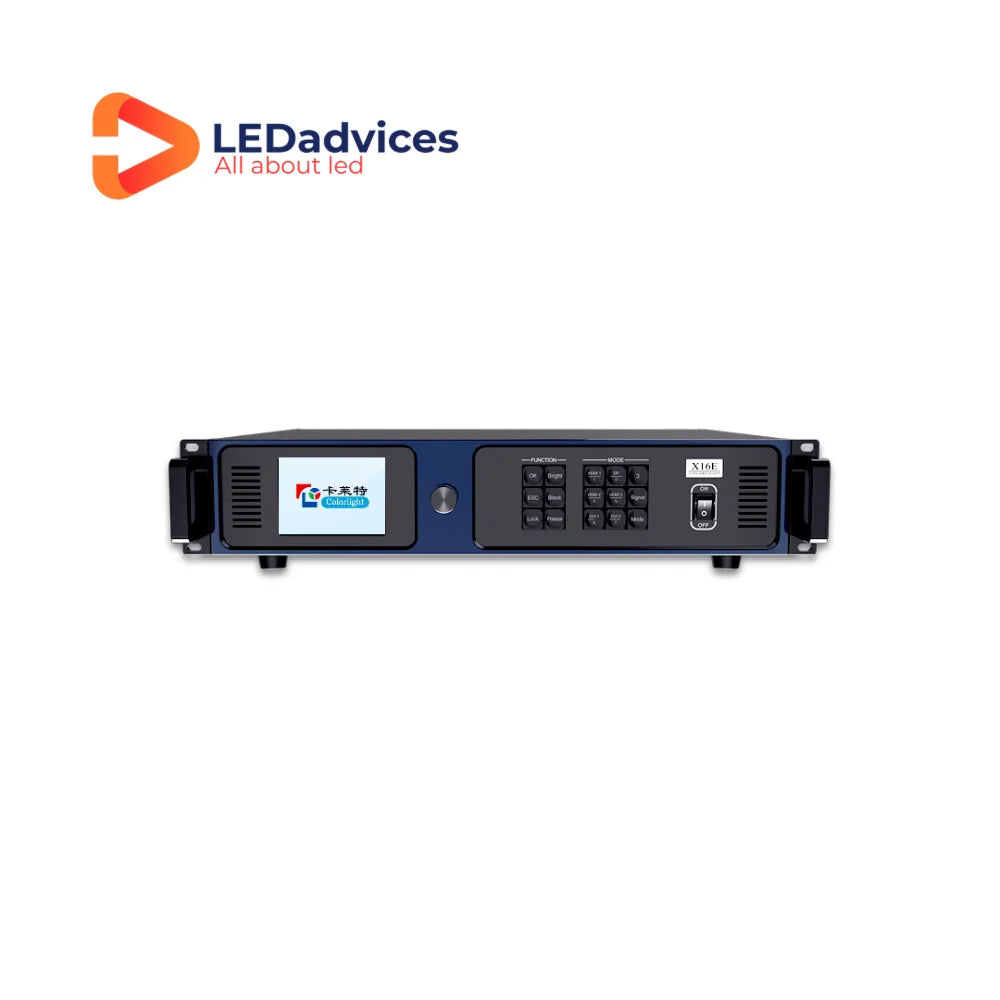

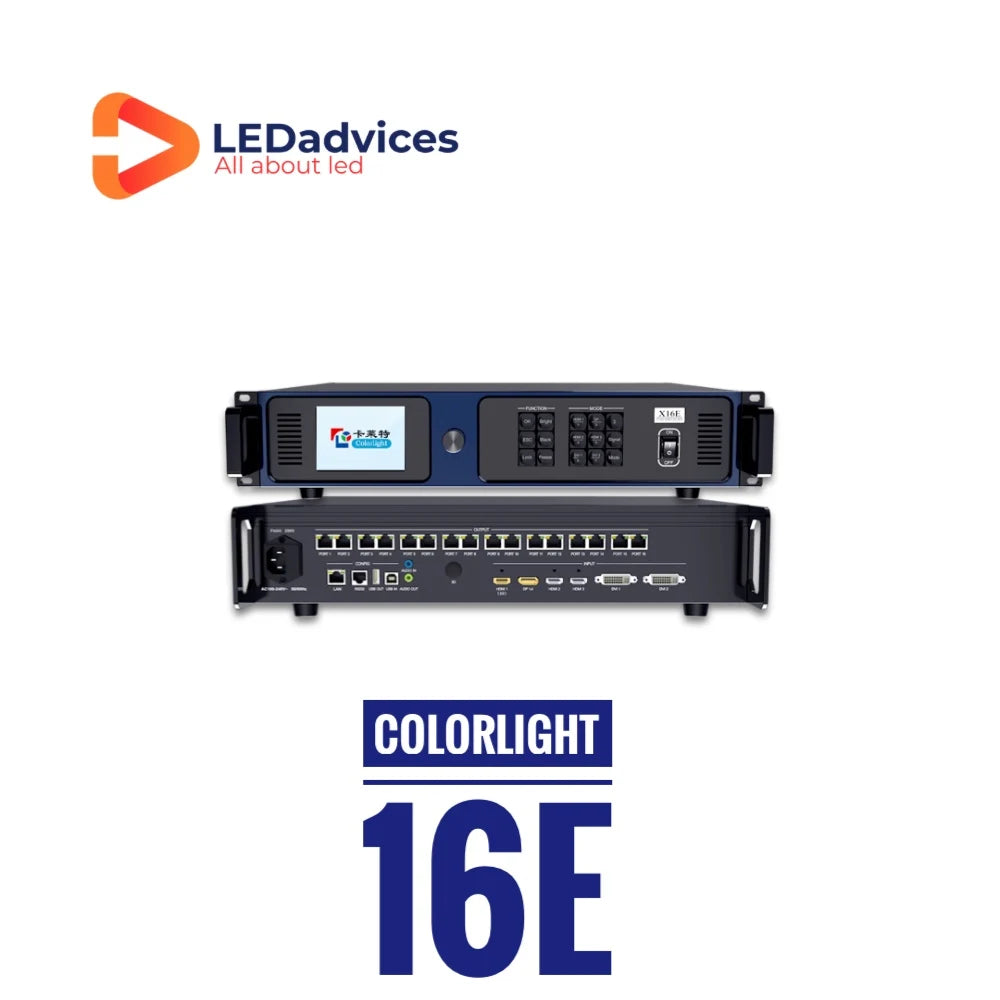

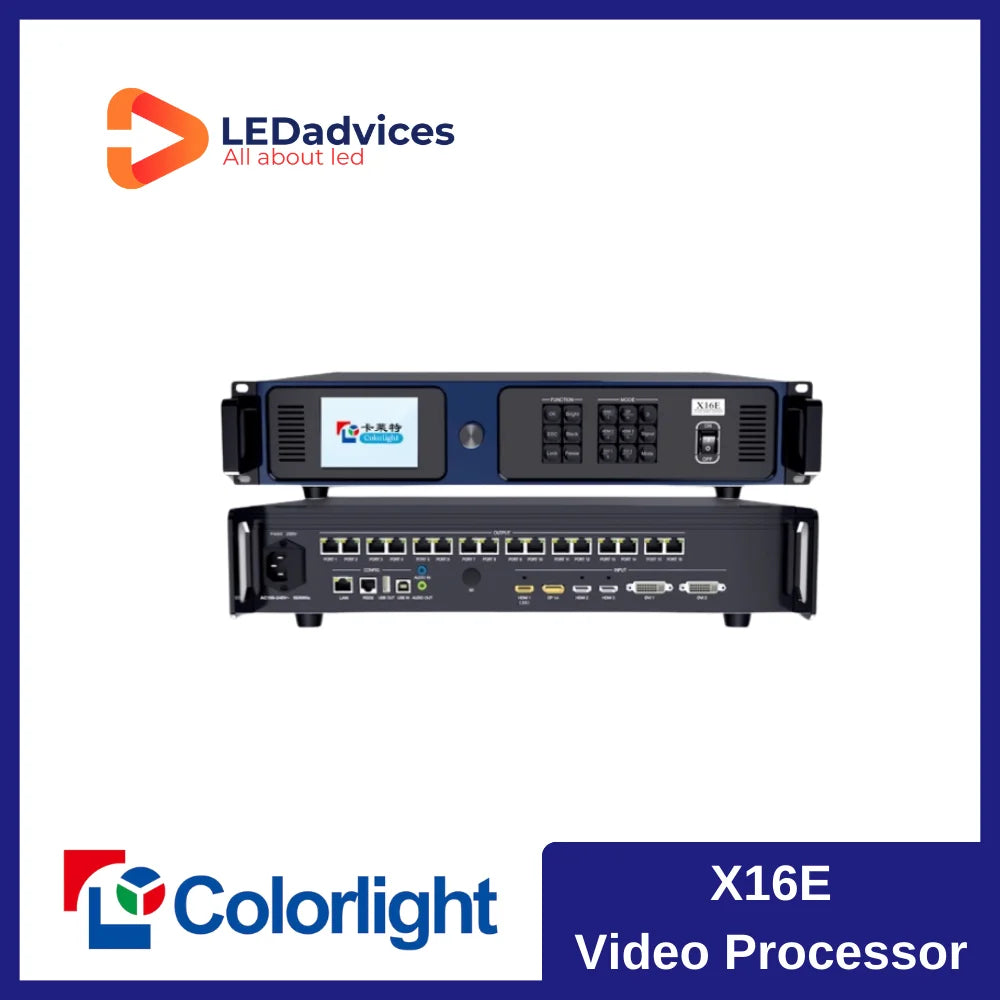

Colorlight X16E Professional LED Display Controller
X16E is a controller possessing powerful video signal input and processing capacity. It supports 4K inputs with DP 1.4 and HDMI 2.0 ports, and 2K inputs with HDMI 1.4 and DVI ports and the multiple signals can be seamlessly switched. Equipped with 16 Gigabit Ethernet ports, X16E can greatly meet your different demands. Additionally, X16E boasts abundant practical functions that enable flexible screen control and high-quality image display.
Features:
-
-
Input connectors: 1×DP 1.4, 1×HDMI2.0, 2×HDMI1.4, 2×DVI
Loading capacity: 10.48 million pixels, maximum width: 16384 pixels, or maximum height: 8192 pixels
Input resolution: up to 4096×2160@60Hz, supporting customized setting

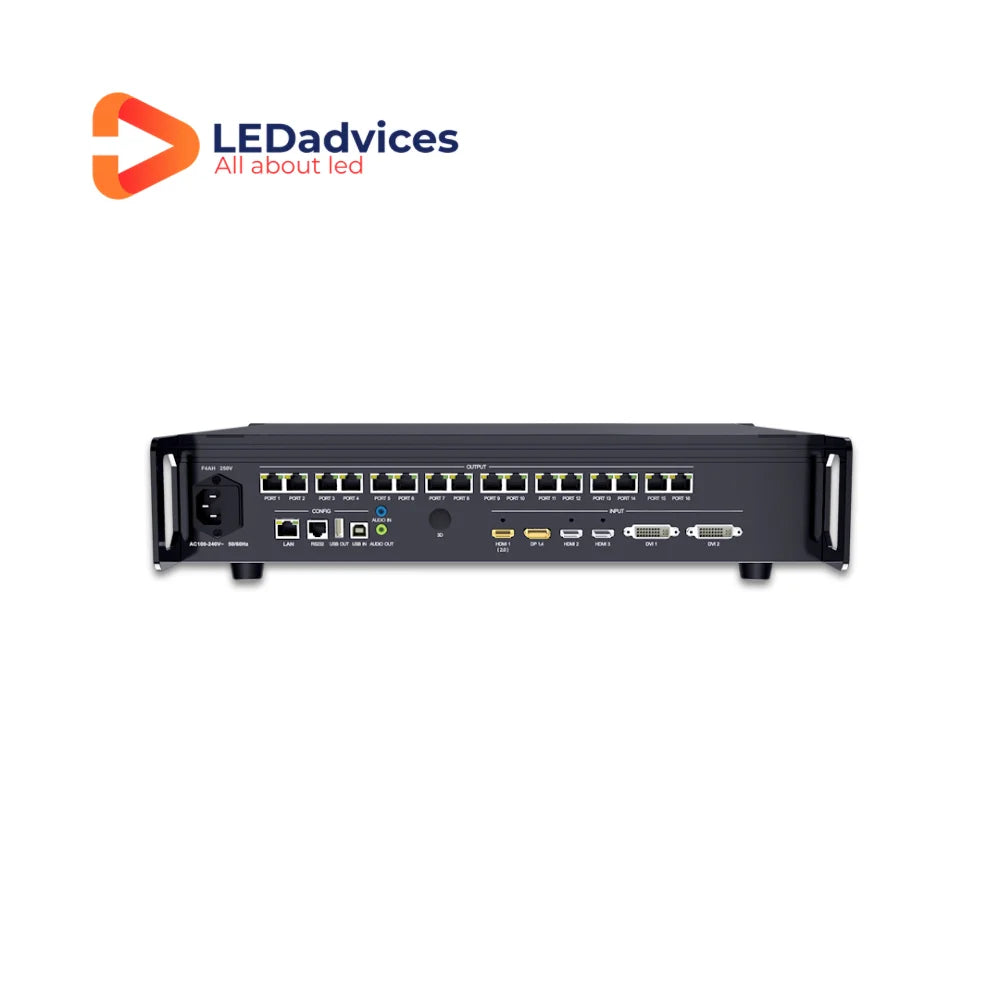

Output connectors: 16 × Gigabit Ethernet port
Support video source switching, cropping, splicing and scaling
Support up to 6 windows, of which the location and size can be freely adjusted
Support precise color management and display gamut adjustment
Support video sync
Separate audio input and output
Support analyzing and outputting the audio signals of HDMI and DP inputs
Support LAN control
Support control via hand-held terminal(app)
Support RS232 protocol control
Support 3D(optional)
HDCP compliant
Brightness and color temperature adjustment
Better gray at low brightness
-
-
