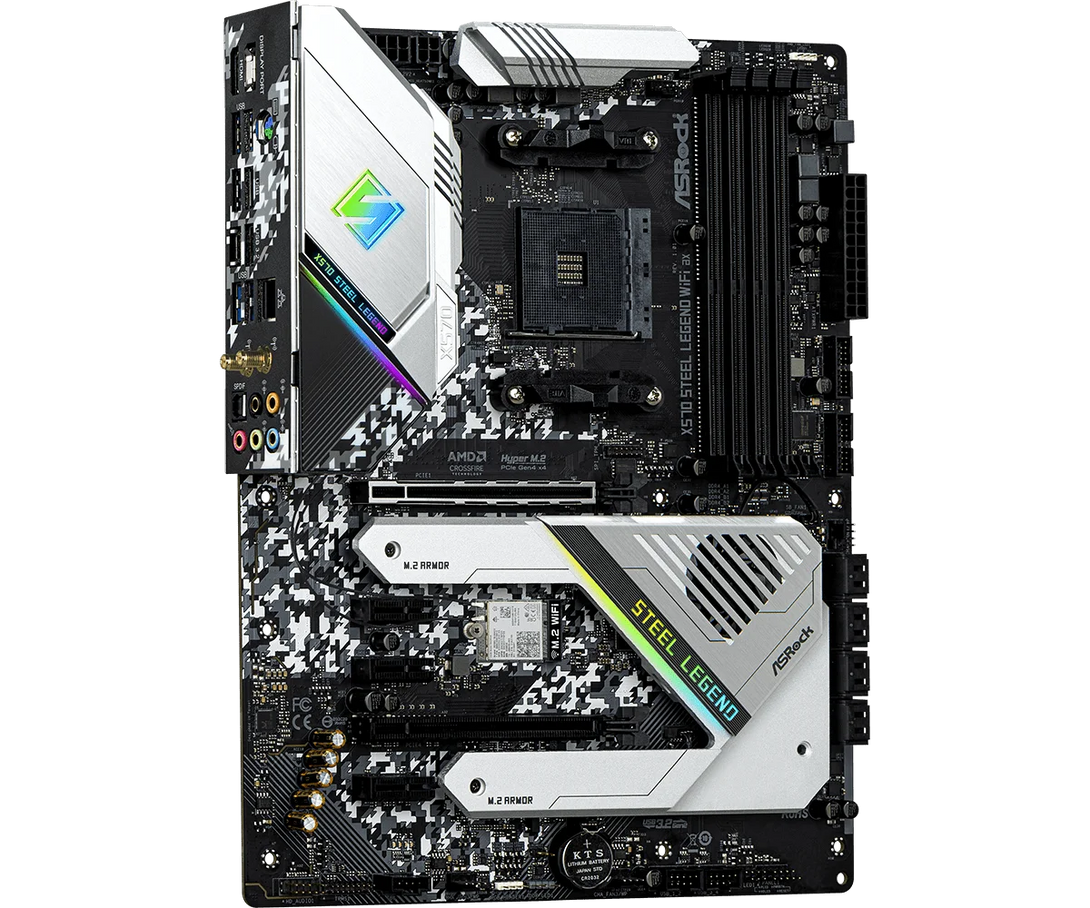

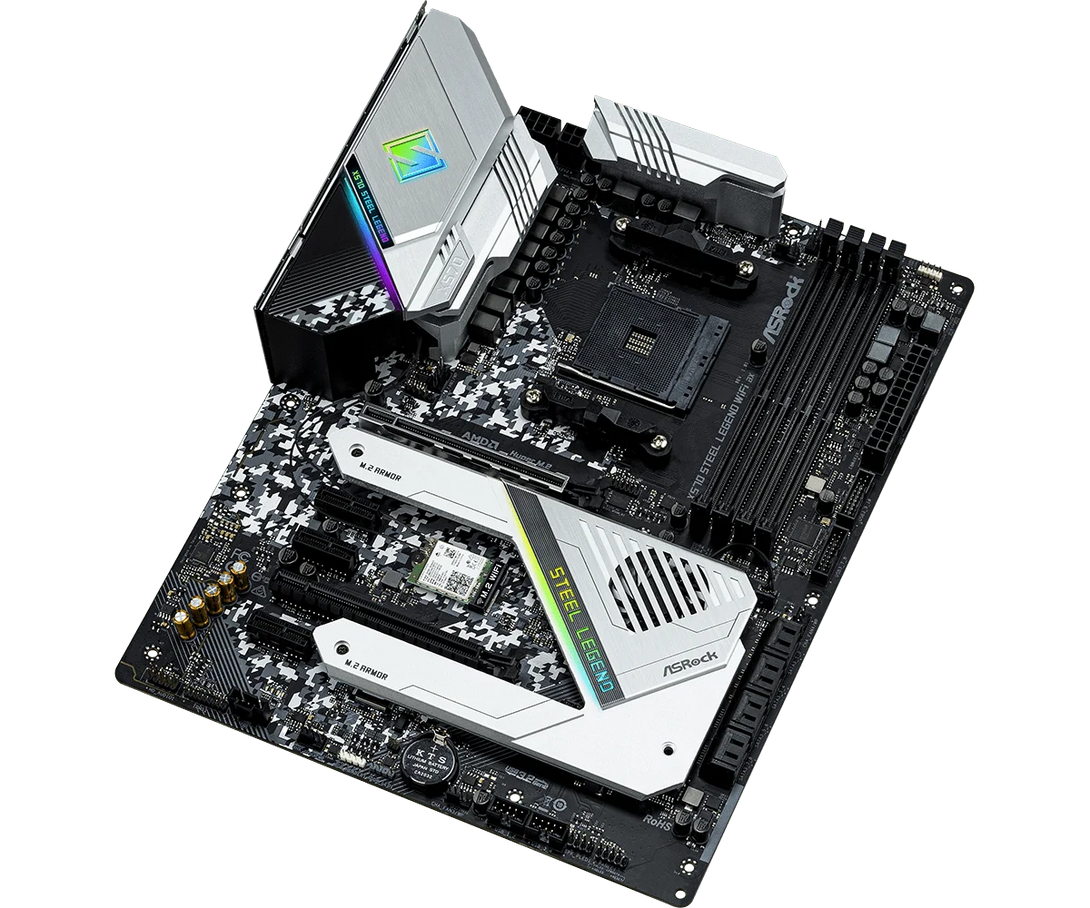

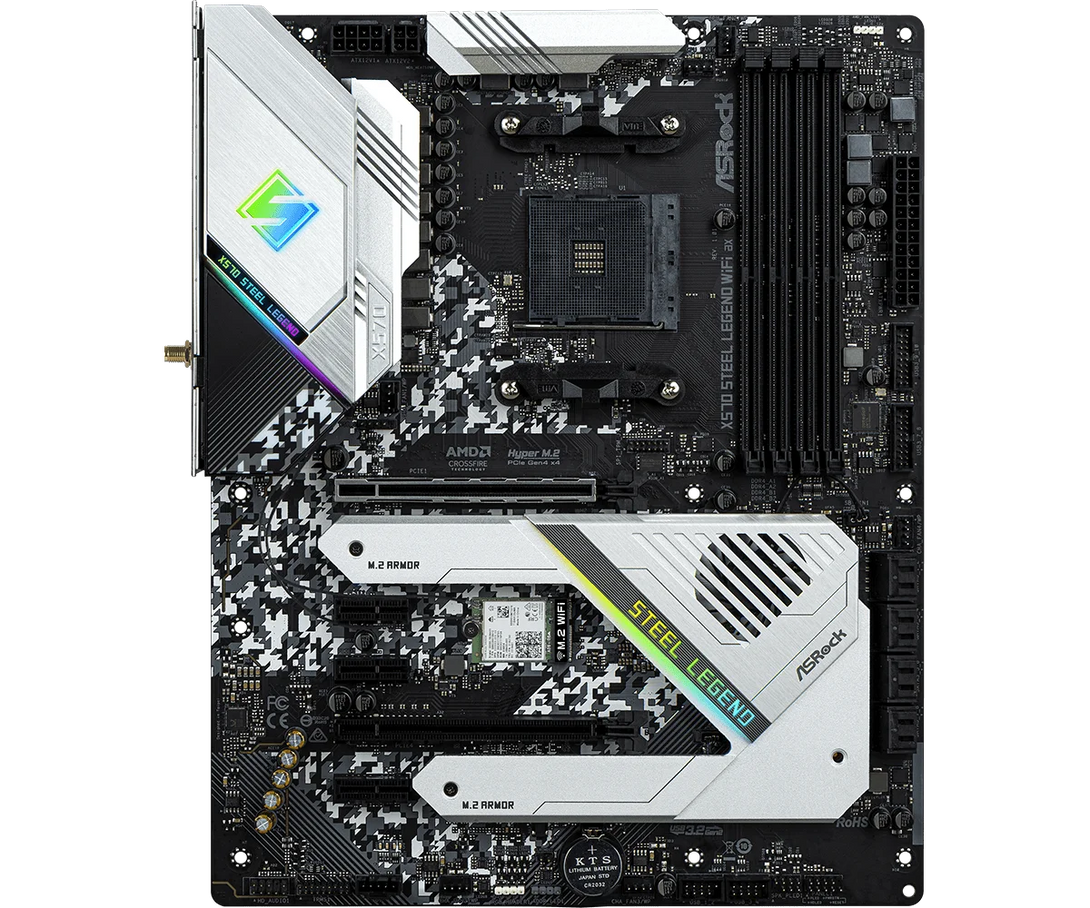

motherboard chip
Integrated chip sound card/network card
Main chipset AMD X570
Chipset description: Using AMD X570 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC1220 7.1-channel sound chip
Network card chip: Onboard Realtek I211AT Gigabit network card
Processor specifications
CPU type supports AMD AM4 socket Ryzen 2000 and 3000 series processors
CPU socket Socket AM4
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 128GB
Memory description AMD Ryzen series processor (Matisse) supports DDR4 4666+(OC)/4400(OC)/4300(OC)/4266(OC)/4200(OC)/4133(OC)/3466(OC)/3200/ 2933/2667/2400/2133MHz memory
AMD Ryzen series processors (Pinnacle Ridge) support DDR4 3600+(OC)/3466(OC)/3200(OC)/2933/2667/2400/2133MHz memory
AMD Ryzen series processor (Picasso) supports DDR4 3466+(OC)/3200(OC)/2933/2667/2400/2133MHz memory
storage expansion
PCI-E standard PCI-E 4.0
PCI-E slot 2×PCI-E X16 graphics card slot, 3×PCI-E X1 slot
Storage interface 8×SATA III interface, 2×Hyper M.2 PCIe (Gen4x4)

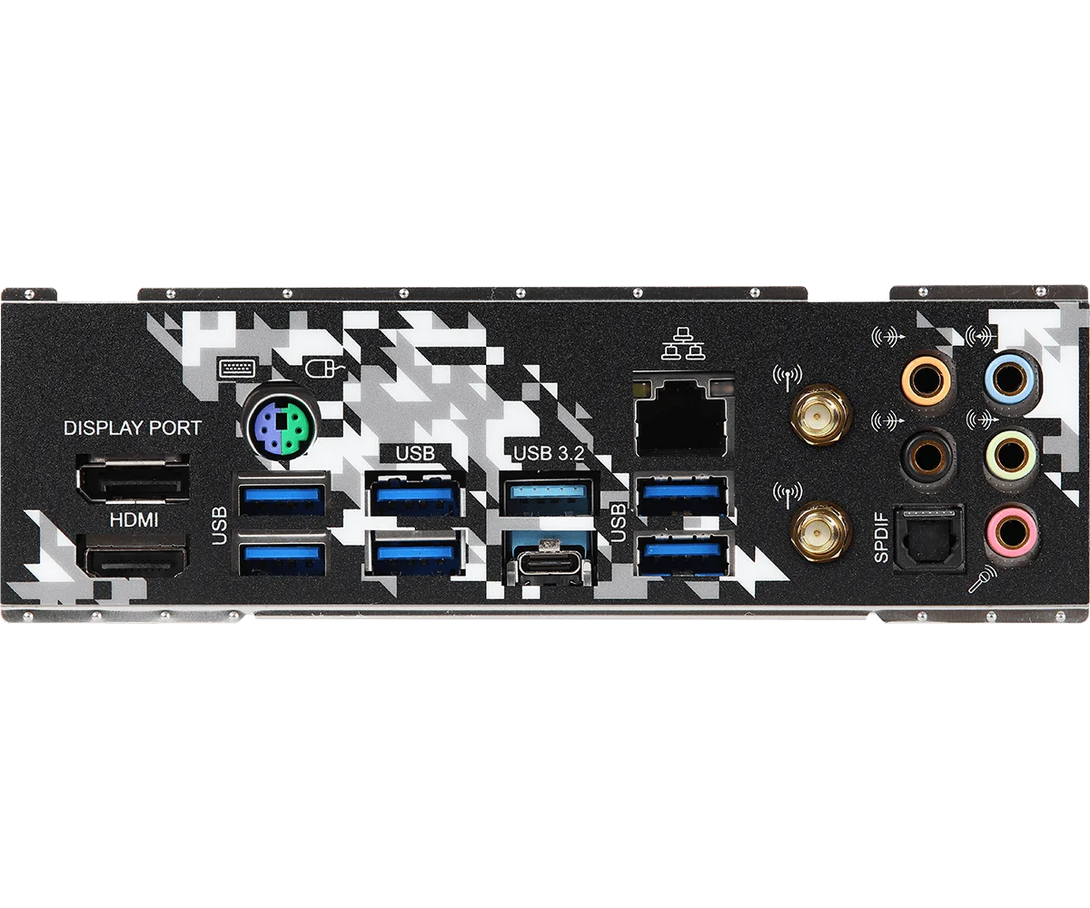

I/O interface
USB interface 2×USB2.0 pin connector (supports 4 USB2.0 interfaces) (supports ESD electrostatic protection)
2×USB3.2 Gen1 connectors (supports 4 USB3.2 Gen1 interfaces) (supports ESD electrostatic protection)
1×USB3.2 Gen2 Type-A interface (10 Gb/s) (supports ESD electrostatic protection)
1×USB3.2 Gen2 Type-C interface (10 Gb/s) (supports ESD electrostatic protection)
6×USB3.2 Gen1 interface (supports ESD electrostatic protection)
Video interface 1×HDMI interface, 1×Display Port interface
Power interface: one 4-pin, one 8-pin, and one 24-pin power interface
Other interfaces: 1×PS/2 keyboard and mouse universal interface, 1×RJ45 network interface, 5×audio interface, 2×antenna port, 1×optical SPDIF digital audio output port, 1×Thunderbolt connector
Plate type
Motherboard form factor ATX form factor
Overall dimensions: 30.5×24.4cm
