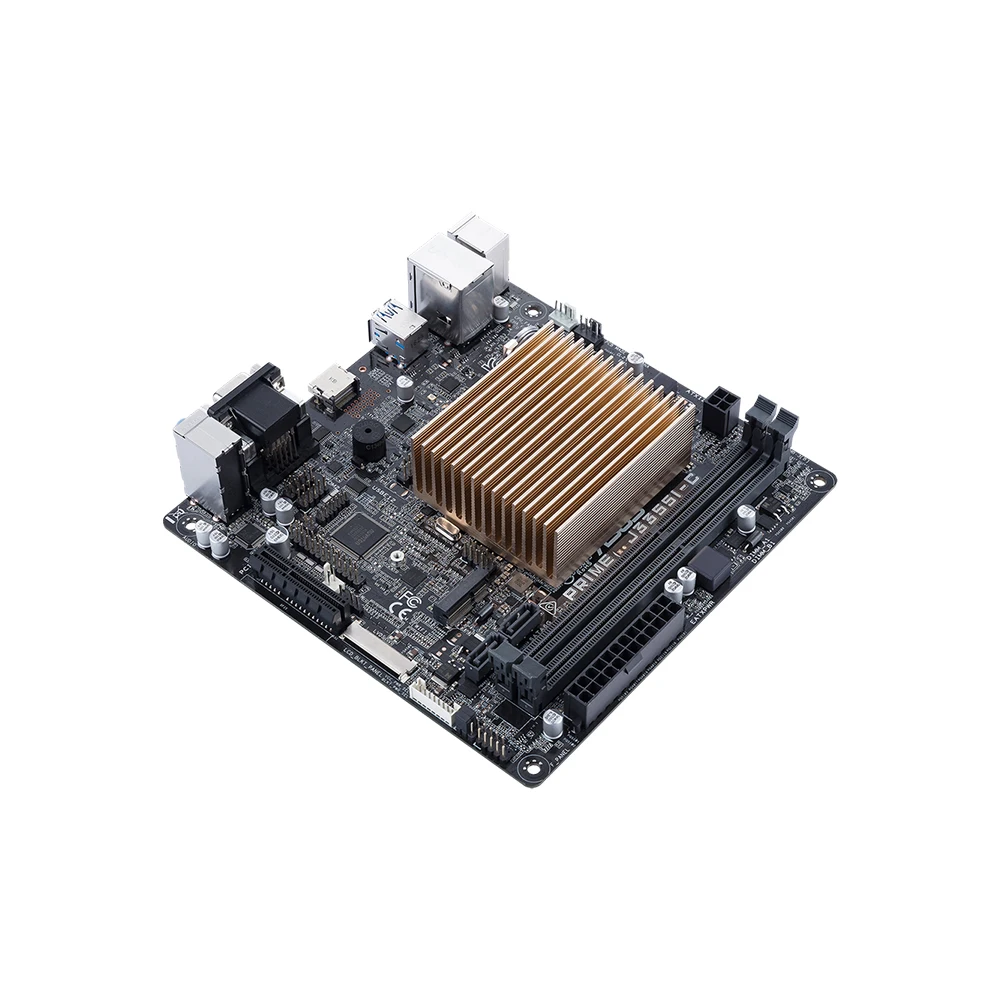

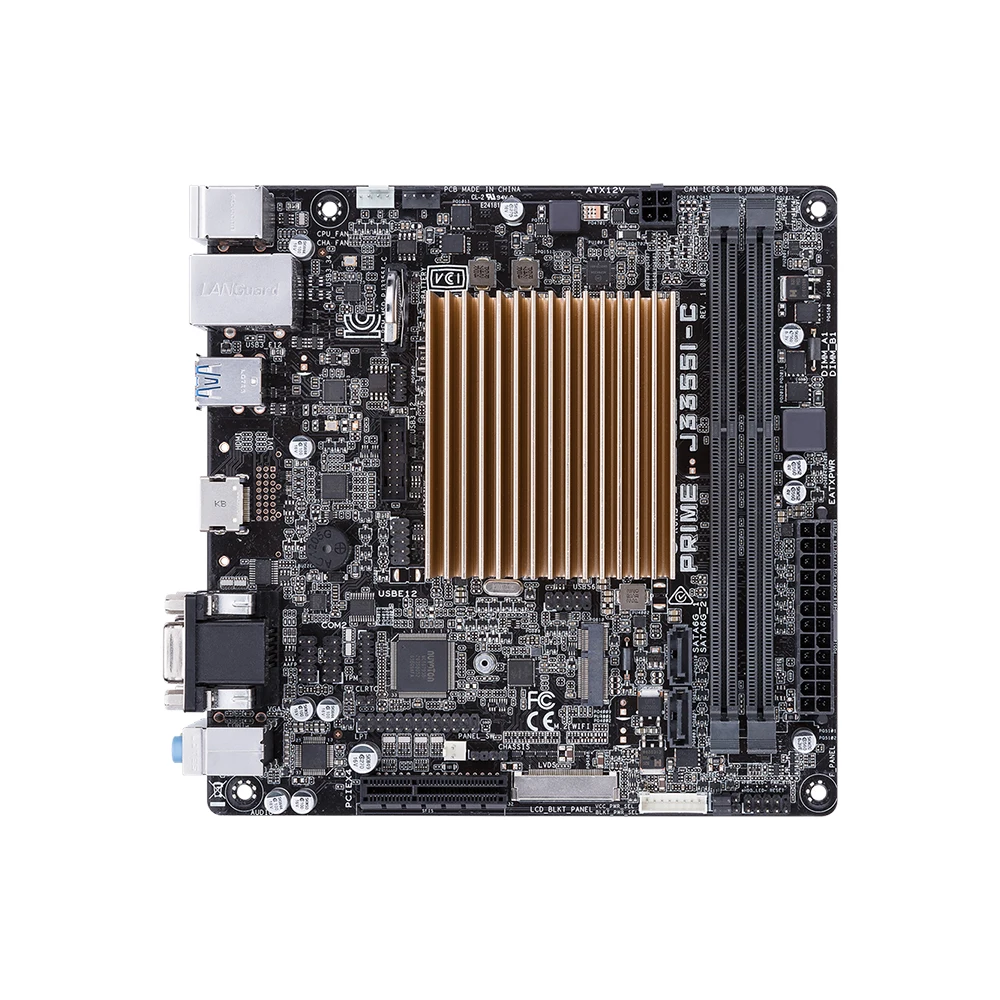

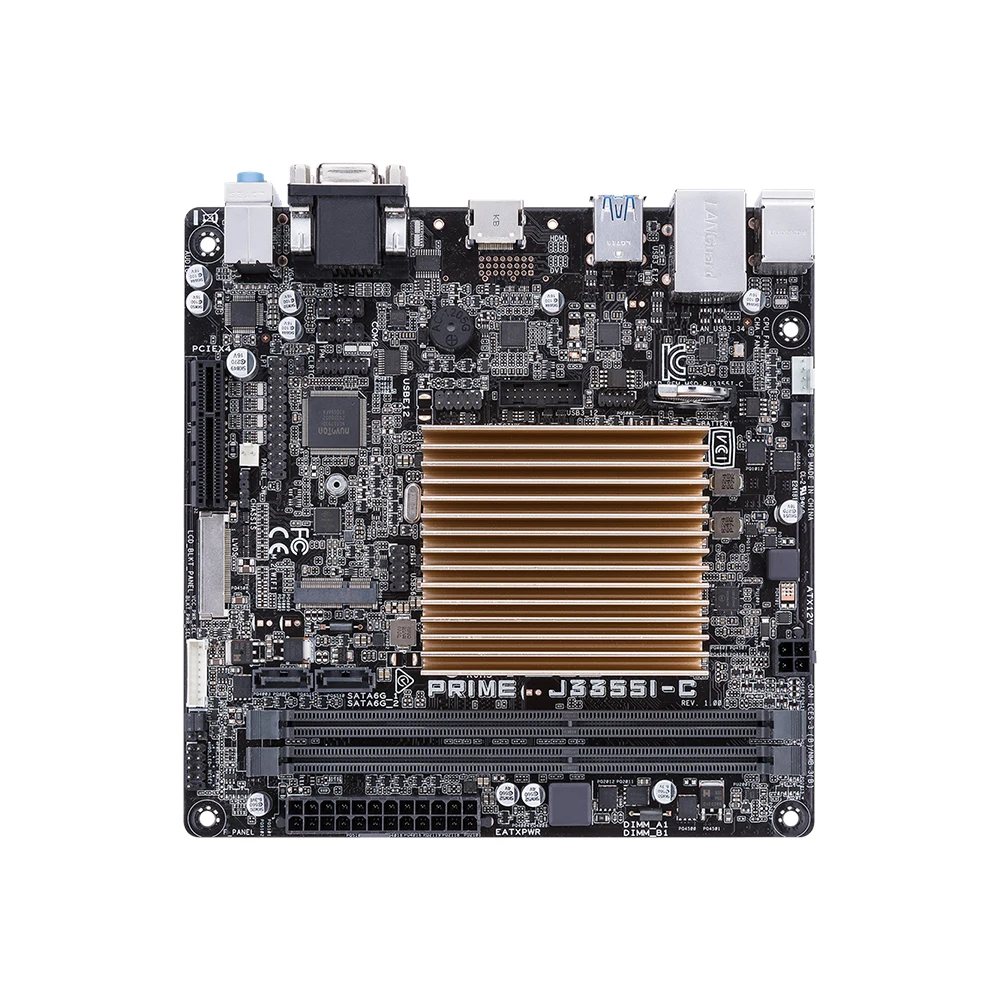

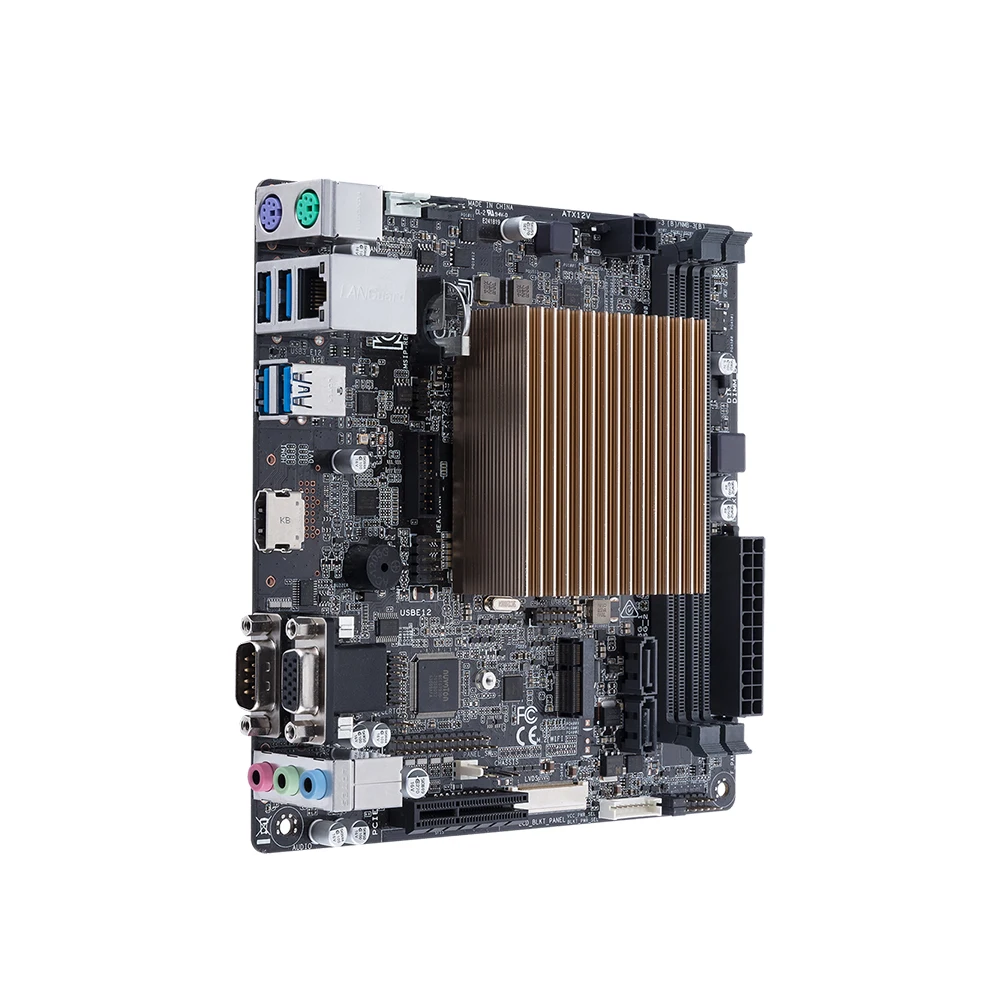

ASUS PRIME J3355I-C
Low Power Fan-less Mini-ITX Motherboard for Intel Celeron Soc J3355 Processors With HDMI/D-Sub/LVDS Support
5X Protection II – Advanced hardware safeguards for all-around protection
Fan Xpert：Dedicated CPU and case fan controls
New UEFI BIOS and EZ Mode：Friendlier, easier, and more intuitive with helpful info added
Fan Xpert: Active Quiet & Cool
CPU :
Intel Celeron Dual-core Processor J3355
Memory:
2 x U-DIMM, Max. 16GB, DDR3 and DDR3L 1866/1600/1333 MHz, nonECC, un-buffered MemoryDual-channel memory architecture
* The default memory operation frequency is dependent on its Serial PresenceDetect (SPD), which is the standard way of accessing information froma memory module. Under the default state, some memory modules foroverclocking may operate at a lower frquency than the vendor-marked value.
** Due to the chipset limitation, we recommend that you use single-sided 4GB or8GB, or double-sided 8GB DDR3 memory module per DIMM slot. The maximumcapacity of the two DIMM slots is 16GB.
Expansion slots :
1 x PCI Express x4 slot (@x1 mode)
Storage:
Intel® Celeron Dual-core Processor:
- 2 x SATA 6.0Gb/s connectors
- 1 x M.2 Socket 3 with E Key, type 2230 Wi-Fi/BT devices support
