motherboard chip
Integrated Chip Sound Card/Network Card
Main Chipset Intel H61
Chipset description Adopt Intel H61 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC662 6-channel audio chip
Network card chip Onboard Realtek RTL8111C Gigabit network card
Processor Specifications
CPU type Core i7/Core i5/Core i3
CPU socket LGA 1155
CPU description Support Intel 22/32nm processor
memory specification
Memory type 2×DDR3 DIMM
Maximum memory capacity 16GB
Memory description Support dual-channel DDR3 1600/1333/1066MHz memory
storage expansion
PCI-E standard PCI-E 3.0 standard
PCI-E slot 1×PCI-E X16 graphics card slot
1 x PCI-E X1 slot
Storage interface 4×SATA II interface

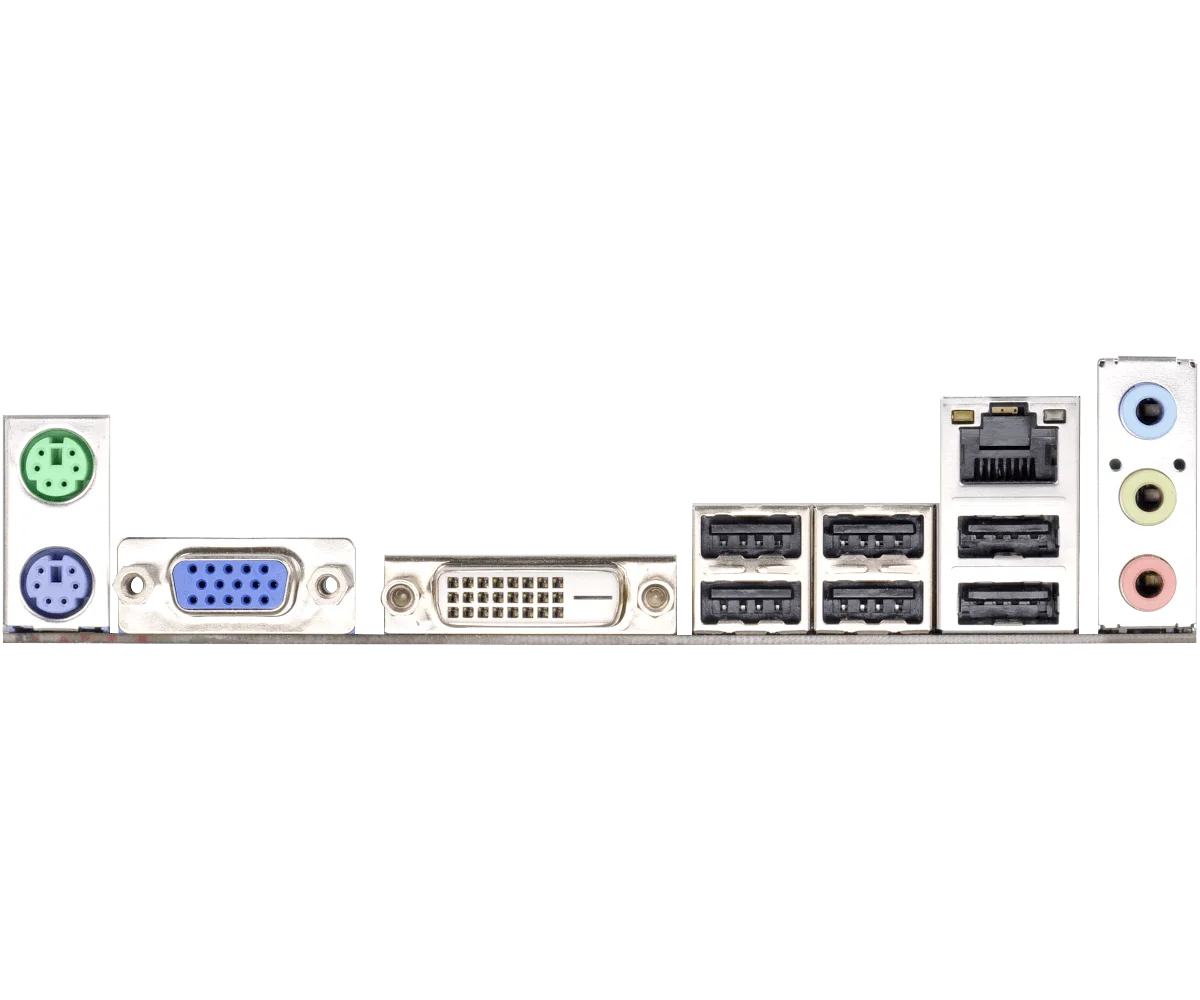

I/O interface
USB interface 10×USB2.0 interface (4 built-in + 6 backplane)
Video interface 1×DVI interface
1 x VGA interface
Power interface One 4-pin, one 24-pin power interface
Other interfaces 1×RJ45 network interface, audio interface, PS/2 mouse, PS/2 keyboard interface
plate type
Motherboard form factor Micro ATX form factor
Dimensions 22.6×17.3cm
