Motherboard chip
Integrated chip sound card/network card
Main chipset Intel X299
Chipset description Intel X299 chipset is used
Display chip CPU Built-in display chip (CPU support required)
Audio chip integrated with Realtek ALC1220 8-channel sound chip
Nic chip Intel I219V Gigabit NIC on board
Processor specification
CPU Type Core X-series
CPU slot LGA 2066
Memory specification
Memory Type 8 x DDR4 DIMMs
The maximum memory capacity is 128GB
Memory Description Supports quad-channel DDR4 4400 + (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3200 (OC) / 2933 (OC) / 2800 (OC) / 2666/2400/2133 MHZ memory
Storage expansion
PCI-E Standard PCI-E 3.0
PCI-E slot 4 x PCI-E X16 video card slot, 1 x PCI-E X1 slot
Storage ports 3 x M.2 ports, 8 x SATA III ports
I/O interface

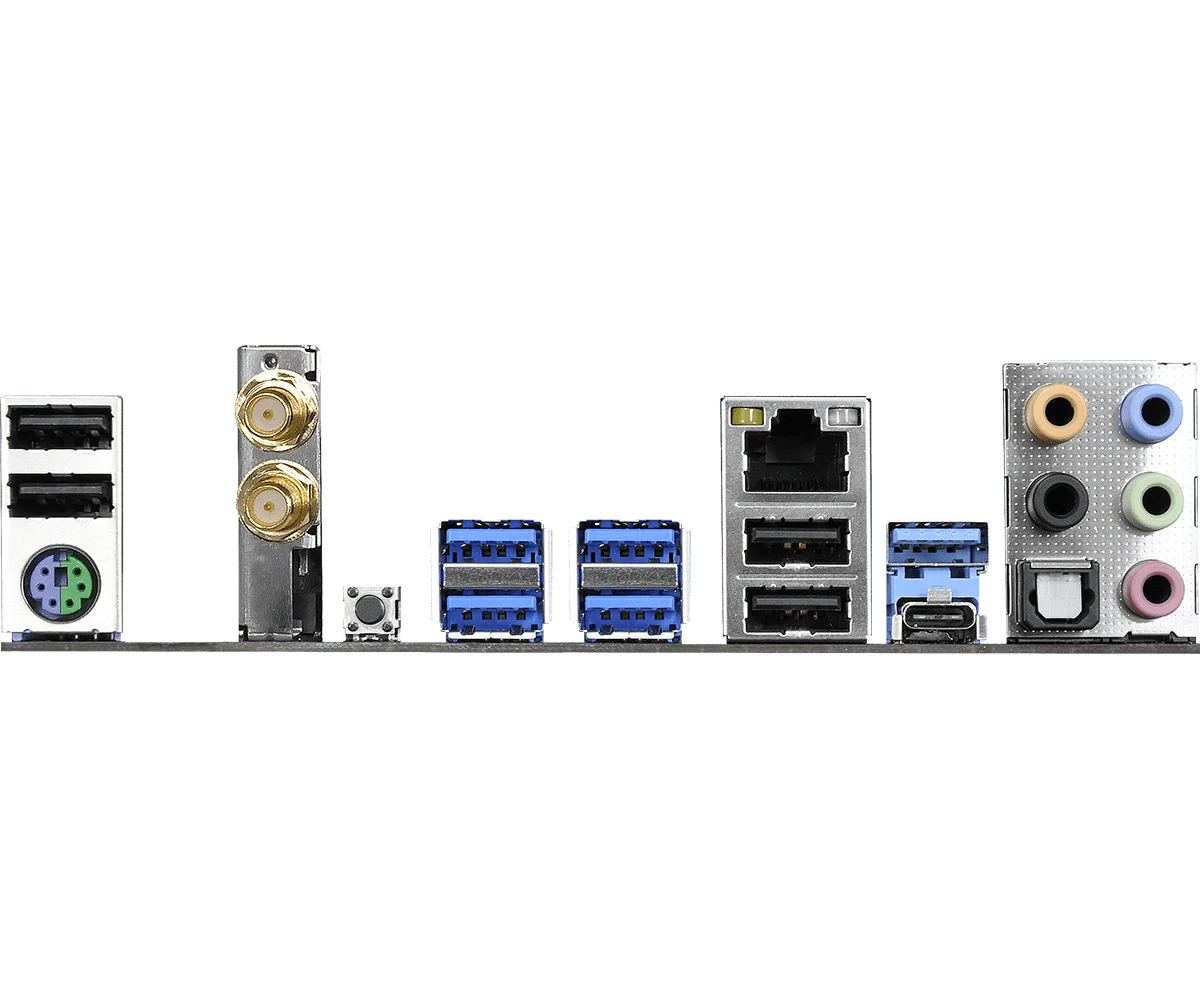

USB port 1 x USB3.1 Type-A port, 1 x USB3.1 Type-C port, 6 x USB3.0 (2 built-in +4 backplane), 10 x USB2.0 port (6 built-in +4 backplane)
One 8-pin power port and one 24-pin power port
Other ports 1 x RJ45 network port, 1 x optical fiber port, 5 x audio port, 1 x CPU fan port, 1 x CPU option/pump fan port, 2 x Chassis fan port, 1 x Chassis option/pump fan port, 1 x front panel audio port, 2 x antenna port, 1 x PS/2 general purpose port
Plate cut
Main board type ATX board type
Overall dimensions 30.5×24.4cm
