motherboard chip
Integrated Chip Sound Card/Network Card
Main chipset AMD 760G
Chipset Description AMD 760G North Bridge + SB710 South Bridge chipset
Audio chip Integrated Realtek ALC887 8-channel audio chip
Network card chip Onboard Realtek RTL8111E Gigabit network card
Processor Specifications
CPU type AMD FXPhenom II/Athlon II/Sempron 100
CPU socket Socket AM3/AM3+
CPU description Support AMD 125W processor
memory specification
Memory type 2×DDR3 DIMM
Maximum memory capacity 16GB
Memory description Support dual-channel DDR3 2000 (overclocking) / 1866 (overclocking) / 1800 (overclocking) / 1600 (overclocking) / 1333/1066MHz memory
storage expansion
PCI-E standard PCI-E 2.0
PCI-E slot 1×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
PCI slot 3×PCI slot
Storage interface 6×SATA II interface
I/O interface
USB interface 10×USB2.0 interface (6 built-in + 4 backplane)
Power interface One 4-pin, one 24-pin power interface

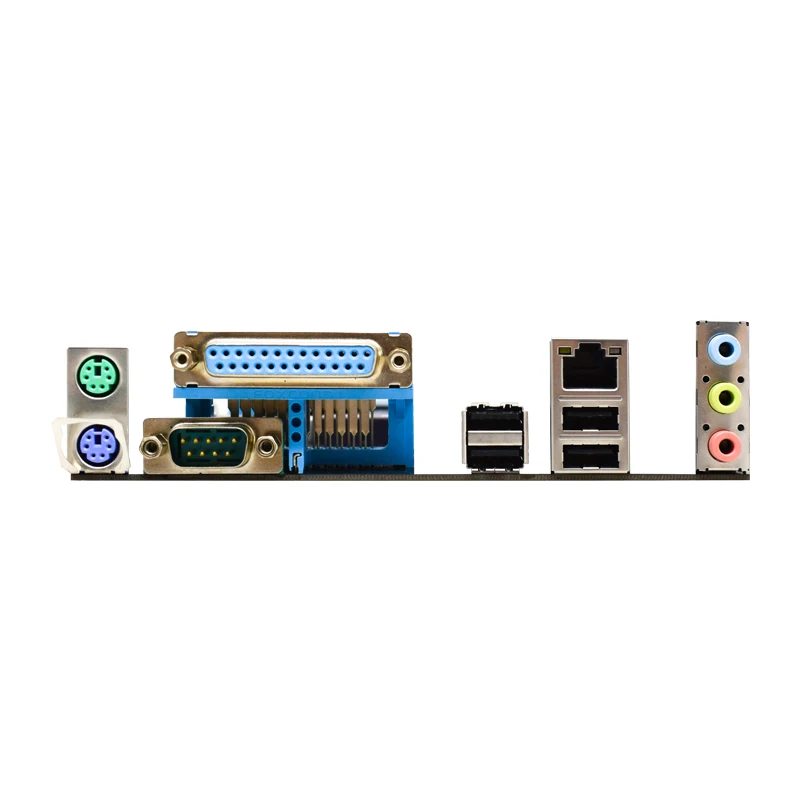

Other interfaces 1×RJ45 network interface, audio interface, PS/2 mouse, PS/2 keyboard interface
plate type
Motherboard form factor ATX form factor
Dimensions 30.5×20.3cm
