Motherboard chip
Integrated chip sound card/network card
Main chipset Intel H310
Chipset description Using Intel H310 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC887 8-channel audio chip
Network card chip Onboard Realtek RTL8111H Gigabit network card
Processor specifications
CPU type 8th generation Core i7/i5/i3/Pentium/Celeron

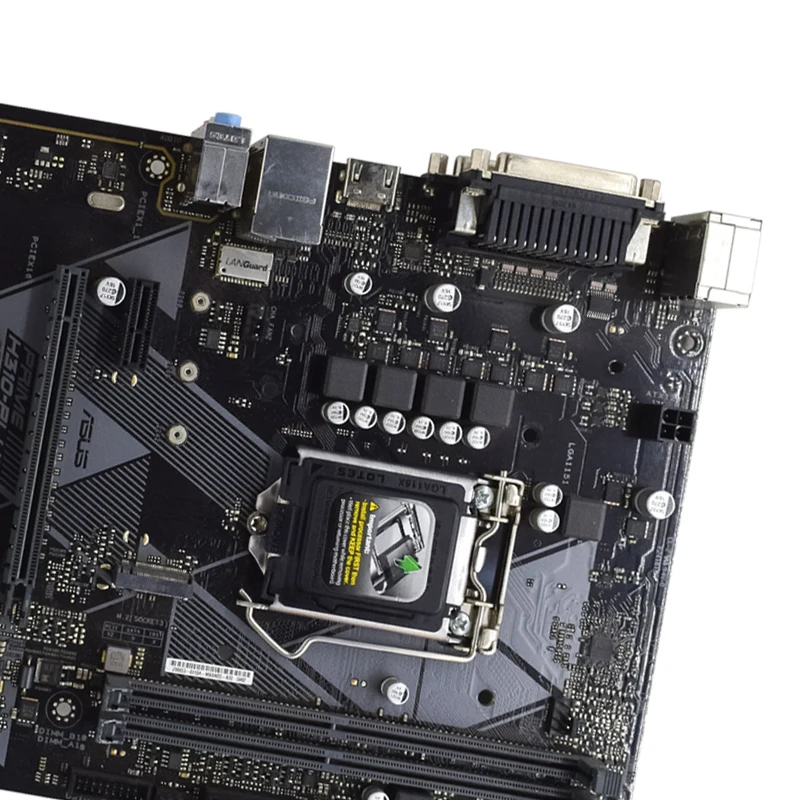

CPU socket LGA 1151
CPU description Support Intel 14nm processor
Support Intel Turbo Boost 2.0 technology
Memory specifications
Memory type 2×DDR4 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR4 2666/2400/2133MHz memory
Storage expansion
PCI-E standard PCI-E 3.0

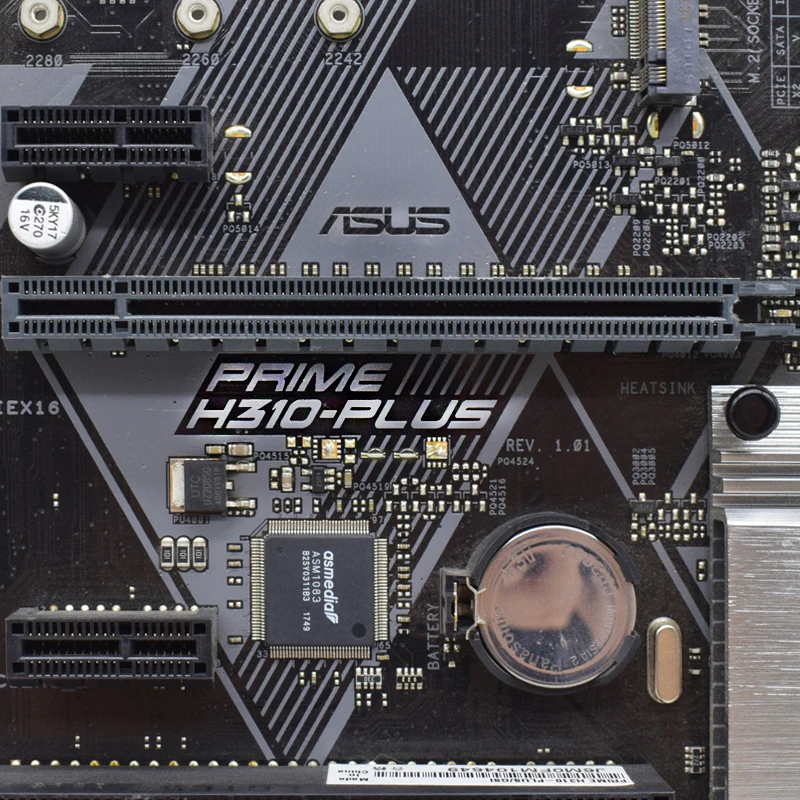

PCI-E slot 1×PCI-E X16 graphics card slot, 2×PCI-E X1 slot

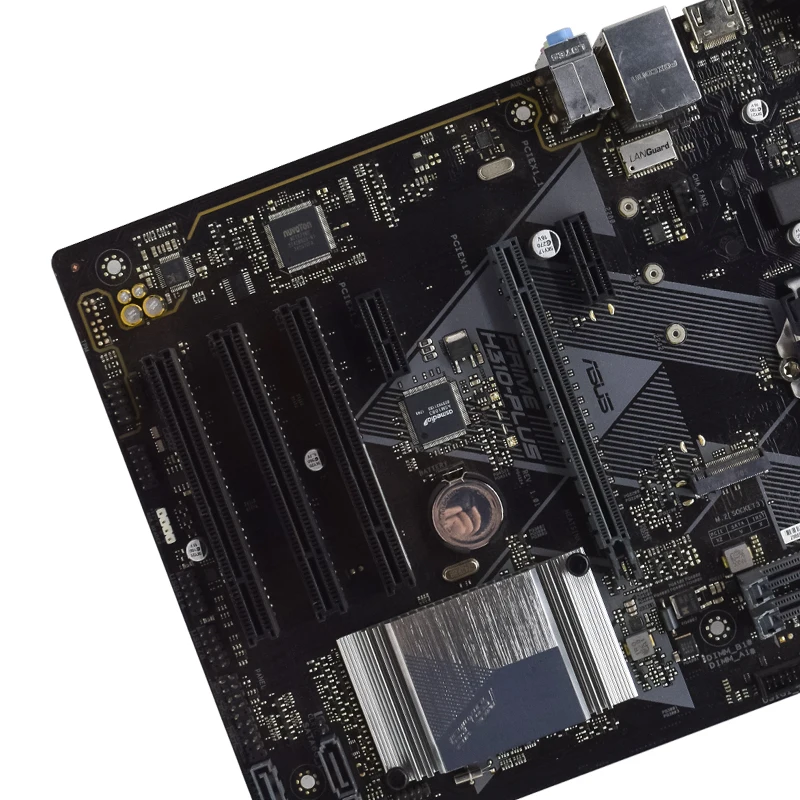

PCI slot 3 × PCI slot
Storage interface 1×M.2 interface, 4×SATA III interface

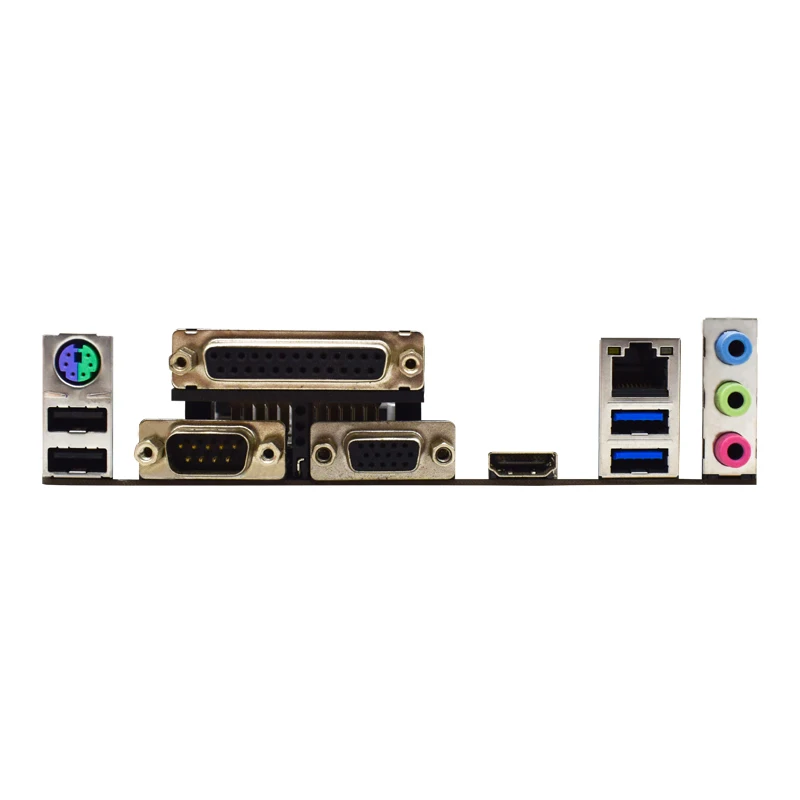

I/O interface
USB interface 4 × USB3.1 Gen1 interface (2 built-in + 2 backplane), 6 × USB2.0 interface (4 built-in + 2 backplane)
Video interface 1×VGA port, 1×HDMI port
Power connector One 4-pin, one 24-pin power connector
Other interfaces
1×RJ45 network interface, 3×audio interface, 1×COM serial port, 1×RGB light bar interface, 1×front panel audio interface (AAFP), 1×system panel interface, 1×PS/2 keyboard and mouse universal interface, 2 ×Chassis fan interface

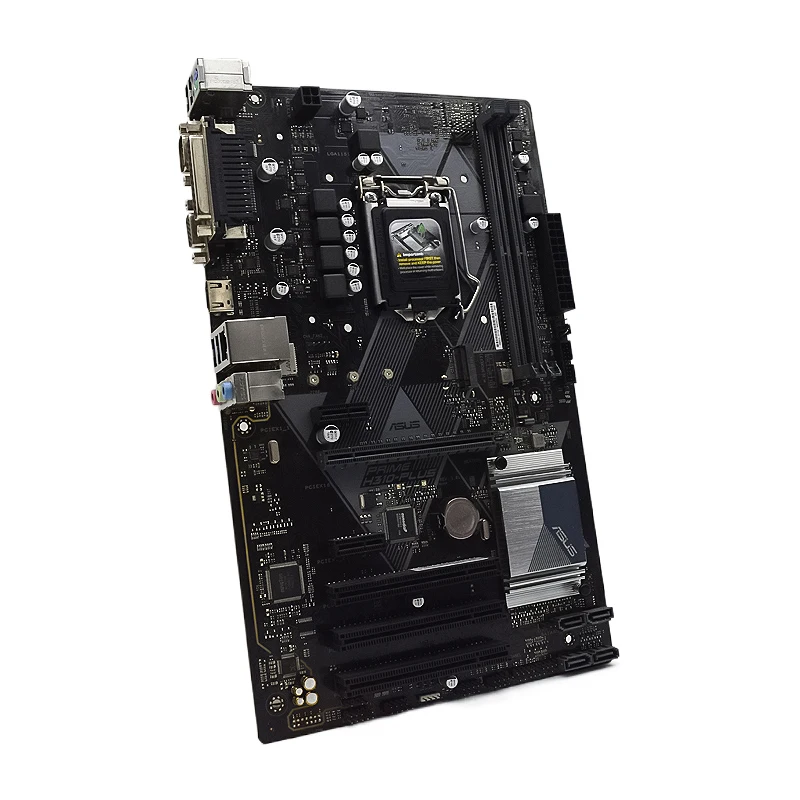

Board type
Motherboard board type ATX board type
Dimensions 30.5×19.1cm
