Model
Pro WS C246-ACE
CPU
Intel® Socket 1151For Xeon® E-2200/E-2100 family9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors,* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Build in Intel® C246
Memory
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,4 x DIMM, Max. 128GB, DDR4 2666/2400/2133 MHz ECC and non-ECC Memory,Dual Channel Memory Architecture,Supports Intel® Extreme Memory Profile (XMP),* The maximum memory frequency supported varies by processor,** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.,ECC Memory (ECC mode) support varies by CPU.

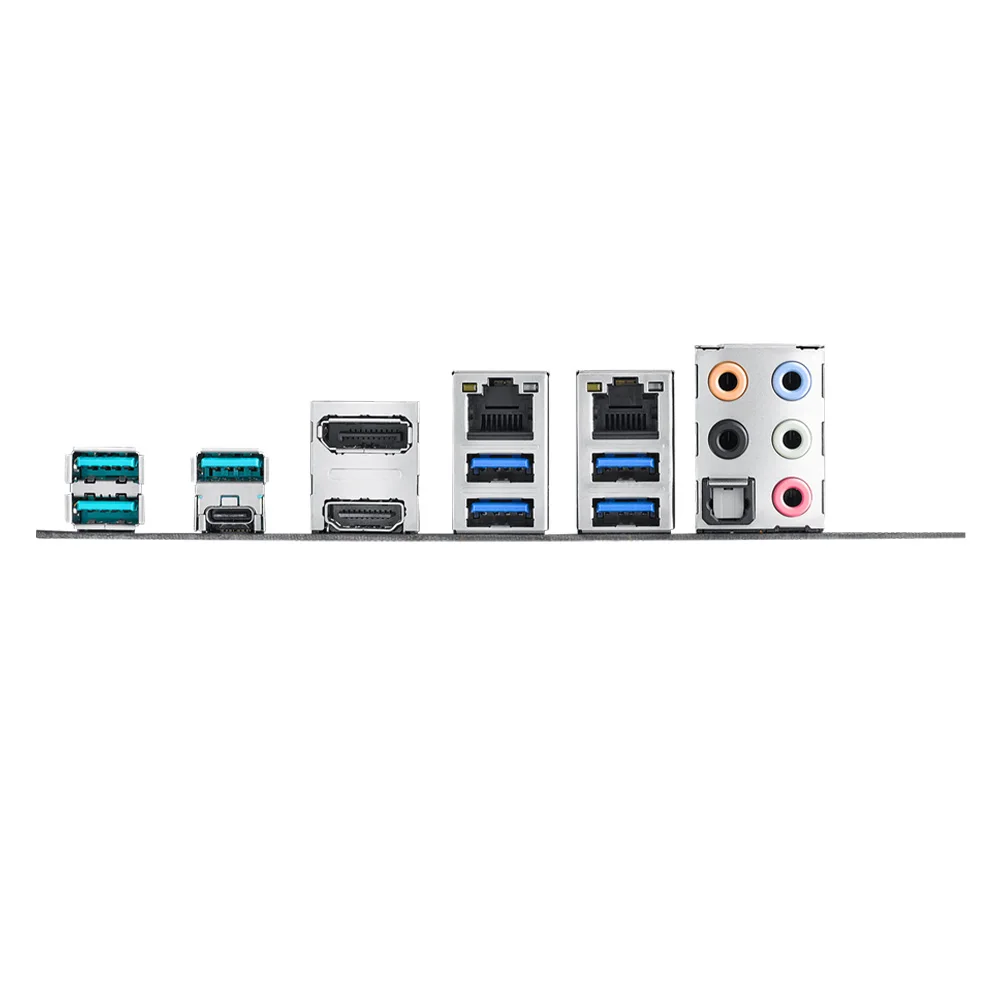

Back I/O Ports
1 x DisplayPort,1 x HDMI,2 x LAN (RJ45) port(s),3 x USB 3.1 Gen 2 (teal blue)Type-A,,1 x USB 3.1 Gen 2 Type-C,4 x USB 3.1 Gen 1 (blue),1 x Optical S/PDIF out,5 x Audio jack(s)
Form Factor
ATX Form Factor,12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
