motherboard chip
Integrated chip sound card/network card
Main Chipset Intel B85
Chipset Description Using Intel B85 Chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC887 8-channel sound chip
Network card chip Onboard Realtek RTL8111GR Gigabit network card
Processor Specifications
CPU Type Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1150
CPU description Support Intel 22nm processor
Memory Specifications
Memory type 2×DDR3 DIMM
Maximum memory capacity 16GB
Memory description Support dual-channel DDR3 1600/1333MHz memory
storage expansion
PCI-E Standard PCI-E 3.0
PCI-E slot 3×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 4 x SATA III interface, 2 x SATA II interface
I/O interface
USB interface 4 × USB3.0 interface (2 built-in + 2 backplane), 8 × USB2.0 interface (4 built-in +4 backplane)
Video interface 1 × VGA interface, 1 × DVI interface
Power connector One 8-pin, one 24-pin power connector
Other ports 1×RJ45 network port, audio port, 1×PS/2 mouse, 1×PS/2 keyboard port
plate type
Mainboard form factor ATX form factor

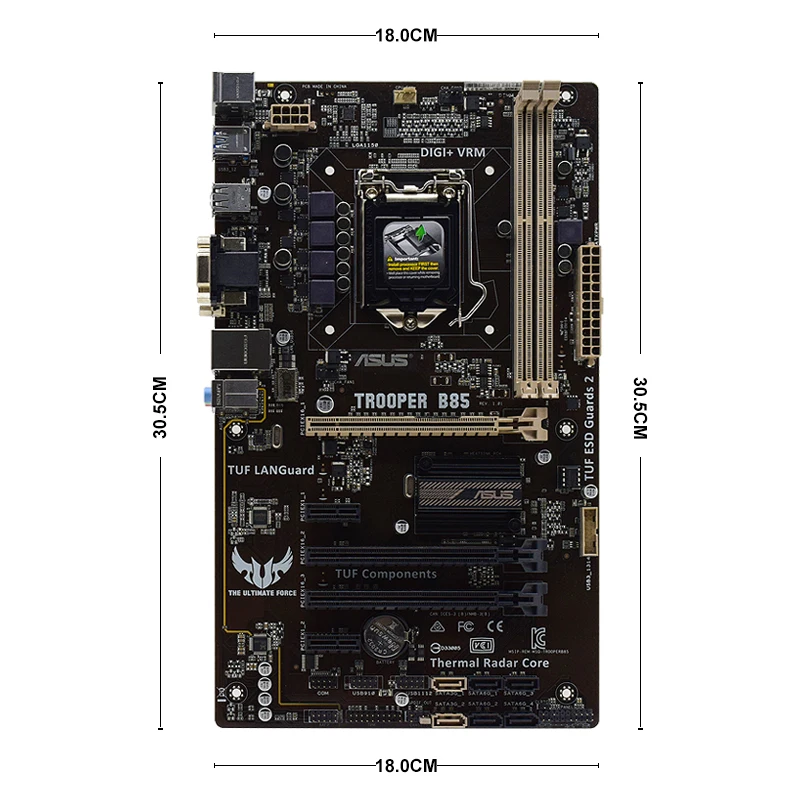

Dimensions 30.5×18.0cm
