1st. product description

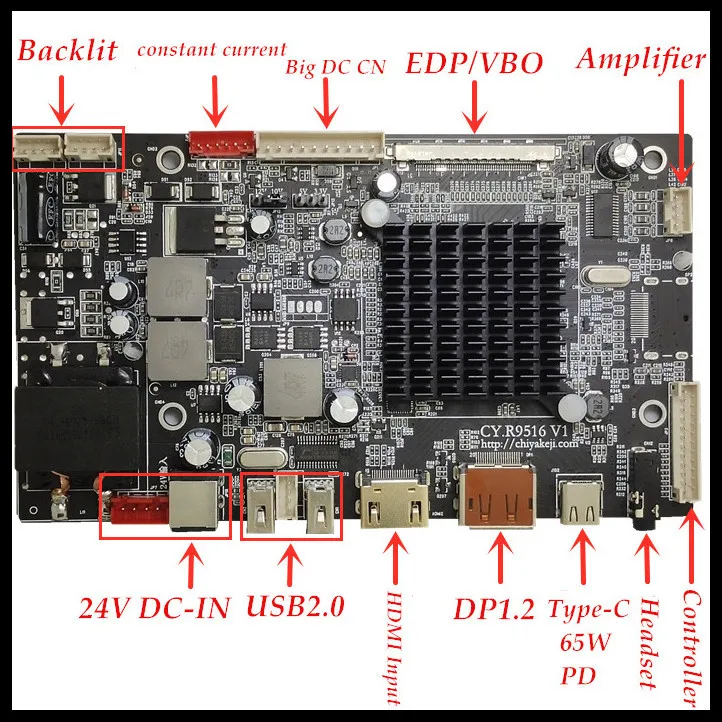

R9516 is a LCD monitor driver board that can support UHD.
Products support VGA, SVGA, XGA, SXGA, uxga, QHD and UHD resolution TFT LCD screens, such as LG, Philips, Samsung, AUO and other brands of UHD LCD.
2nd. Product Features
2.0 supports hdr10 high dynamic range image (HDR). Compared with ordinary image, it can provide more dynamic range and image details. According to LDR (low dynamic range) image with different exposure time, the final HDR image is synthesized by using the LDR image with the best detail corresponding to each exposure time, It can better reflect the visual effect in the real environment
2.1 support the freesync 2 technology of AMD graphics card to improve the image tearing and image quality
2.2 HDMI interface supports hdmi2.0 protocol and supports hard decoding 4K@60HZ signal
2.3 DP interface supports dp1.1 and dp1.2 protocols, and dp1.2 supports hard decoding 4K@60HZ Signal, and support DP ring connection function at the same time

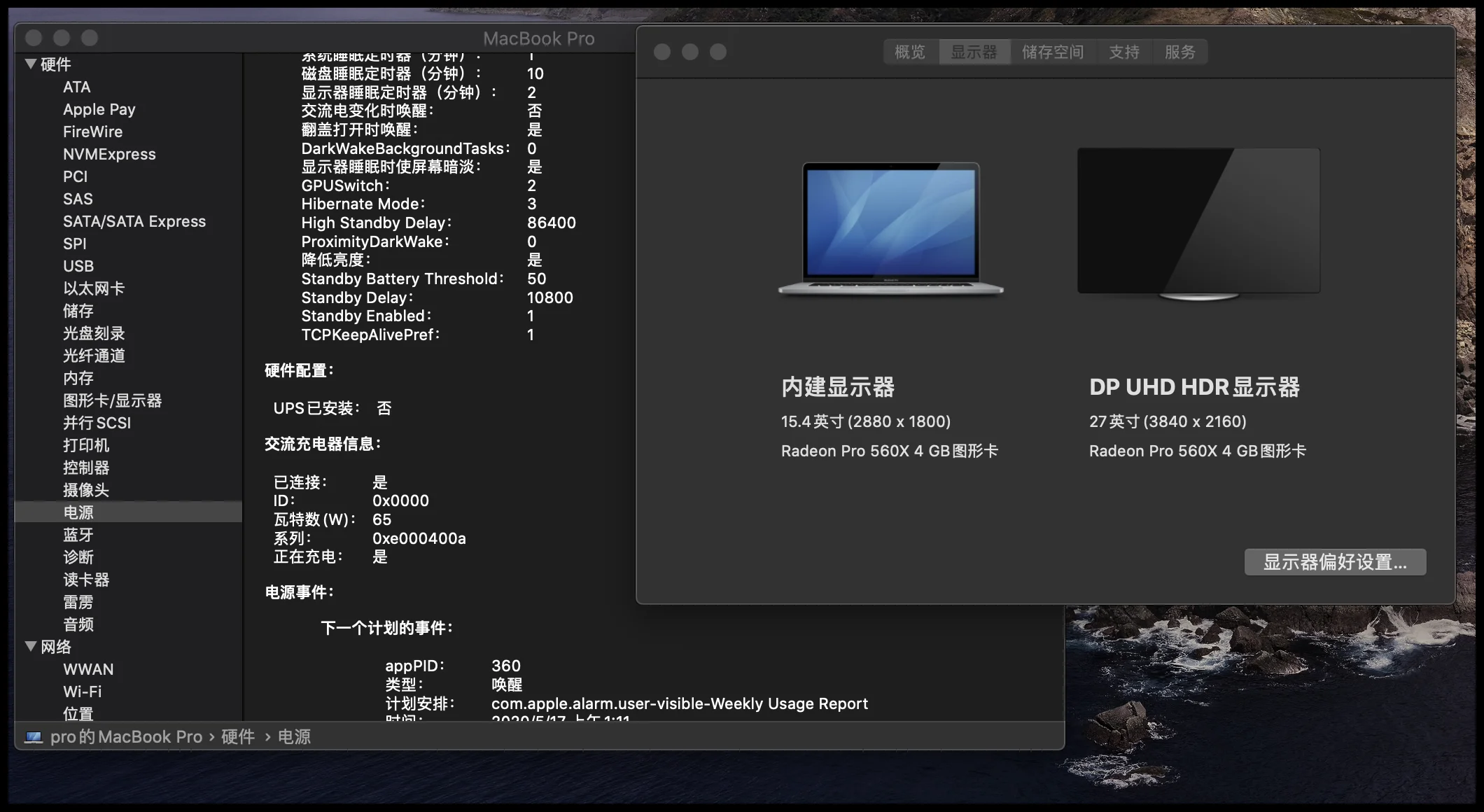

2.4 support type-C mobile phone screen display (mobile phone needs mobile phone to support screen display function), 65W PD fast charging, type-C interface supports MacBook input 4K resolution
2.5 supports USB2.0 (this function is to connect the mouse and keyboard during type-C input)
2.6 the screen supports 180 degrees of rotation
These are the Panels was tested compatible with.
For more models compatibility please contact us
LM215UH1-SPA1、LTM236FL01、LM238WR2-SPA1、LM238WR3-SSB1、MV238QUM-N20、M238DCJ-E50、MV270QUM-N20、M270QAN01.0、M270QAN02.0、LM270WR2-SPA1、LM270WR3-SSA1、LM270WR6、G270ZAN01.0、LM315WR1-SSA1、M320QAN01.0、LTM340YP01、LM340UW1-SSA3、LM340WW2-SSA1、M340AJJ-K1N、M350DVR01.0、LC490EQE-FHP1
Different screen models compatible with different software, The interfaces are different. It can not universal.Please leave us a message when you're purchasing.
Package Including:
1* R9516 Driver Board
1* keyboard plate
1*backlight cable（It depends on the type of screen）
1*Remote control
