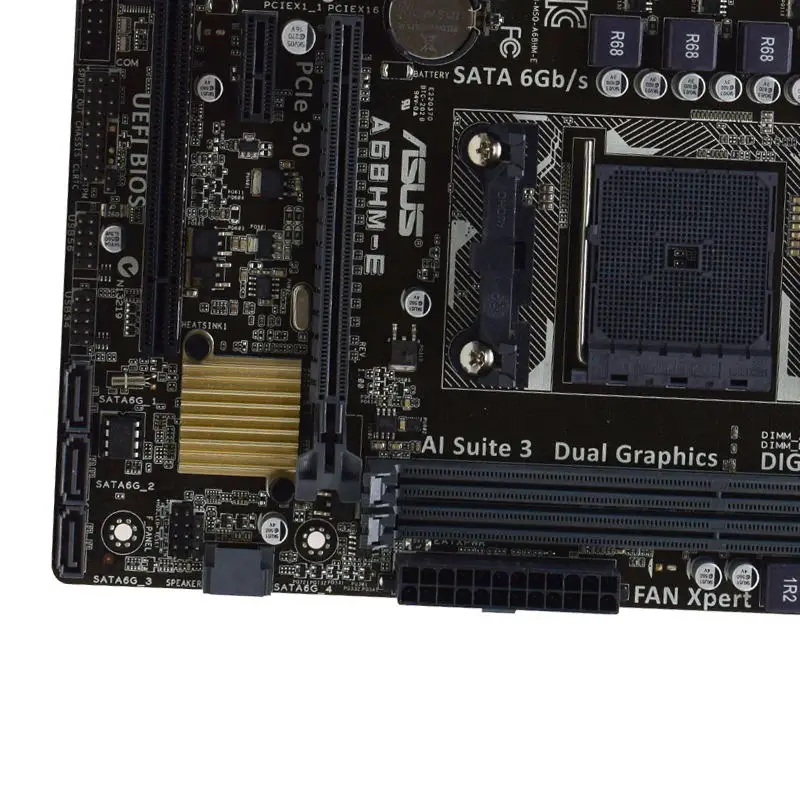

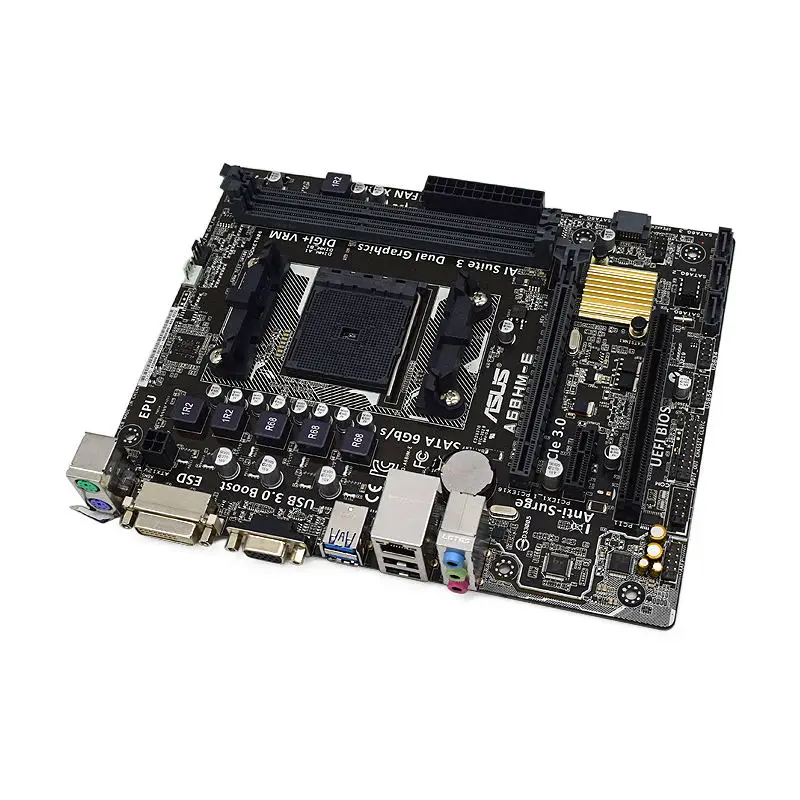

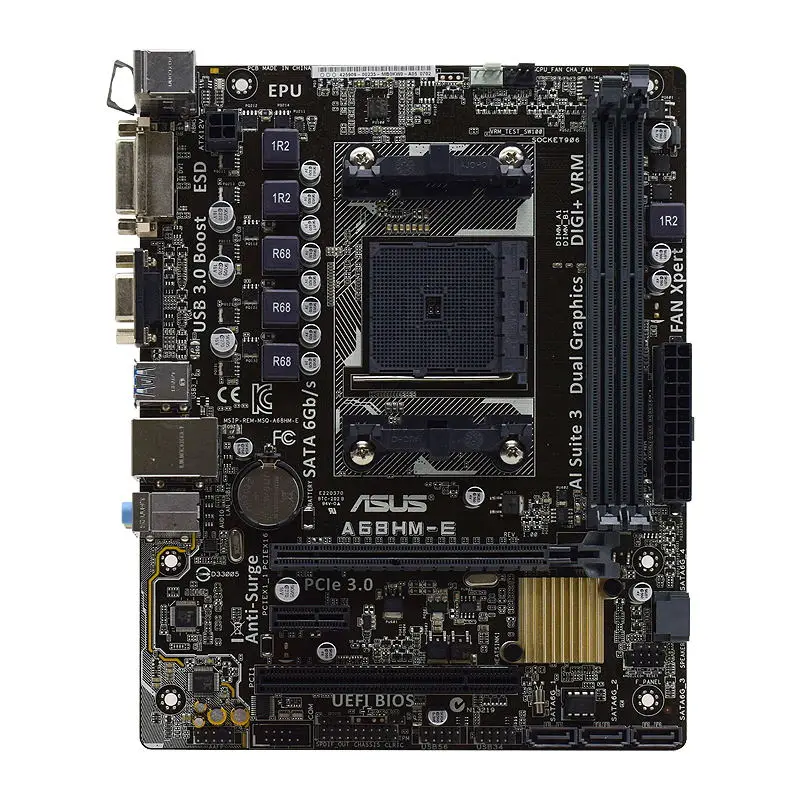

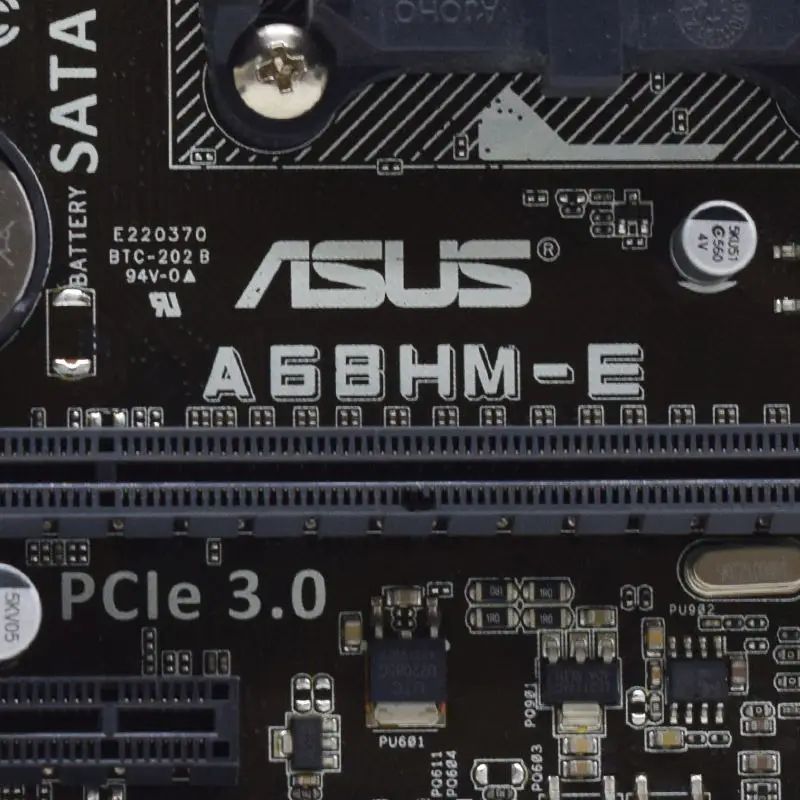

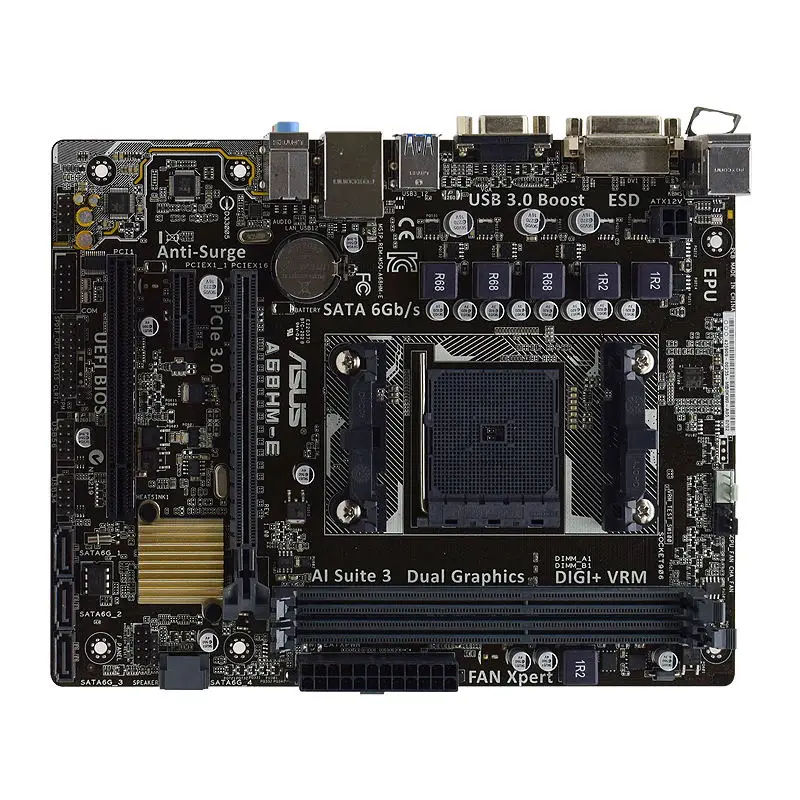

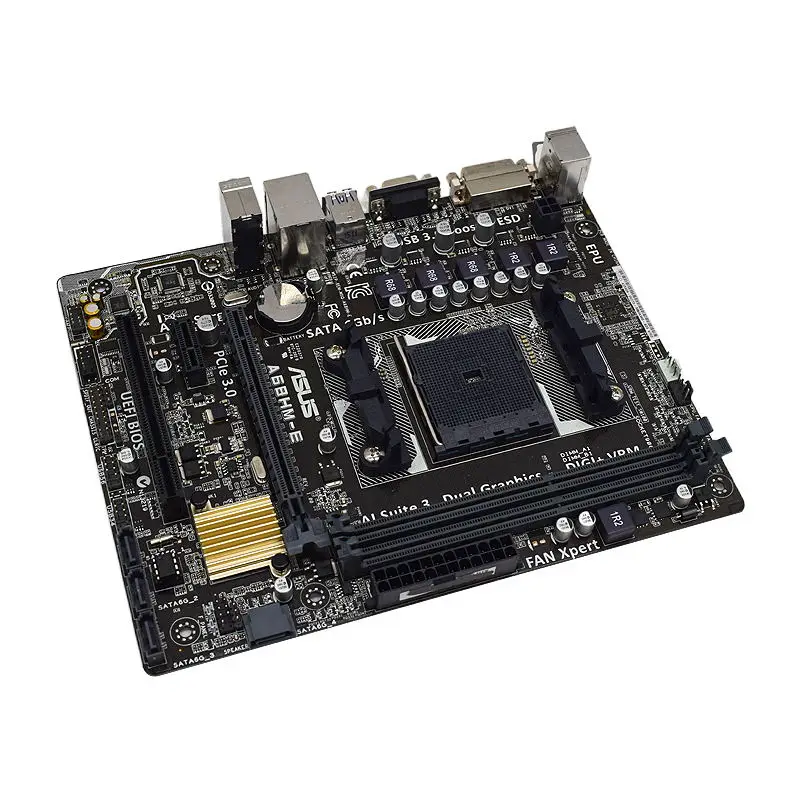

ASUS A68HM-E AMD A68H Motherboard
FM2/FM2+ Socket for AMD A-Series/Althlon Series Processors Used Mainboard DDR3 32GB Micro ATX
Motherboard chip
Integrated chip sound card/network card
Main chipset AMD A68H
Chipset description Using AMD A68H chipset
Display chip APU built-in display chip (requires APU support)
Audio chip integrated Realtek ALC887 8-channel audio chip
Network card chip Onboard Realtek RTL8111G Gigabit network card
Processor specifications
CPU type AMD A-series/Athlon Series Processor
CPU socket Socket FM2/FM2+
Memory specifications
Memory type 2×DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR3 2400MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics card slot, 1×PCI-E X1 slot
PCI slot 1 × PCI slot
Storage interface 4×SATA III interface

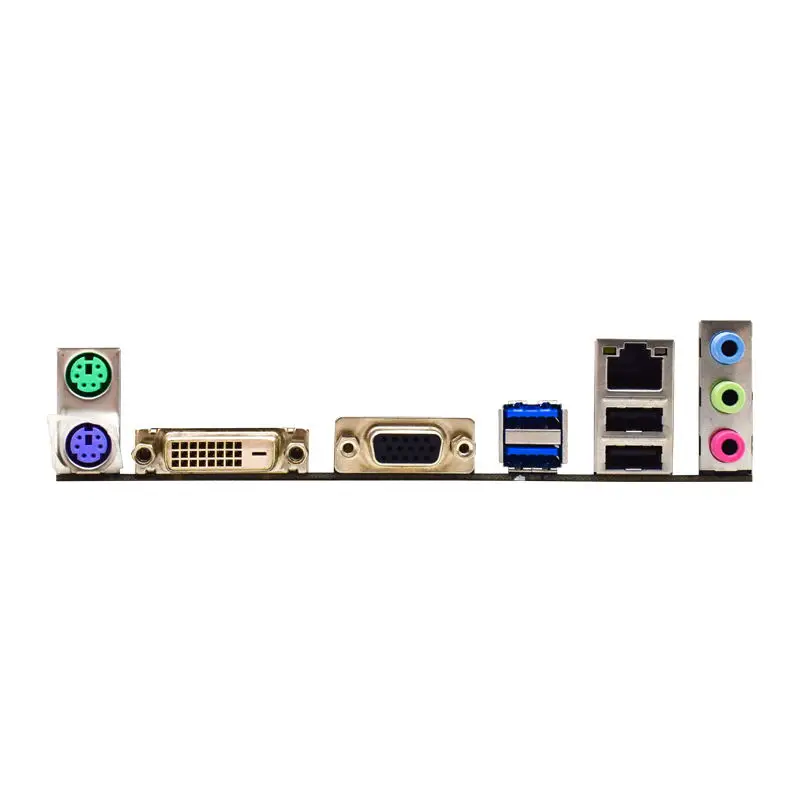

I/O interface
USB interface 2×USB3.0 interface (2 backplane), 6×USB2.0 interface (4 built-in +2 backplane)
Video interface 1×DVI interface
Power connector One 4-pin, one 24-pin power connector
Other interfaces
1×RJ45 network interface, 1×TPM interface, audio interface, 1×PS/2 mouse, 1×PS/2 keyboard interface, 1×COM interface
Plate type
Motherboard type Micro ATX type
Dimensions 22.6×18cm
